Trunk / Liftgate Switch



Component Connector End Views

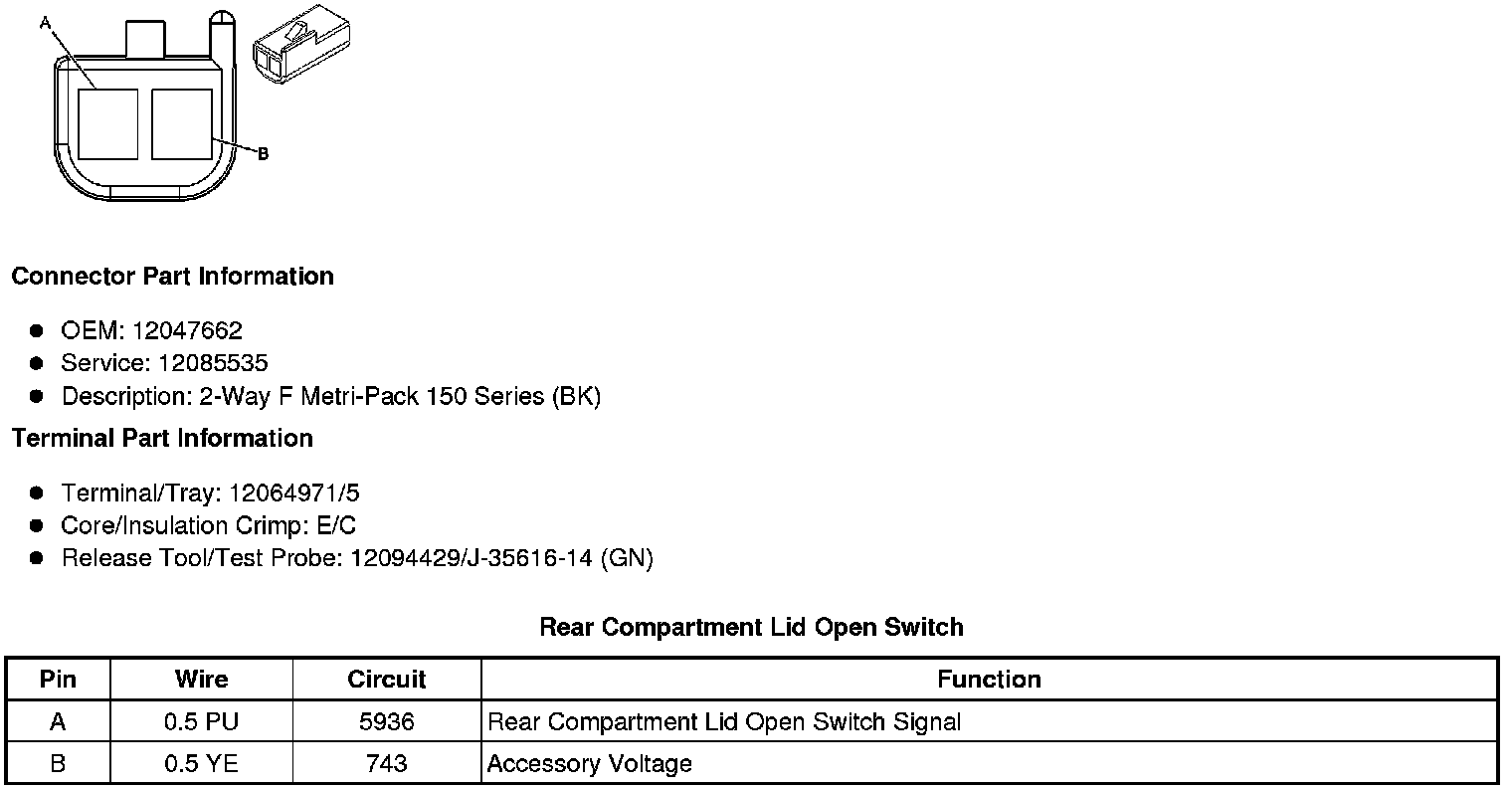

Rear Compartment Lid Open Switch

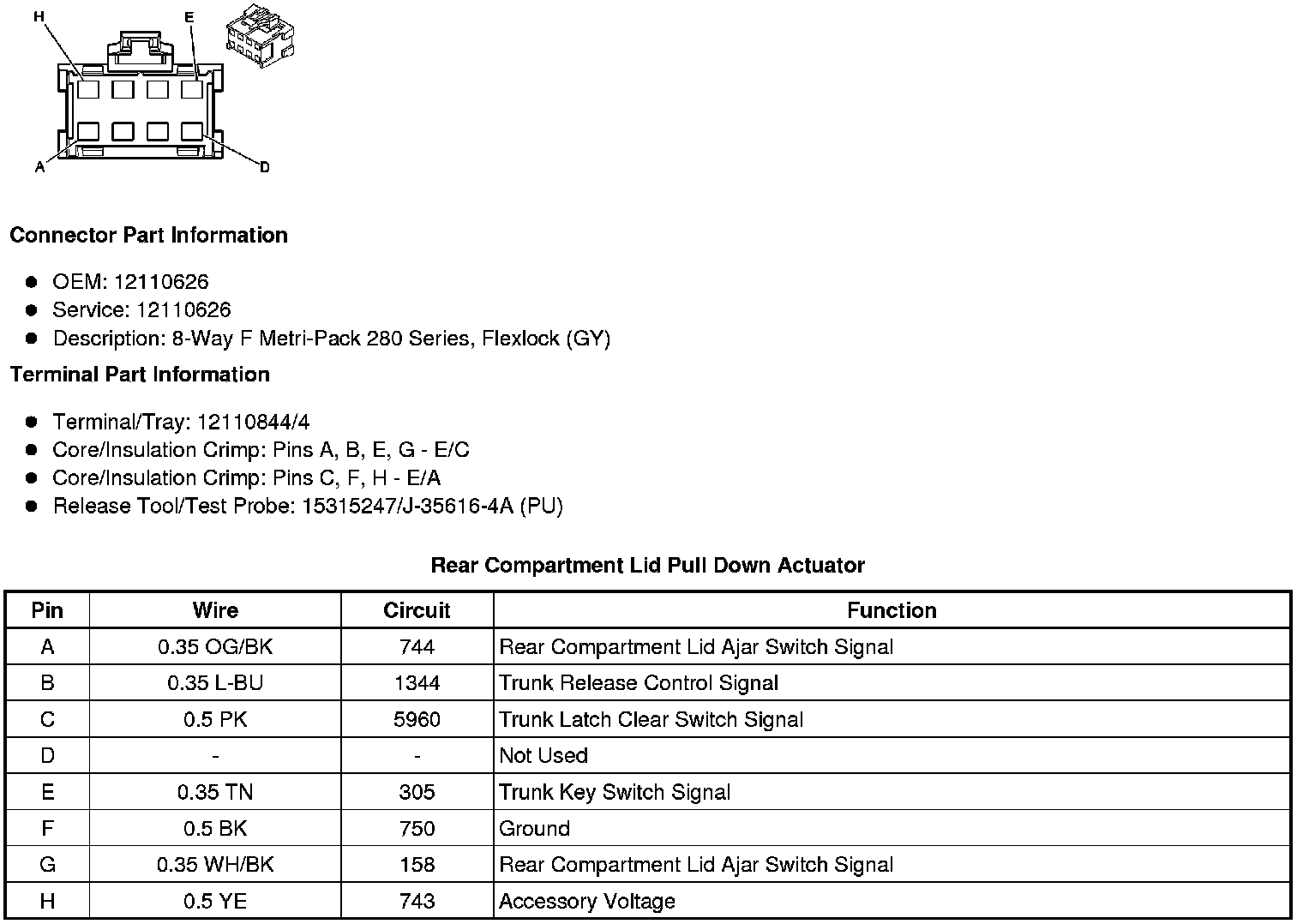

Rear Compartment Lid Pull Down Actuator

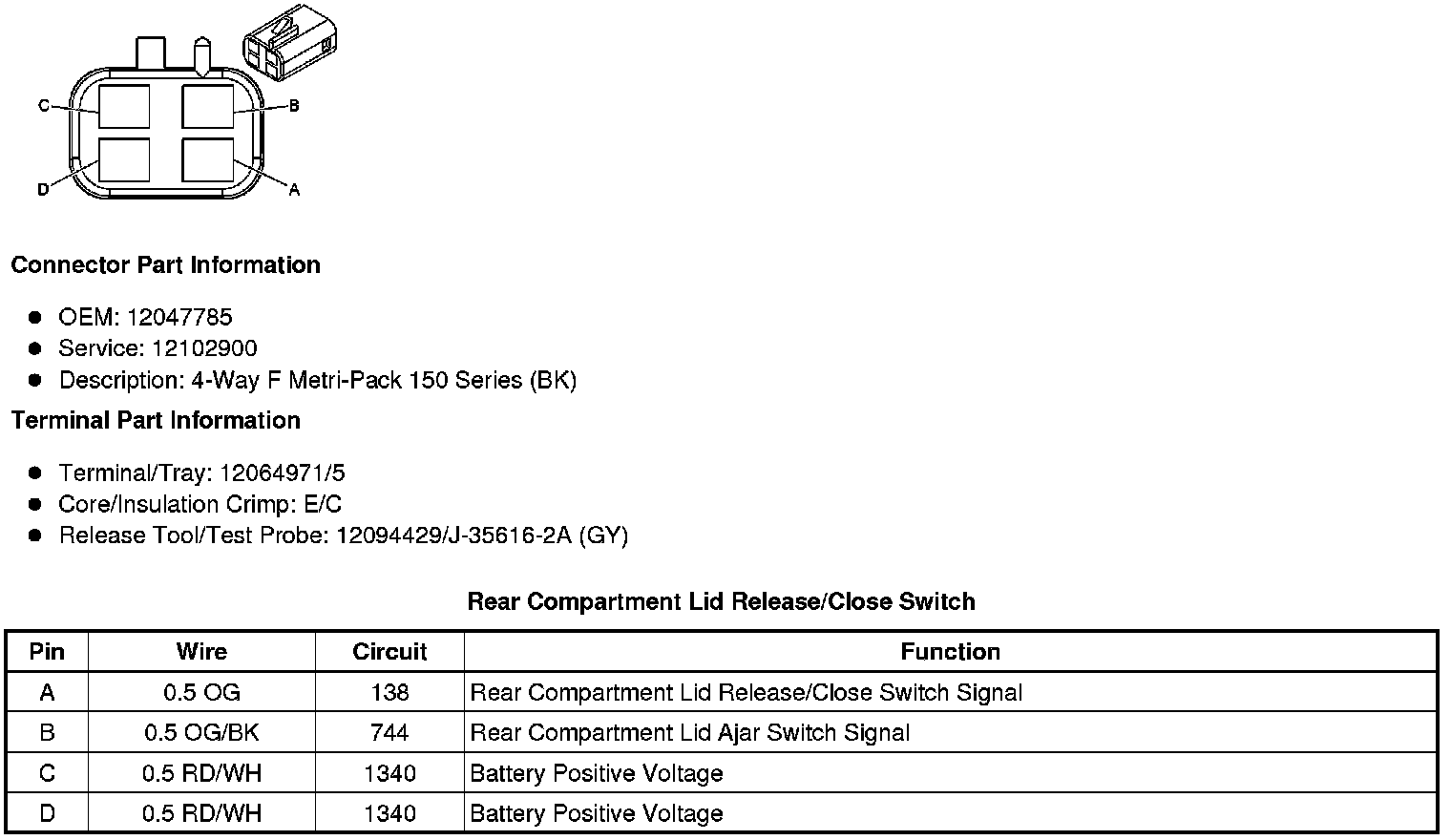

Rear Compartment Lid Release/Close Switch

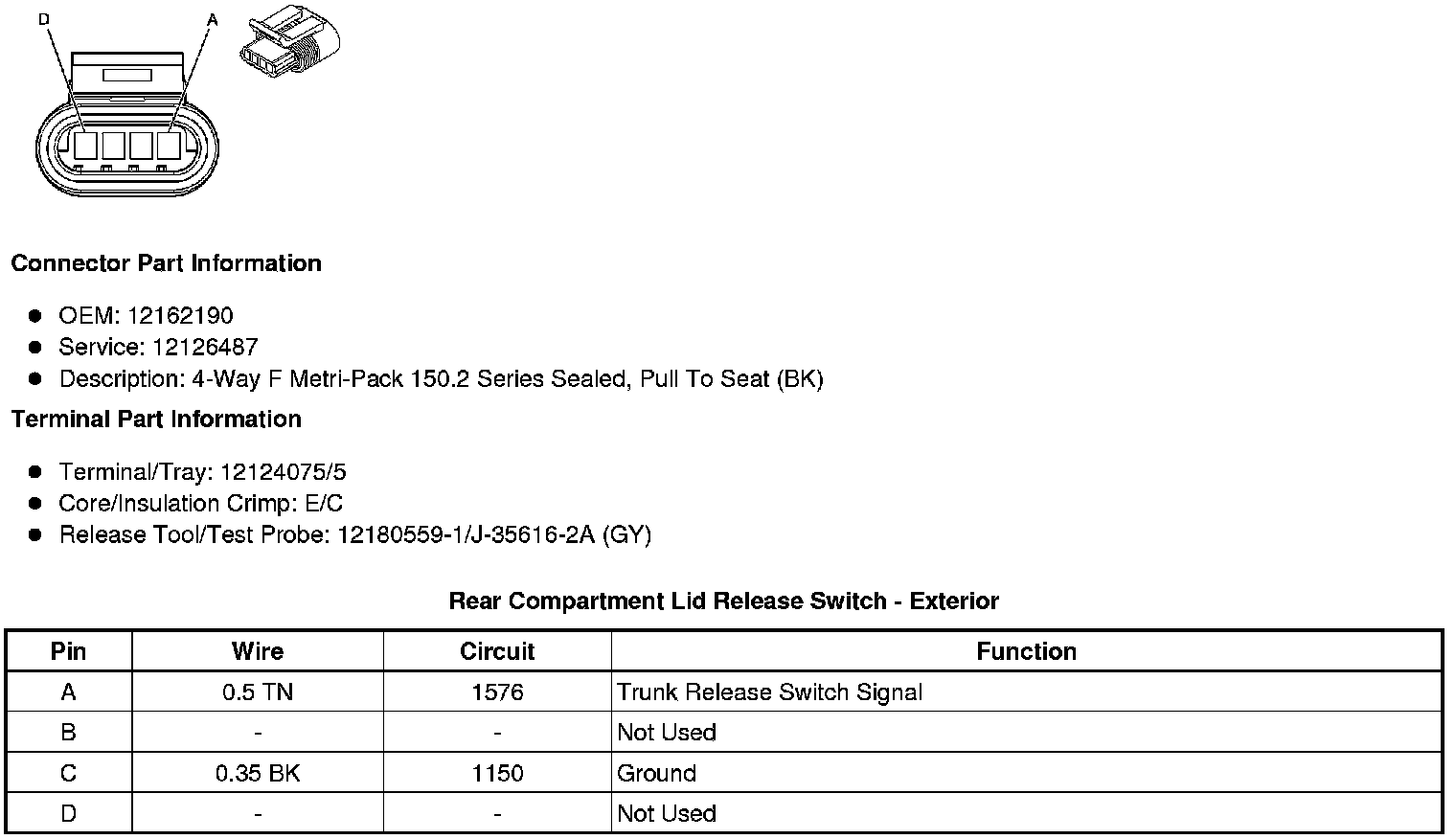

Rear Compartment Lid Release Switch - Exterior

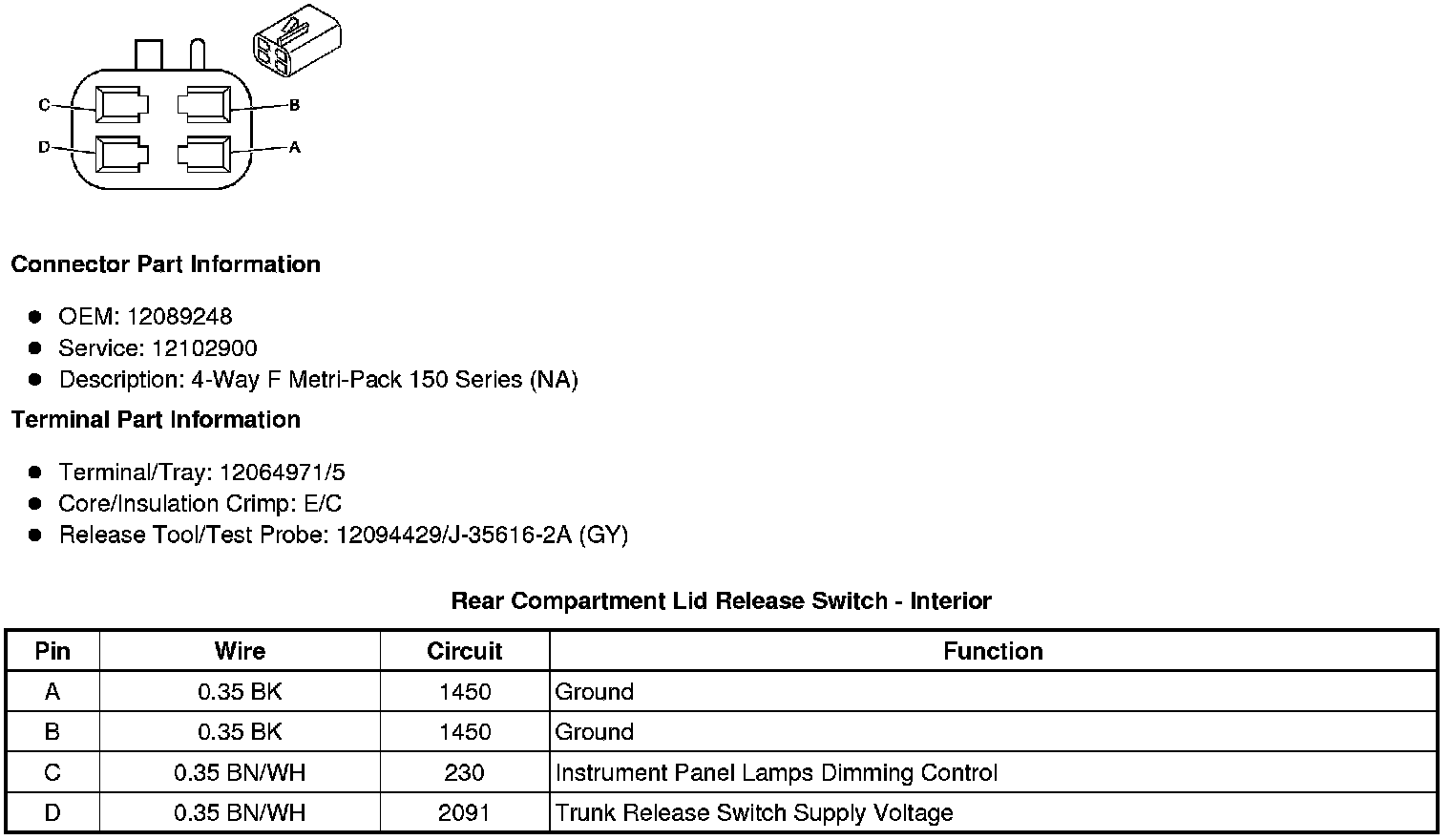

Rear Compartment Lid Release Switch - Interior
