Seat Belt Tensioner



Component Connector End Views

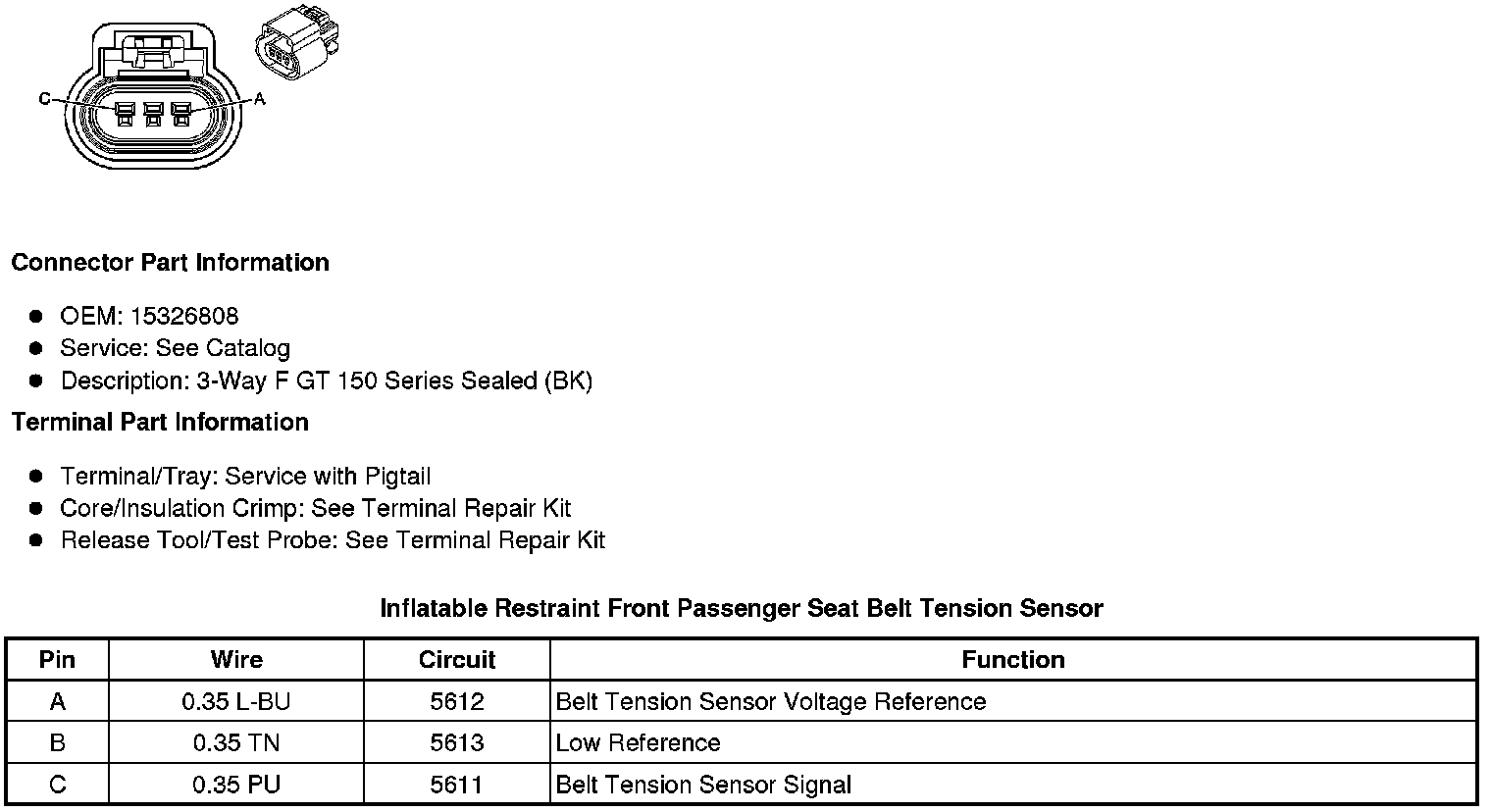

Inflatable Restraint Front Passenger Seat Belt Tension Sensor

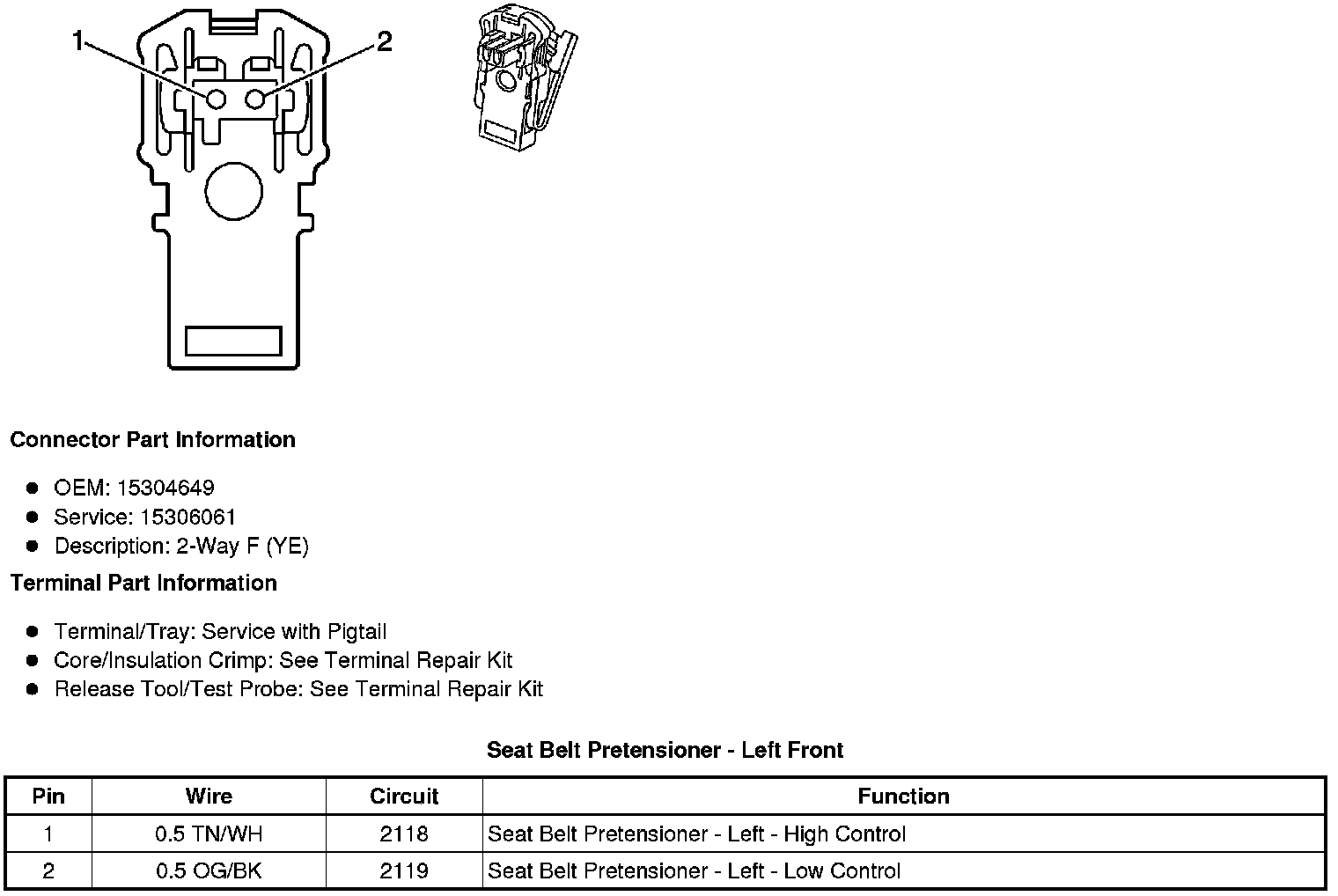

Seat Belt Pretensioner - Left Front

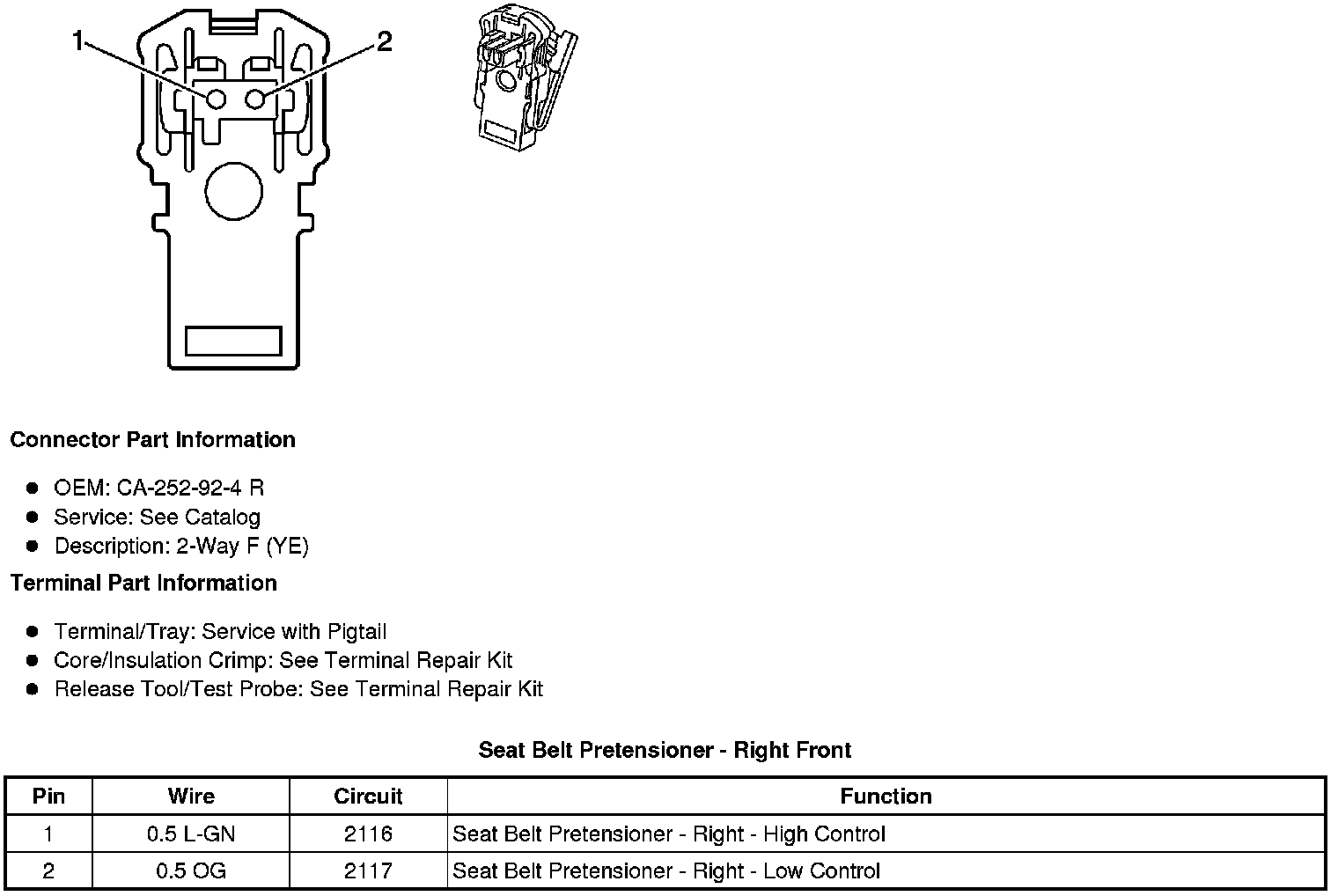

Seat Belt Pretensioner - Right Front
