Radio/Stereo



Component Connector End Views

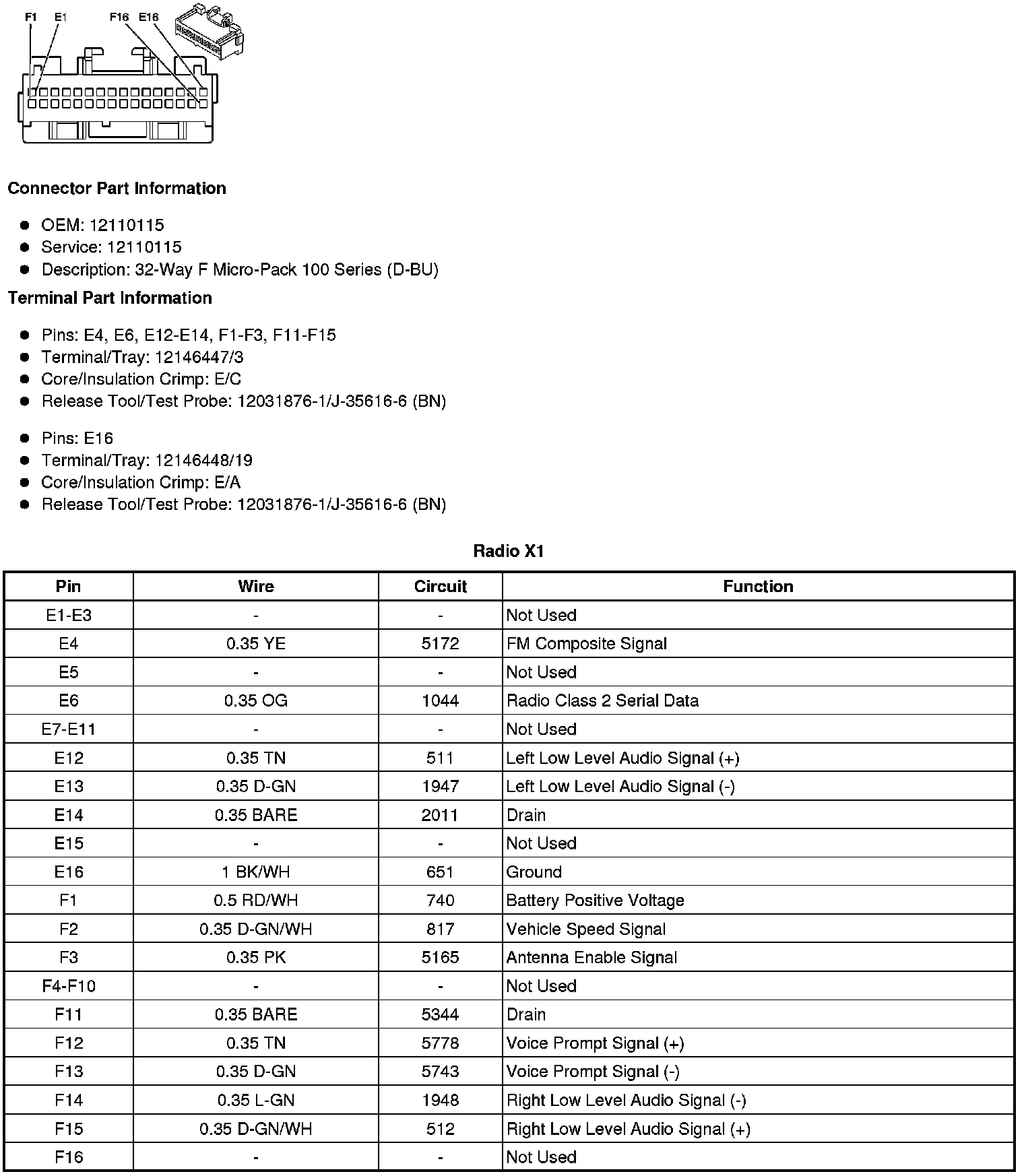

Radio X1

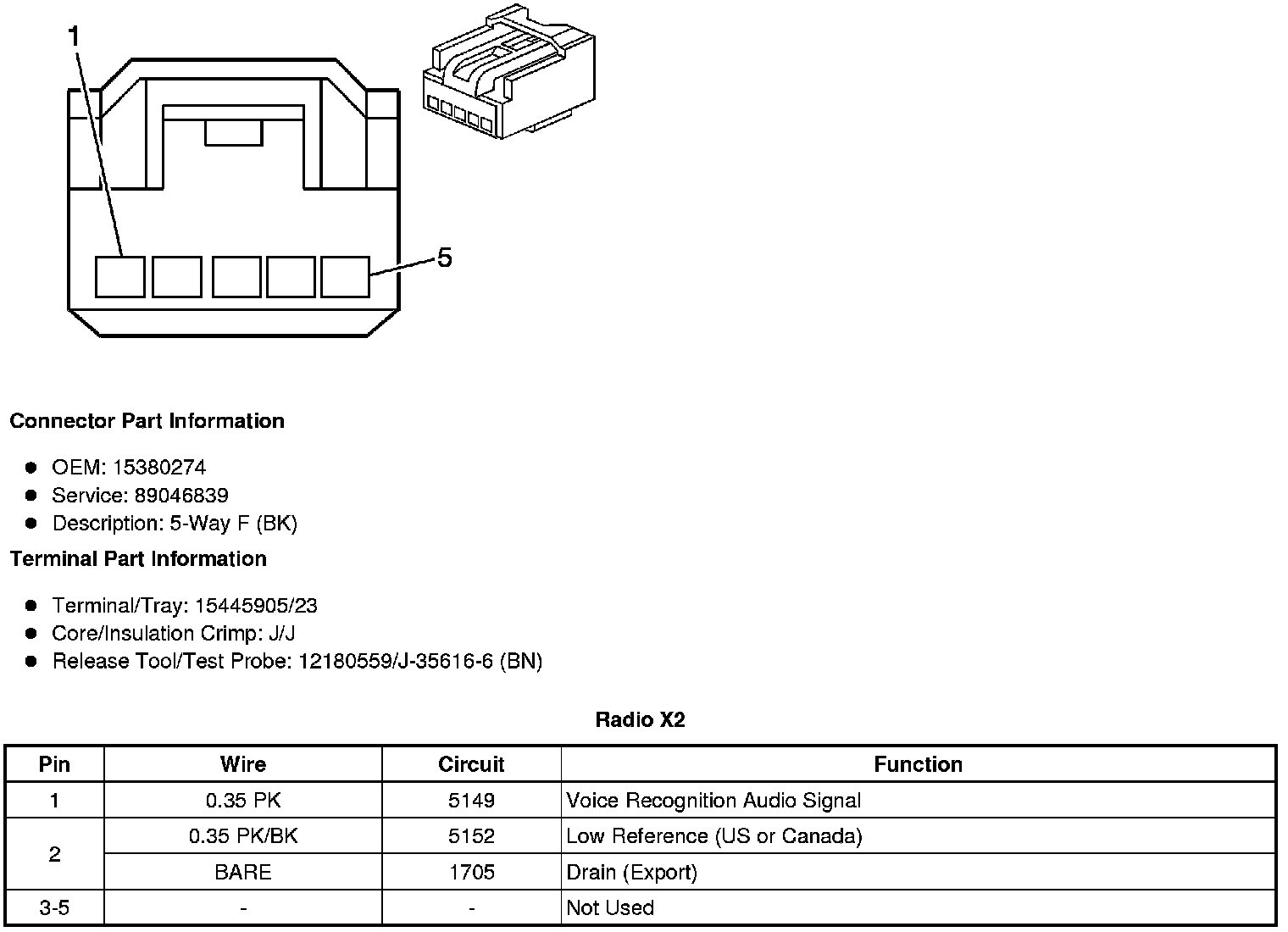

Radio X2

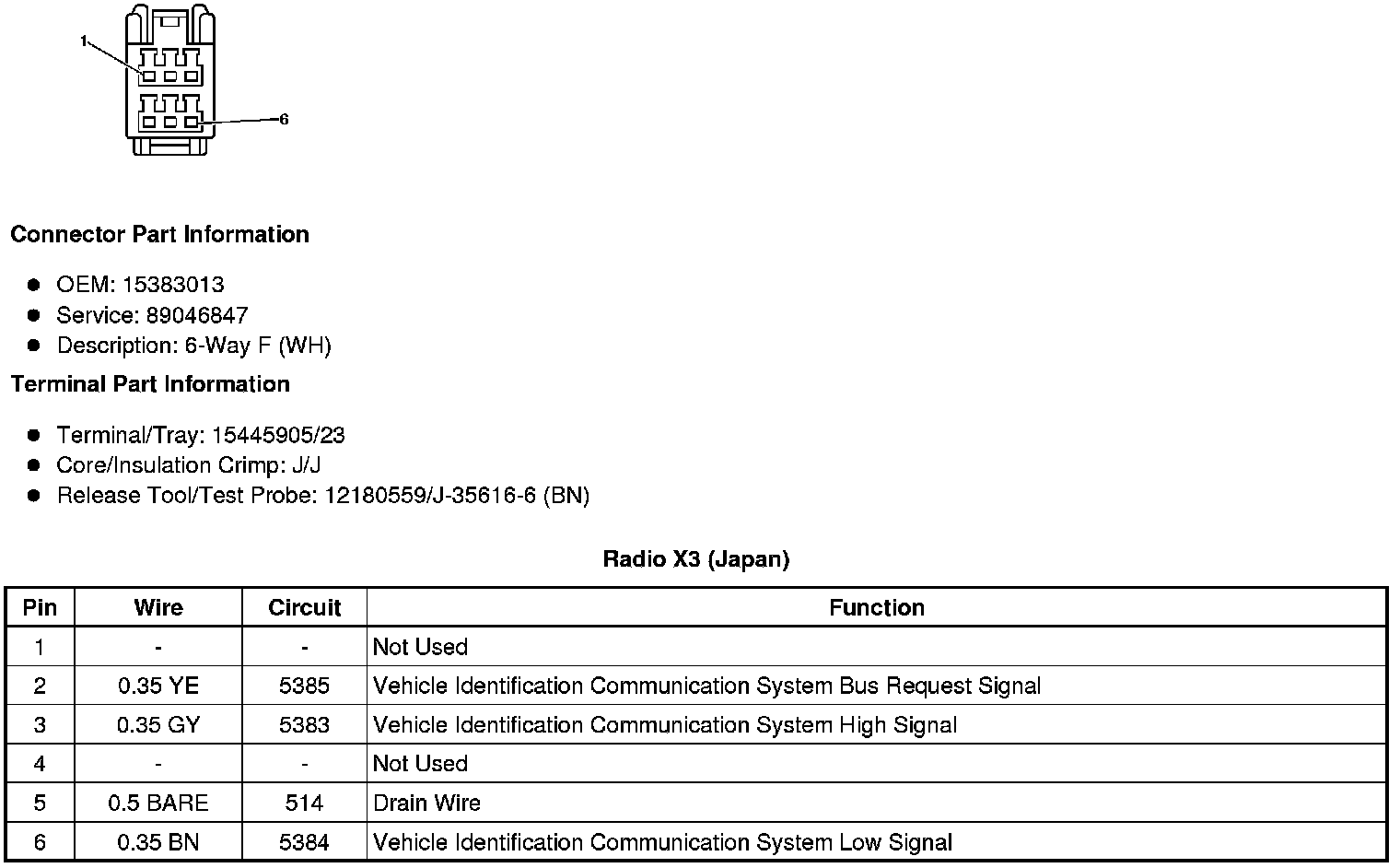

Radio X3 (Japan)

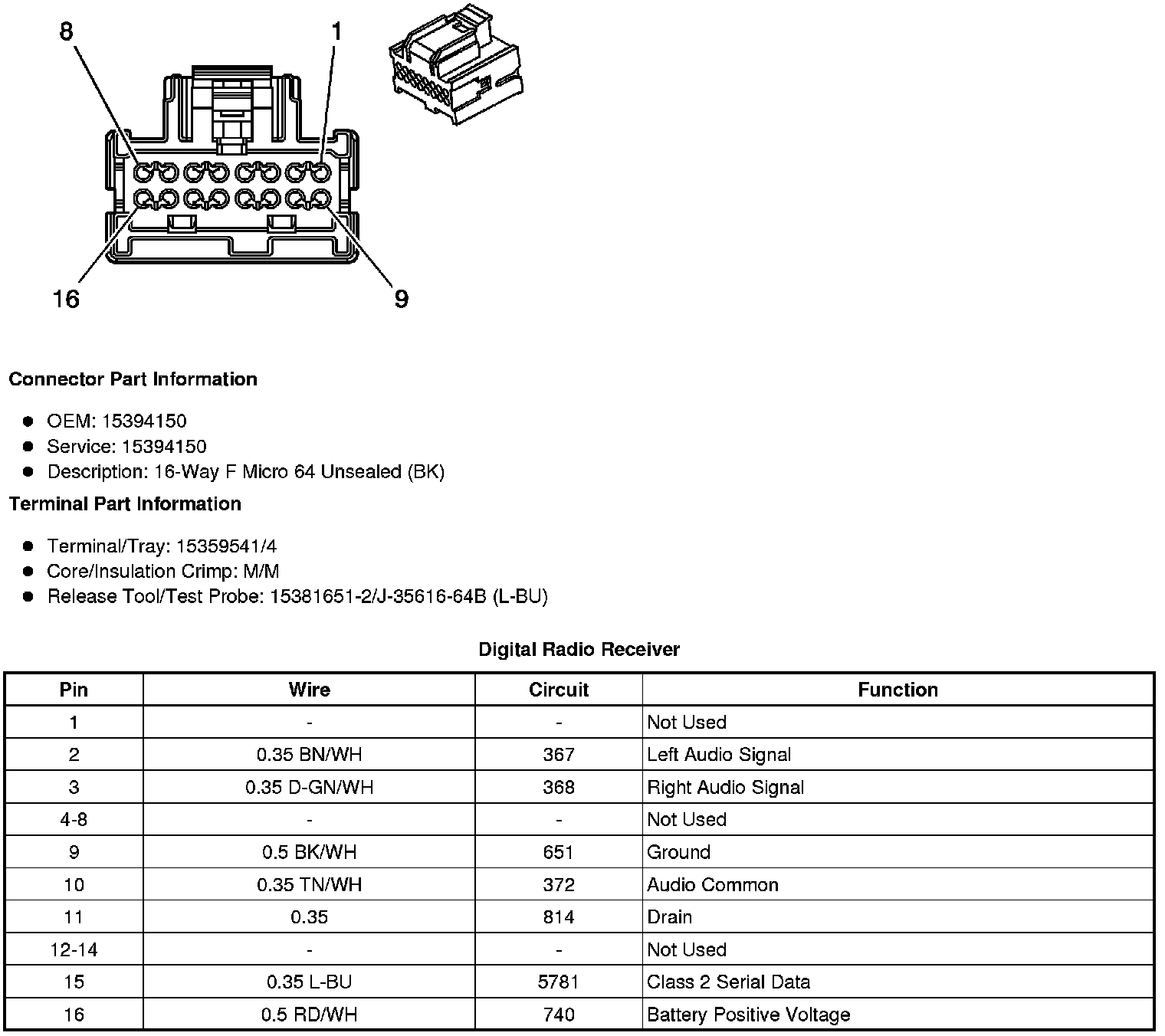

Digital Radio Receiver
