Power Seat Motor



Component Connector End Views

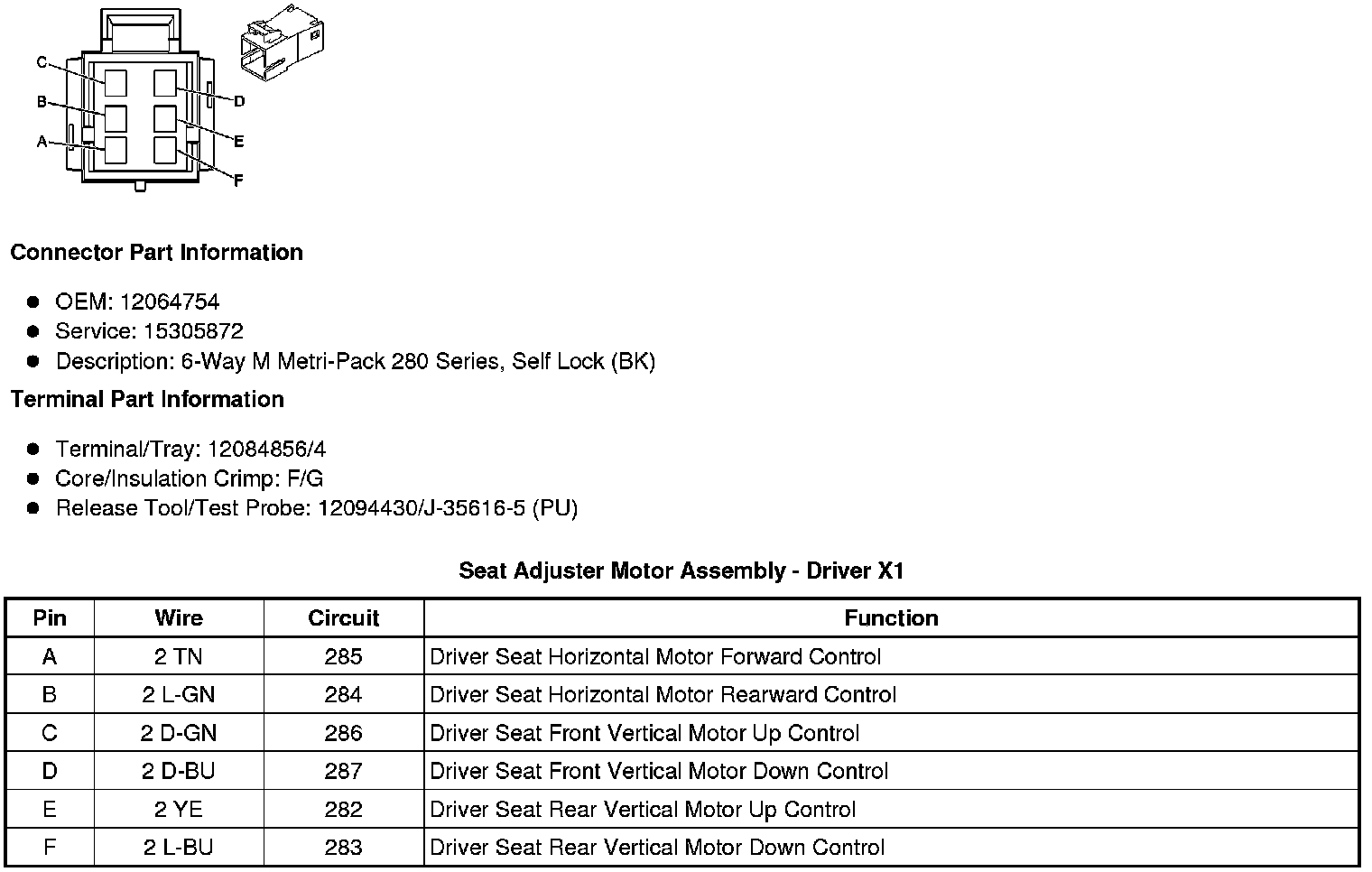

Seat Adjuster Motor Assembly - Driver X1

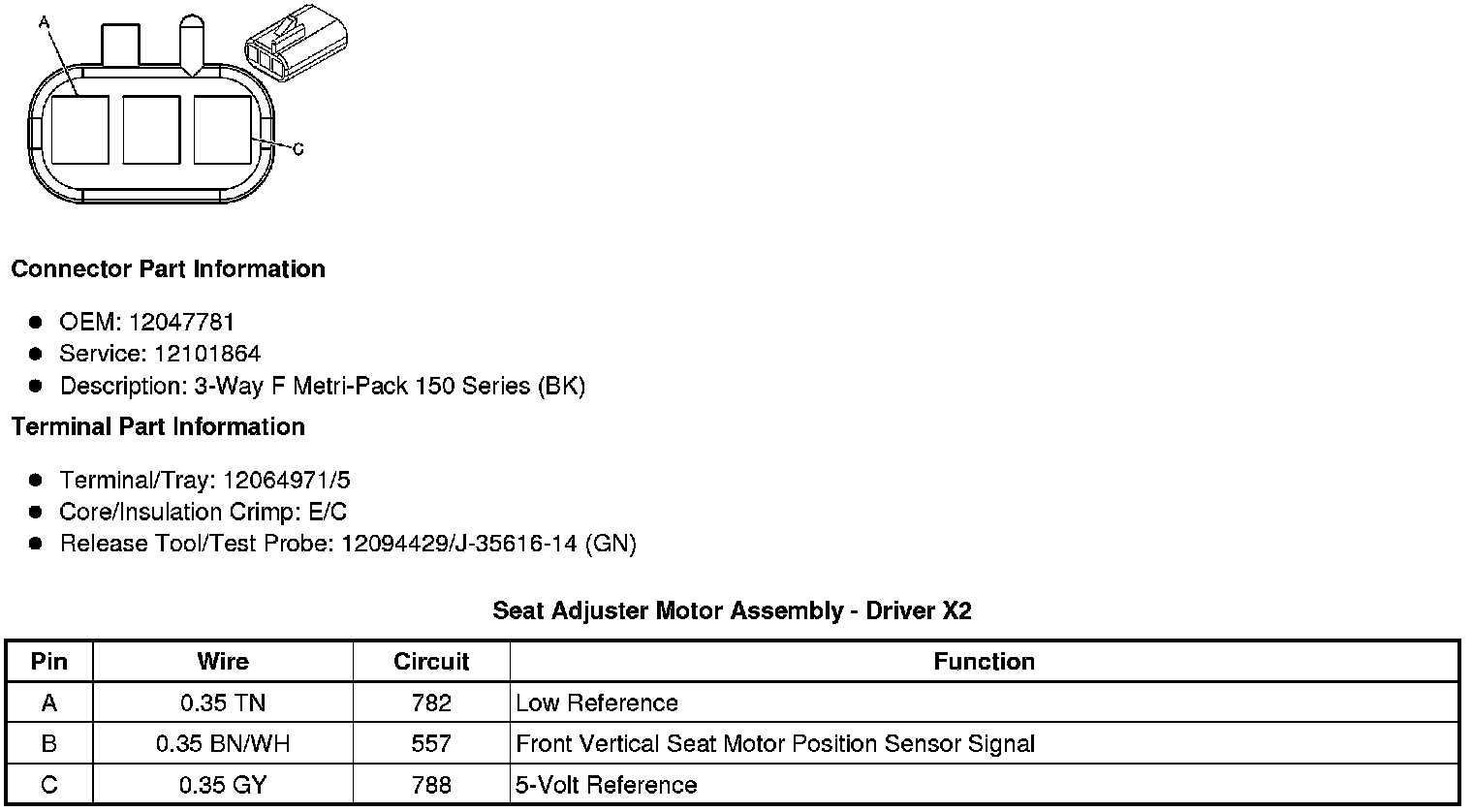

Seat Adjuster Motor Assembly - Driver X2

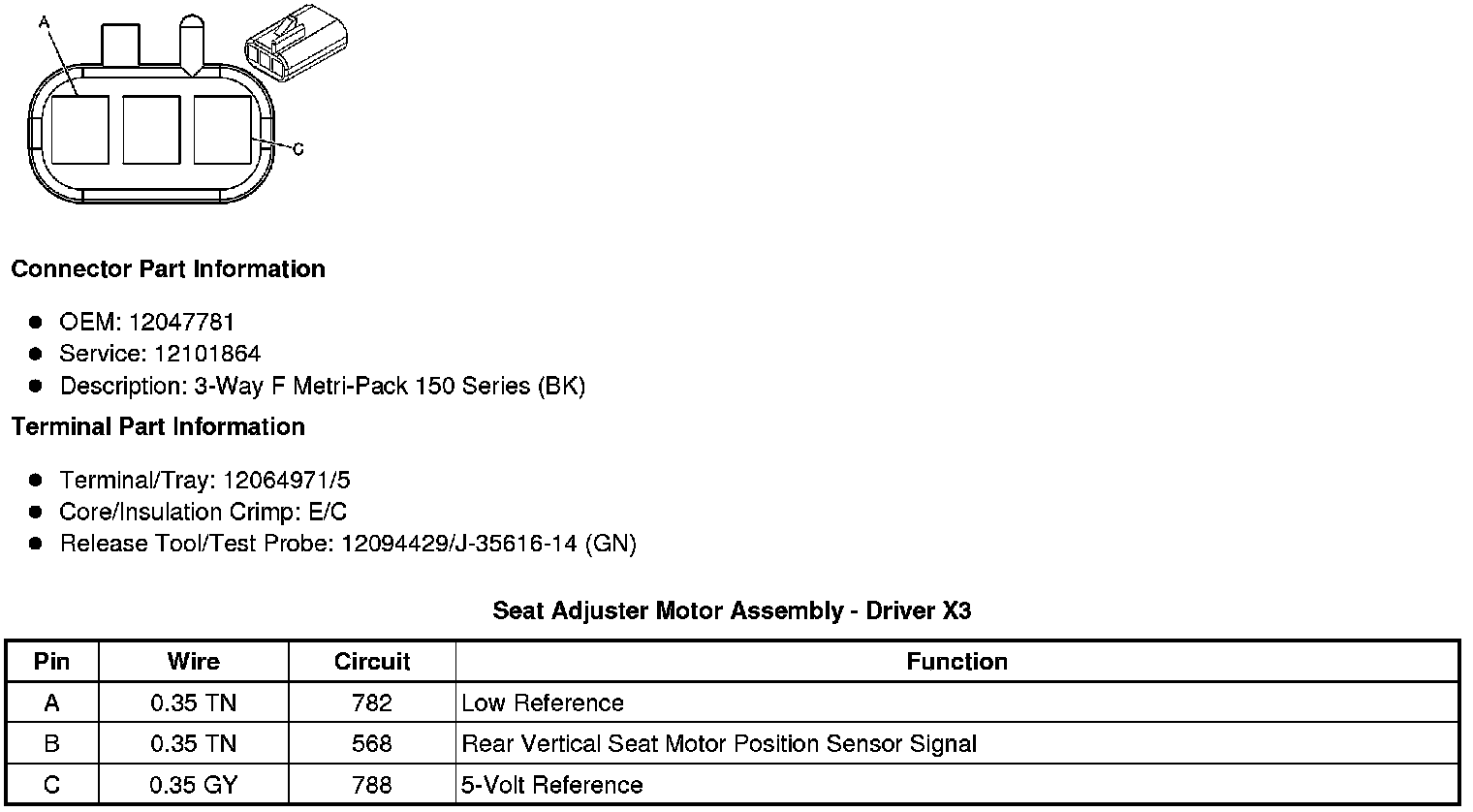

Seat Adjuster Motor Assembly - Driver X3

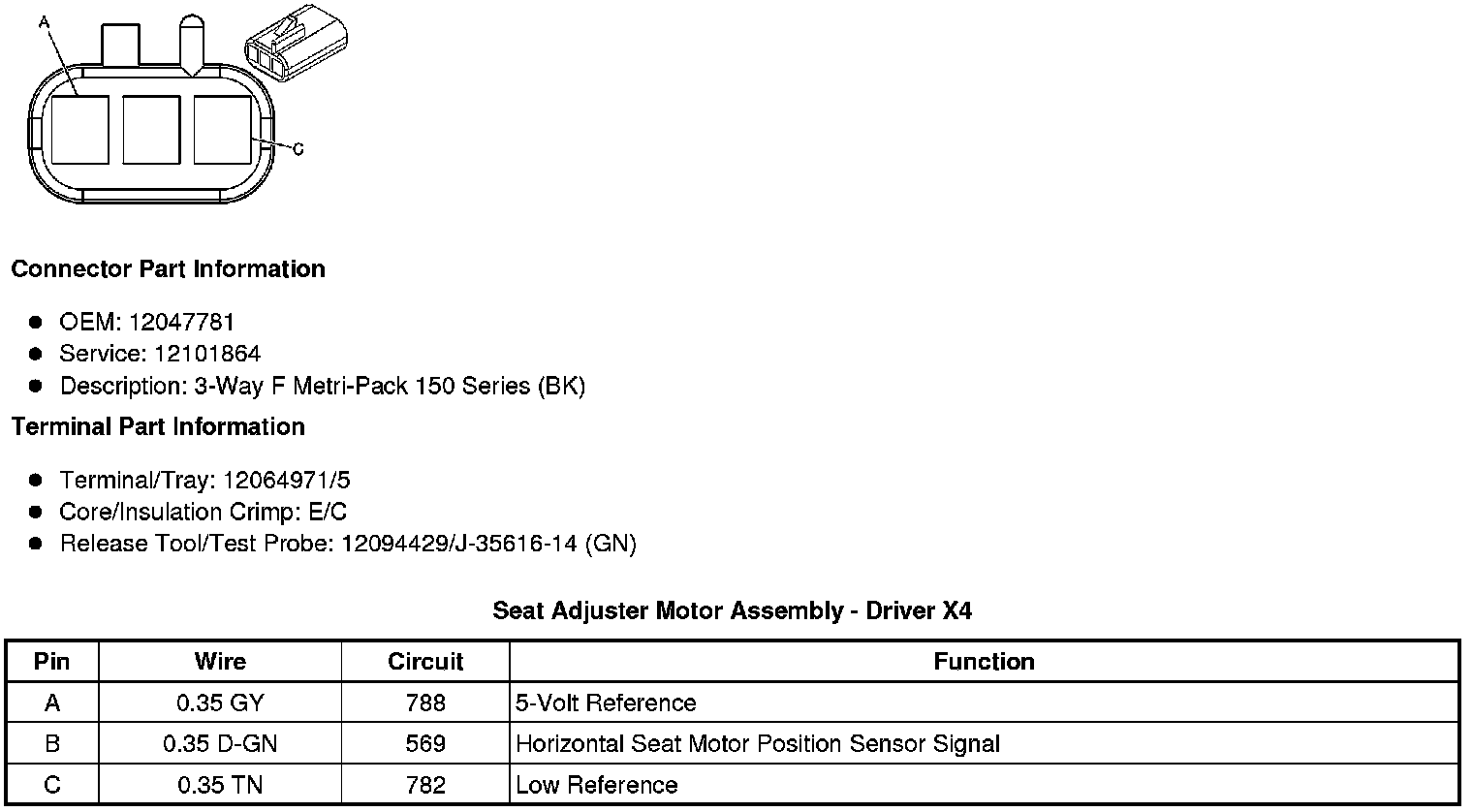

Seat Adjuster Motor Assembly - Driver X4

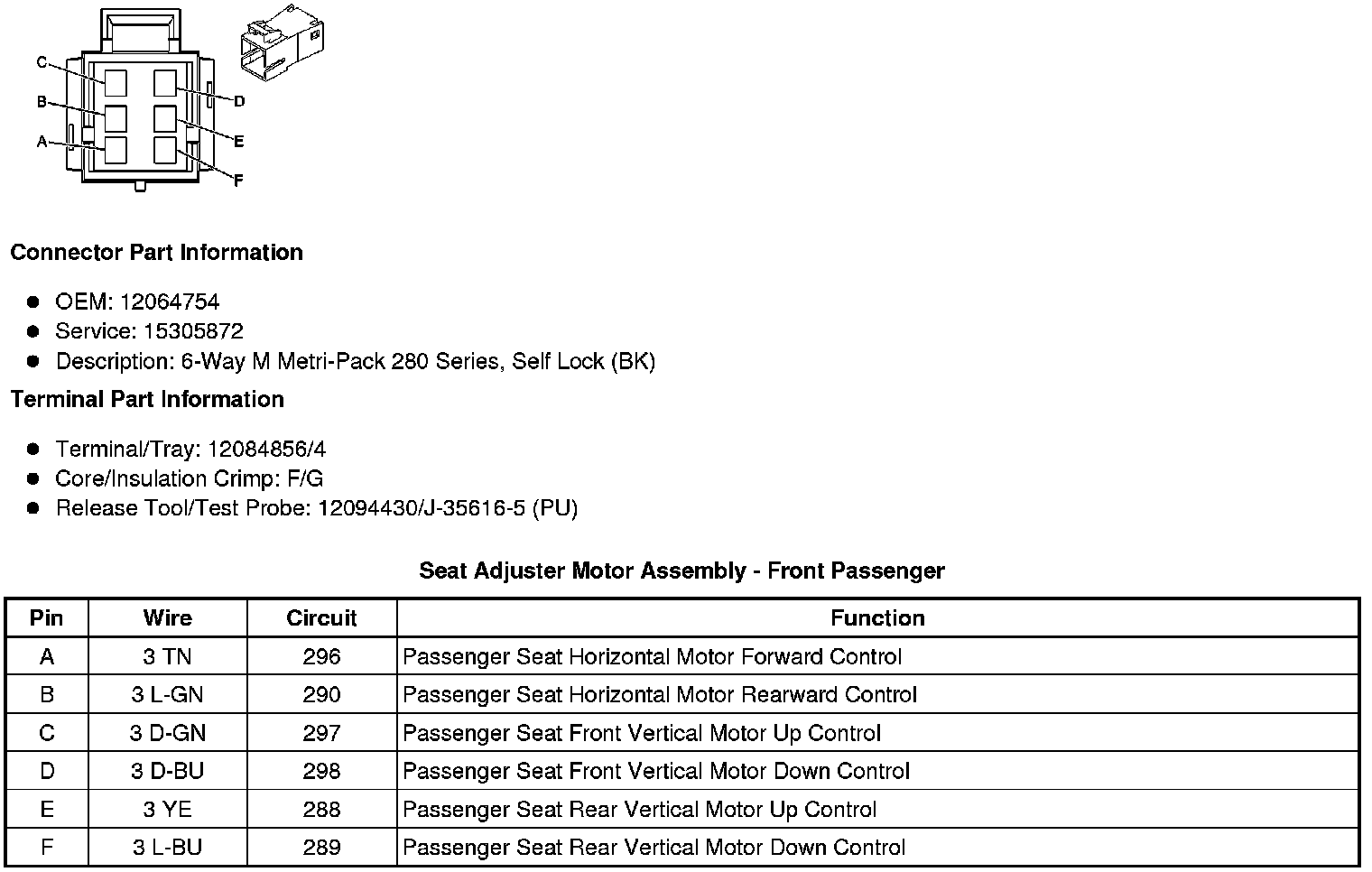

Seat Adjuster Motor Assembly - Front Passenger





Seat Recline Motor - Driver X1






Seat Recline Motor - Driver X2






Seat Recline Motor - Front Passenger
