Power Door Lock Switch



Component Connector End Views

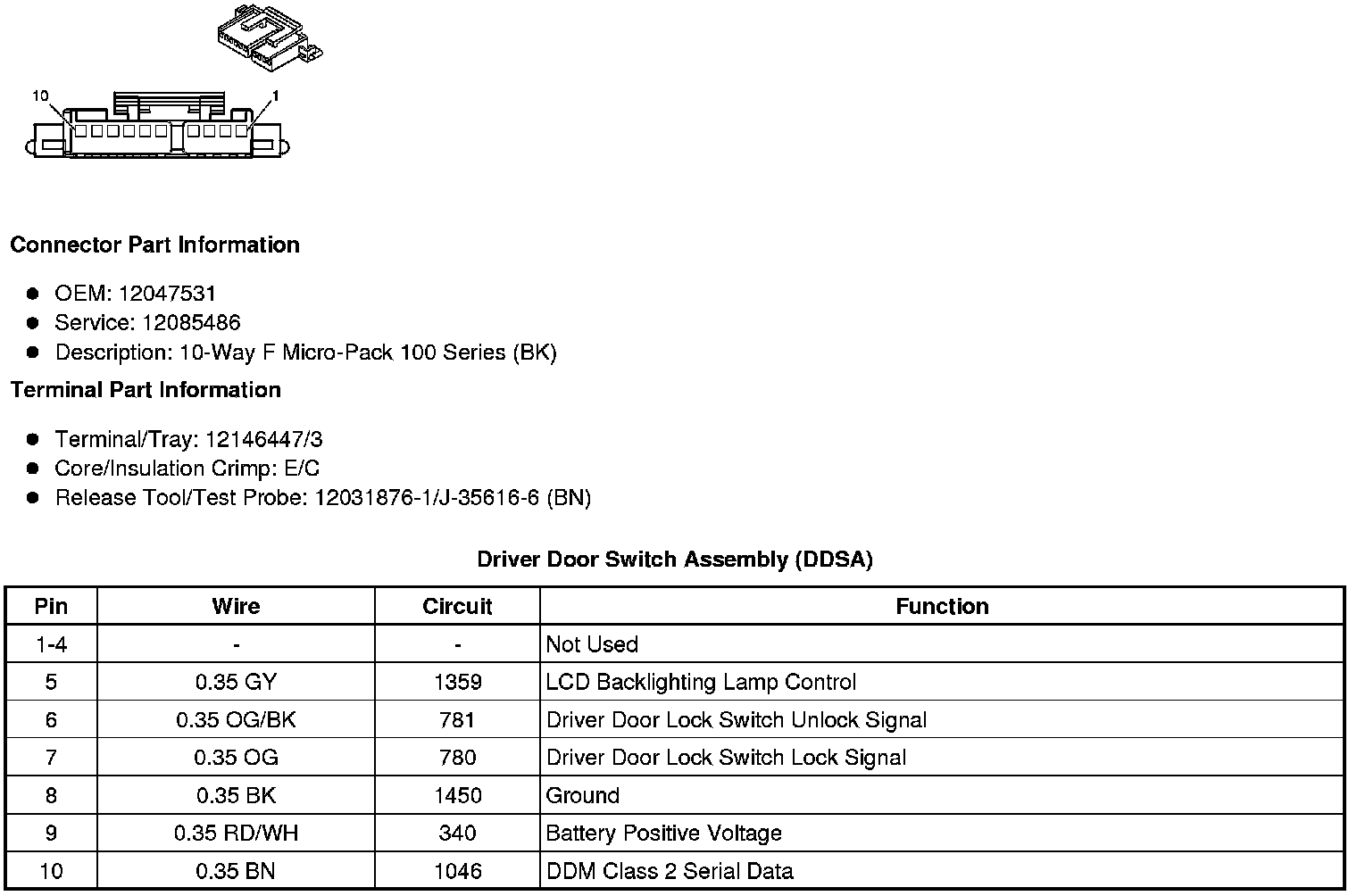

Driver Door Switch Assembly (DDSA)

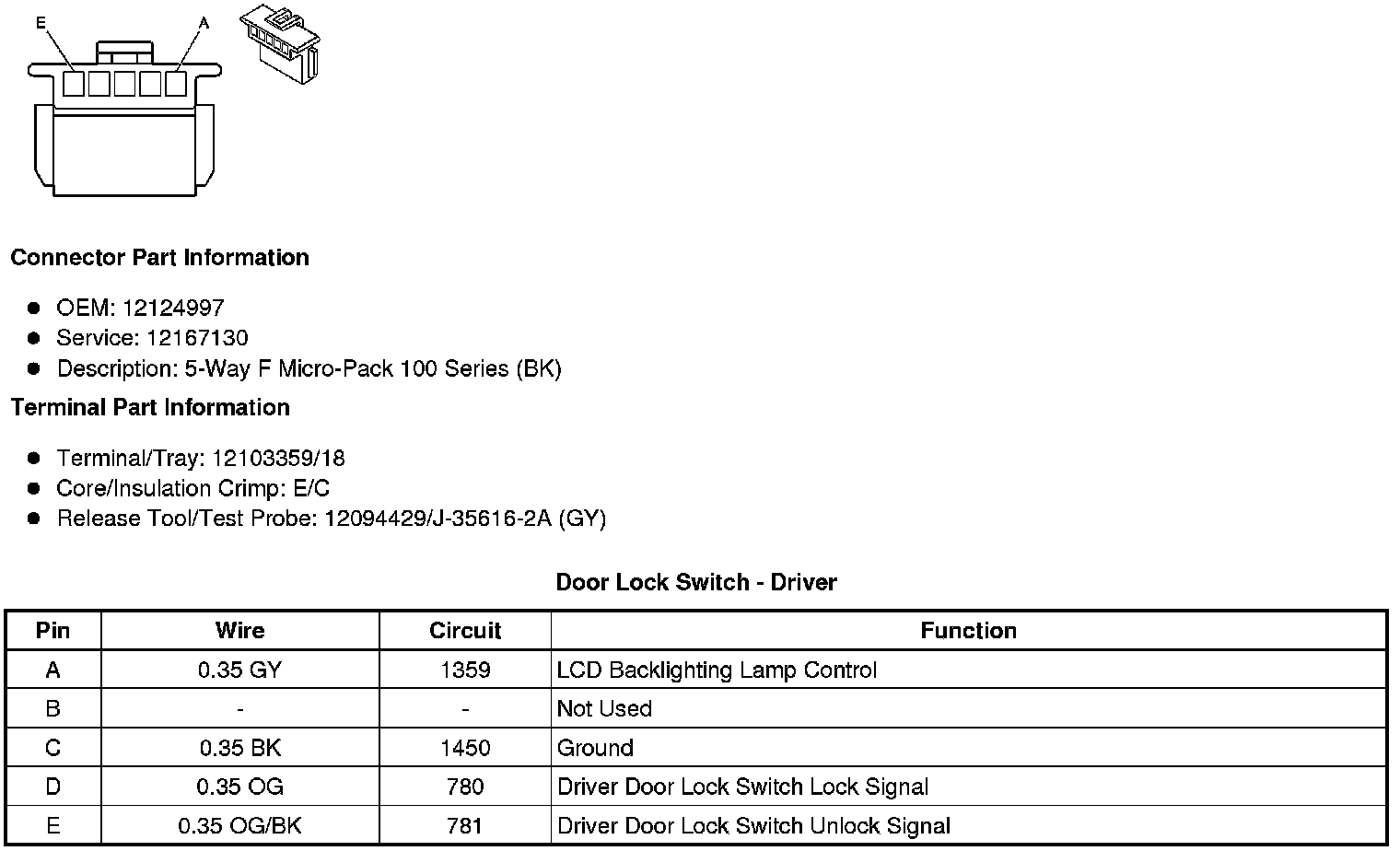

Door Lock Switch - Driver

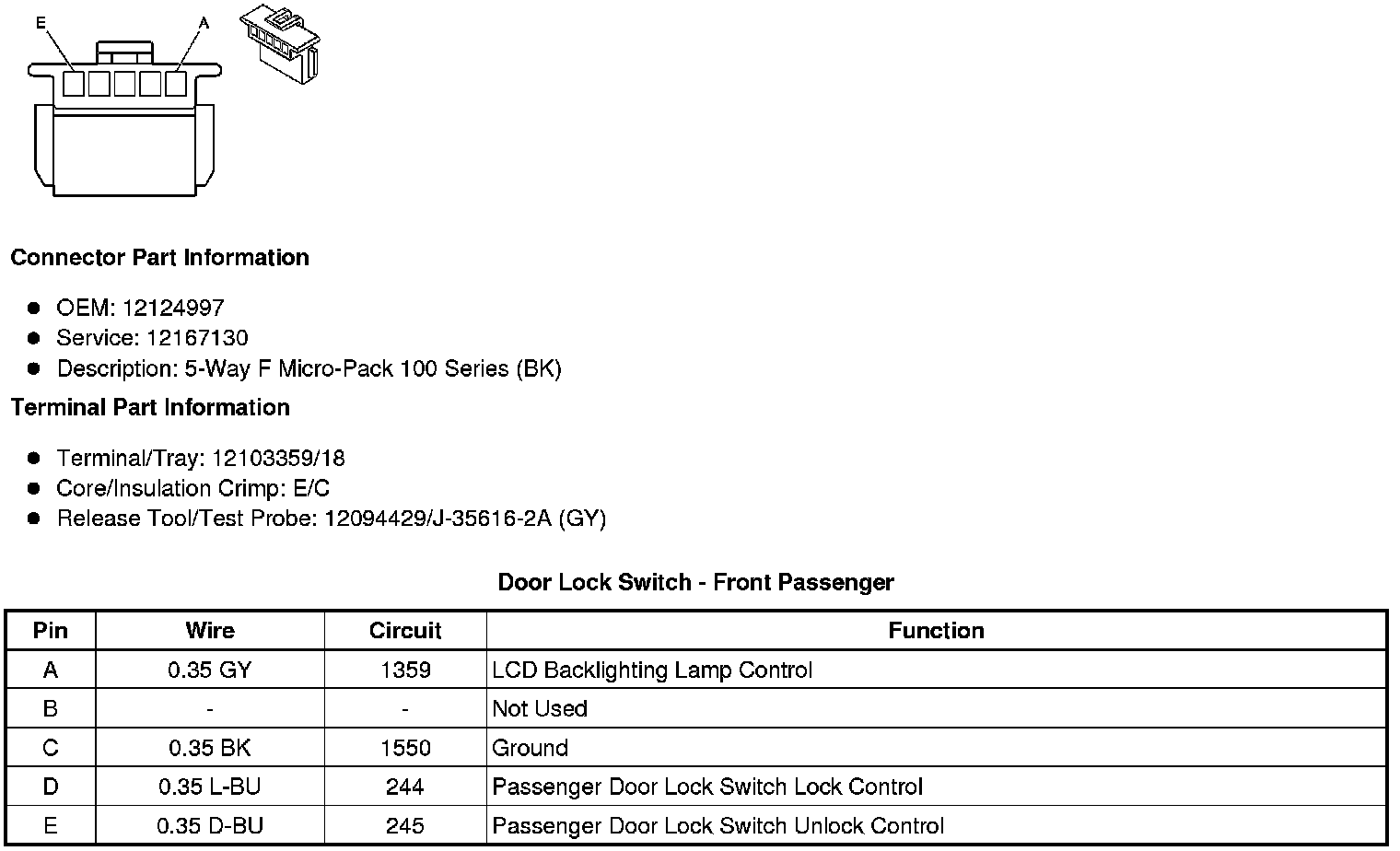

Door Lock Switch - Front Passenger
