Marker Lamp



Component Connector End Views

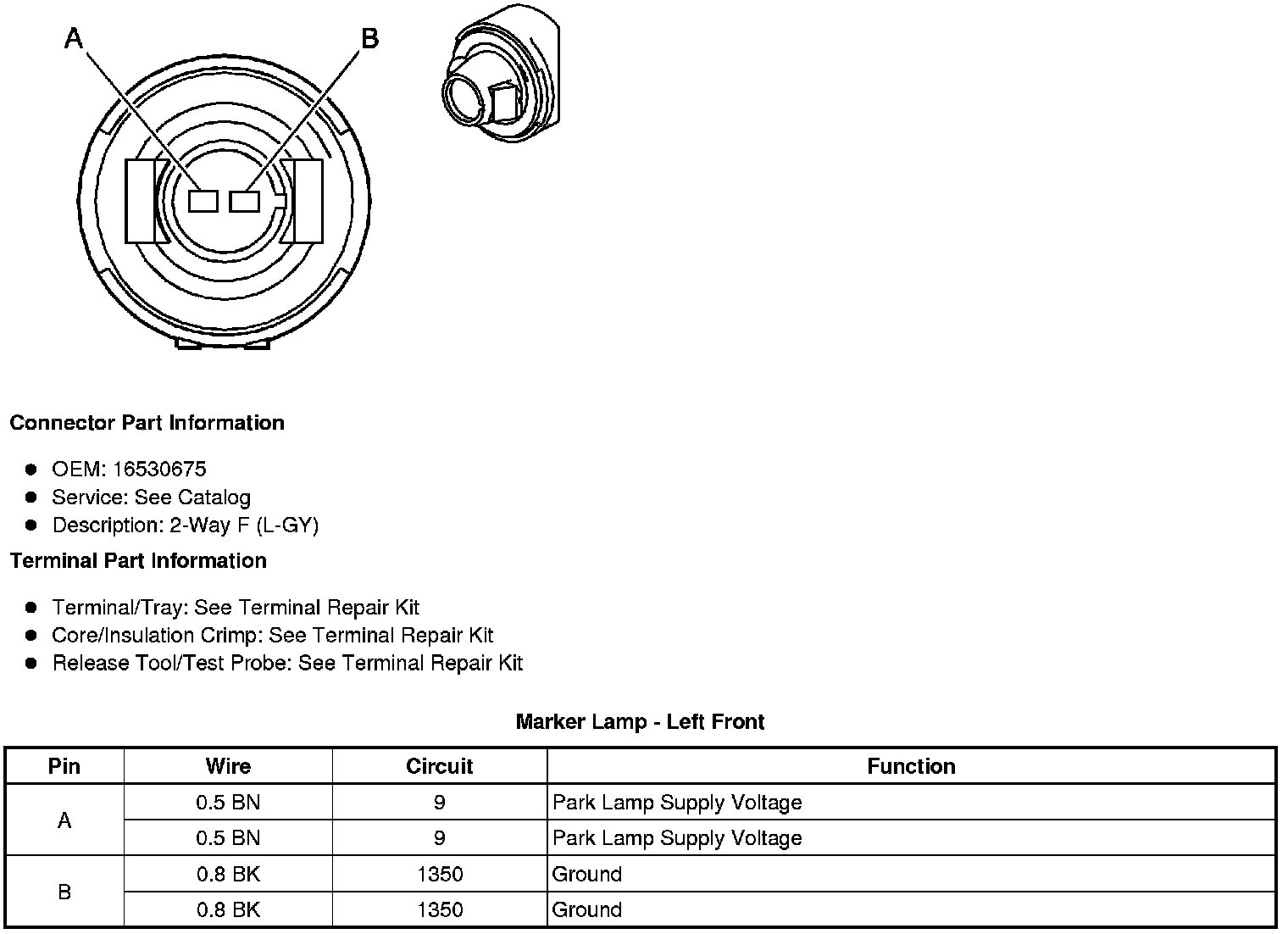

Marker Lamp - Left Front






Marker Lamp - Right Front

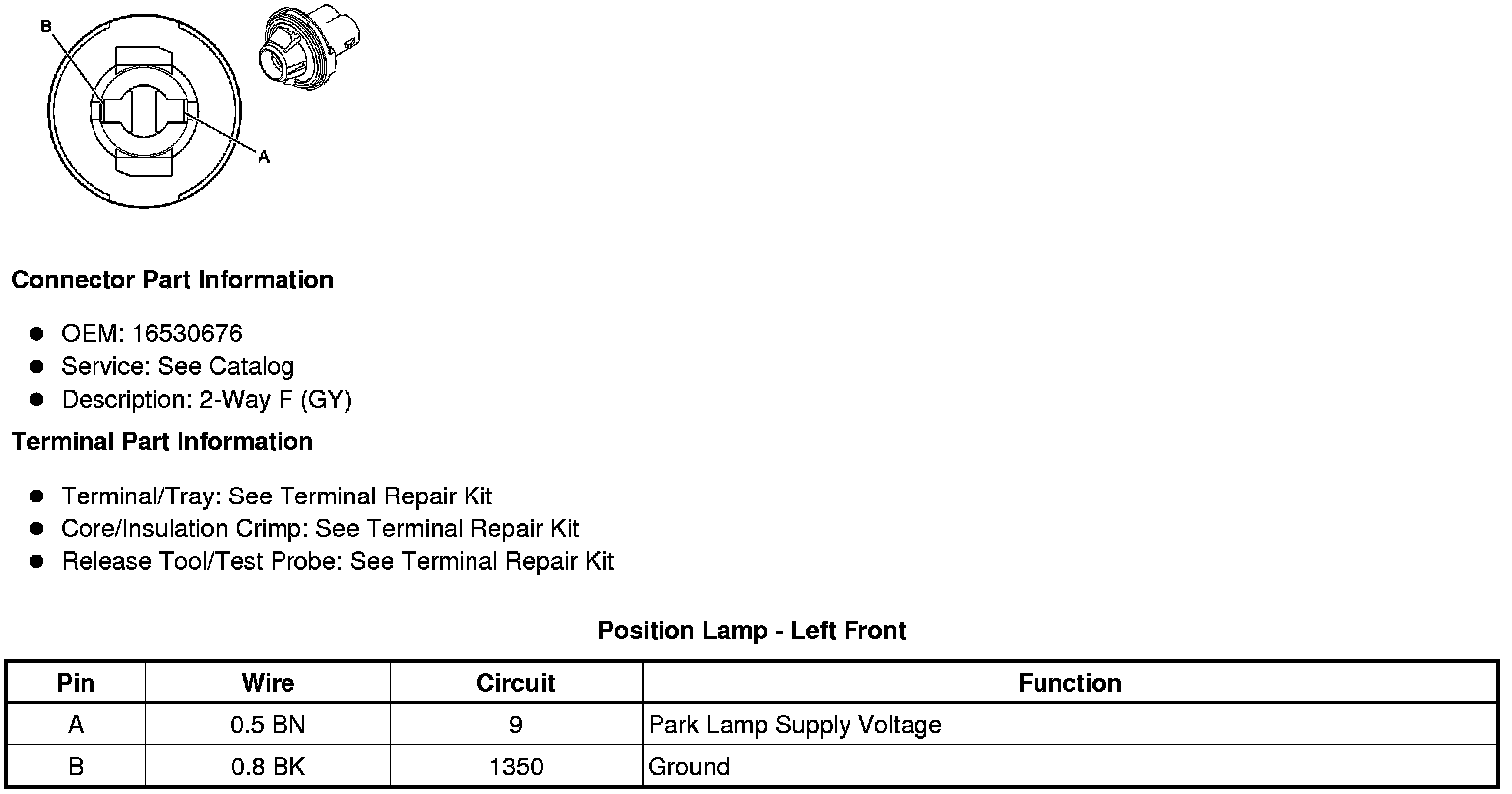

Position Lamp - Left Front






Position Lamp - Right Front
