Manifold Pressure/Vacuum Sensor

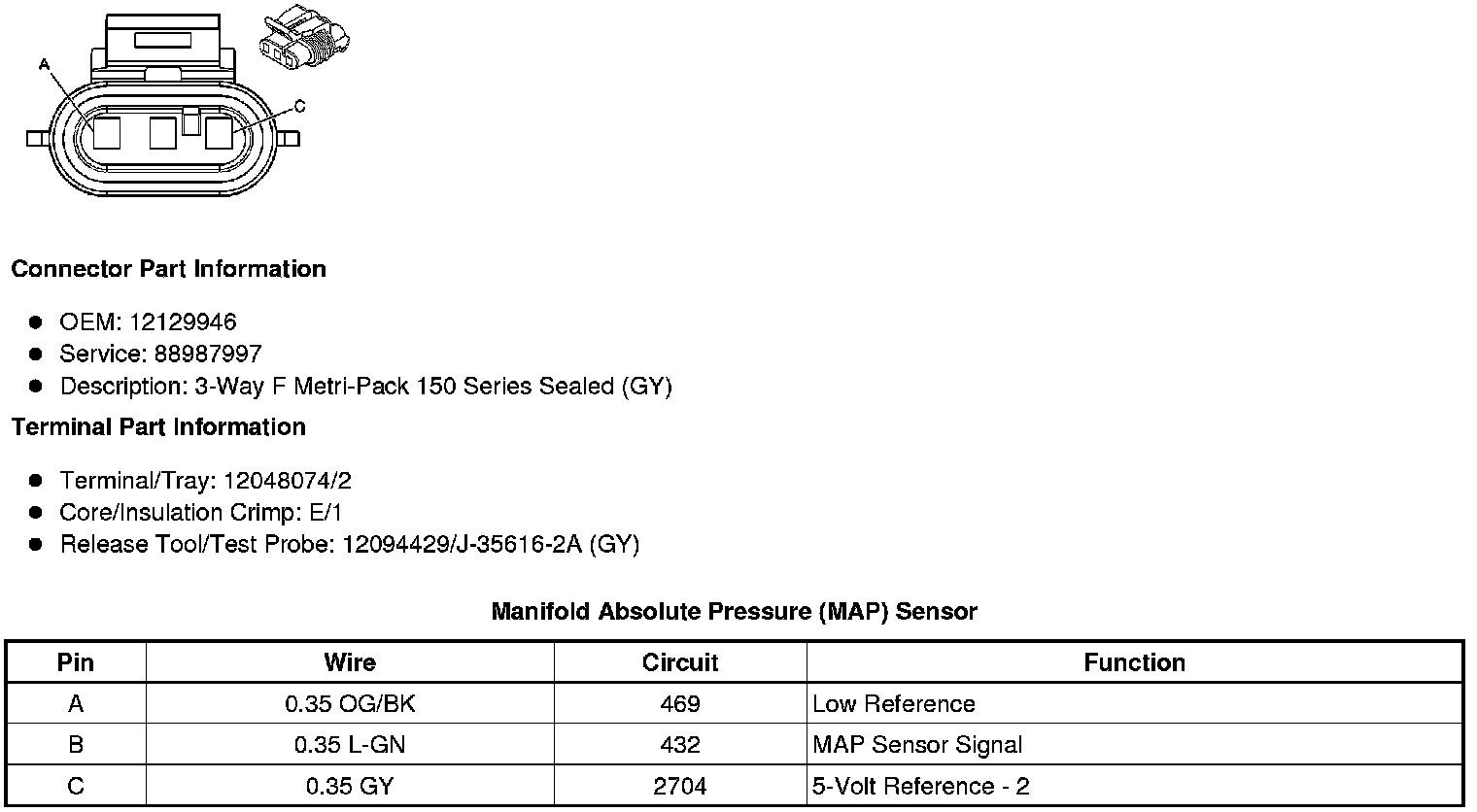

Component Connector End Views

Manifold Absolute Pressure (MAP) Sensor
