Fuel Gauge Sender



Component Connector End Views

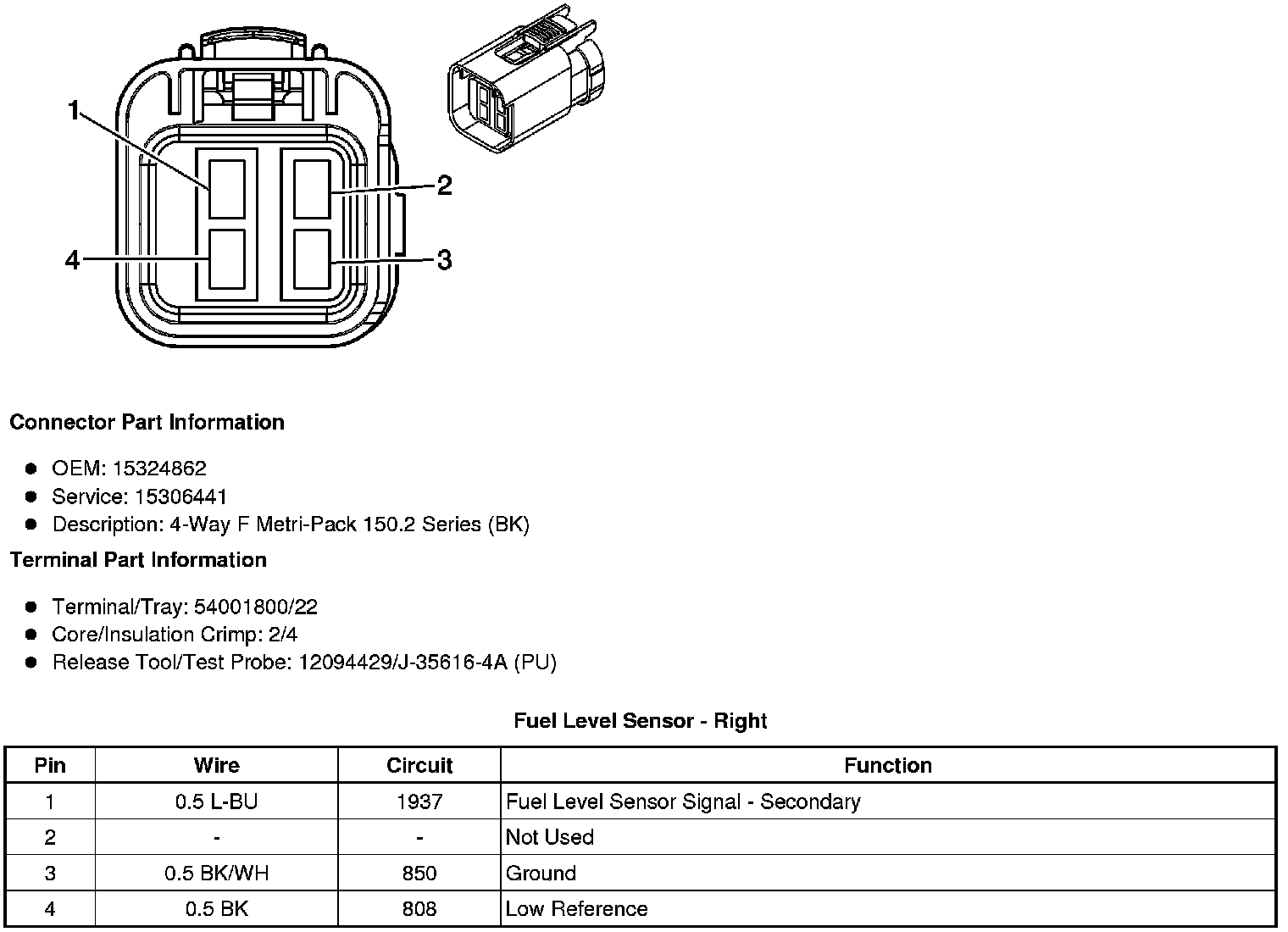

Fuel Level Sensor - Right






Fuel Pump and Sender Assembly
