Fog/Driving Lamp



Component Connector End Views

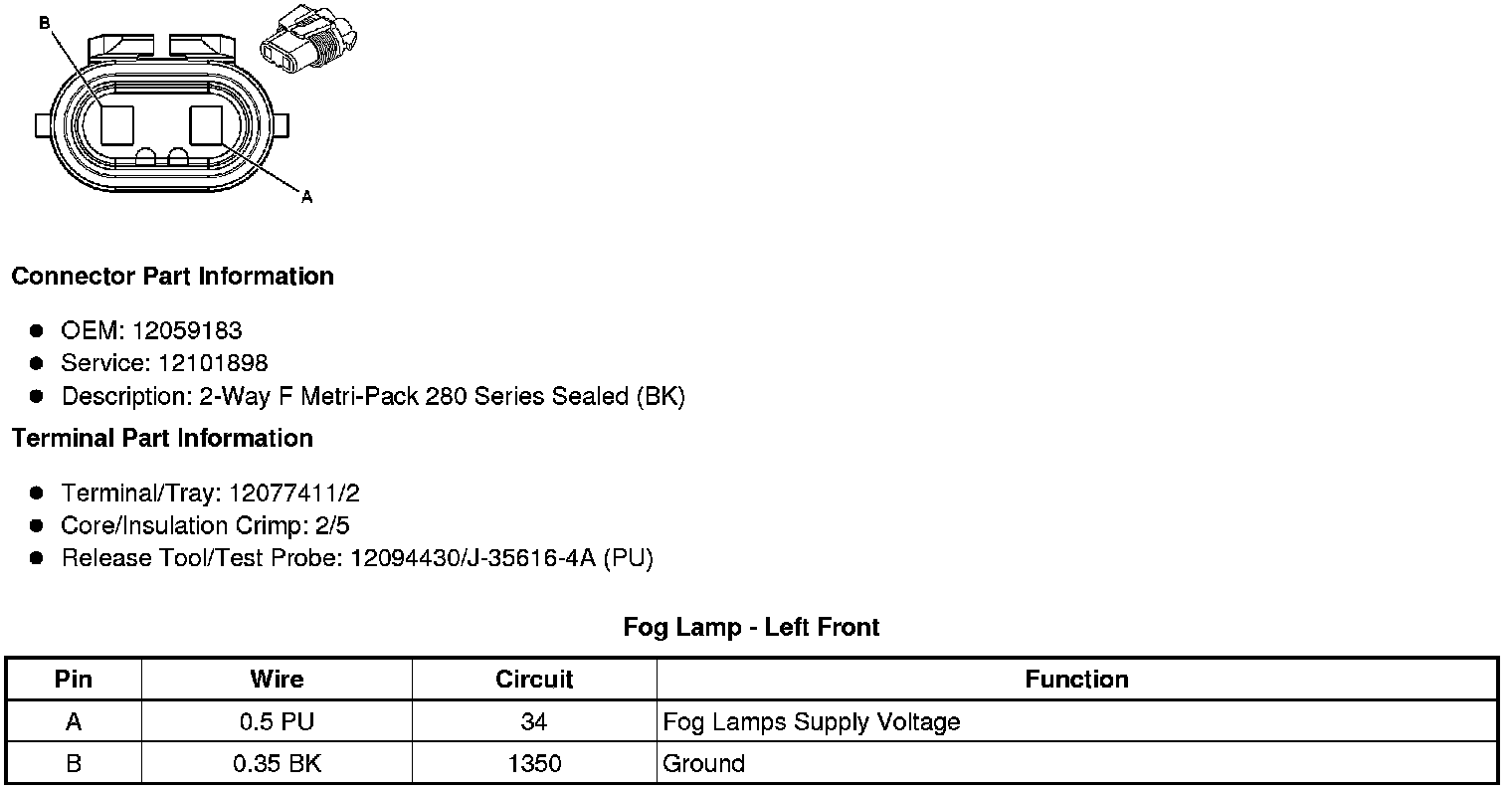

Fog Lamp - Left Front

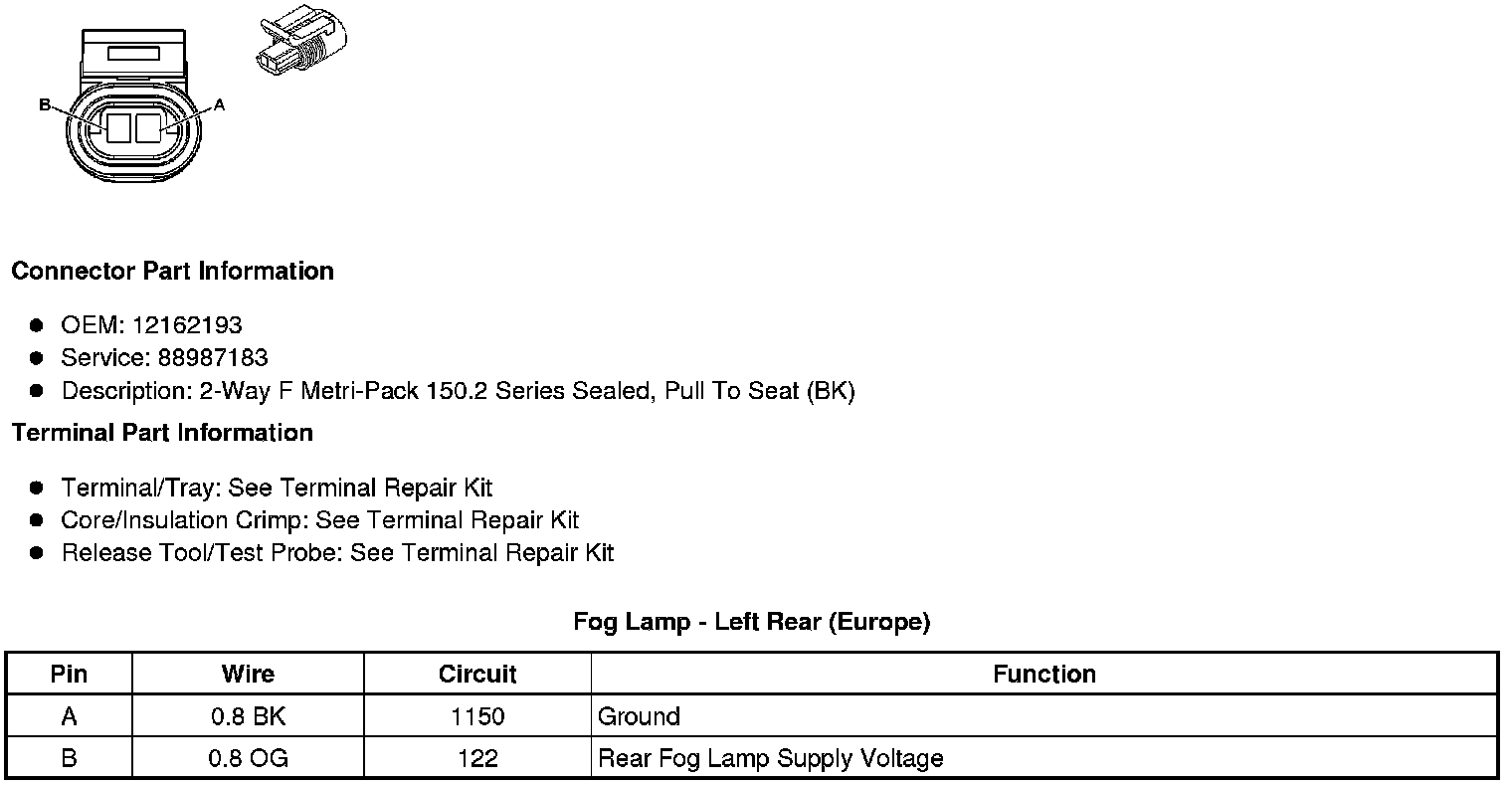

Fog Lamp - Left Rear (Europe)

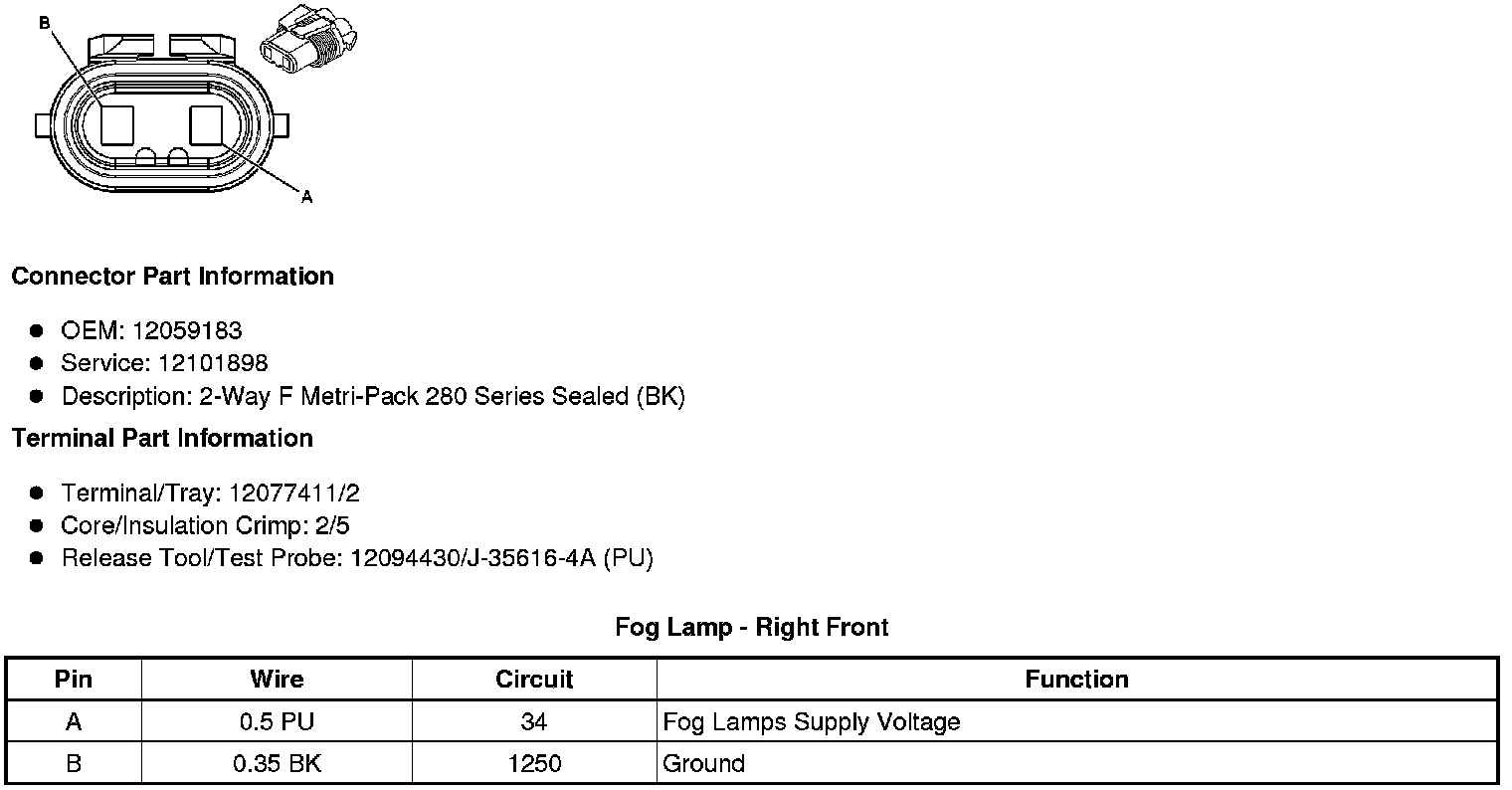

Fog Lamp - Right Front

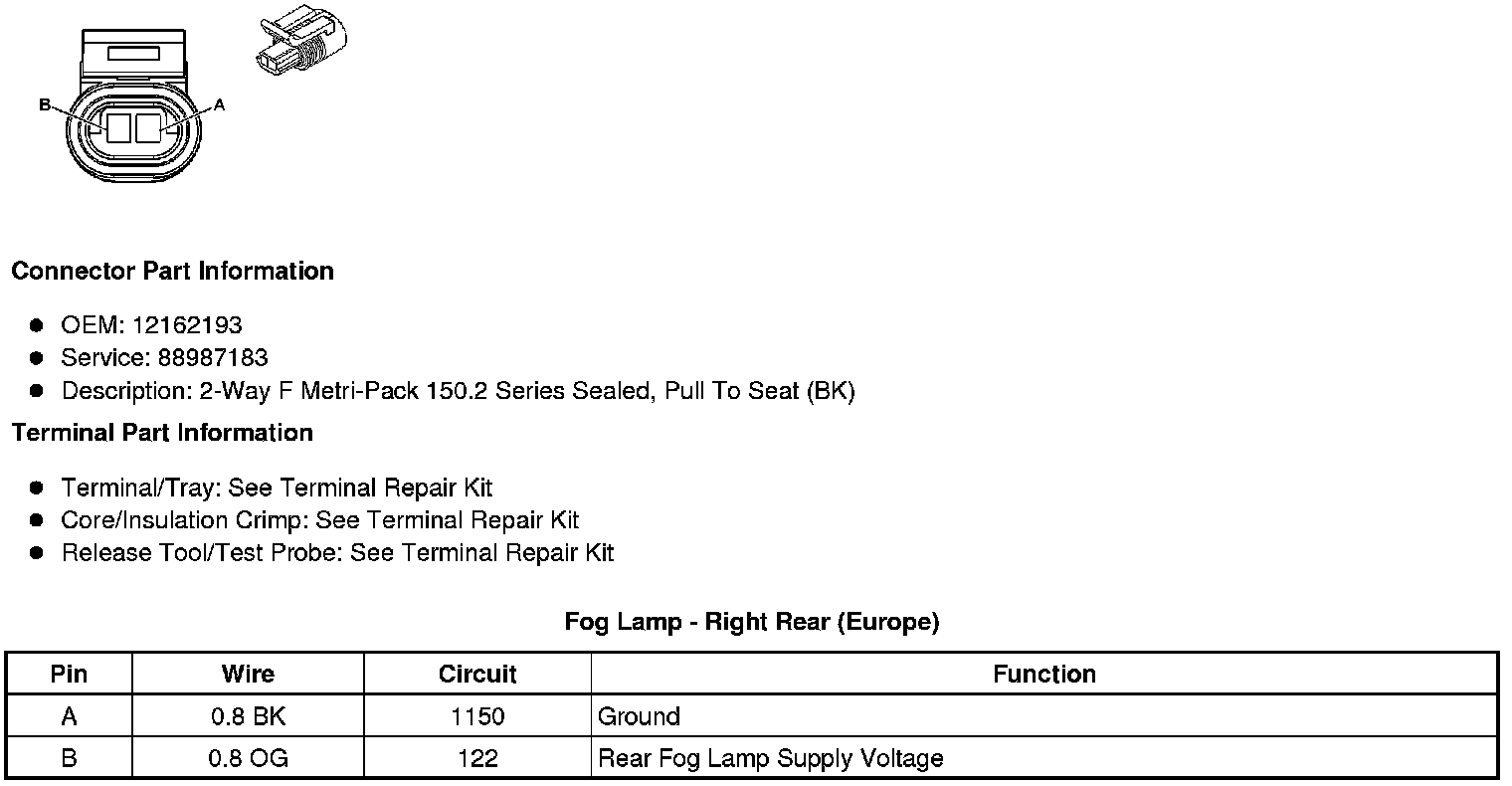

Fog Lamp - Right Rear (Europe)
