Driver/Vehicle Information Display



Component Connector End Views

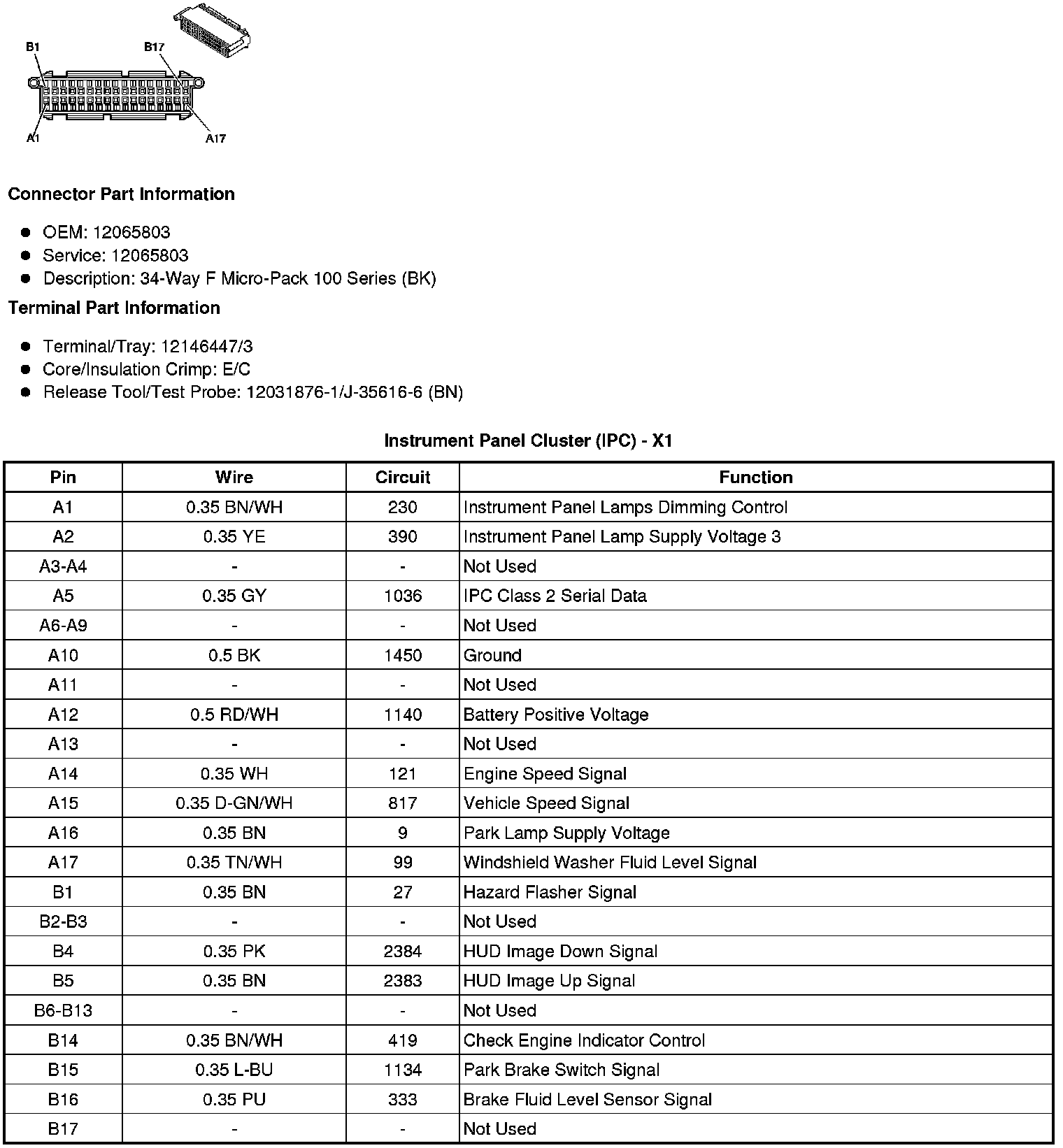

Instrument Panel Cluster (IPC) - X1

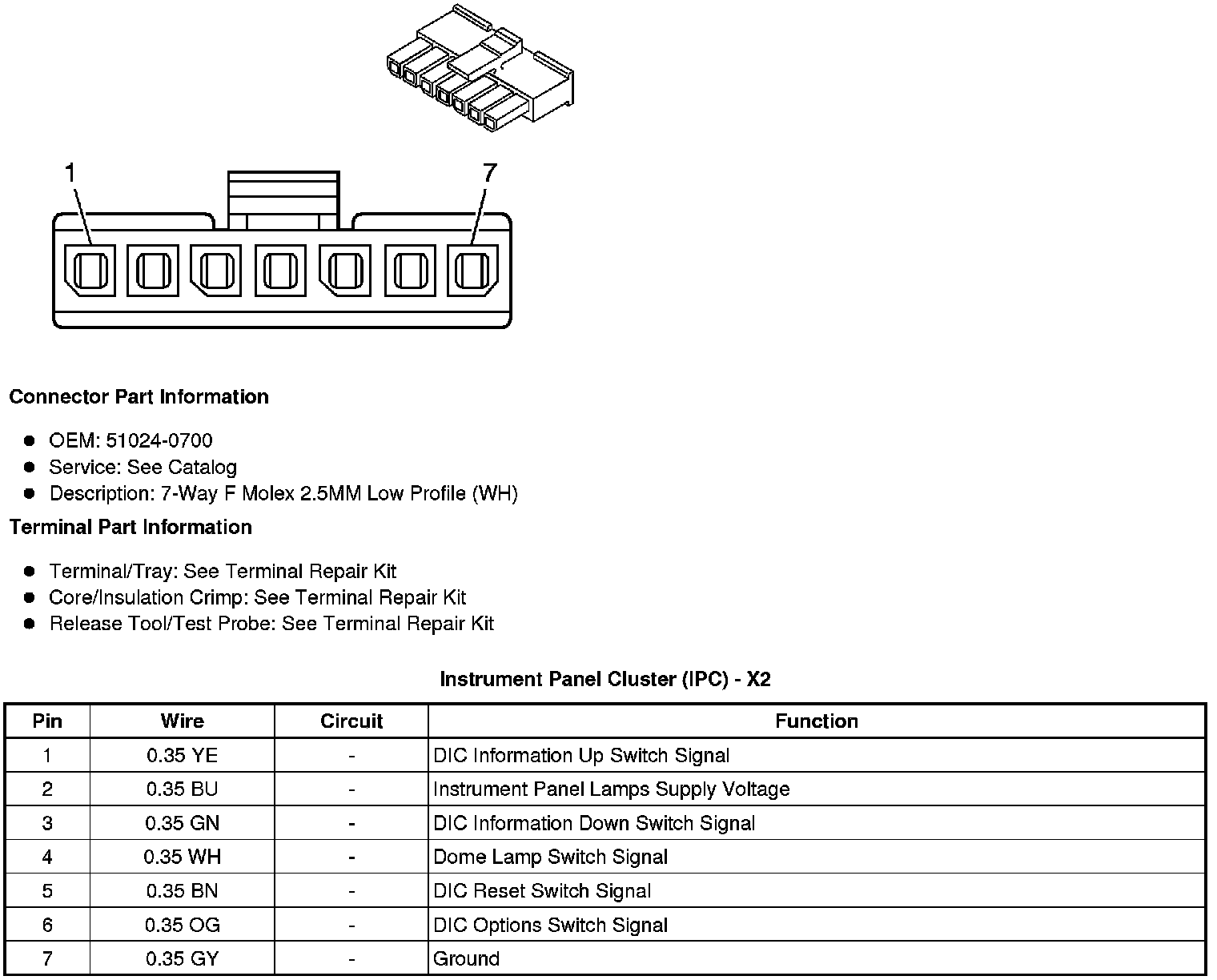

Instrument Panel Cluster (IPC) - X2

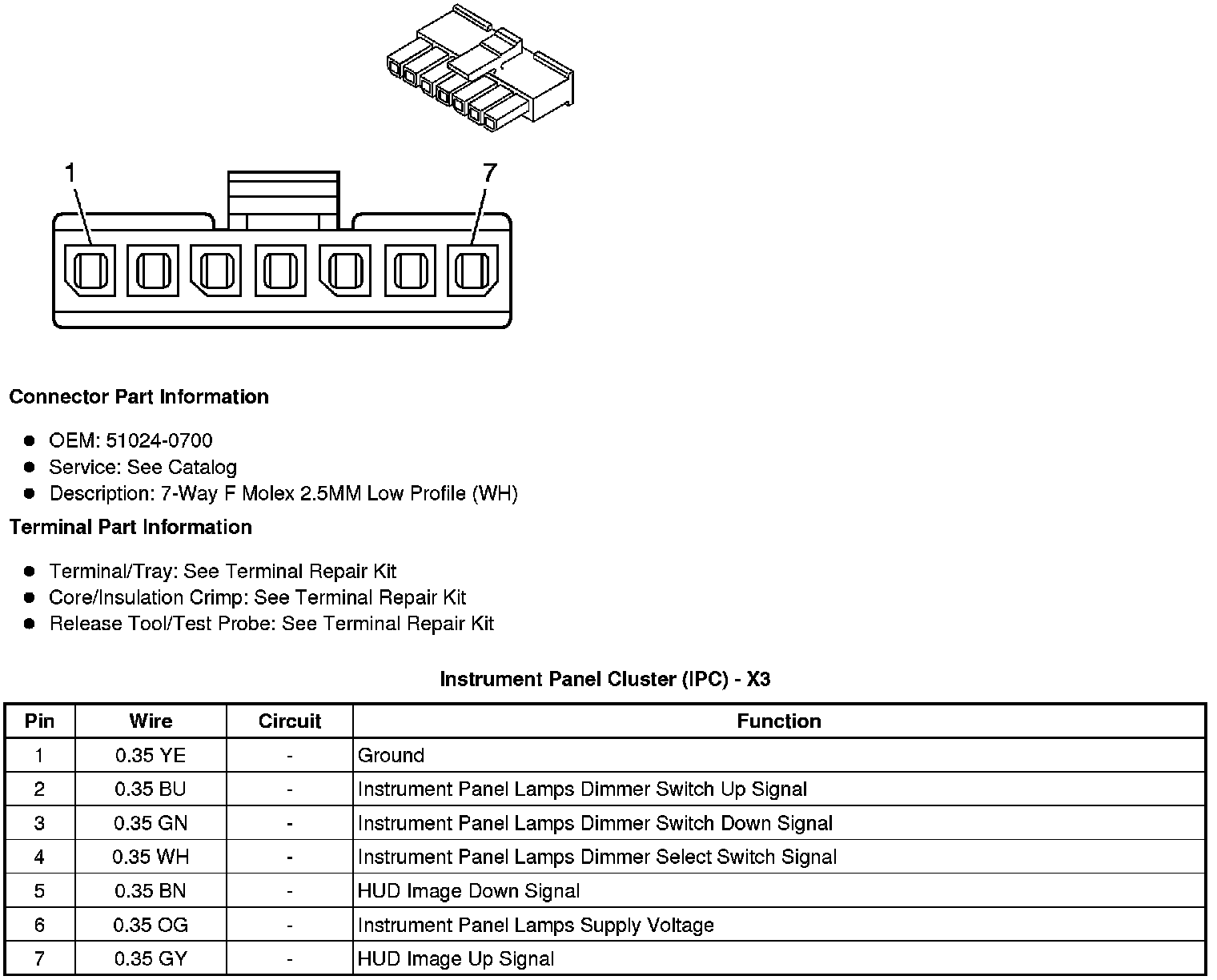

Instrument Panel Cluster (IPC) - X3

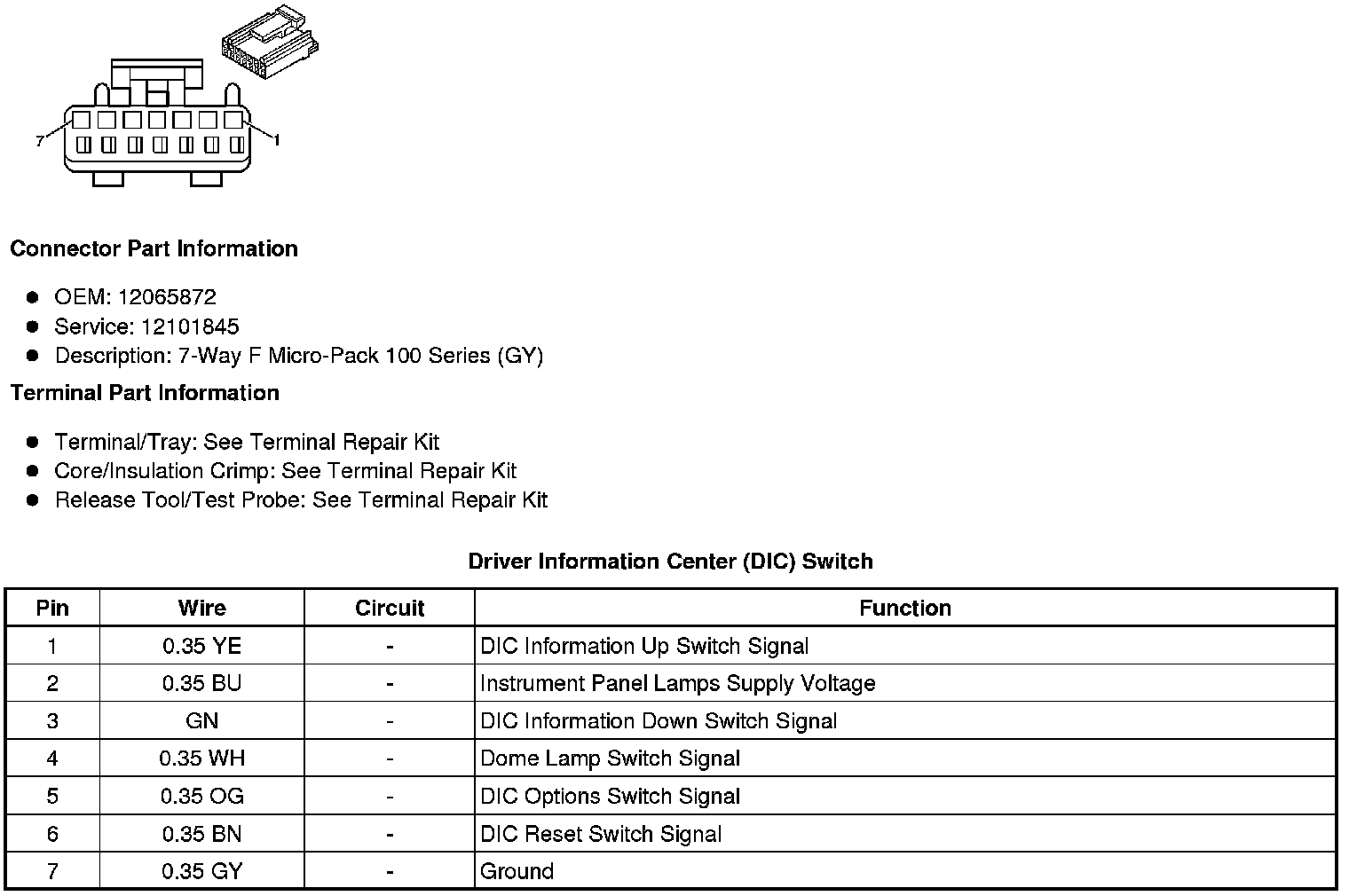

Driver Information Center (DIC) Switch

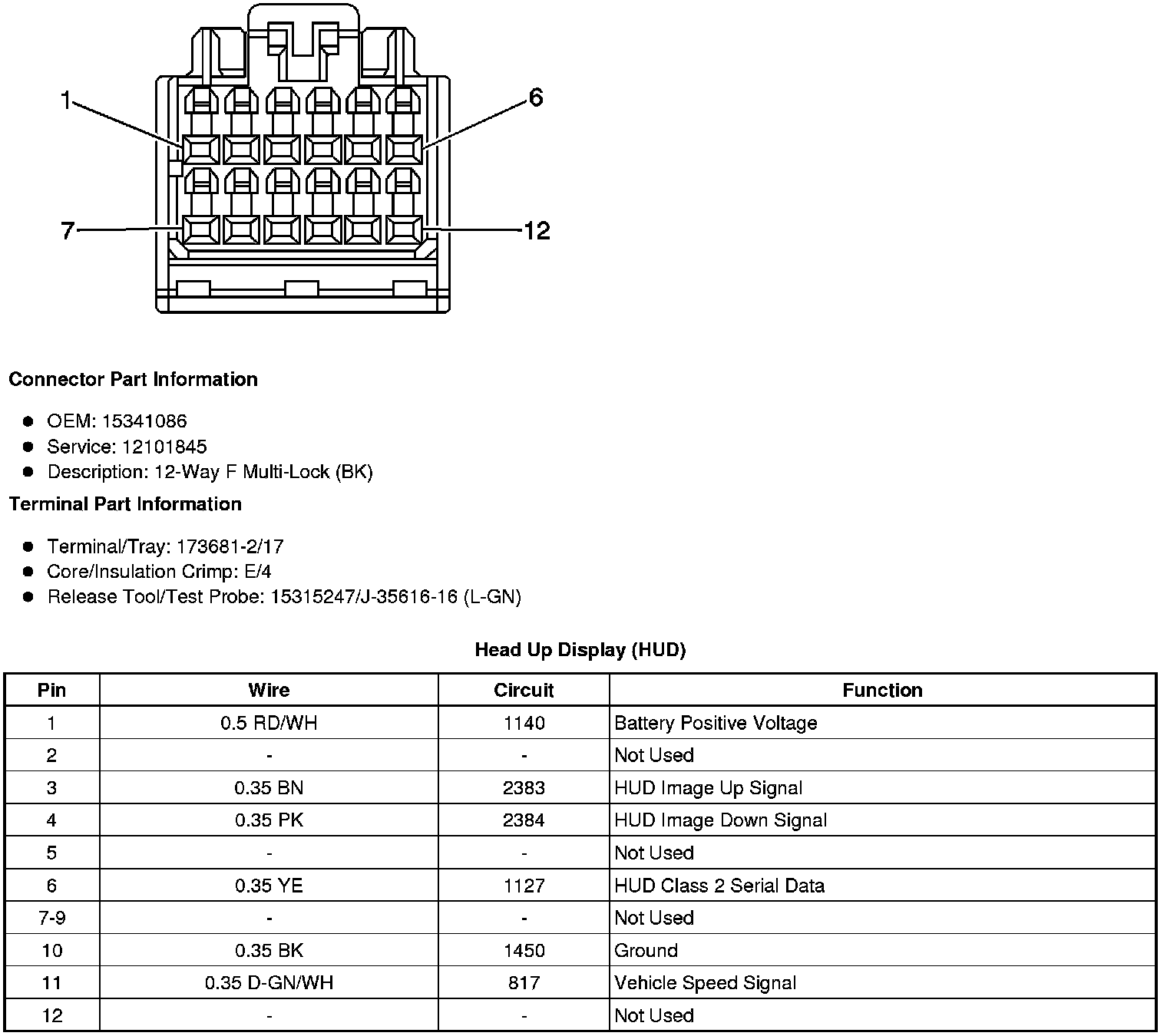

Head Up Display (HUD)
