Damping Control Actuator



Component Connector End Views

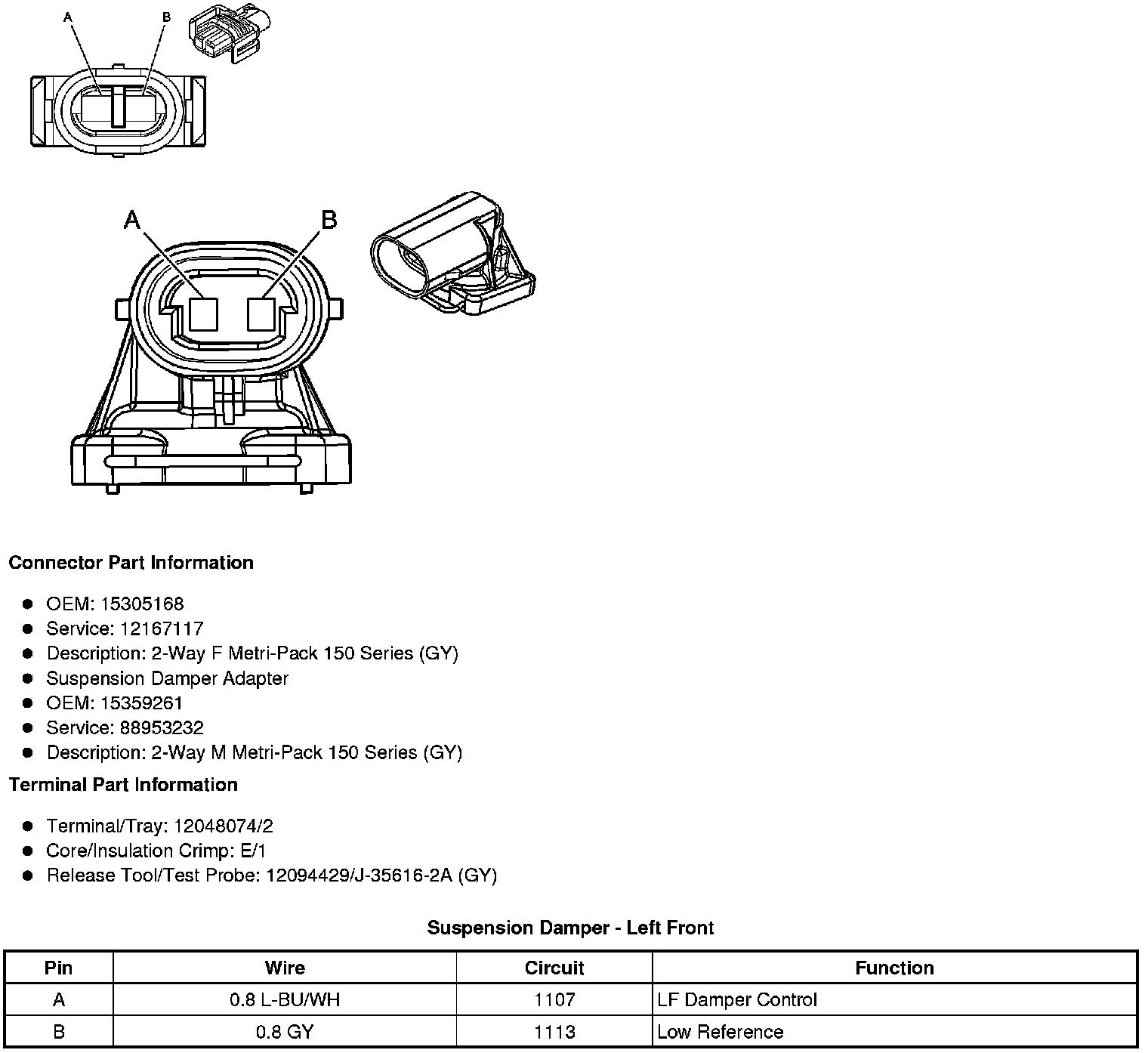

Suspension Damper - Left Front

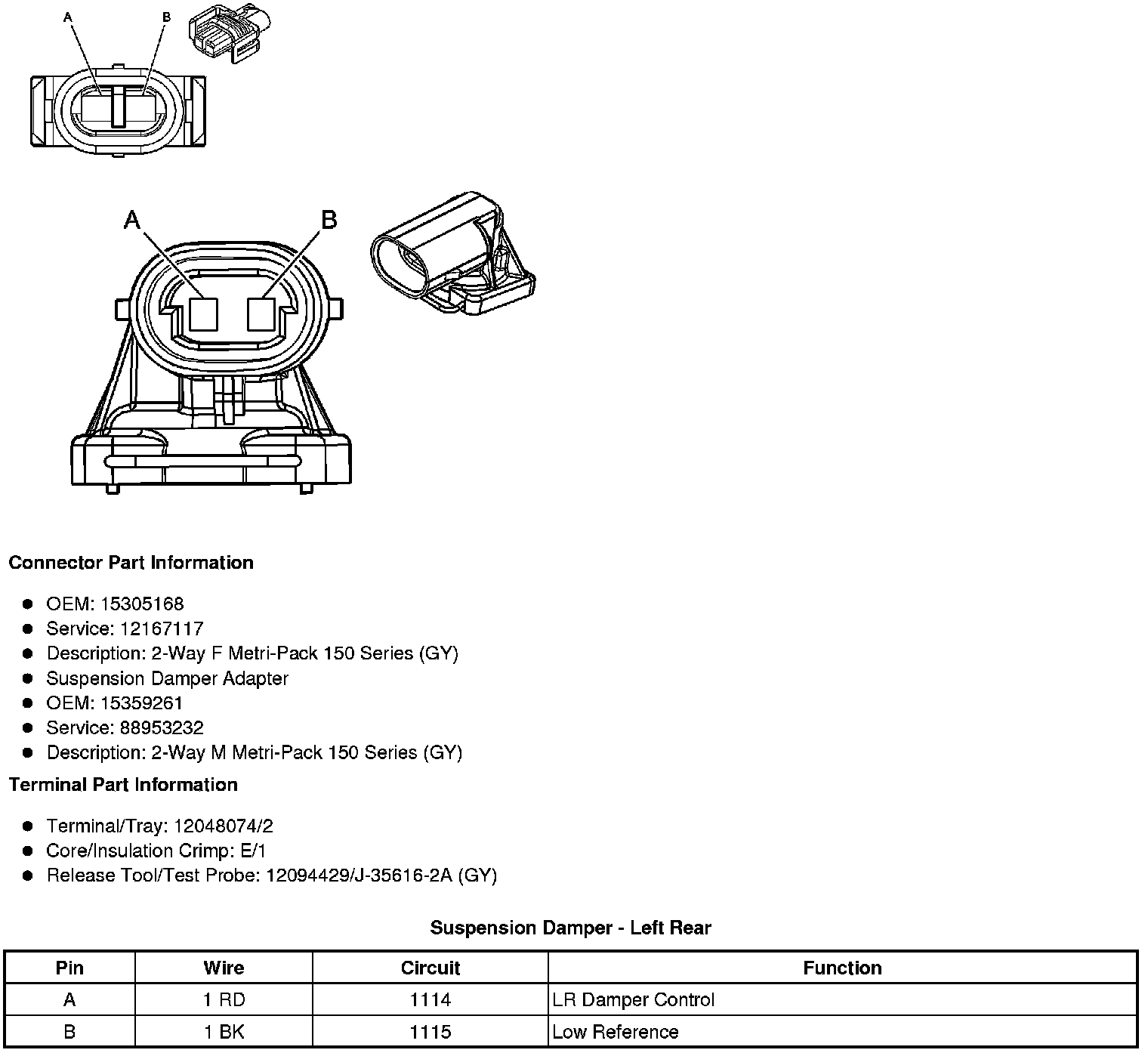

Suspension Damper - Left Rear

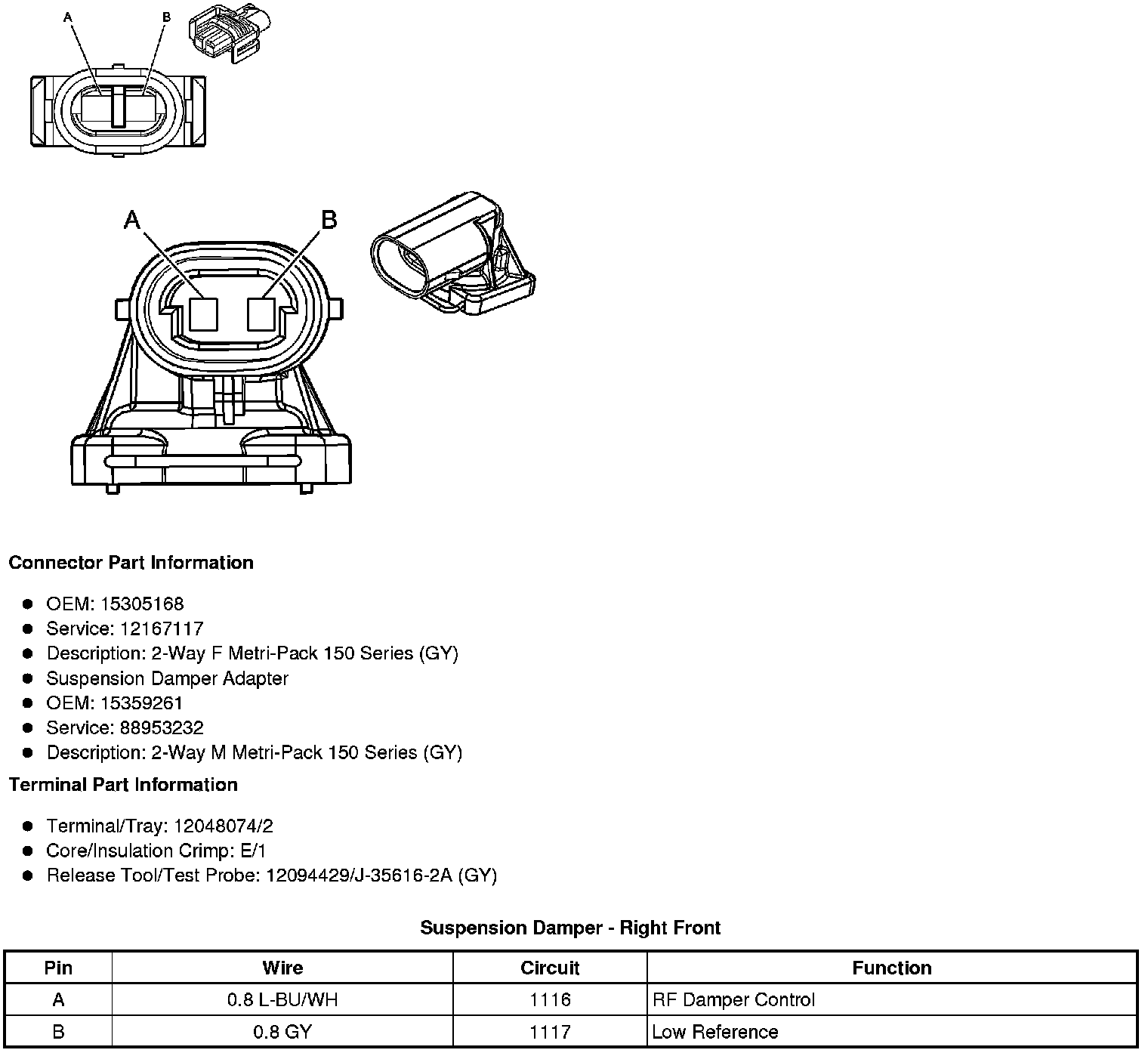

Suspension Damper - Right Front






Suspension Damper - Right Rear
