X119

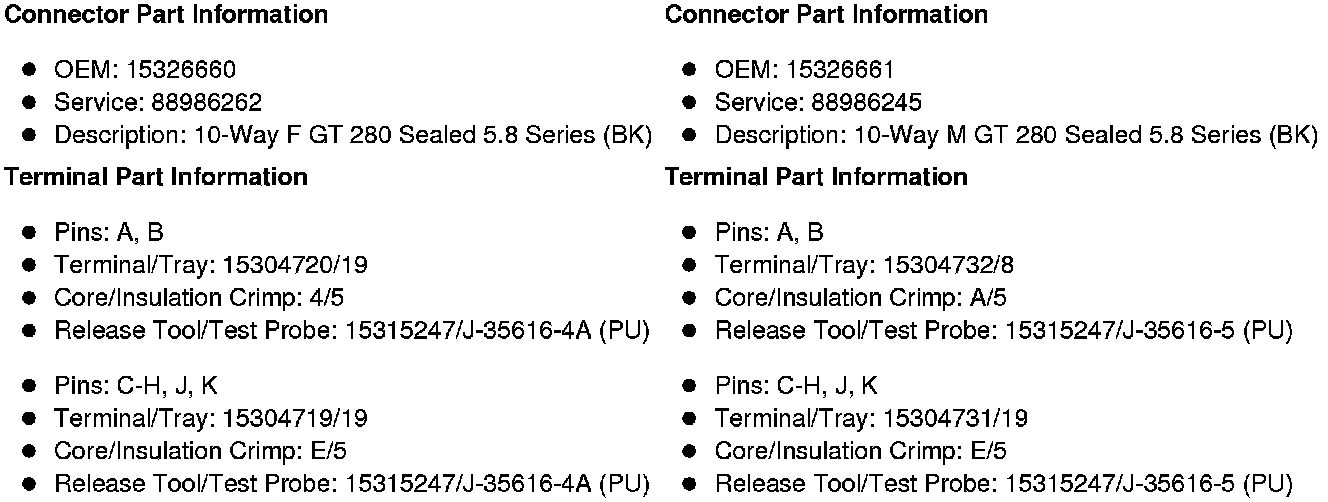

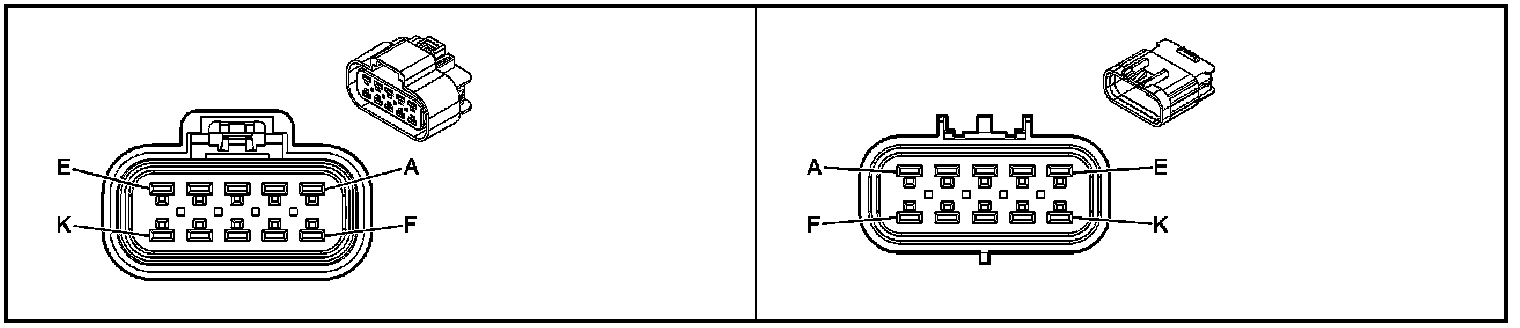

Inline Harness Connector End Views

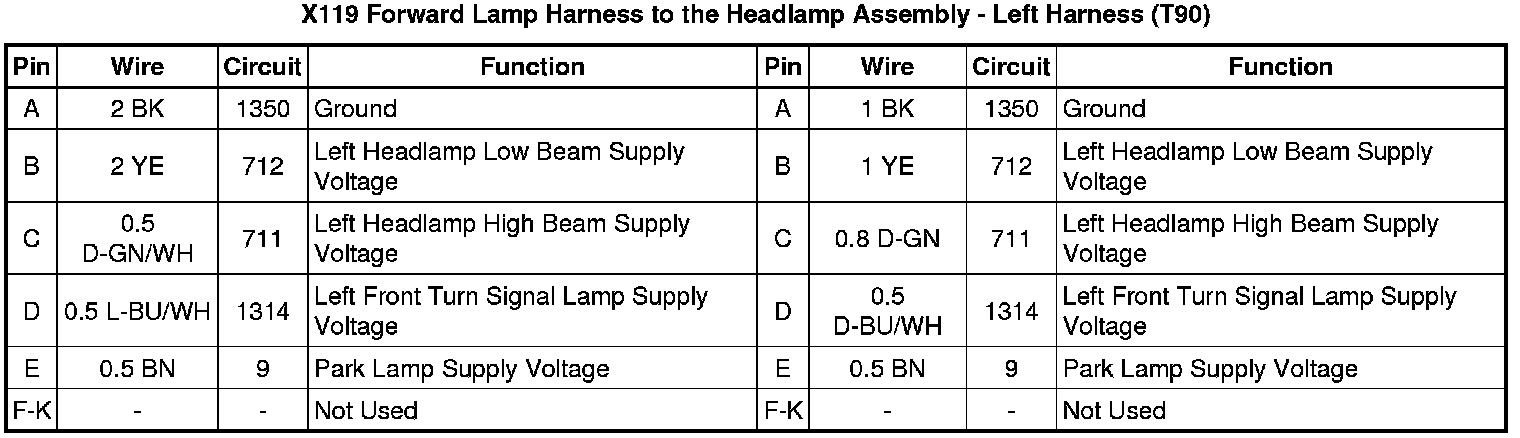

X119 Forward Lamp Harness to the Headlamp Assembly - Left Harness (T90)

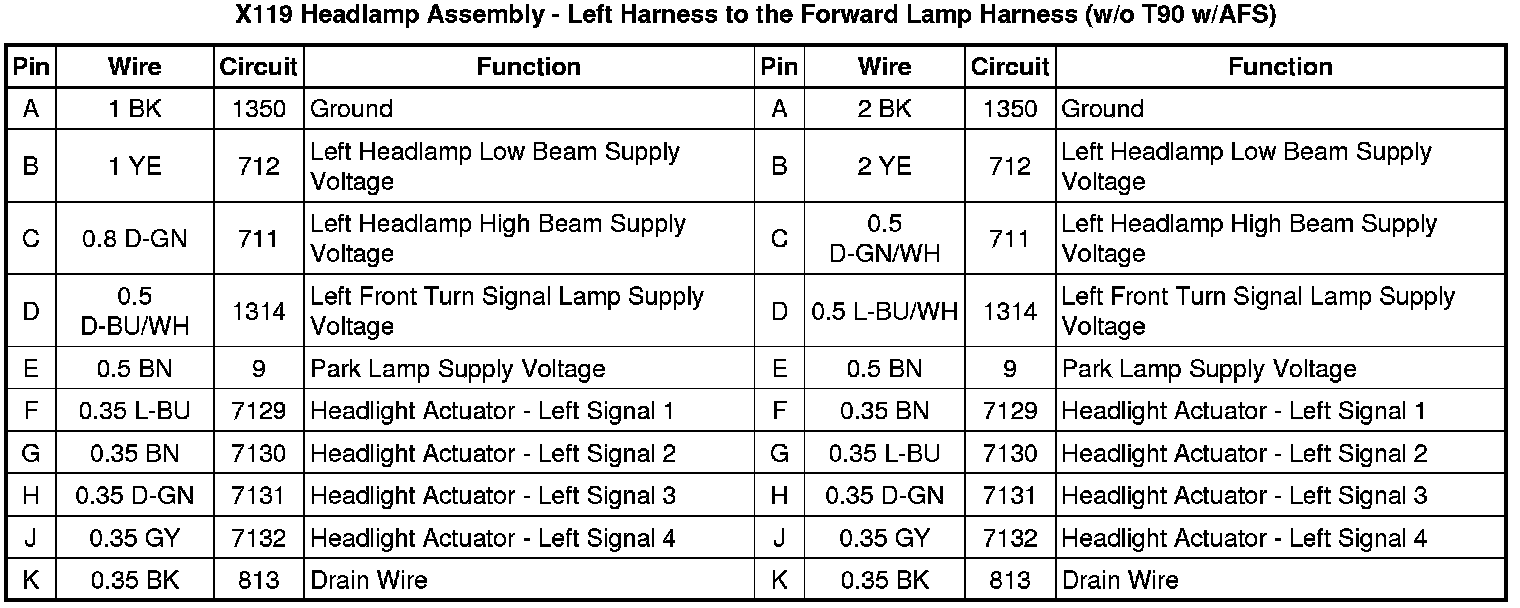

X119 Headlamp Assembly - Left Harness to the Forward Lamp Harness (w/o T90 w/AFS)
