Clockspring Assembly / Spiral Cable, Air Bag
Component Connector End Views

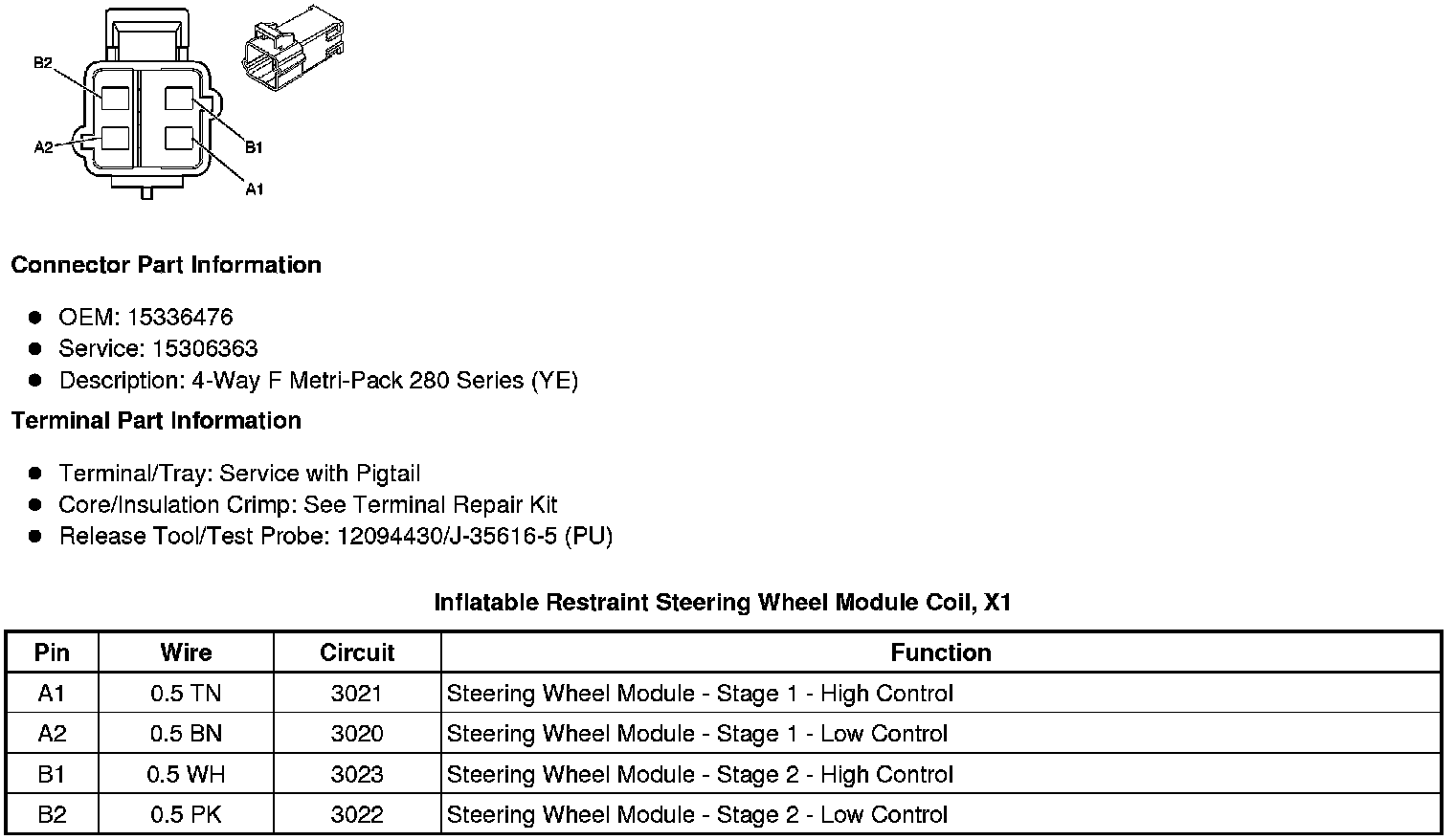

Inflatable Restraint Steering Wheel Module Coil, X1

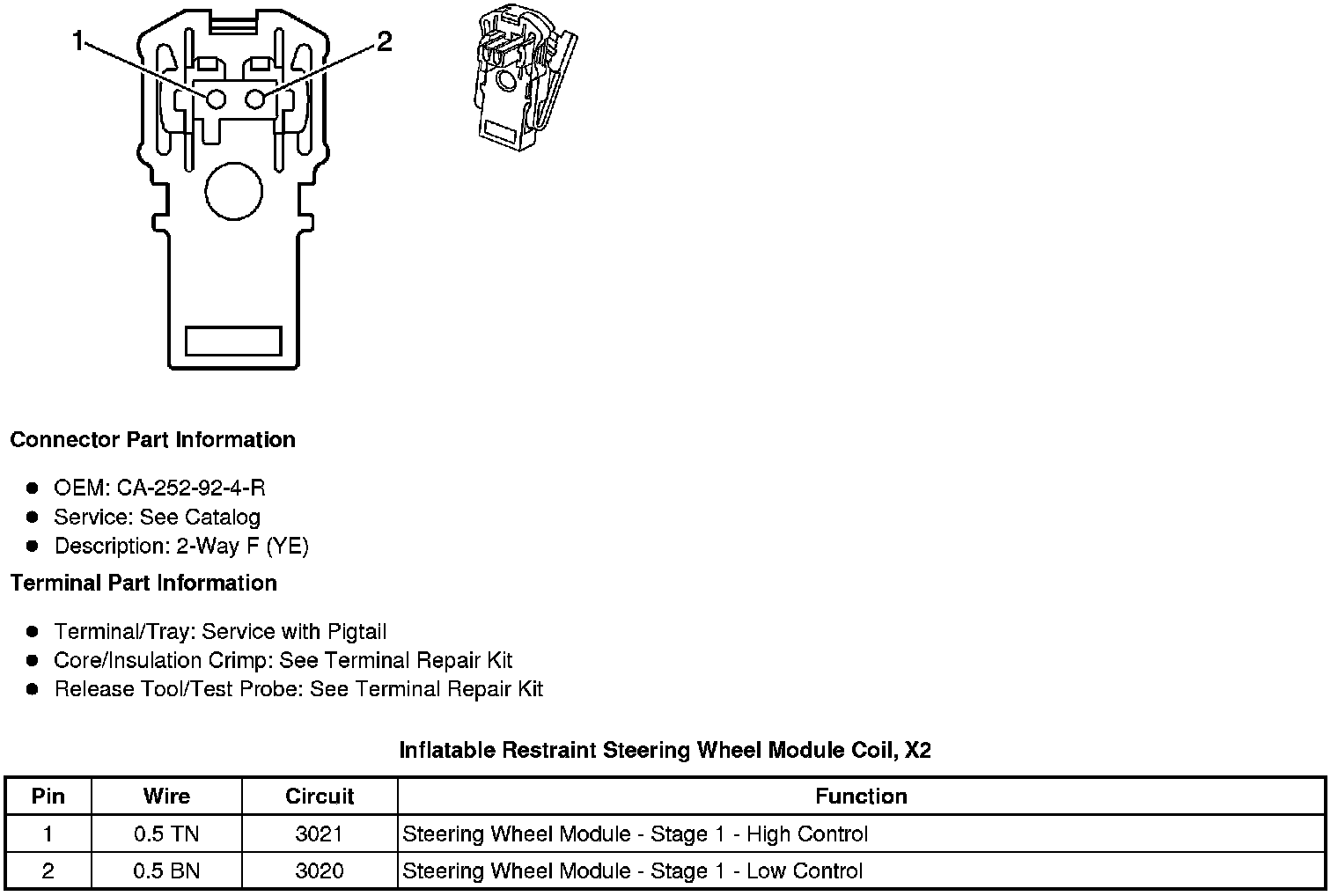

Inflatable Restraint Steering Wheel Module Coil, X2
Inflatable Restraint Steering Wheel Module Coil, X3
Component Connector End Views
Inflatable Restraint Steering Wheel Module Coil, X1
Inflatable Restraint Steering Wheel Module Coil, X2
Inflatable Restraint Steering Wheel Module Coil, X3
