Cadillac
>>
2008
>>
XLR V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cellular Phone Microphone
Cellular Phone Microphone
Component Connector End Views

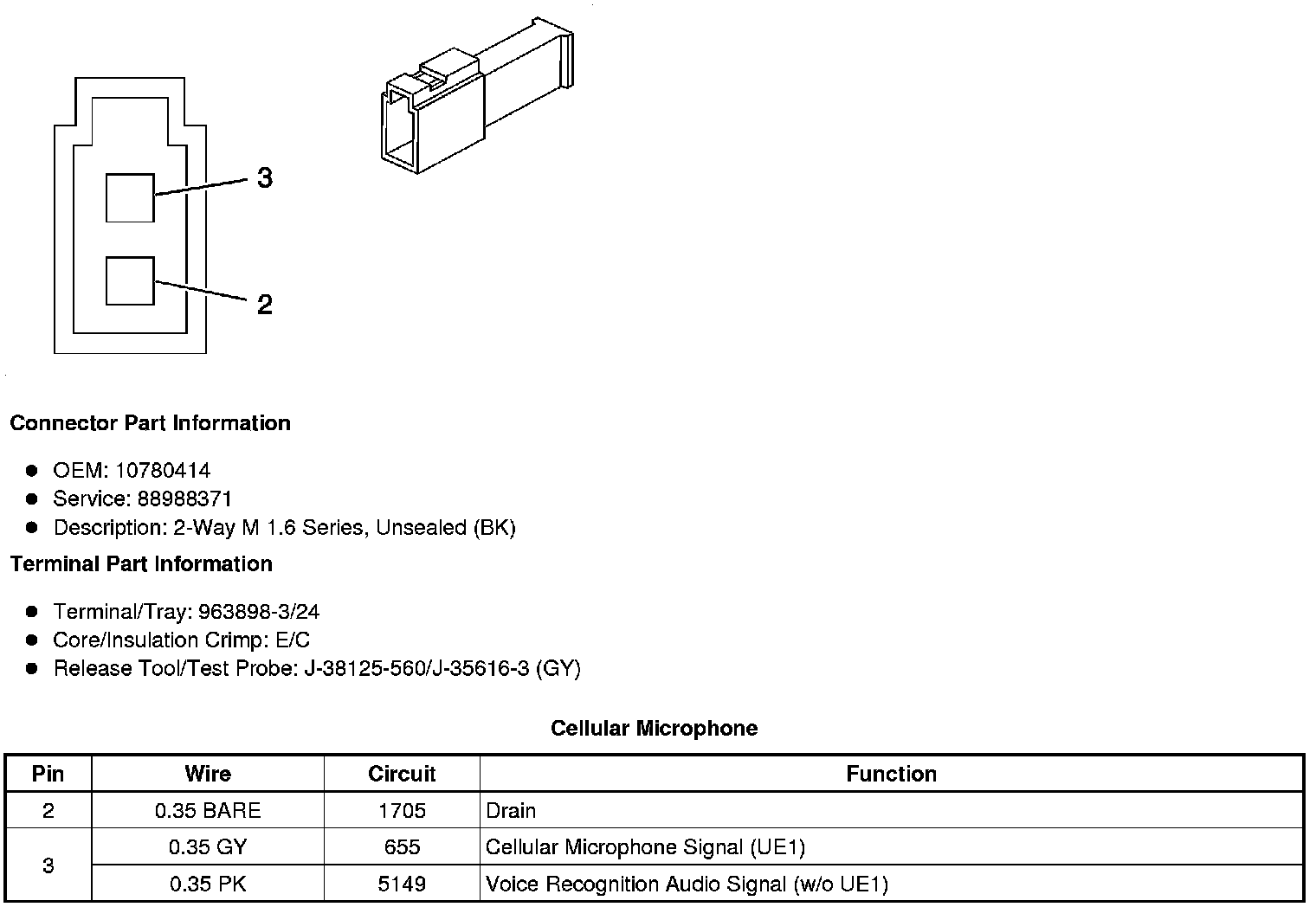

Cellular Microphone

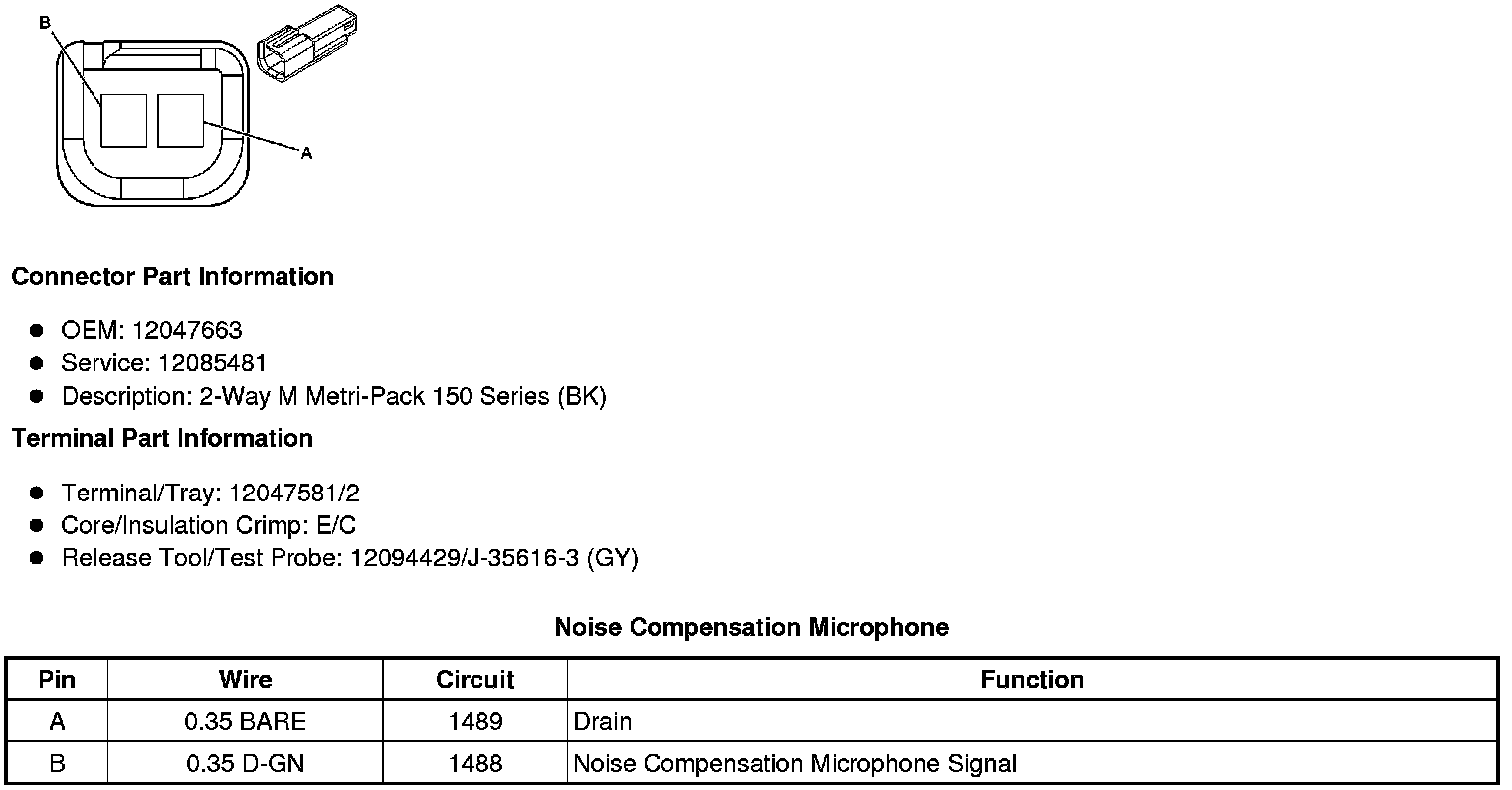

Noise Compensation Microphone
