Camshaft Position Sensor



Component Connector End Views

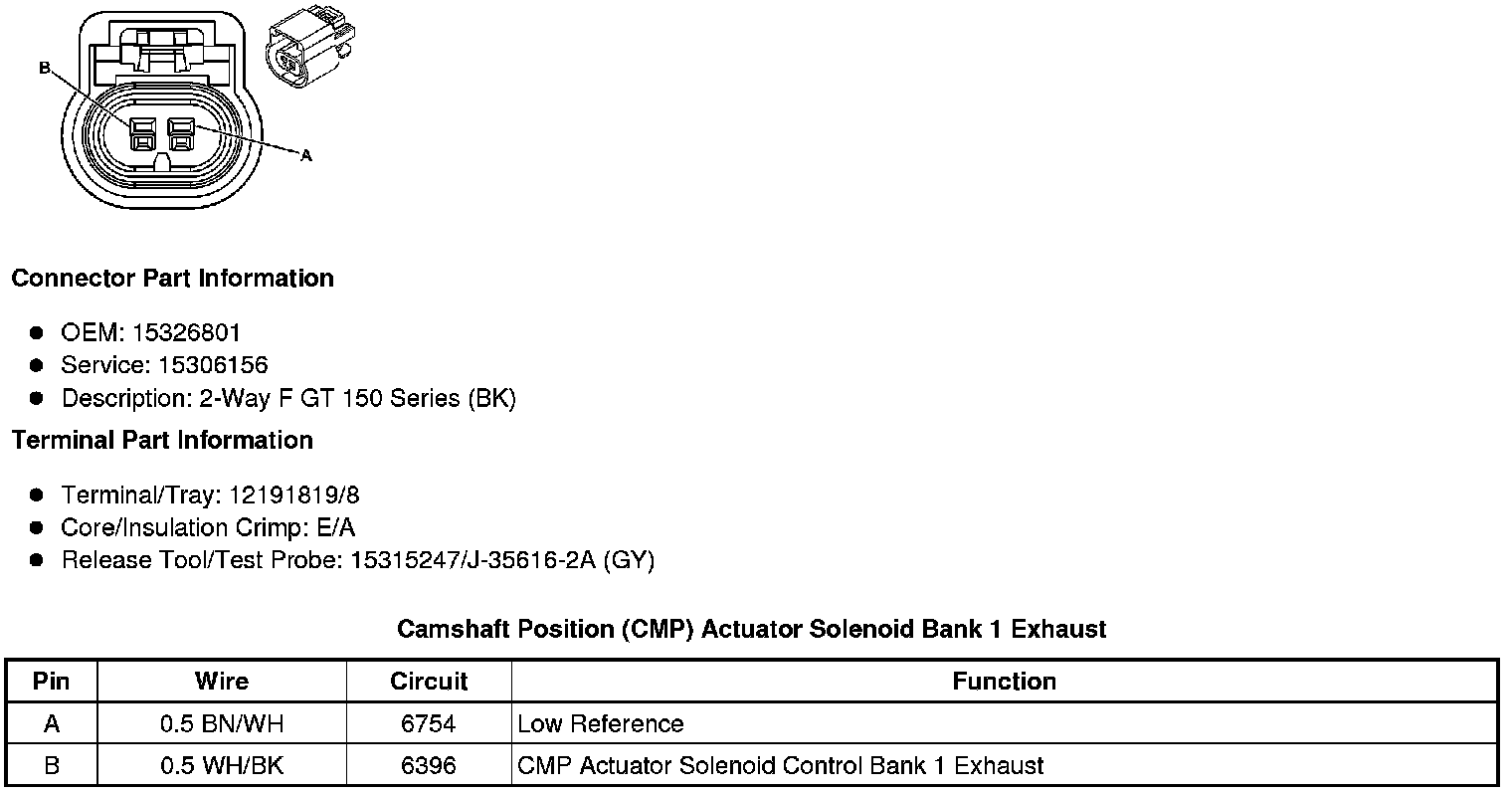

Camshaft Position (CMP) Actuator Solenoid Bank 1 Exhaust

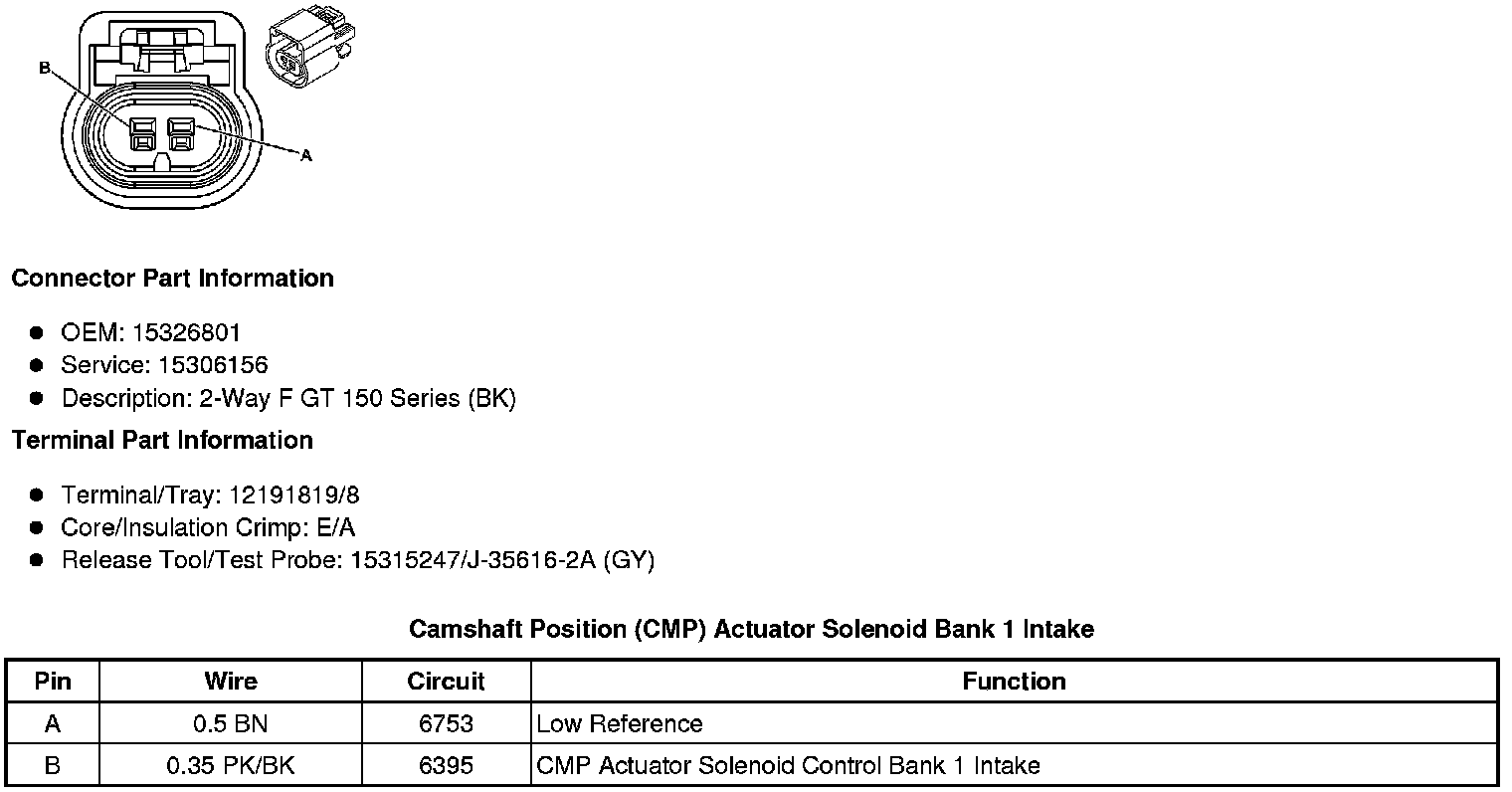

Camshaft Position (CMP) Actuator Solenoid Bank 1 Intake

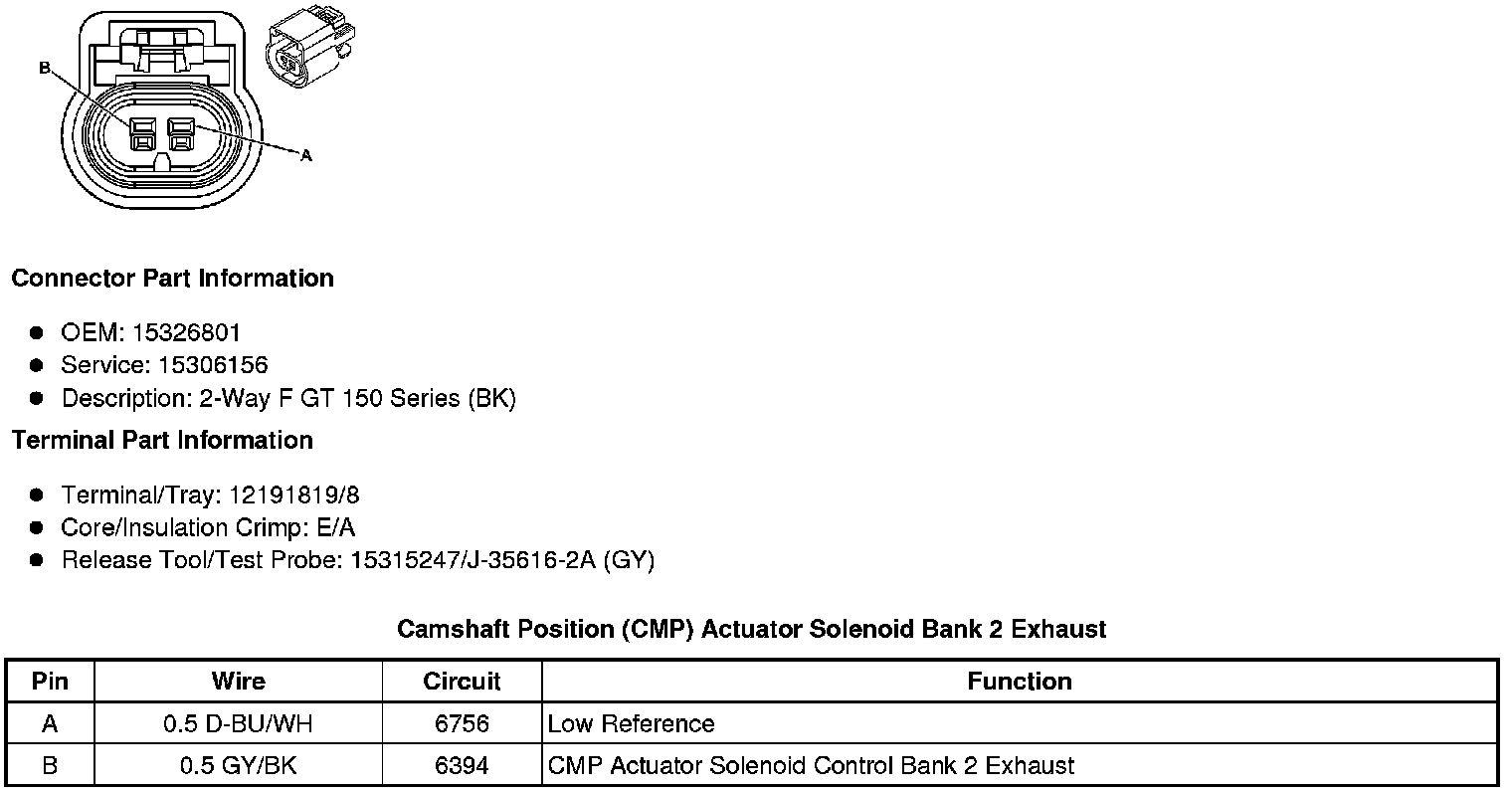

Camshaft Position (CMP) Actuator Solenoid Bank 2 Exhaust

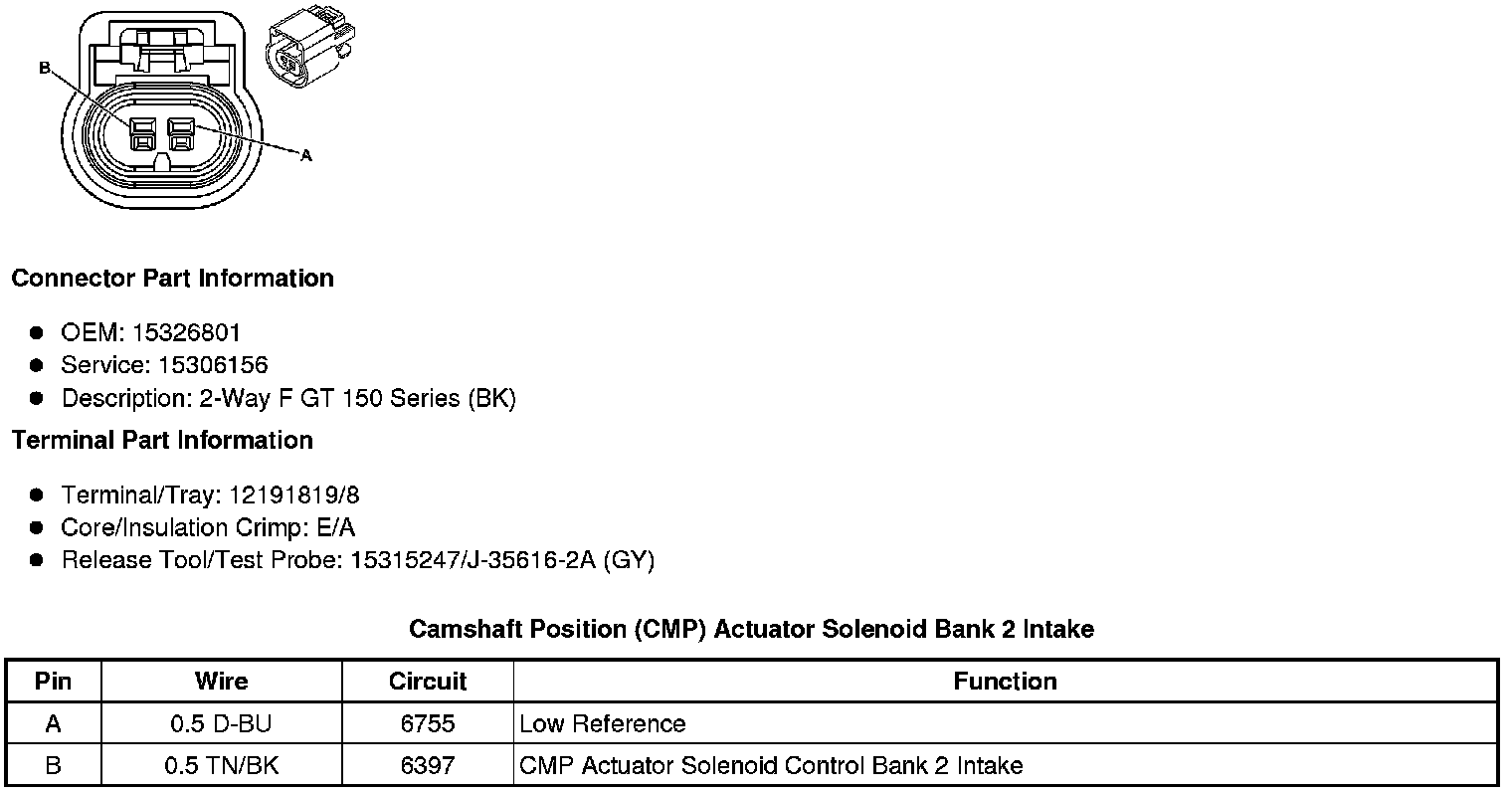

Camshaft Position (CMP) Actuator Solenoid Bank 2 Intake

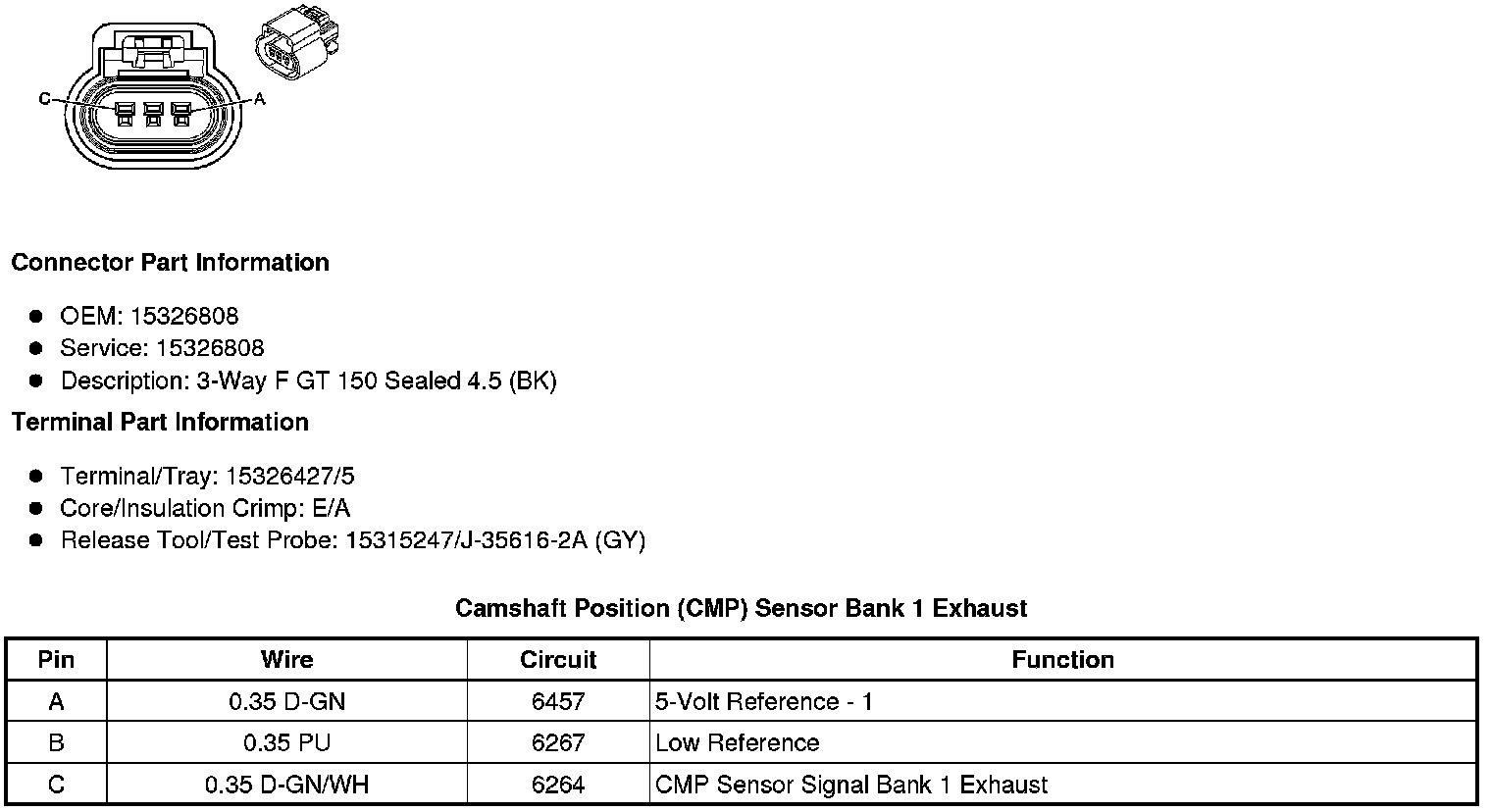

Camshaft Position (CMP) Sensor Bank 1 Exhaust

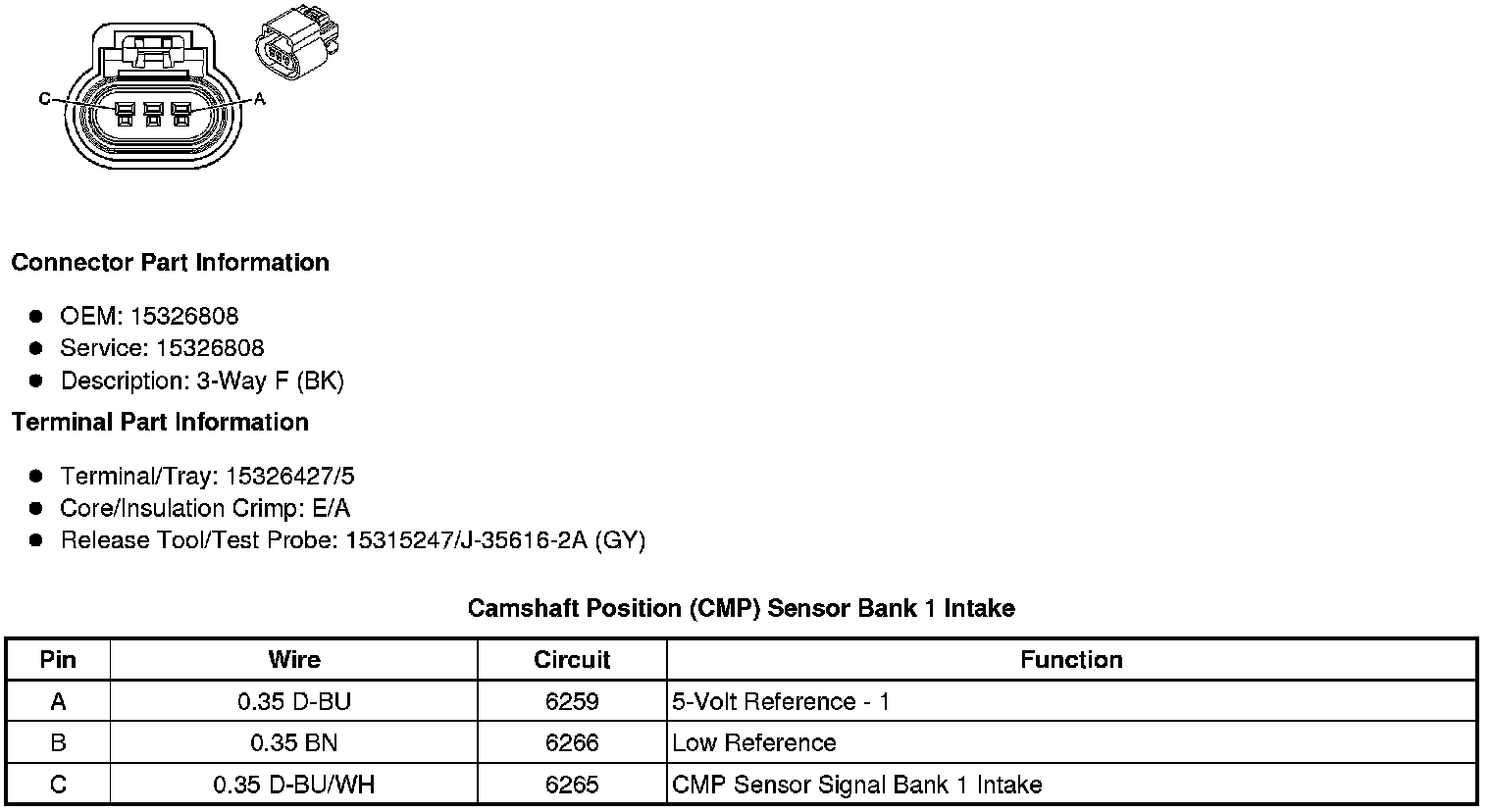

Camshaft Position (CMP) Sensor Bank 1 Intake

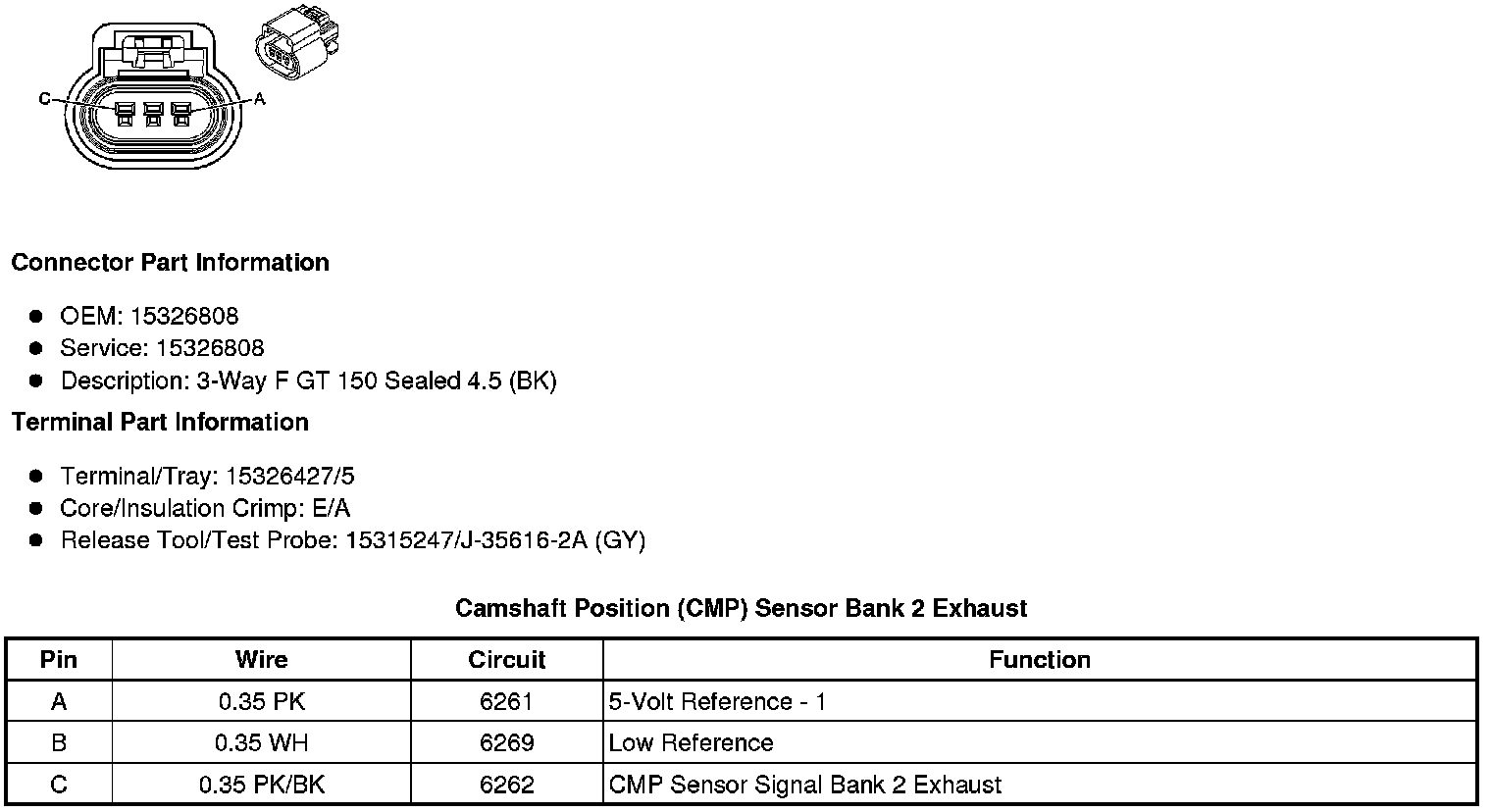

Camshaft Position (CMP) Sensor Bank 2 Exhaust

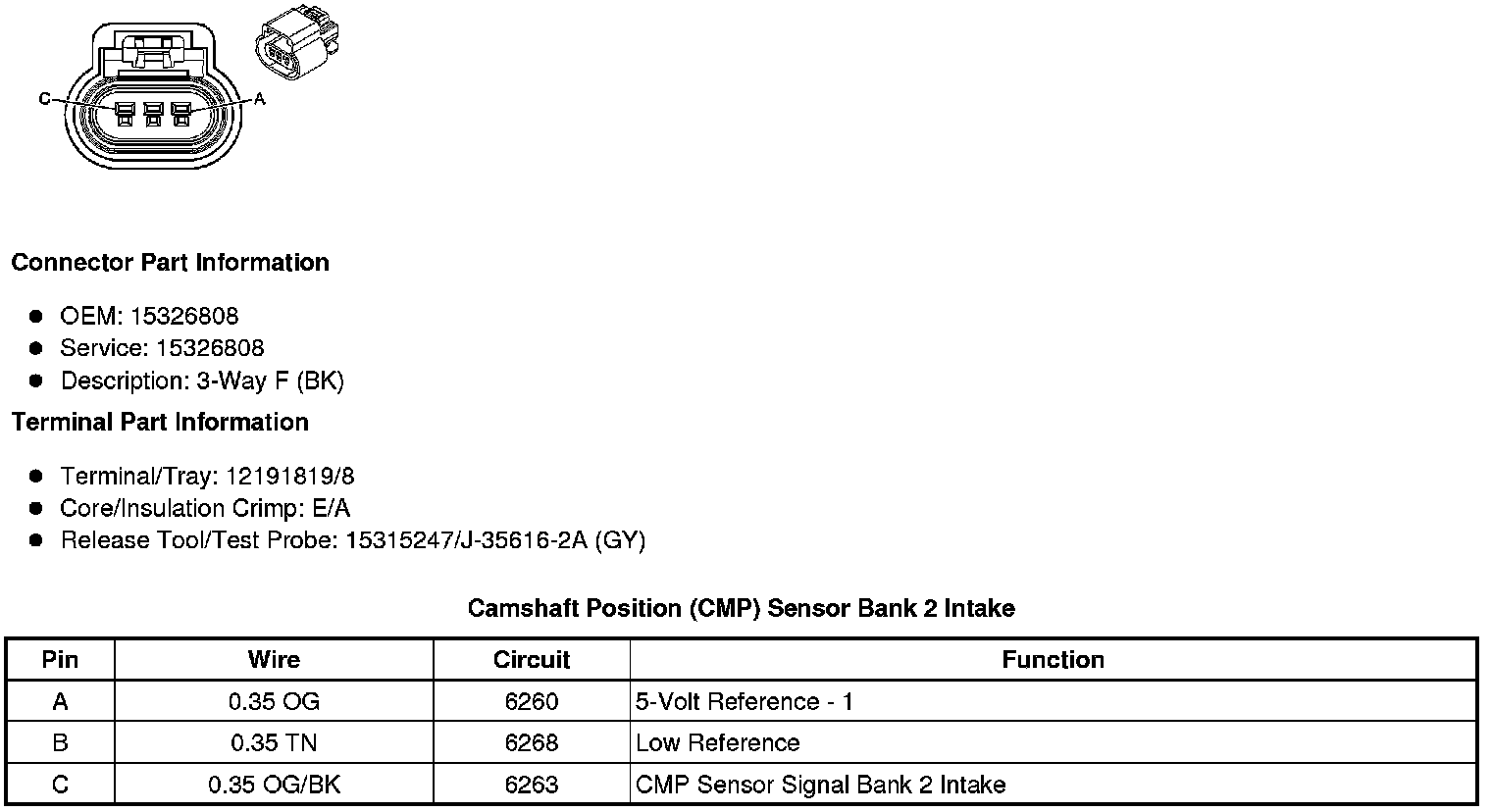

Camshaft Position (CMP) Sensor Bank 2 Intake
