Air Temperature Sensor ( Ambient / Intake )

Component Connector End Views

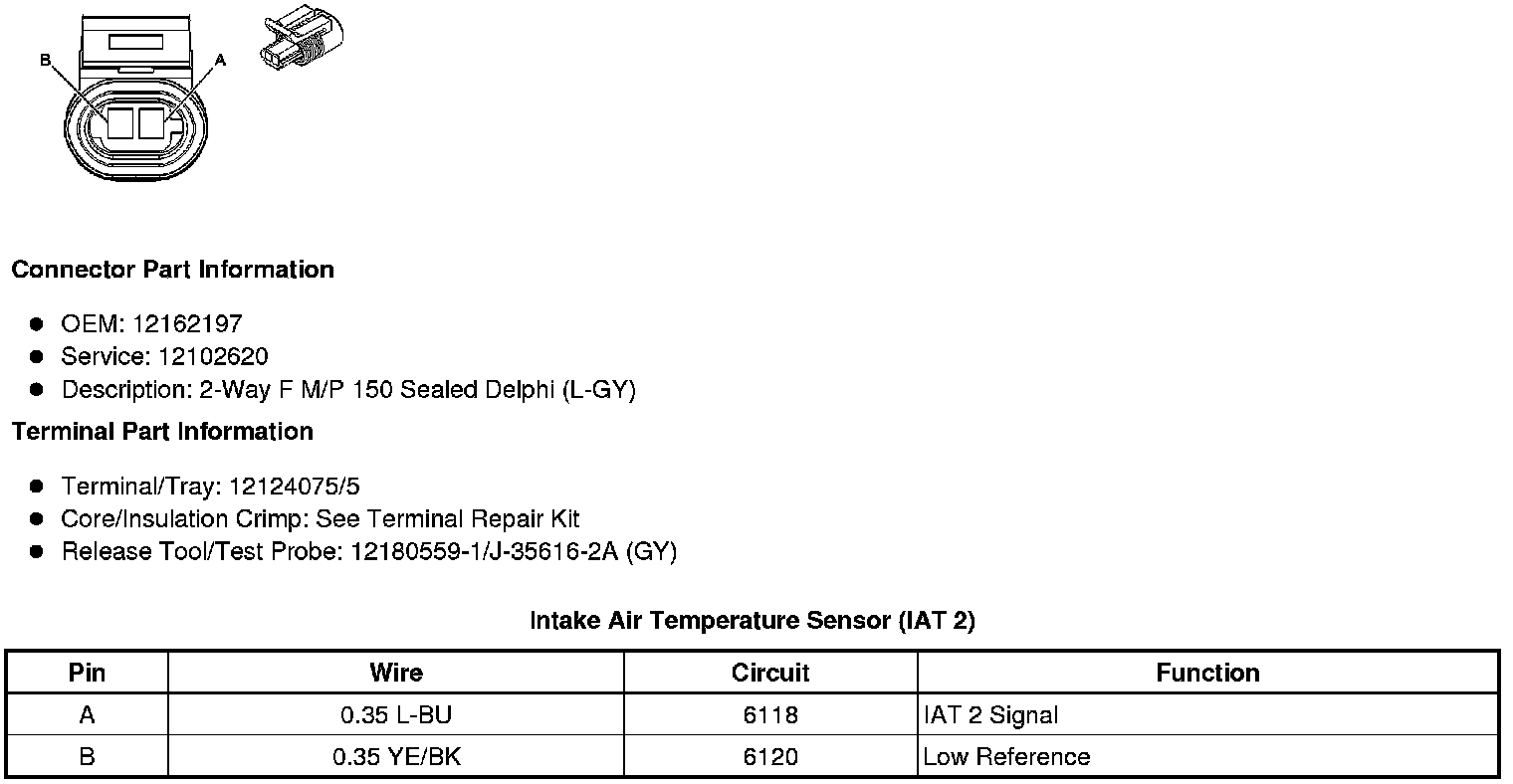

Intake Air Temperature Sensor (IAT 2)

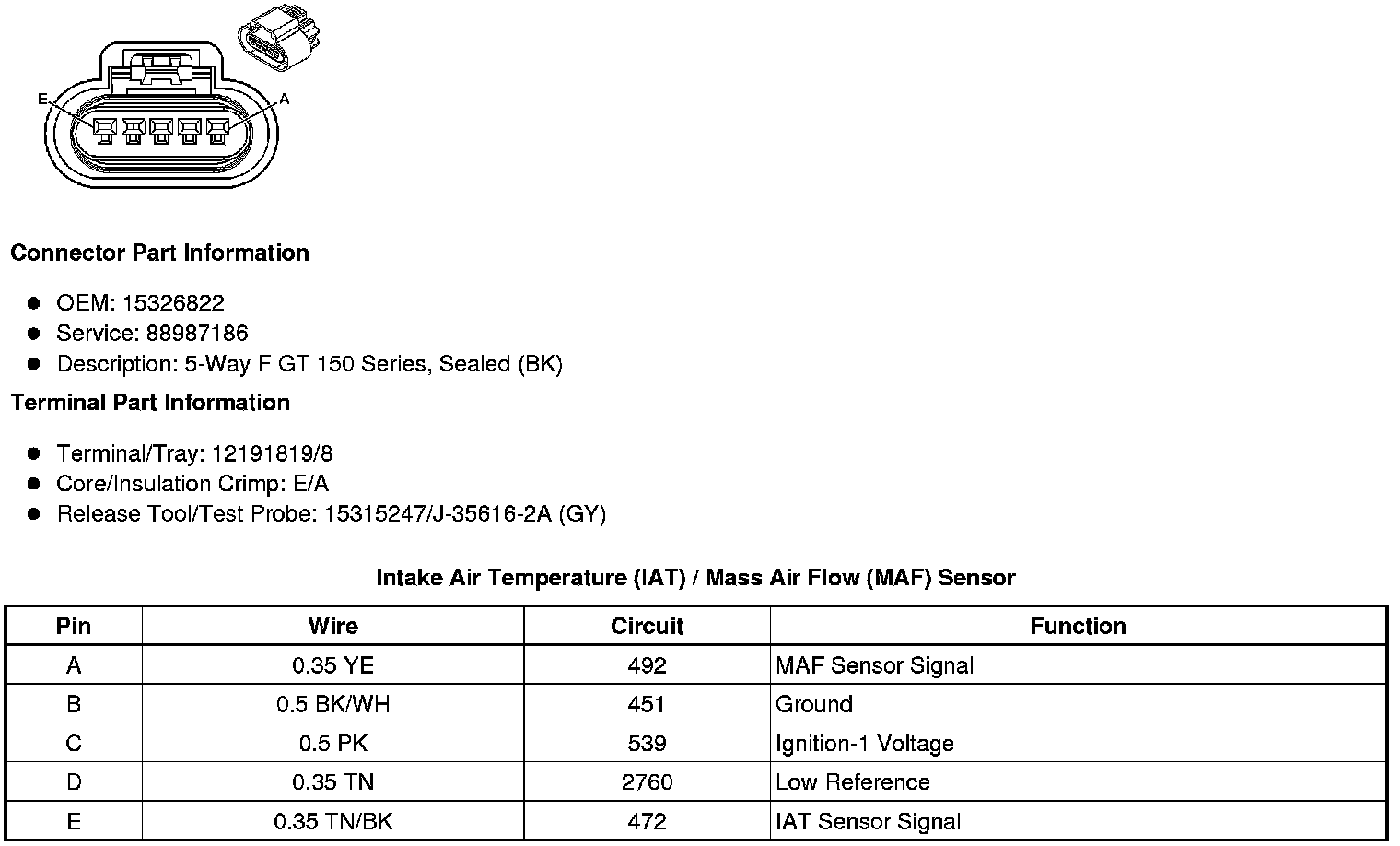

Intake Air Temperature (IAT) / Mass Air Flow (MAF) Sensor
