Parking Brake Relay: Locations

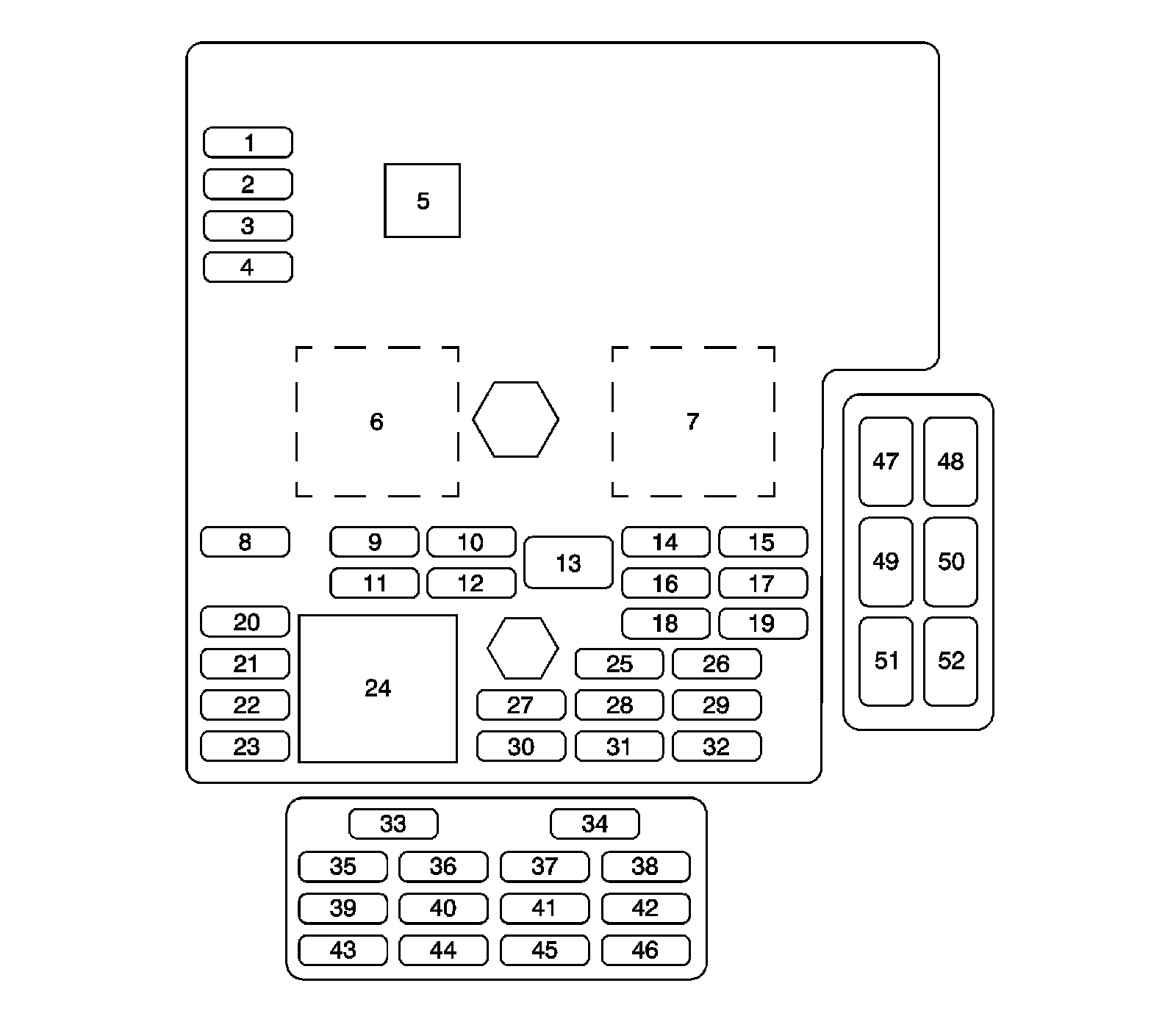

Electrical Center Identification Views

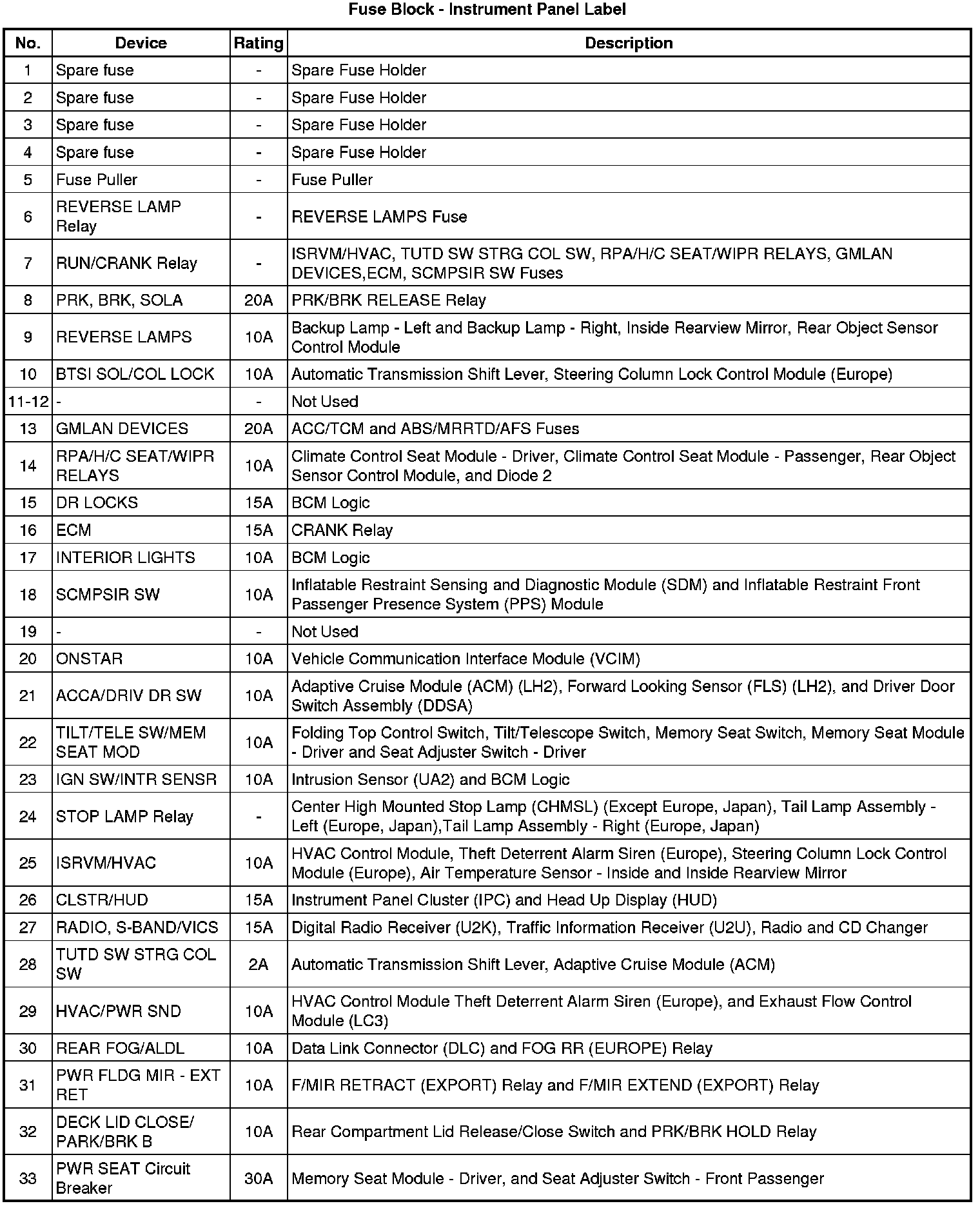

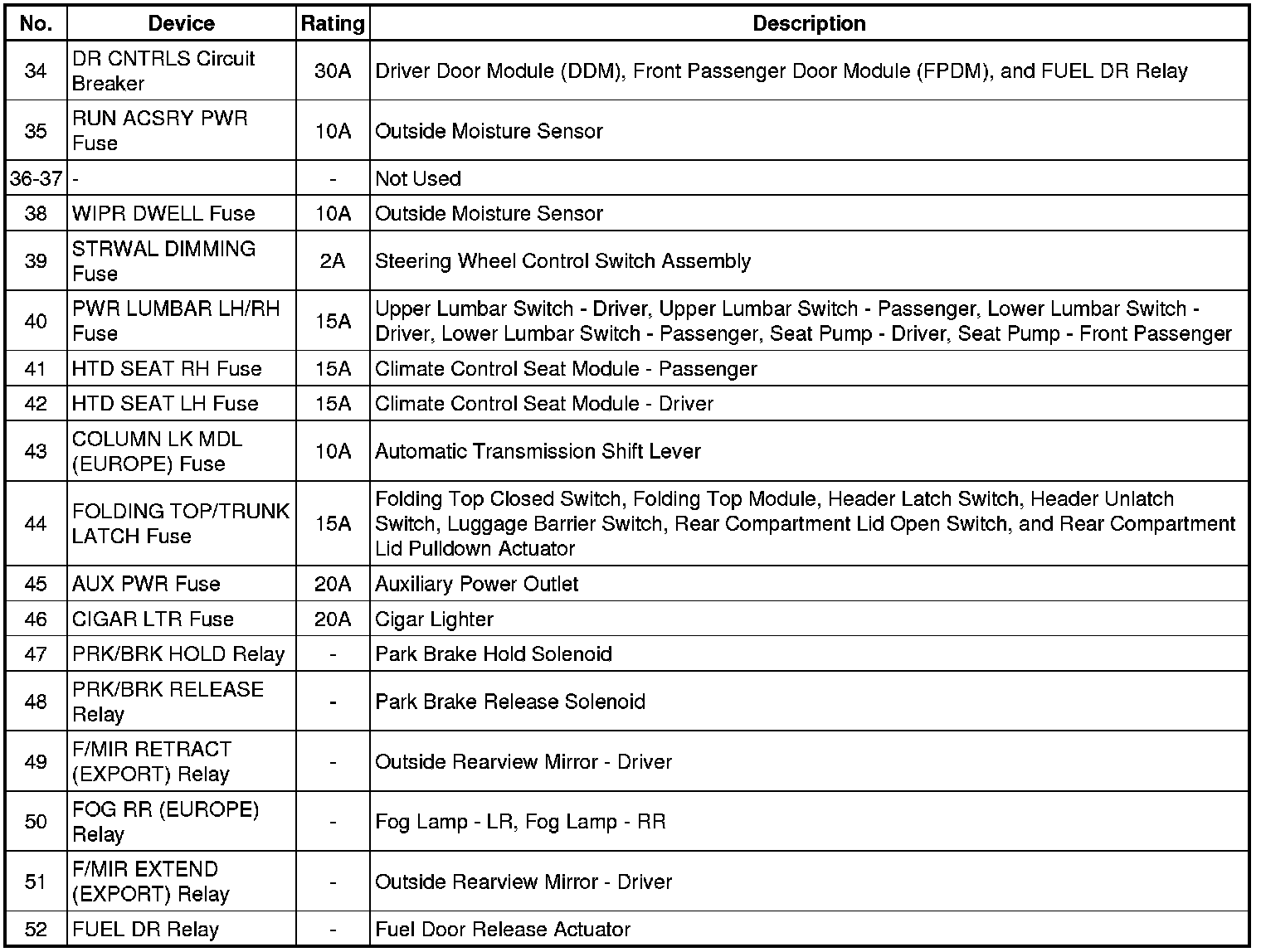

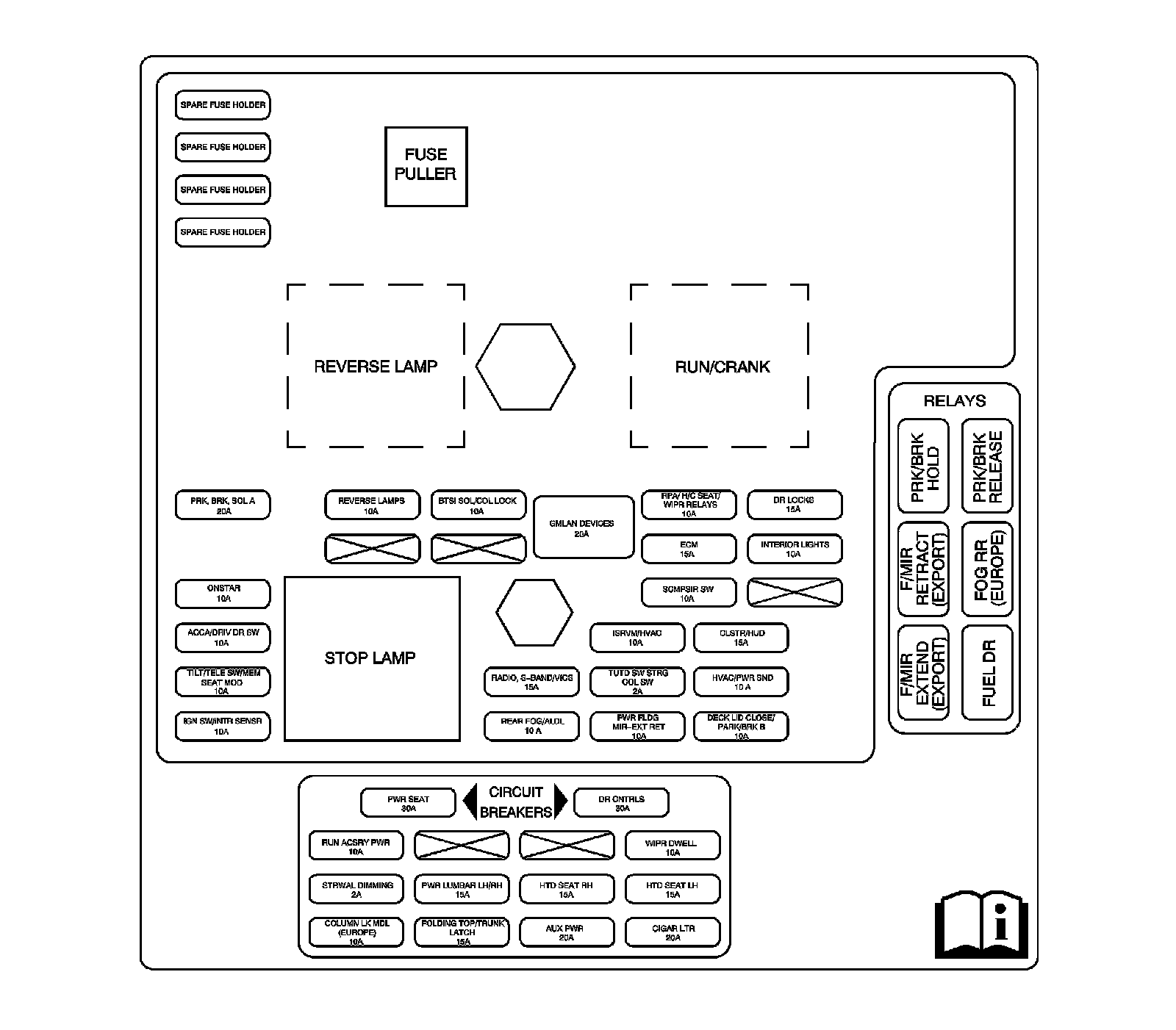

Fuse Block - Instrument Panel, Relay Block - Instrument Panel, and Body Control Module (BCM) Label
