Removal Procedure

1. Remove the LH lower closeout panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side (Service and Repair) .
2. Remove the instrument panel cluster (IPC). Refer to Instrument Cluster Replacement (Instrument Cluster Replacement) .

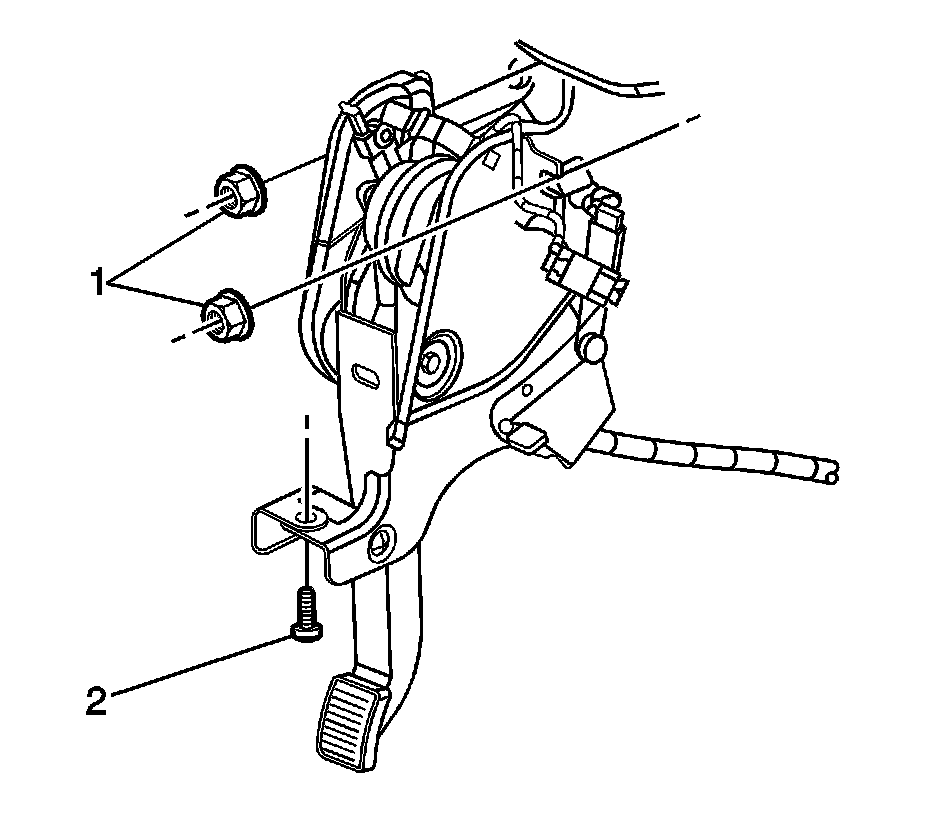

3. Remove the park brake assembly attaching nuts (1) and bolt (2).




4. Disconnect the park brake switch electrical connector.
5. Disconnect the park brake release solenoid electrical connector.
6. Position the park brake pedal assembly aside to gain access to the park brake release solenoid.

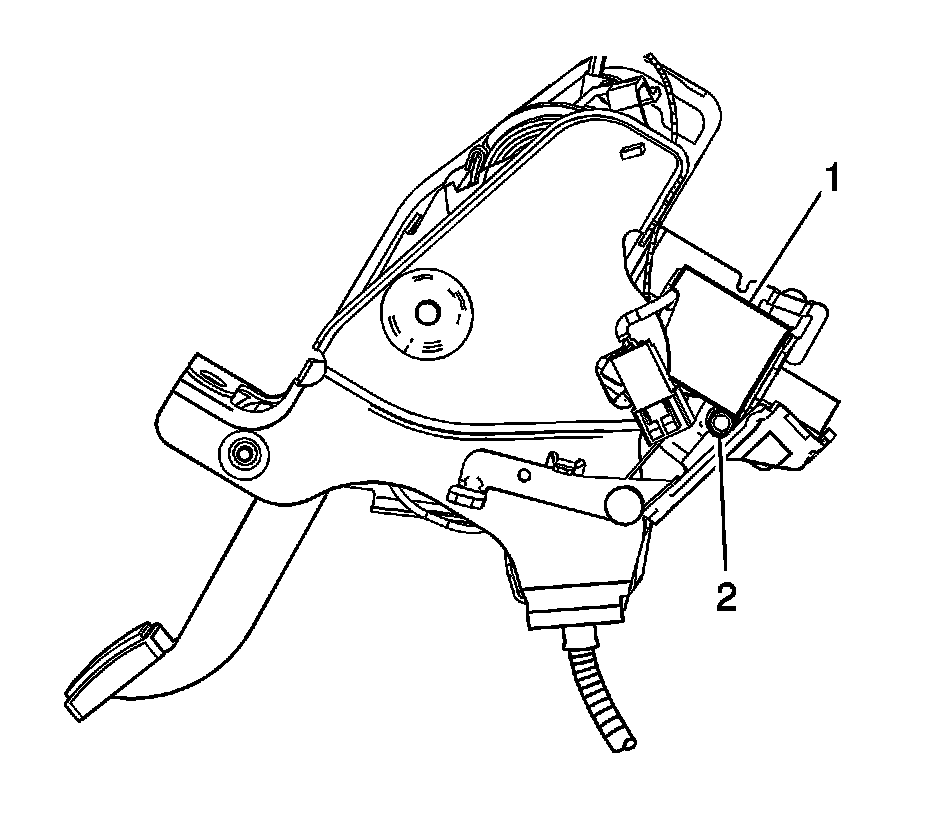

7. Remove the park brake release solenoid mounting bolt (2).
8. Remove the park brake release solenoid (1) from the park brake pedal assembly.



Installation Procedure





1. Install the park brake release solenoid (1) from the park brake pedal assembly.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the park brake release solenoid mounting bolt.

Tighten the bolt to 6 N.m (53 lb in).

3. Position the park brake pedal assembly .
4. Install the park brake assembly attaching nuts and bolt.

Tighten to 10 N.m (89 lb in).

5. Connect the park brake release solenoid electrical connector.




6. Connect the park brake switch electrical connector.
7. Install the IPC. Refer to Instrument Cluster Replacement (Instrument Cluster Replacement) .
8. Install the LH lower closeout panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side (Service and Repair) .
9. Apply the park brake pedal and release 2-3 times, to assure proper function of the park brake system.
