Connector Views



Component Connector End Views

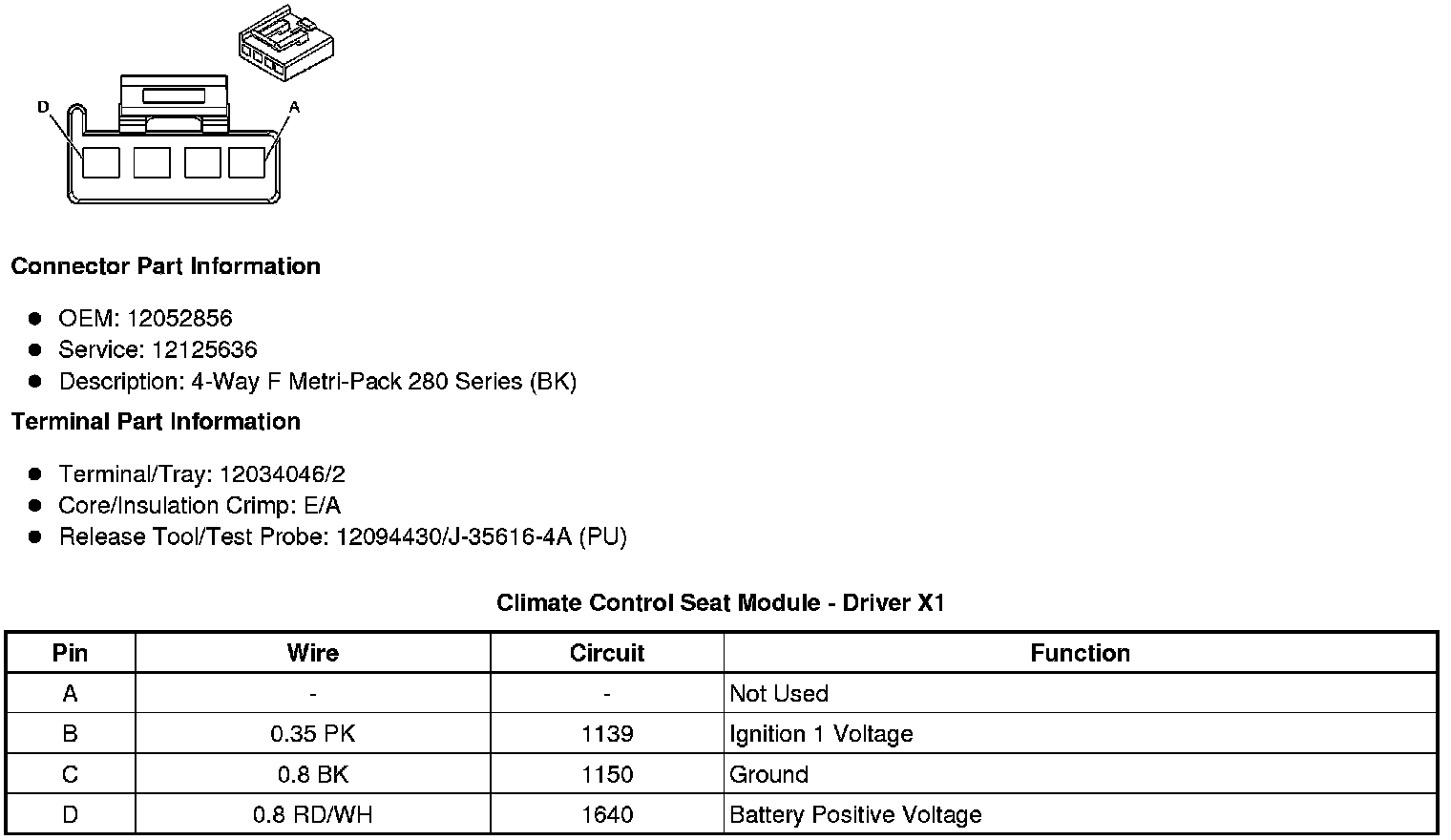

Climate Control Seat Module - Driver X1

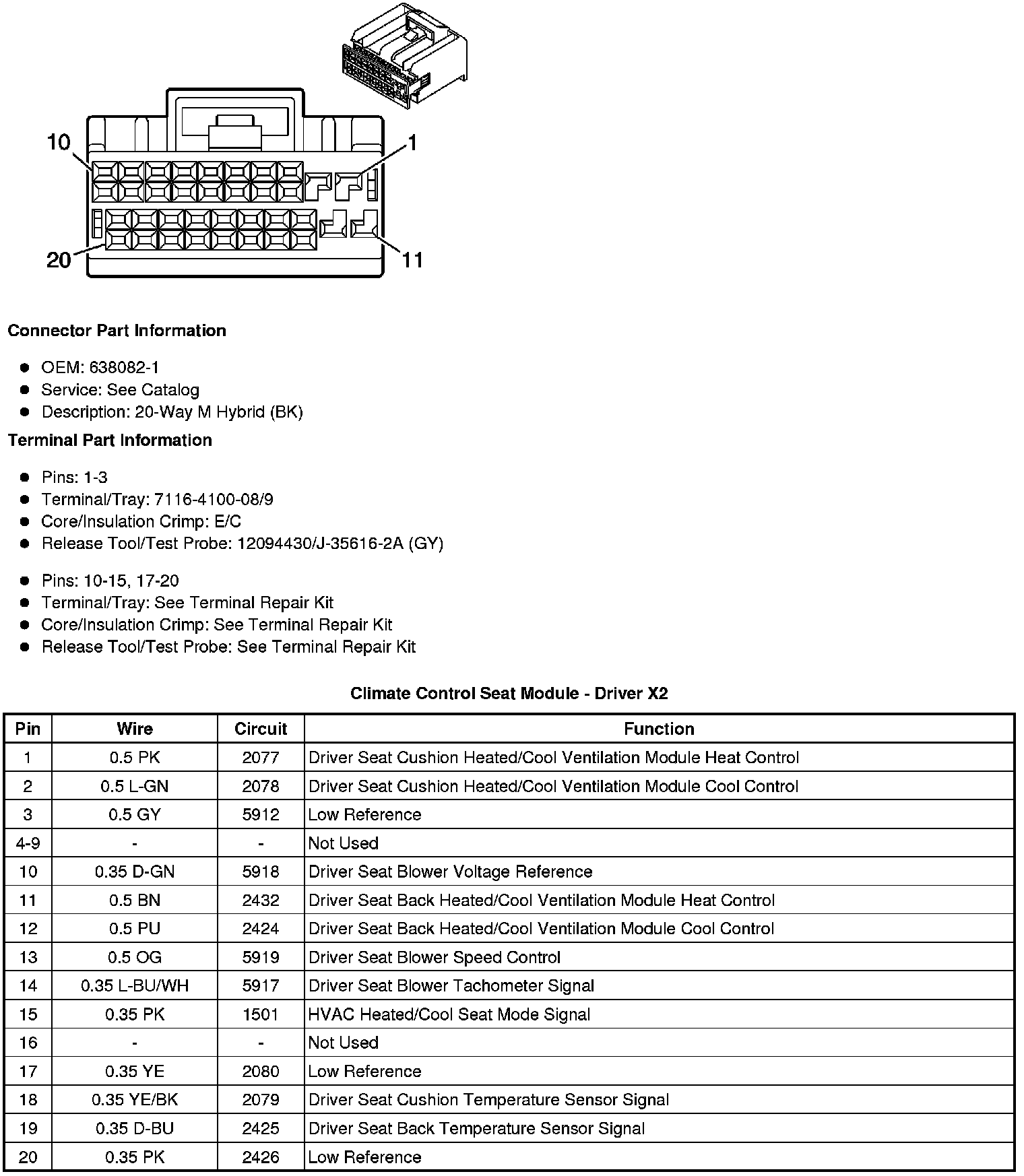

Climate Control Seat Module - Driver X2

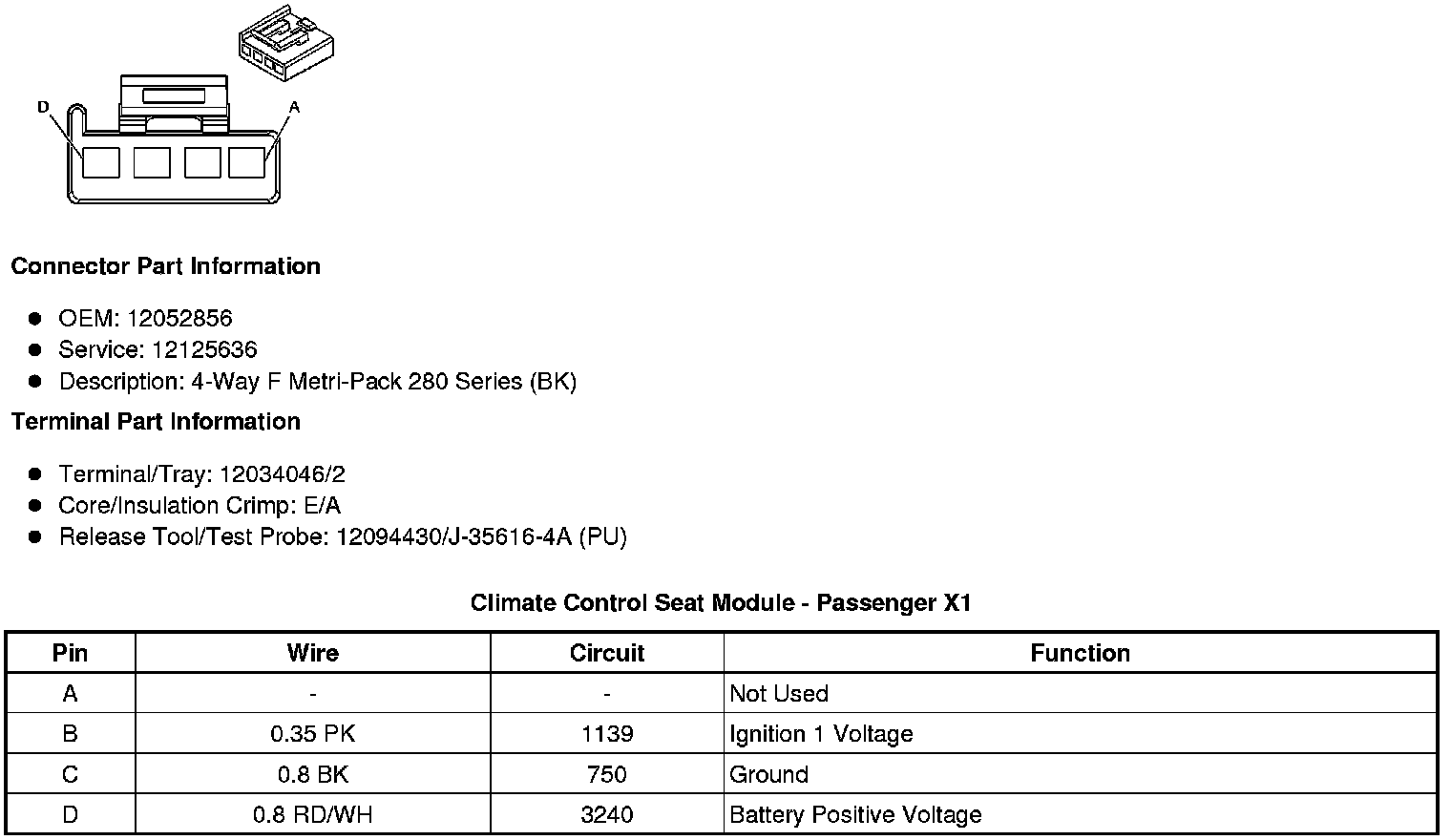

Climate Control Seat Module - Passenger X1

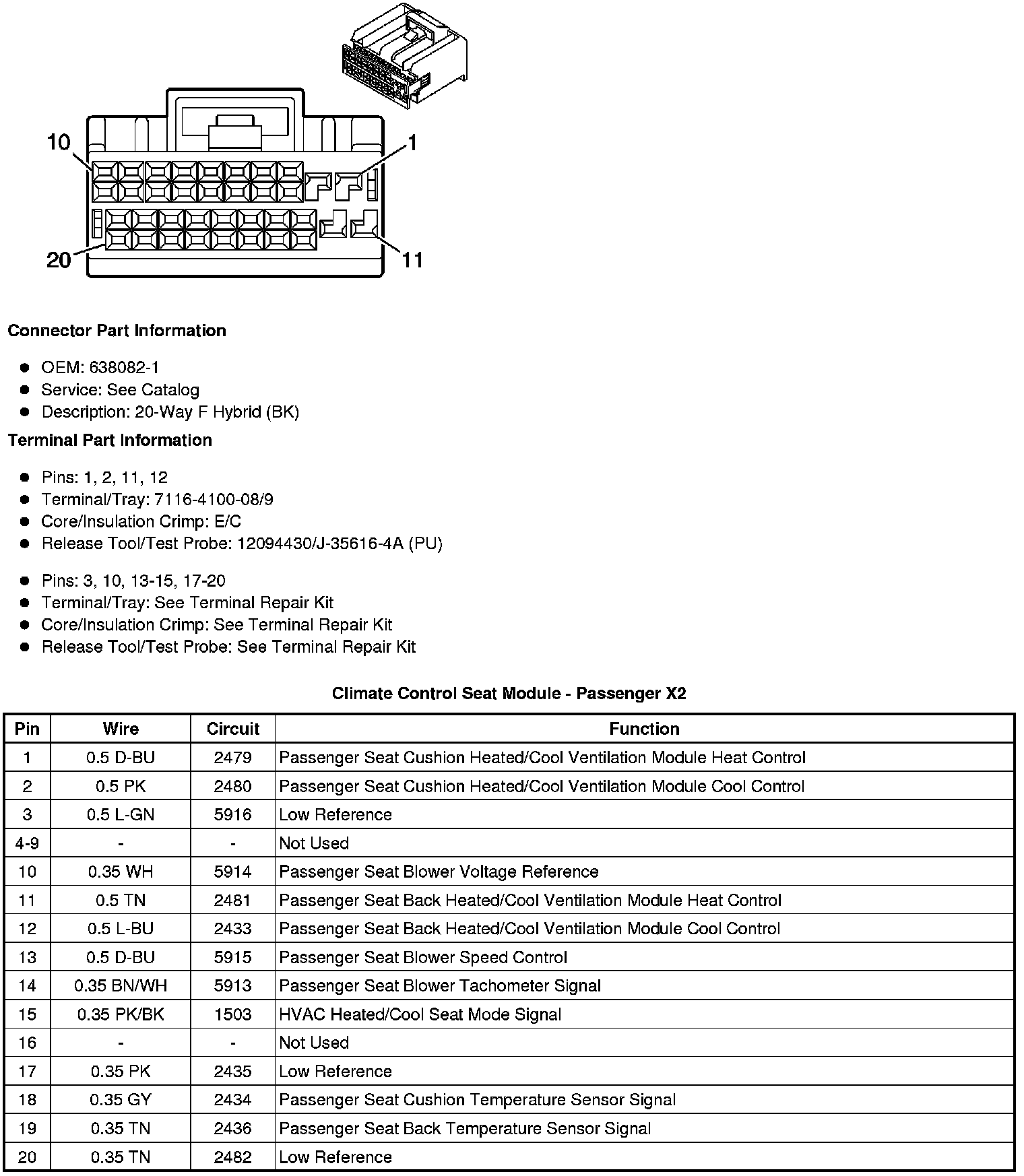

Climate Control Seat Module - Passenger X2

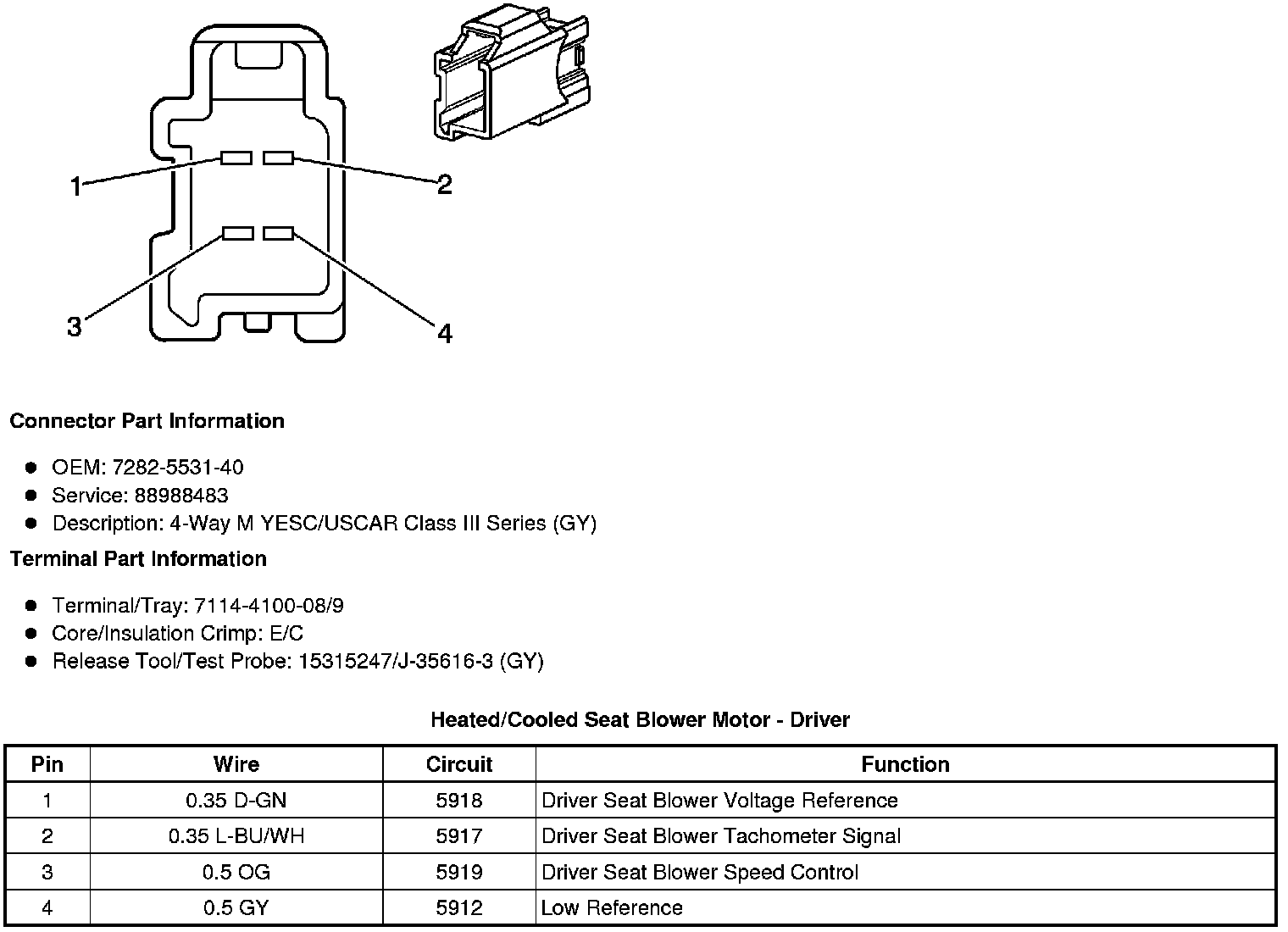

Heated/Cooled Seat Blower Motor - Driver

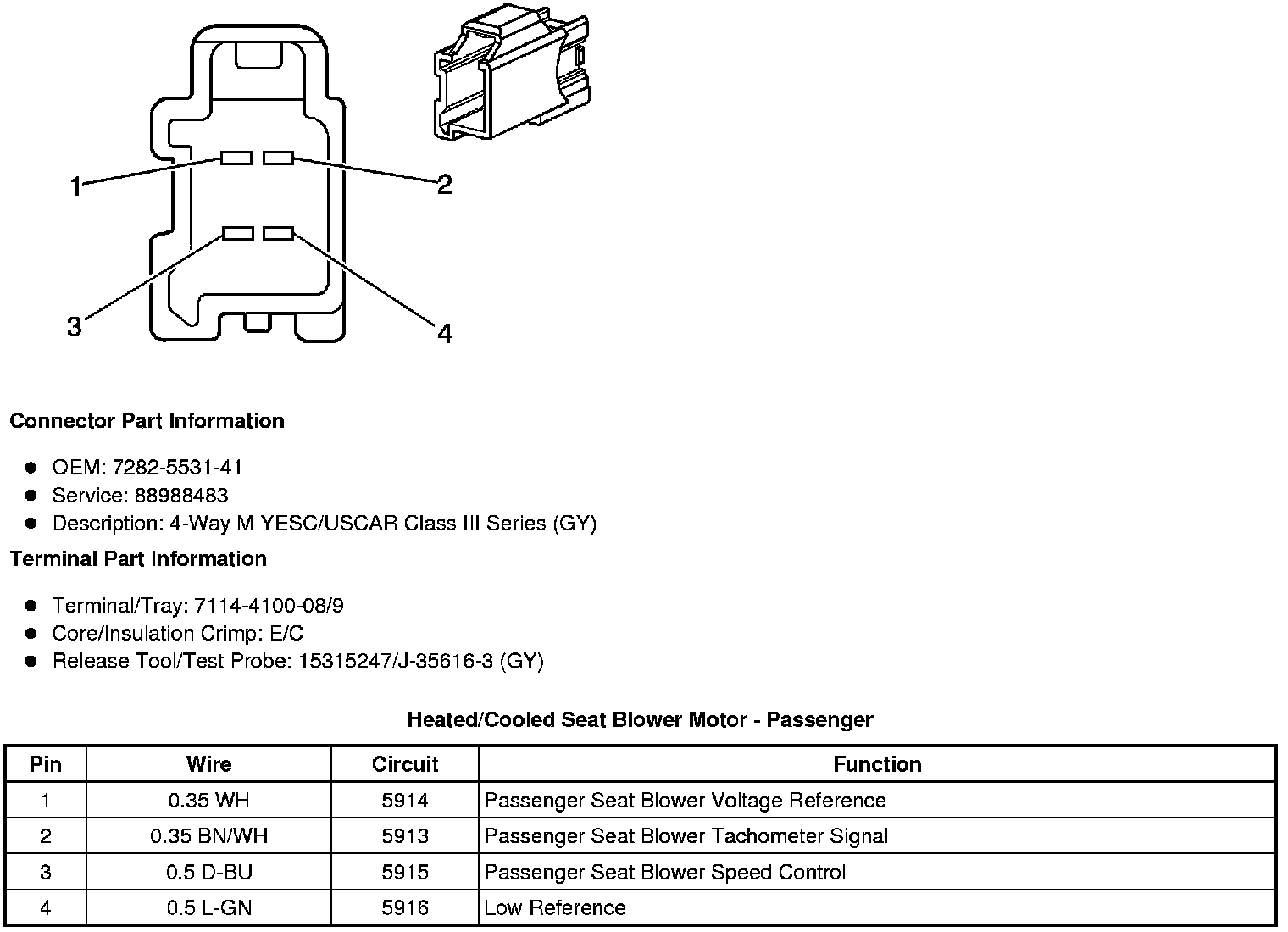

Heated/Cooled Seat Blower Motor - Passenger
