Rear Compartment Side Trim Replacement - Right Side

Rear Compartment Side Trim Replacement - Right Side

Removal Procedure

1. Remove the sill plate. Refer to Rear Compartment Sill Trim Plate Replacement (Service and Repair) .
2. Remove the floor trim plate. Refer to Rear Floor Trim Plate Replacement (Service and Repair) .




3. Remove the push-in retainer.

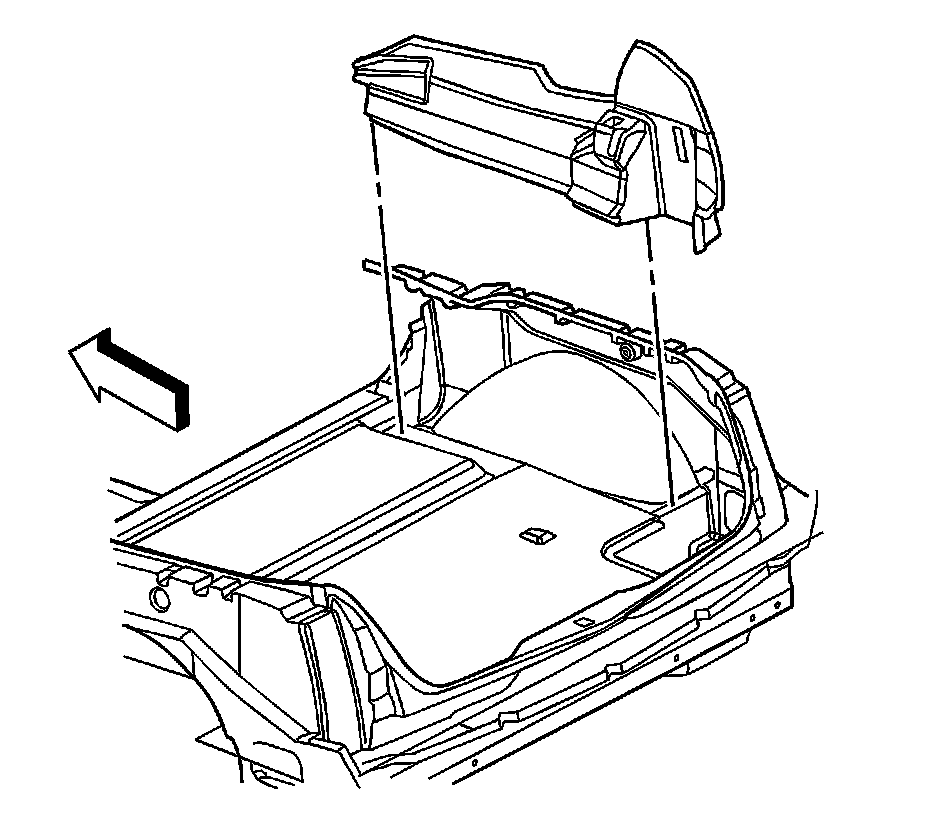

4. Remove the right hand trim panel from the rear compartment.



Installation Procedure





1. Position the right hand trim panel into the rear compartment.
2. Install the push-in retainer.
3. Install the floor trim plate. Refer to Rear Floor Trim Plate Replacement (Service and Repair) .
4. Install the sill plate. Refer to Rear Compartment Sill Trim Plate Replacement (Service and Repair) .
