Foot Rest Replacement

Foot Rest Replacement

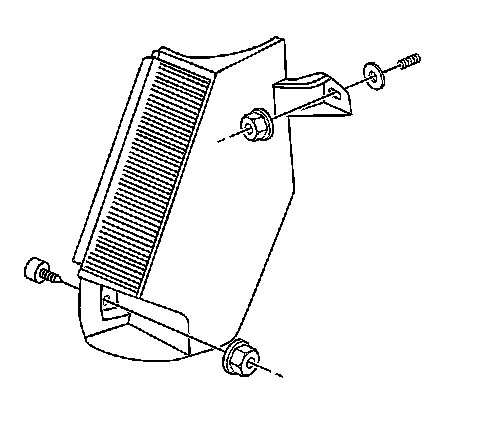

Removal Procedure





1. Remove the nut attaching the foot rest to the side rail.
2. Remove the nut attaching the foot rest to the dash panel stud.
3. Remove the foot rest.



Installation Procedure





1. Place the spacer on the dash panel stud.
2. Position the foot rest over the spacer.

Notice: Refer to Fastener Notice .

3. Install the nut to the stud.

Tighten the foot rest nut to 10 N.m (89 lb in).

4. Install the nut to the side rail stud.

Tighten the foot rest nut to 10 N.m (89 lb in).
