Body Rear Compartment Replacement

Body Rear Compartment Replacement

Removal Procedure





1. Open the door on the rear compartment panel stowage.

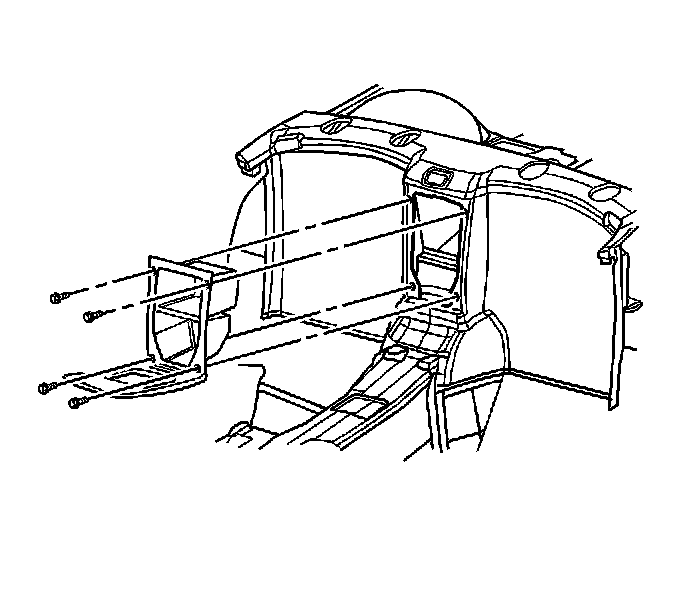

2. Remove the retaining screws which secure the panel stowage to the rear window panel trim.
3. Remove the panel stowage trim assembly from the vehicle.



Installation Procedure





1. Install the panel stowage trim assembly to the rear window panel trim.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the retaining screws which secure the panel stowage to the rear window panel trim.

Tighten the screws to 2.5 N.m (22 lb in).

3. Close the door on the rear compartment panel stowage.
