Rear Wheelhouse Panel Liner Replacement

Rear Wheelhouse Panel Liner Replacement


Removal Procedure

1.Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .

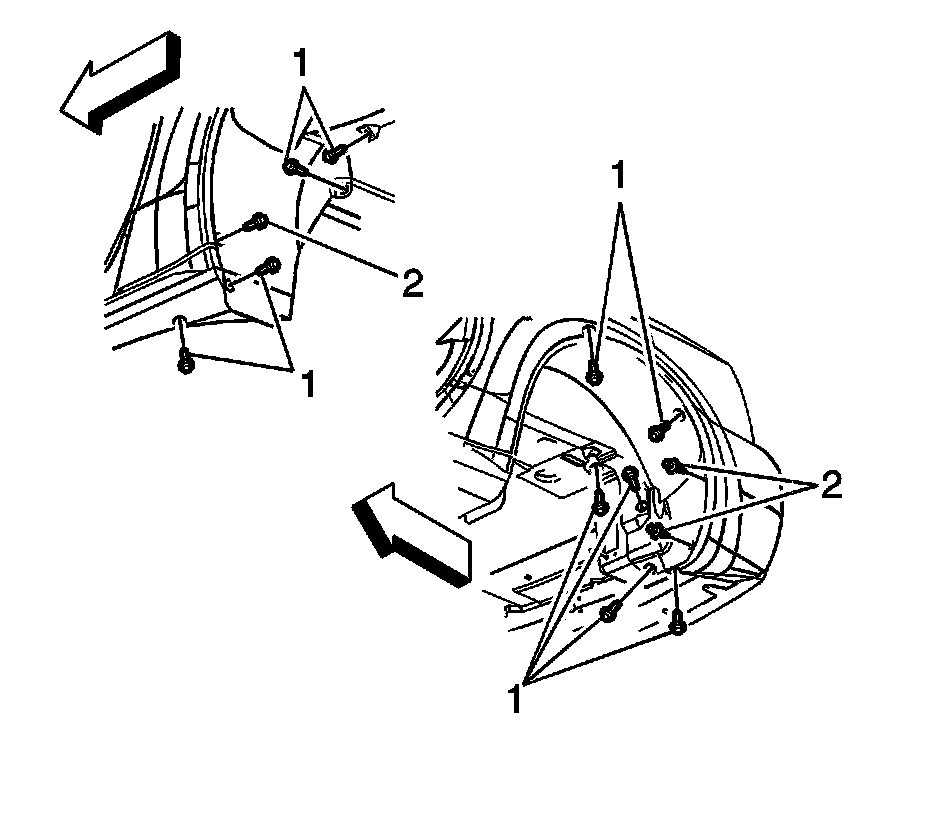

2.Remove the screws (1) attaching the front and the rear wheelhouse liner panels.

3.Remove the push-in retainers (2) attaching the front and the rear wheelhouse liner panels.

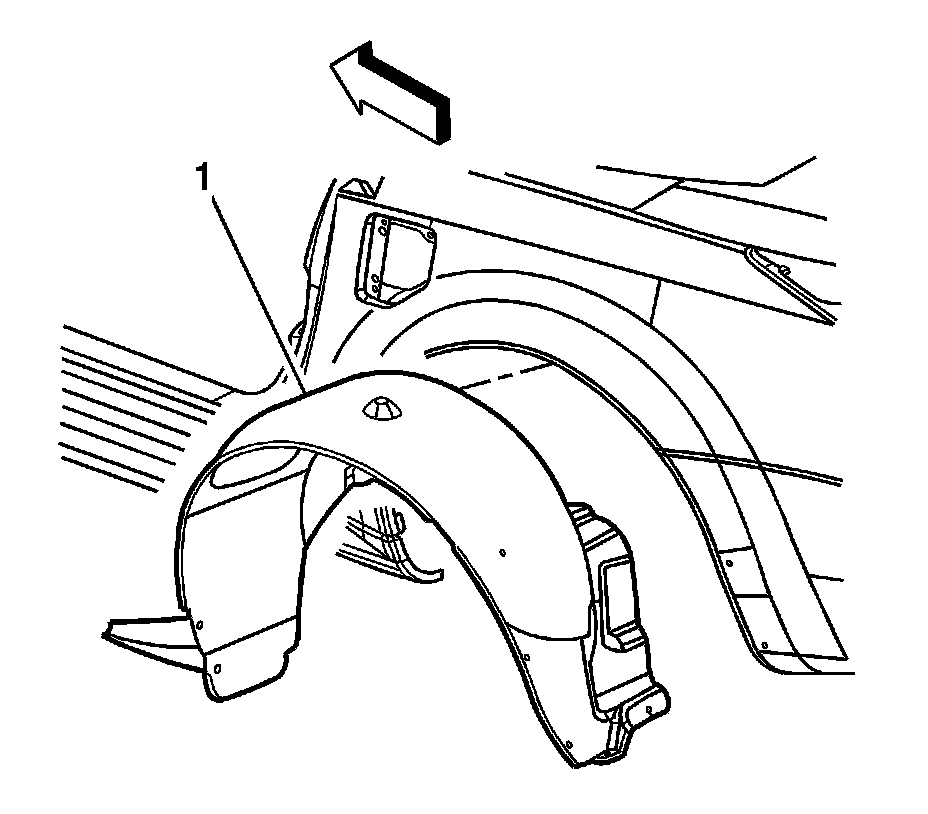

4.Remove the wheelhouse liner panel (1).

Installation Procedure





1.Position the wheelhouse liner panel (1).





2.Install the push-in retainers (2) attaching the front and the rear wheelhouse liner panels.

Notice:Refer to Fastener Notice .

3.Install the screws (1) attaching the front and rear wheelhouse liner panel.

TightenTighten the screws to 2 N �m (18 lb in).

4.Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
