Rear Wheelhouse Liner Panel Replacement

Rear Wheelhouse Liner Panel Replacement

Removal Procedure

1. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation (Service and Repair) .

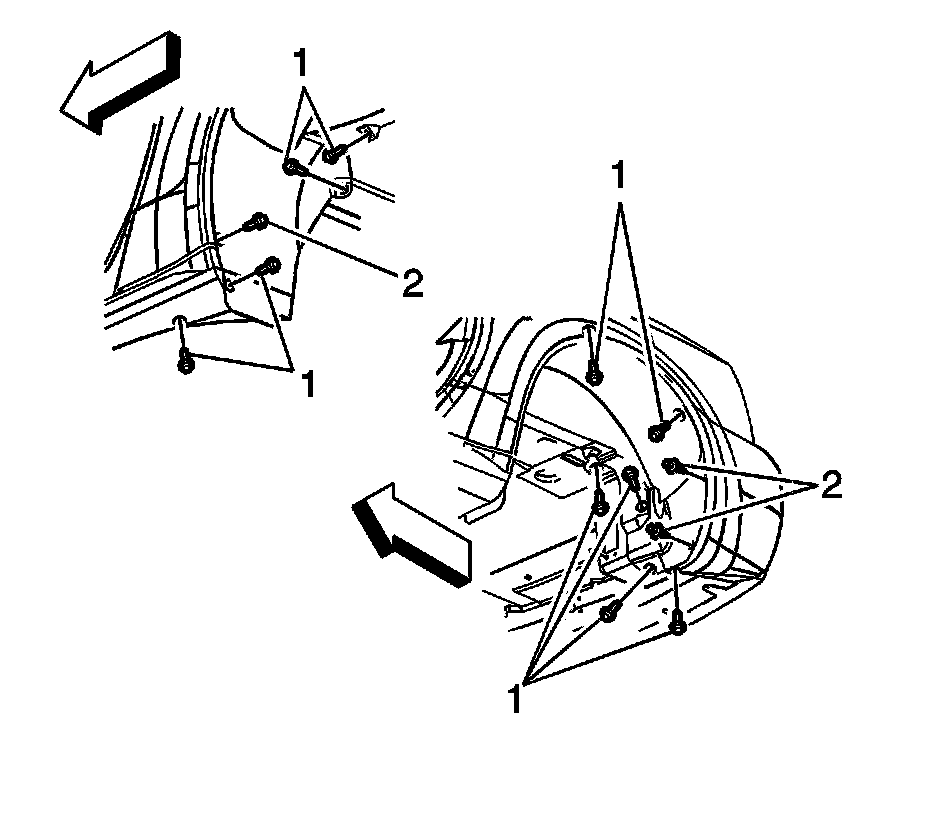

2. Remove the screws (1) attaching the front and the rear wheelhouse liner panels.
3. Remove the push-in retainers (2) attaching the front and the rear wheelhouse liner panels.

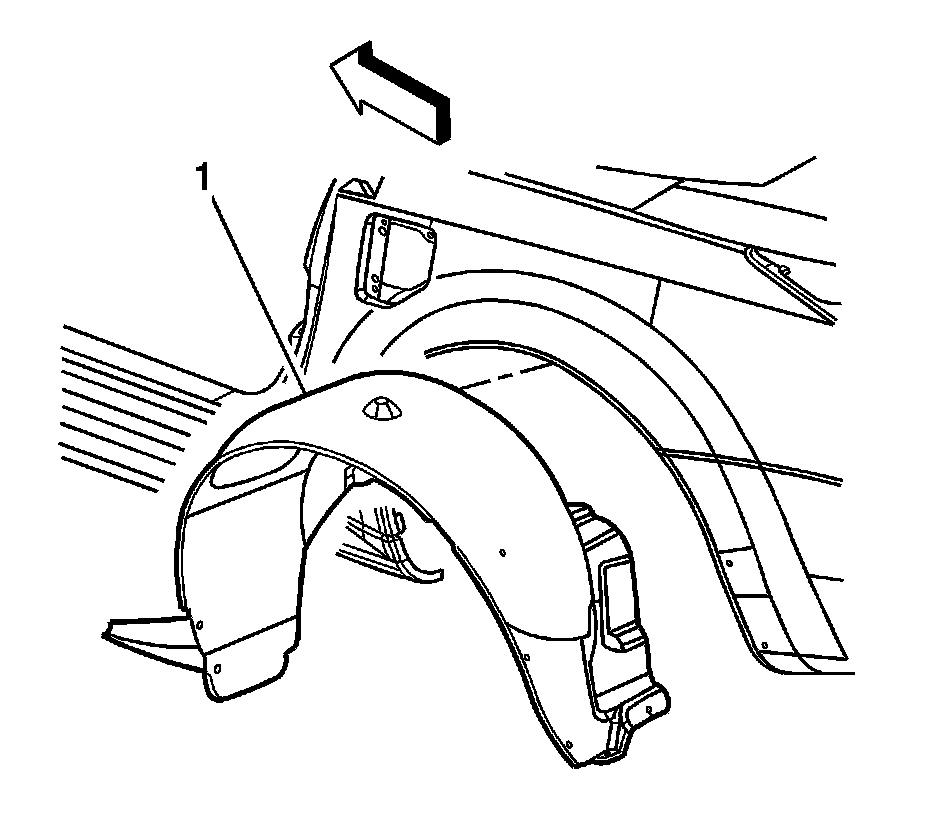

4. Remove the wheelhouse liner panel (1).



Installation Procedure





1. Position the wheelhouse liner panel (1).




2. Install the push-in retainers (2) attaching the front and the rear wheelhouse liner panels.

Notice: Refer to Fastener Notice (Fastener Notice) .

3. Install the screws (1) attaching the front and rear wheelhouse liner panel.

Tighten the screws to 2 N.m (18 lb in).

4. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation (Service and Repair) .
