Home >> Cadillac >> 2008 >> XLR V8-4.6L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Diagrams >> Electrical Diagrams >> Radio/Navigation System Schematics

Radio/Navigation System Schematics



Radio/Navigation System Schematics

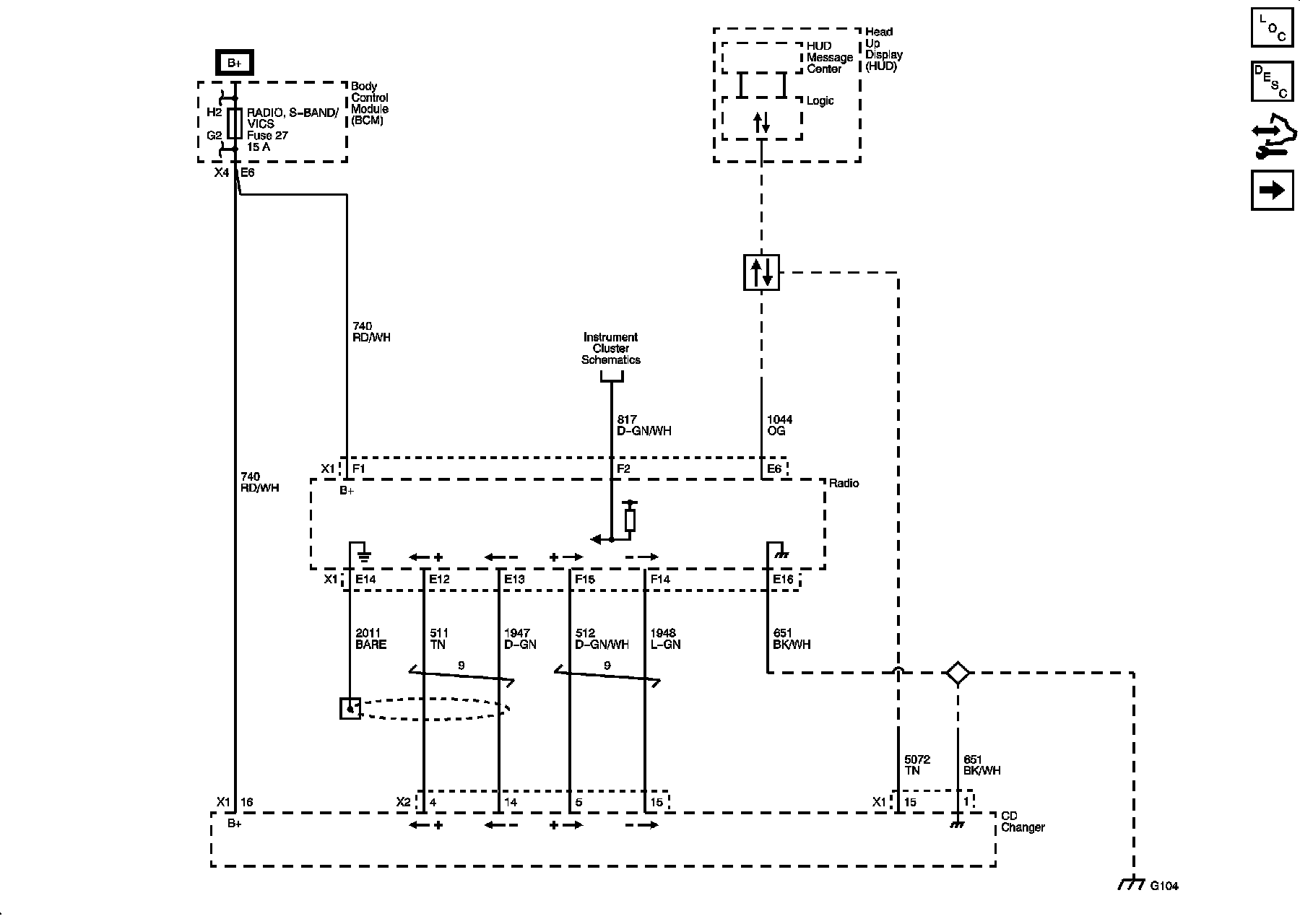

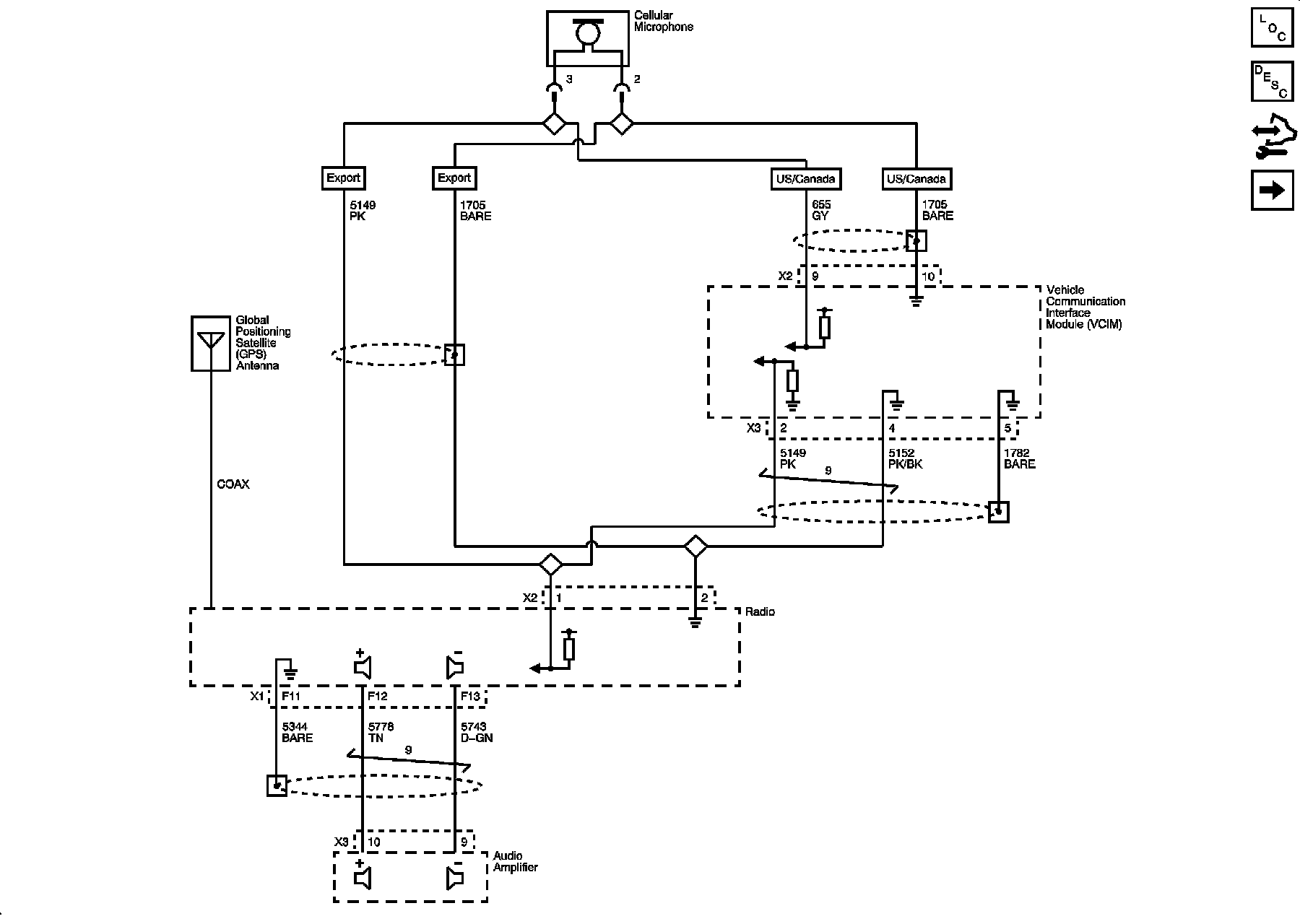

Power, Ground, Messages, and Radio to CD Player Audio Signals

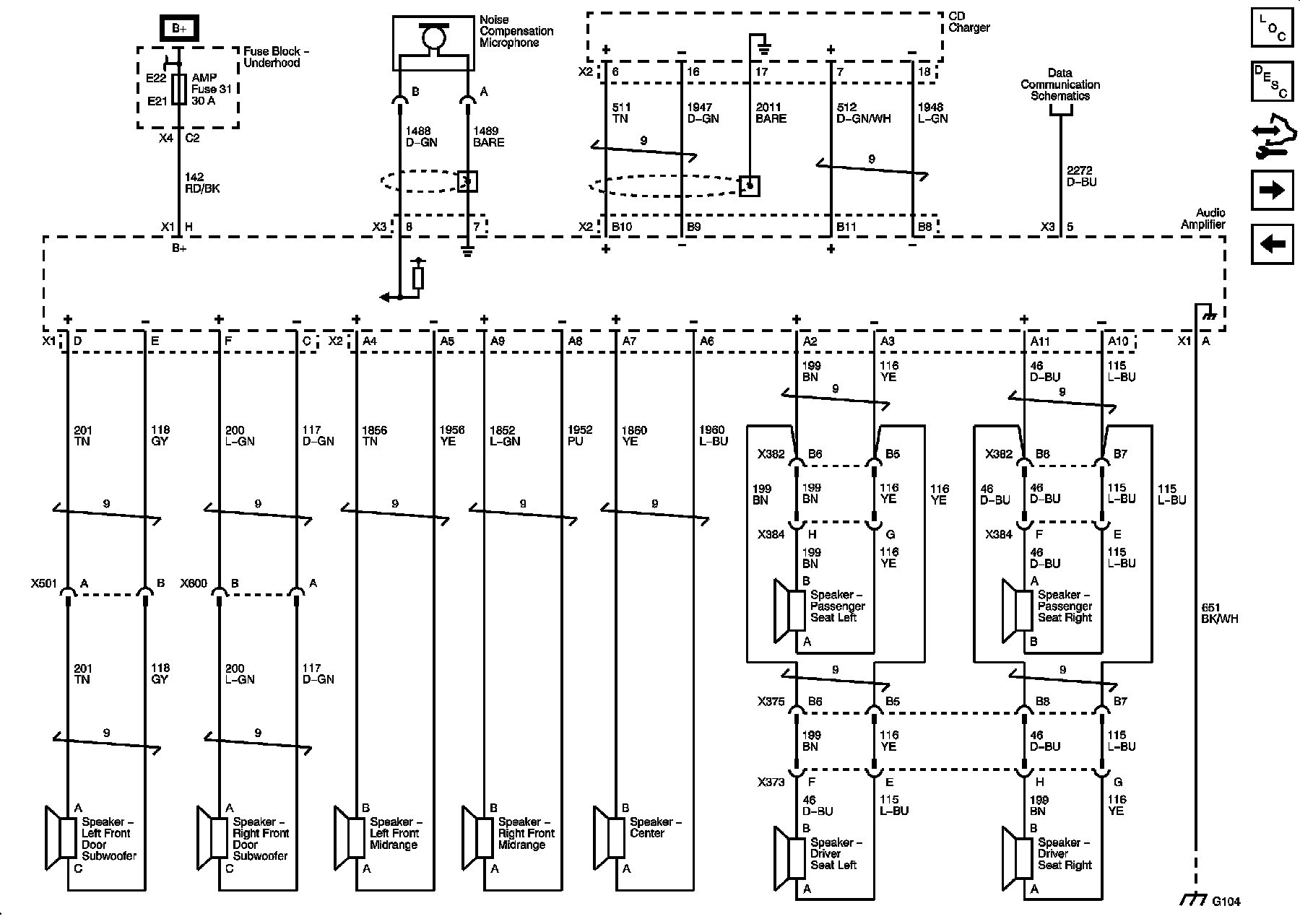

Amplification

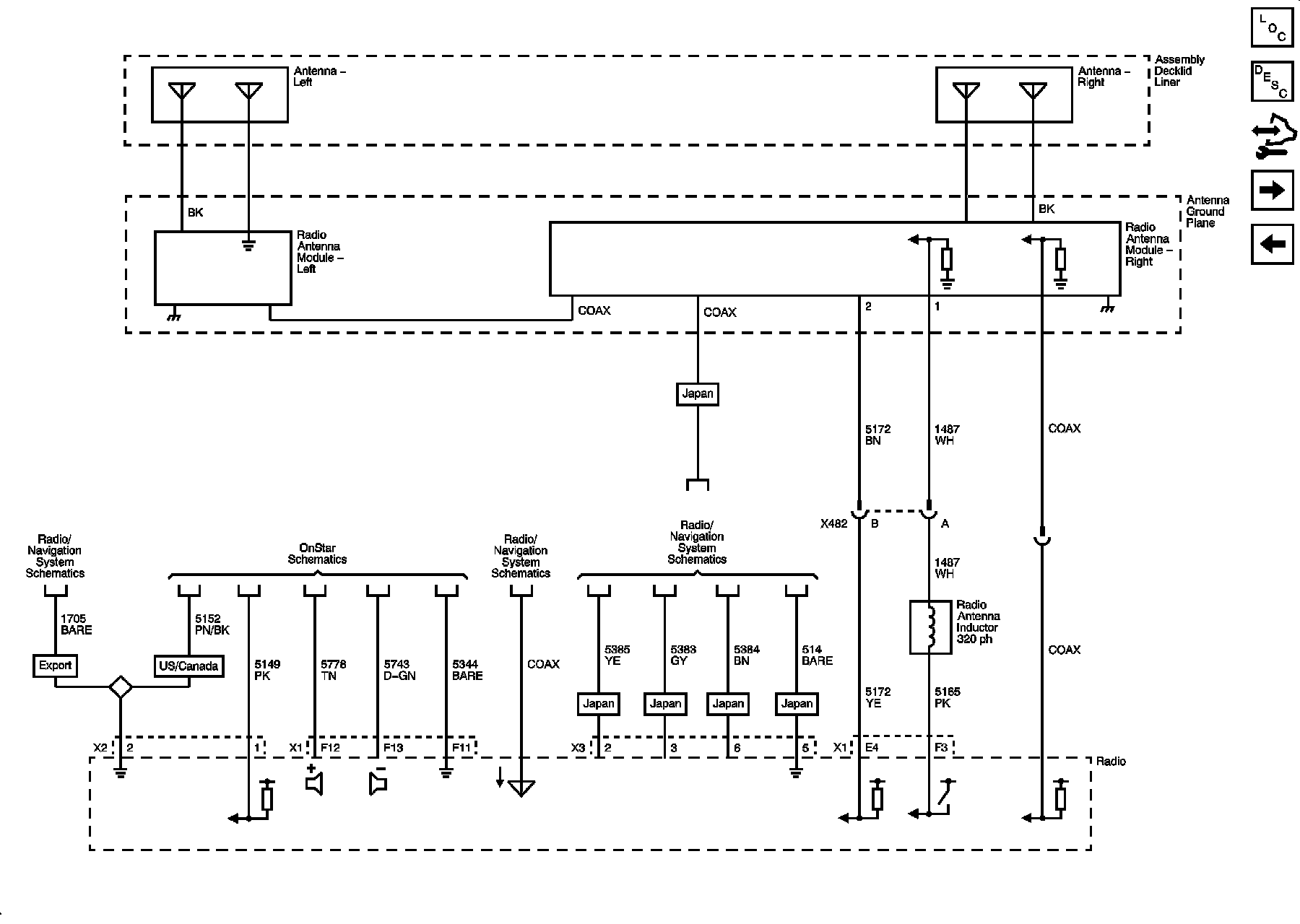

AM and FM Antennas and OnStar References

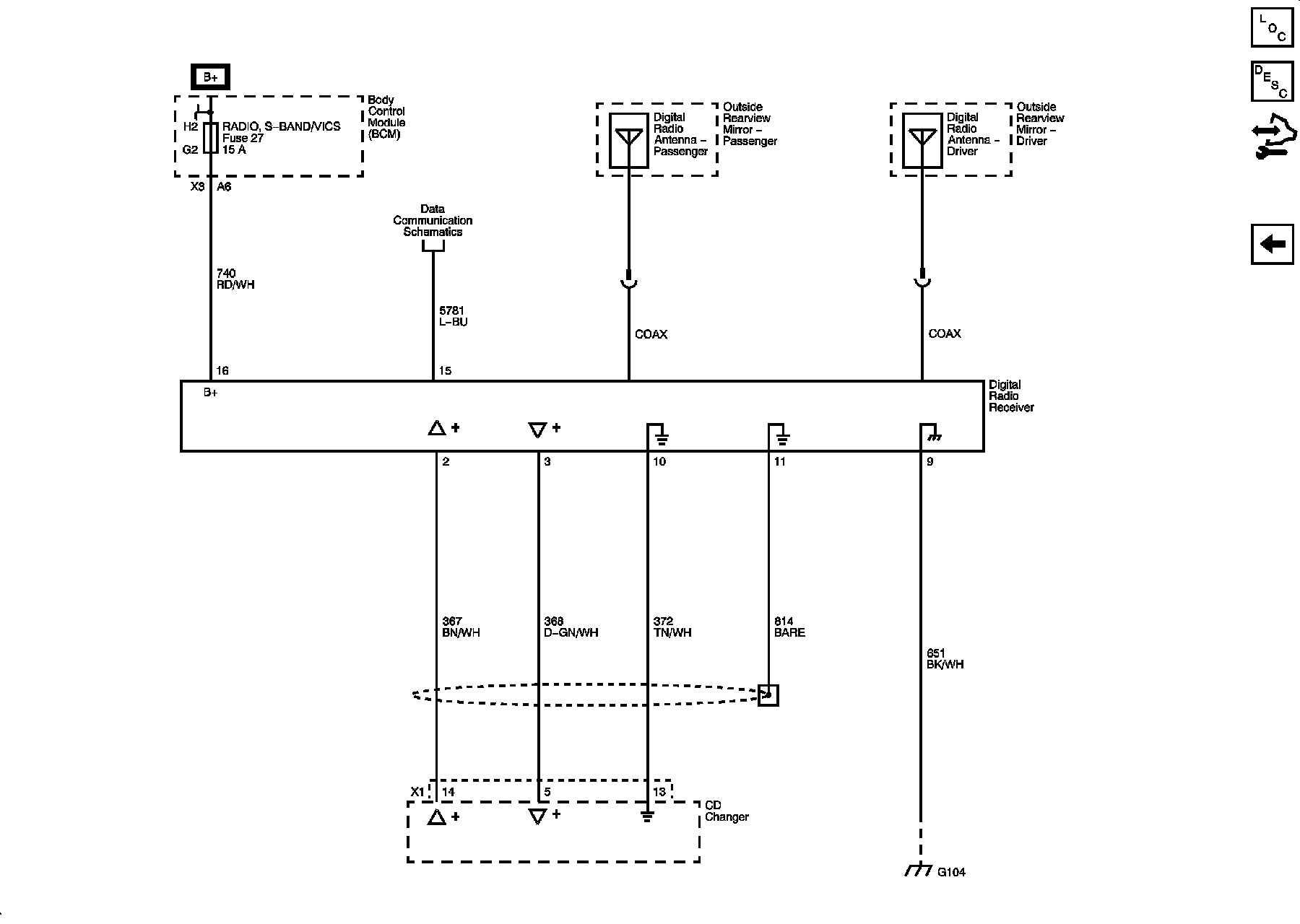

Digital Radio Receiver

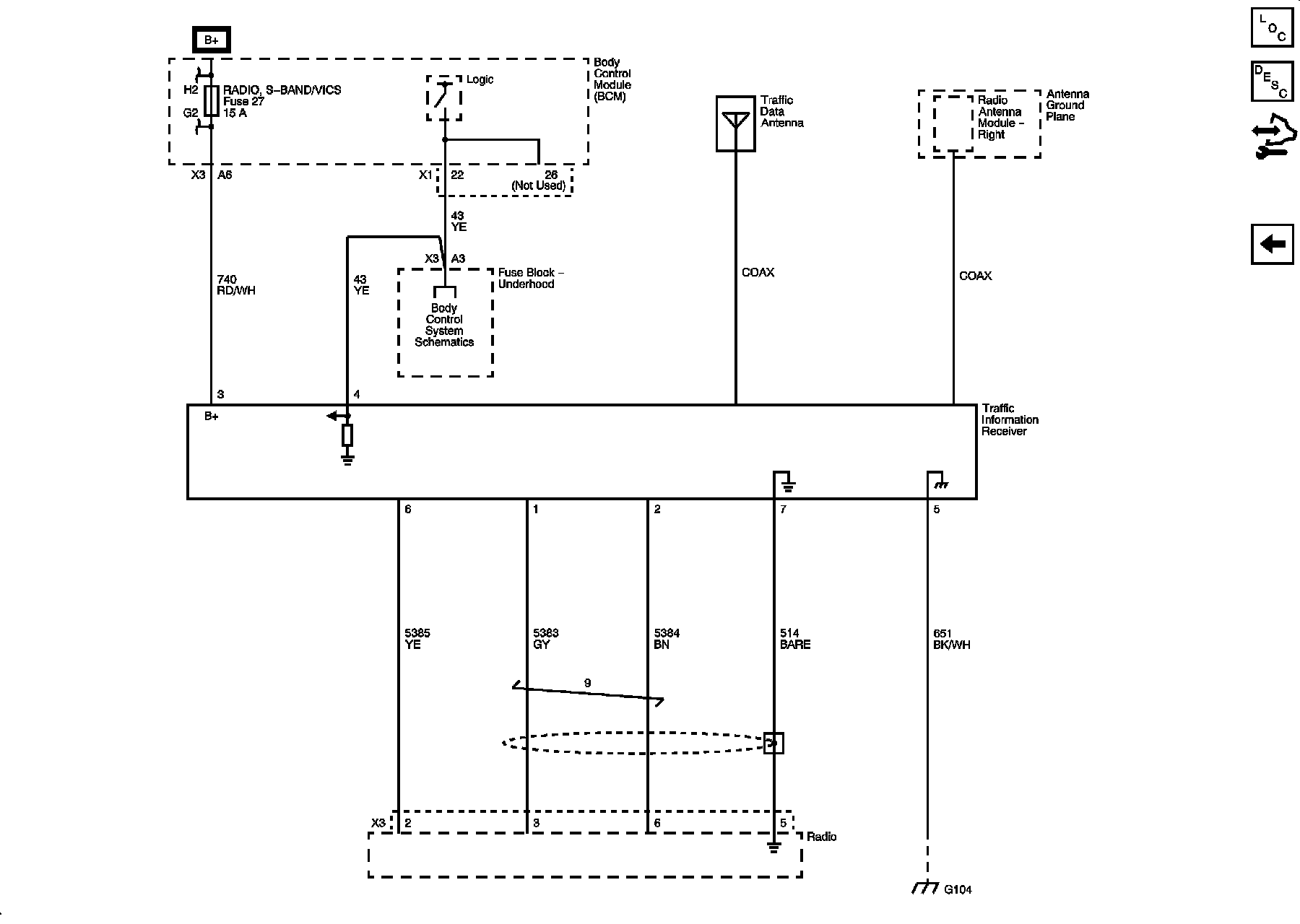

Navigation - Except Japan





Navigation - Japan
