Automatic Transmission Controls Schematics

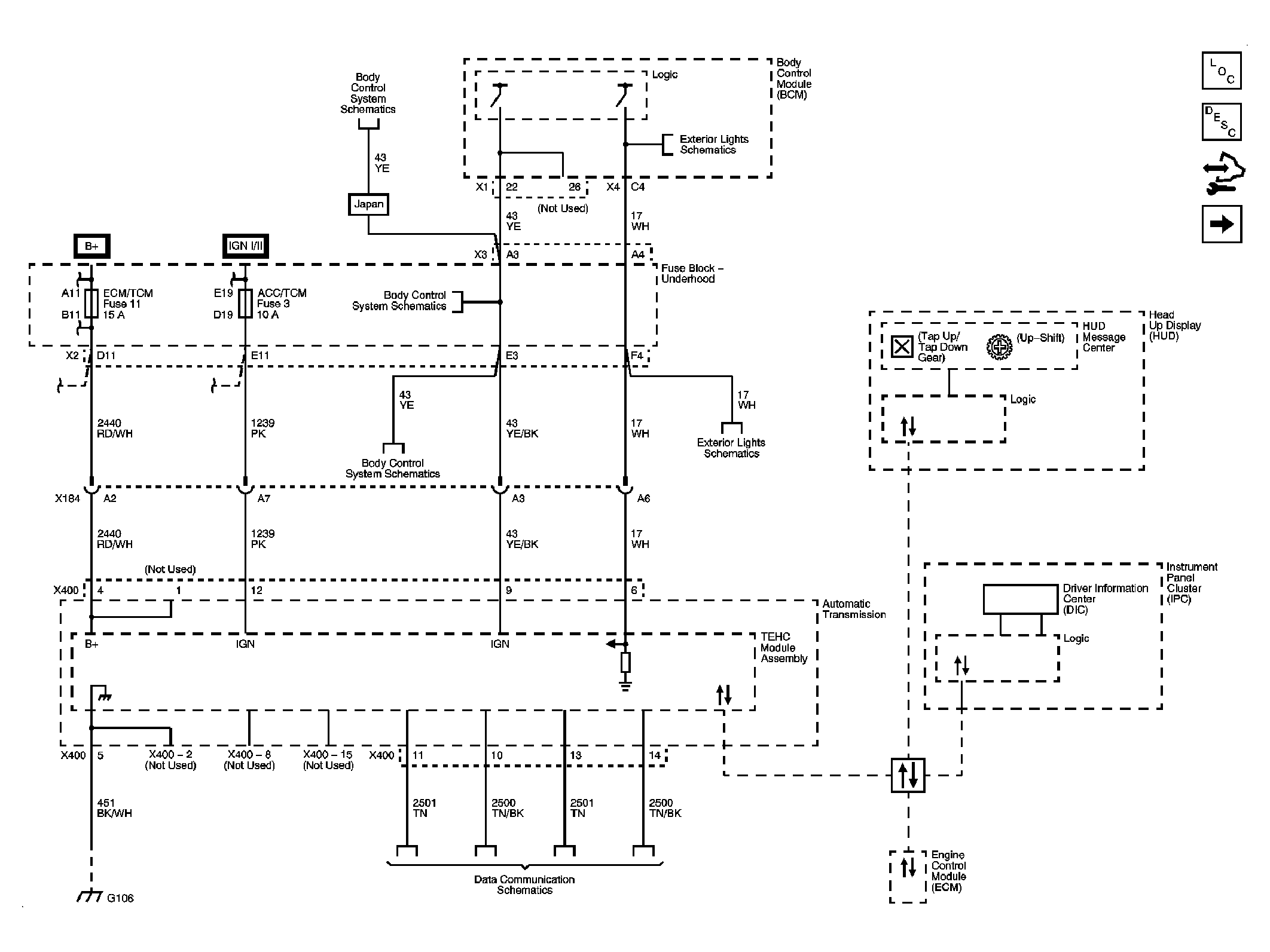

Fig 1: Power, Ground, and Serial Data

Courtesy of GENERAL MOTORS CORP.

Fig 2: IMS Switch, Shift Solenoids, and TCC, PC, TFT, VSS Sensors

Courtesy of GENERAL MOTORS CORP.

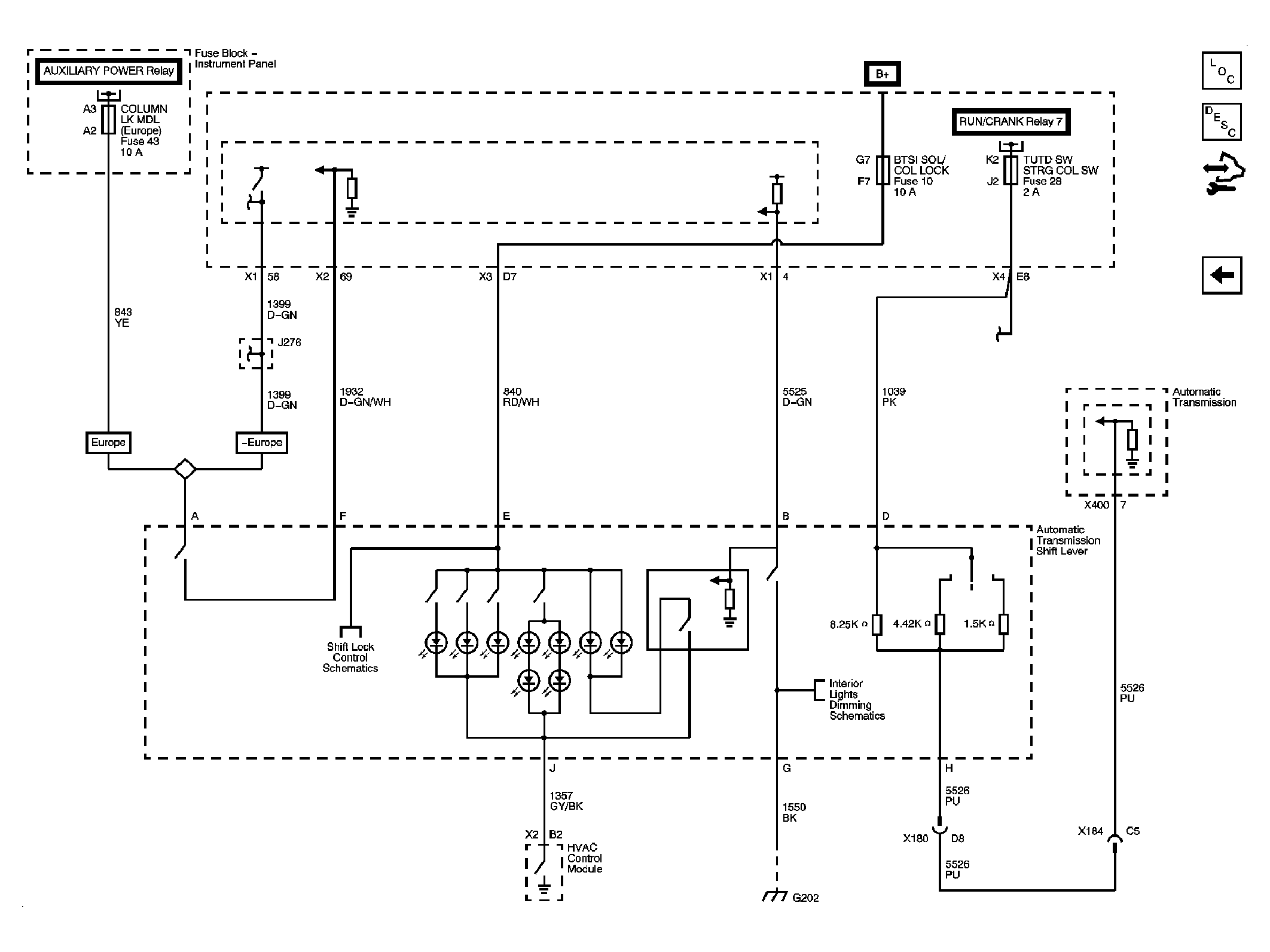

Fig 3: Shift Lever

Courtesy of GENERAL MOTORS CORP.
