Electronic Suspension Control Schematics

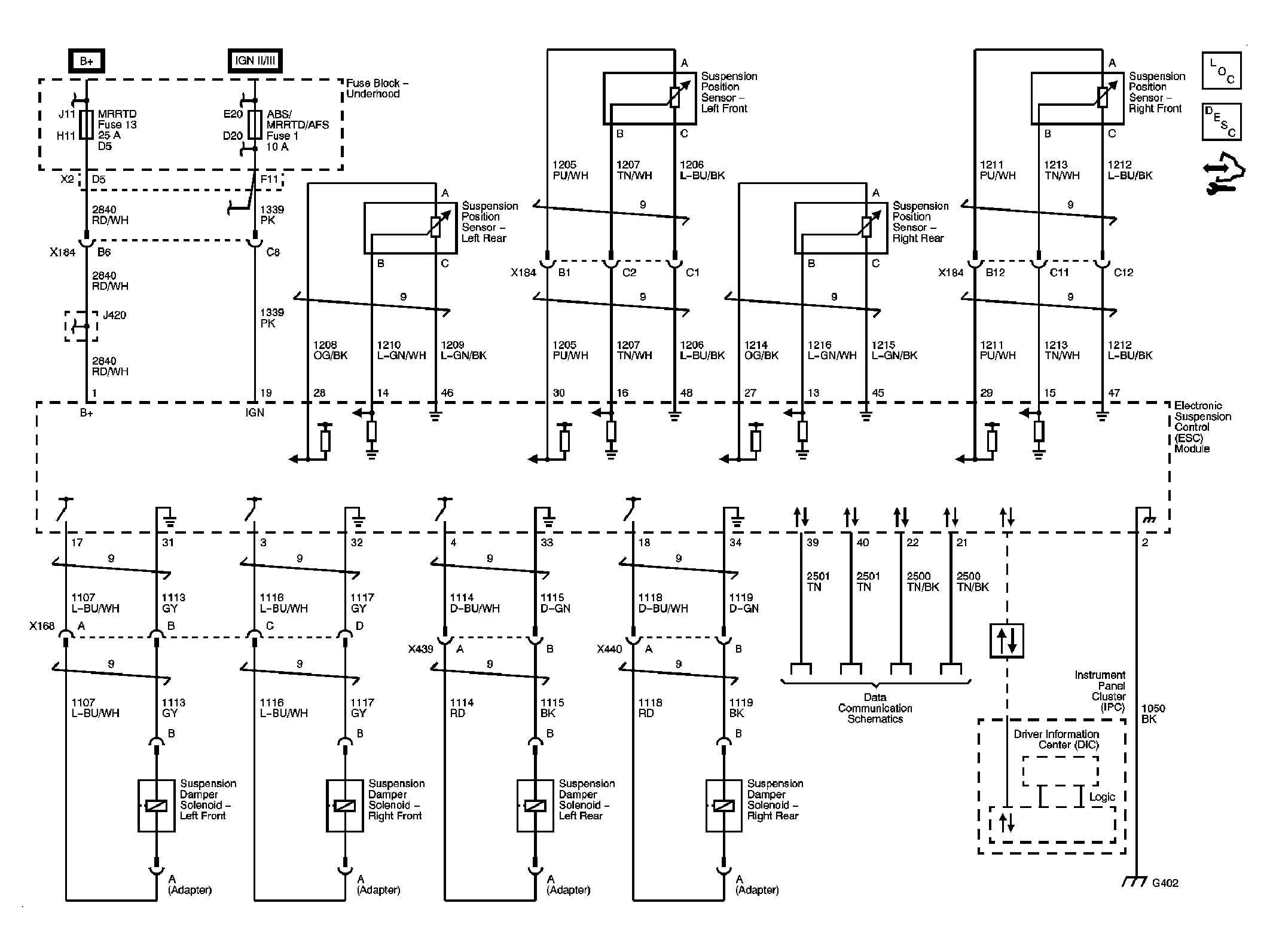

Fig 1: Identifying Electronic Suspension Control Schematics

GM1899591

Courtesy of GENERAL MOTORS CORP.
