SIR Schematics

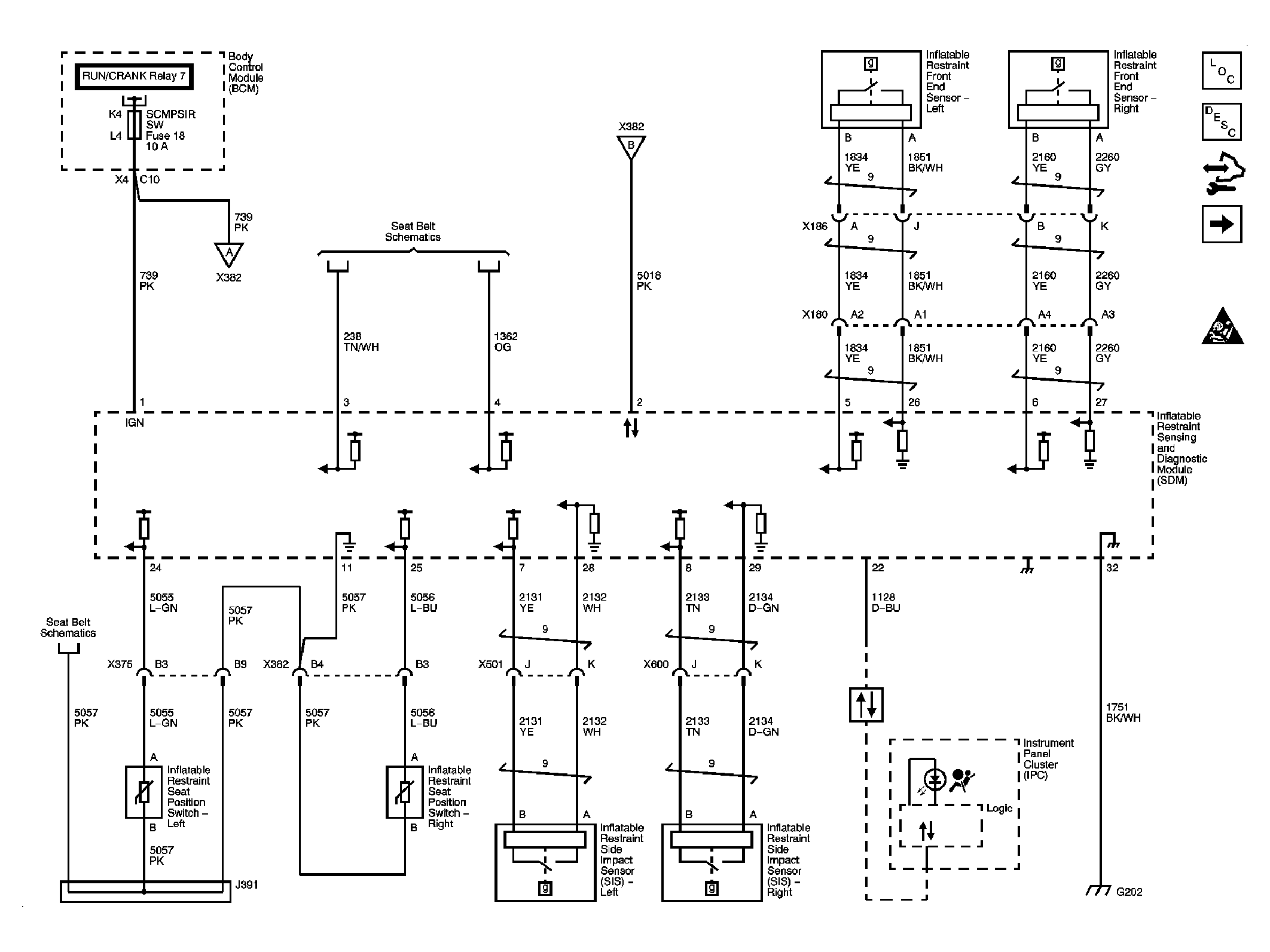

Fig 1: Power, Ground, DLC, Indicators, Sensors, and References
GM1899607Courtesy of GENERAL MOTORS CORP.

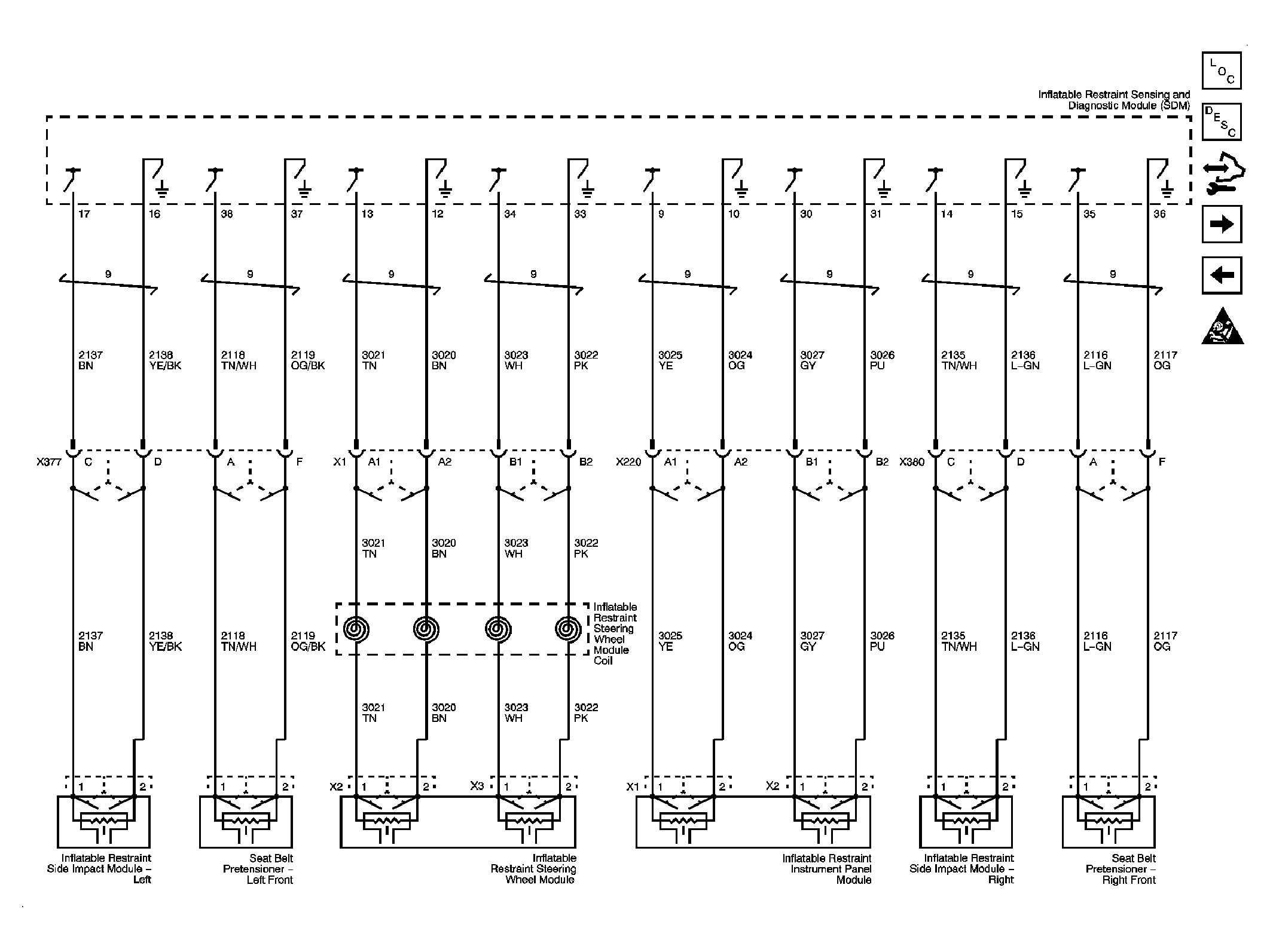

Fig 2: Deployment Loops
GM1899608Courtesy of GENERAL MOTORS CORP.

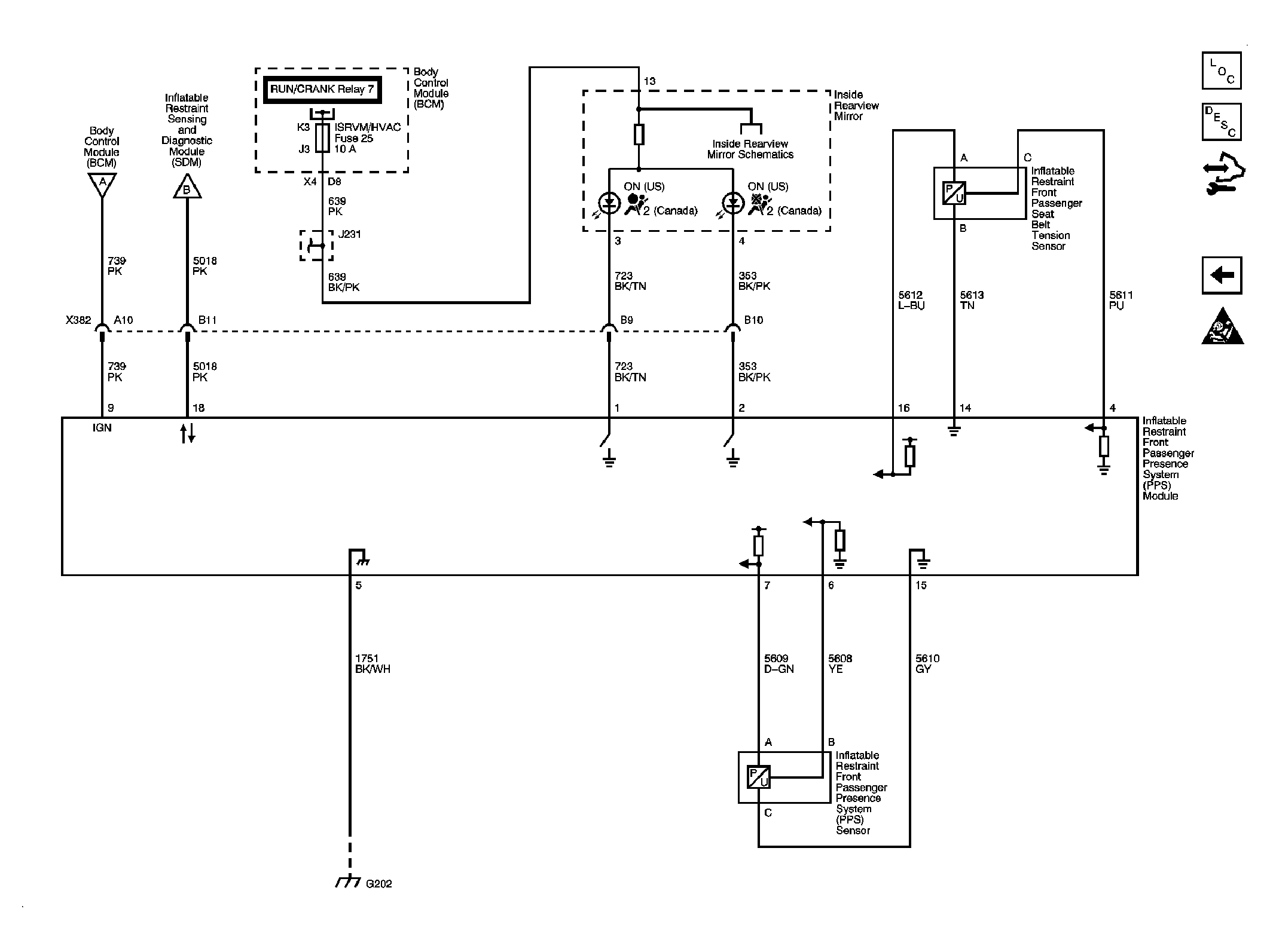

Fig 3: Passenger Presence System
GM1899609Courtesy of GENERAL MOTORS CORP.
