HVAC Schematics

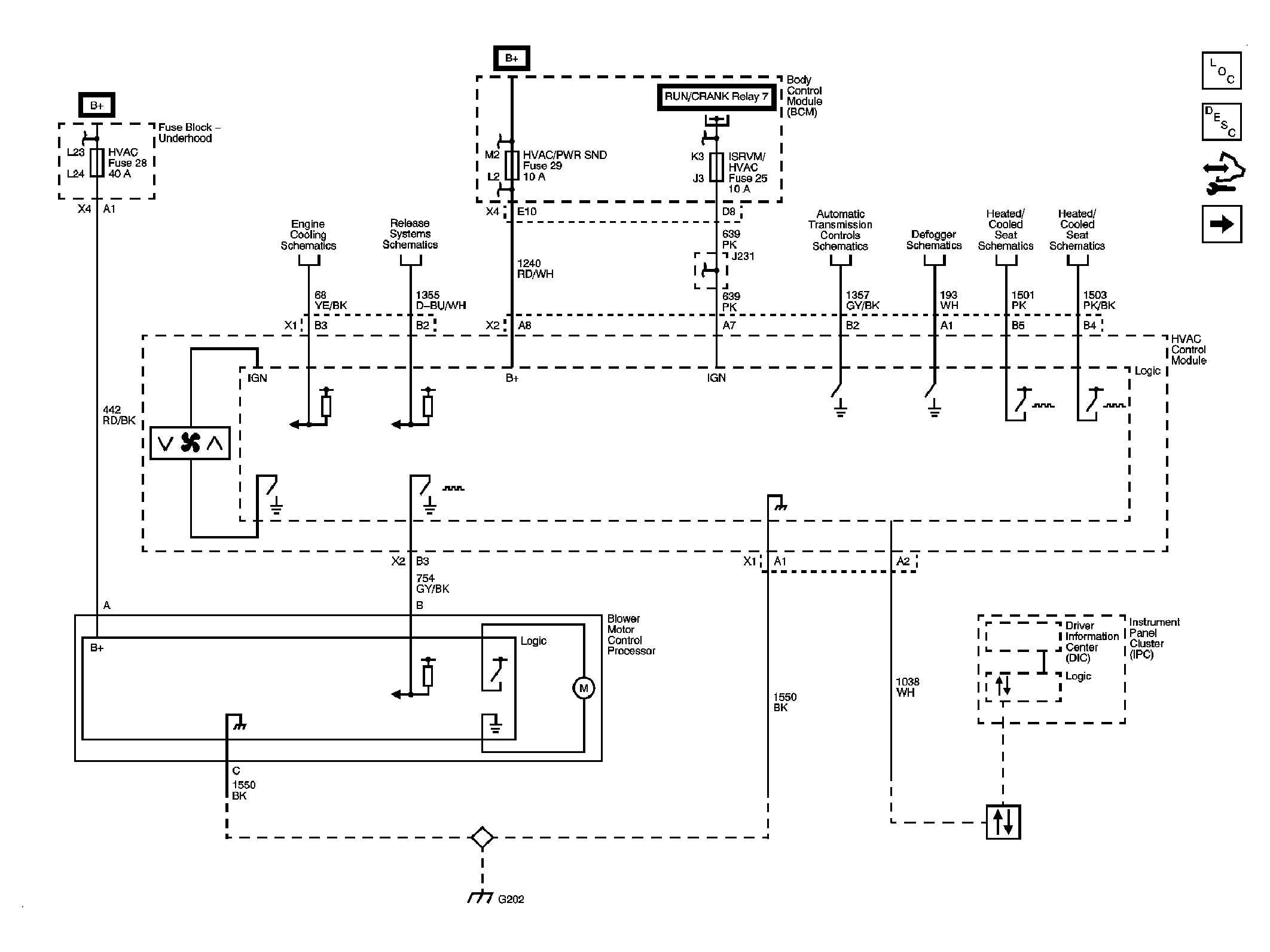

Fig 1: Power, Ground, and Blower Motor Controls
GM1899544Courtesy of GENERAL MOTORS CORP.
Fig 2: A/C Compressor Controls
GM1899547Courtesy of GENERAL MOTORS CORP.

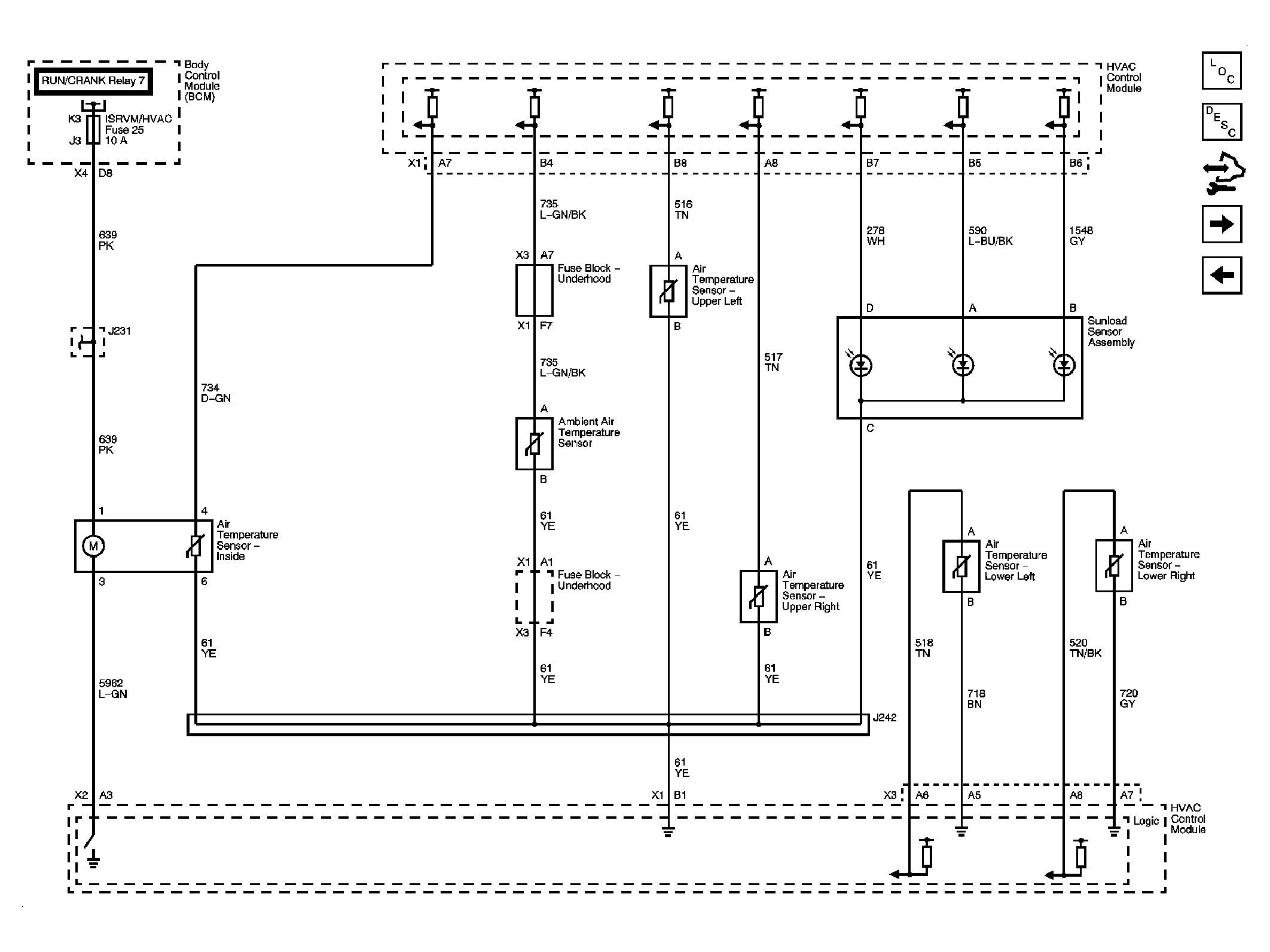

Fig 3: Temperature Sensors
GM1899550Courtesy of GENERAL MOTORS CORP.
Fig 4: Mode and Air Temperature Controls
GM1899553Courtesy of GENERAL MOTORS CORP.
