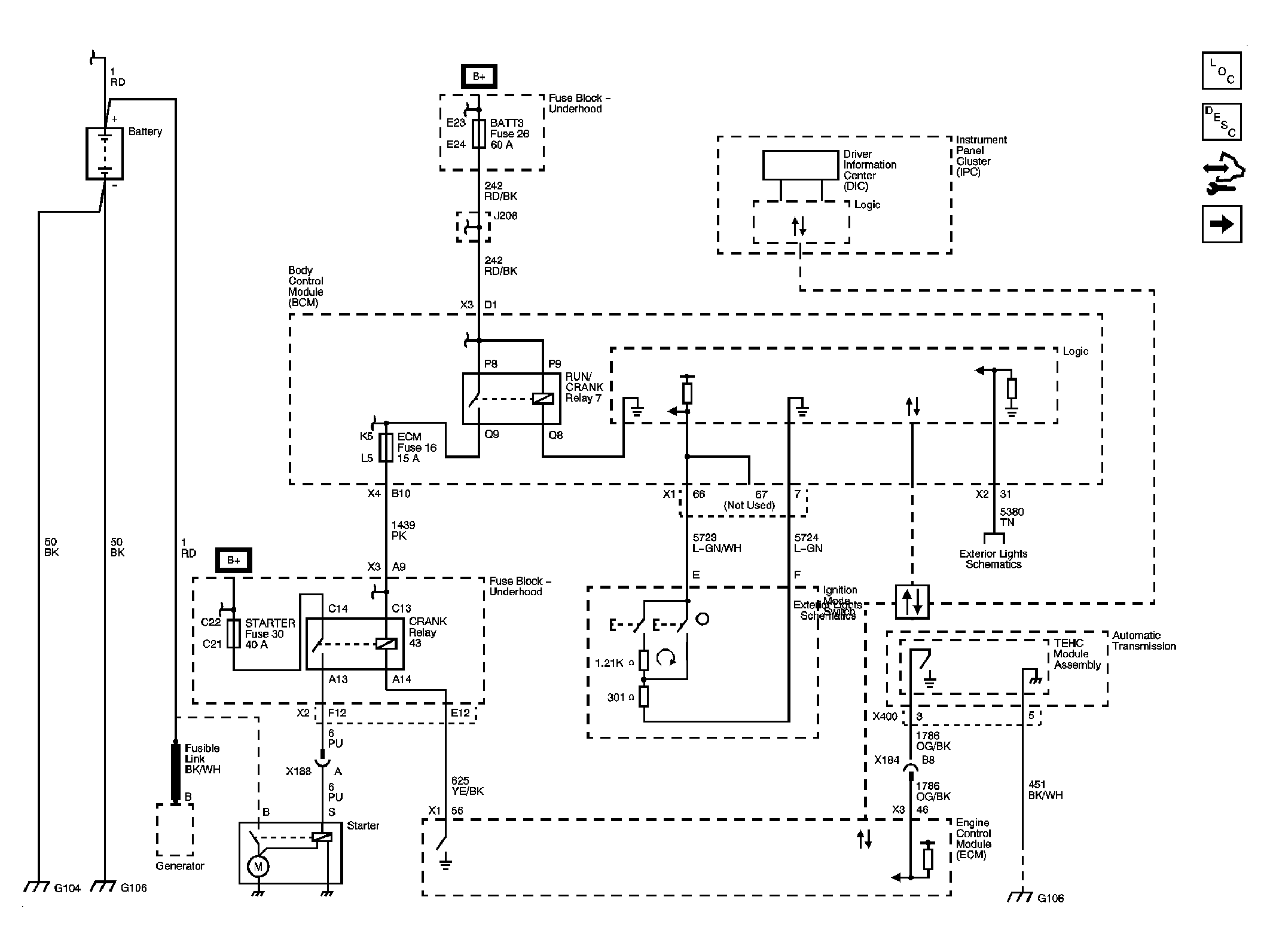

Home >> Cadillac >> 2008 >> XLR Base >> Repair and Diagnosis >> Engine Mechanical >> Starter >> Battery, Charging System And Starting System >> Schematic and Routing Diagrams >> Starting and Charging Schematics
