Power Distribution Schematics

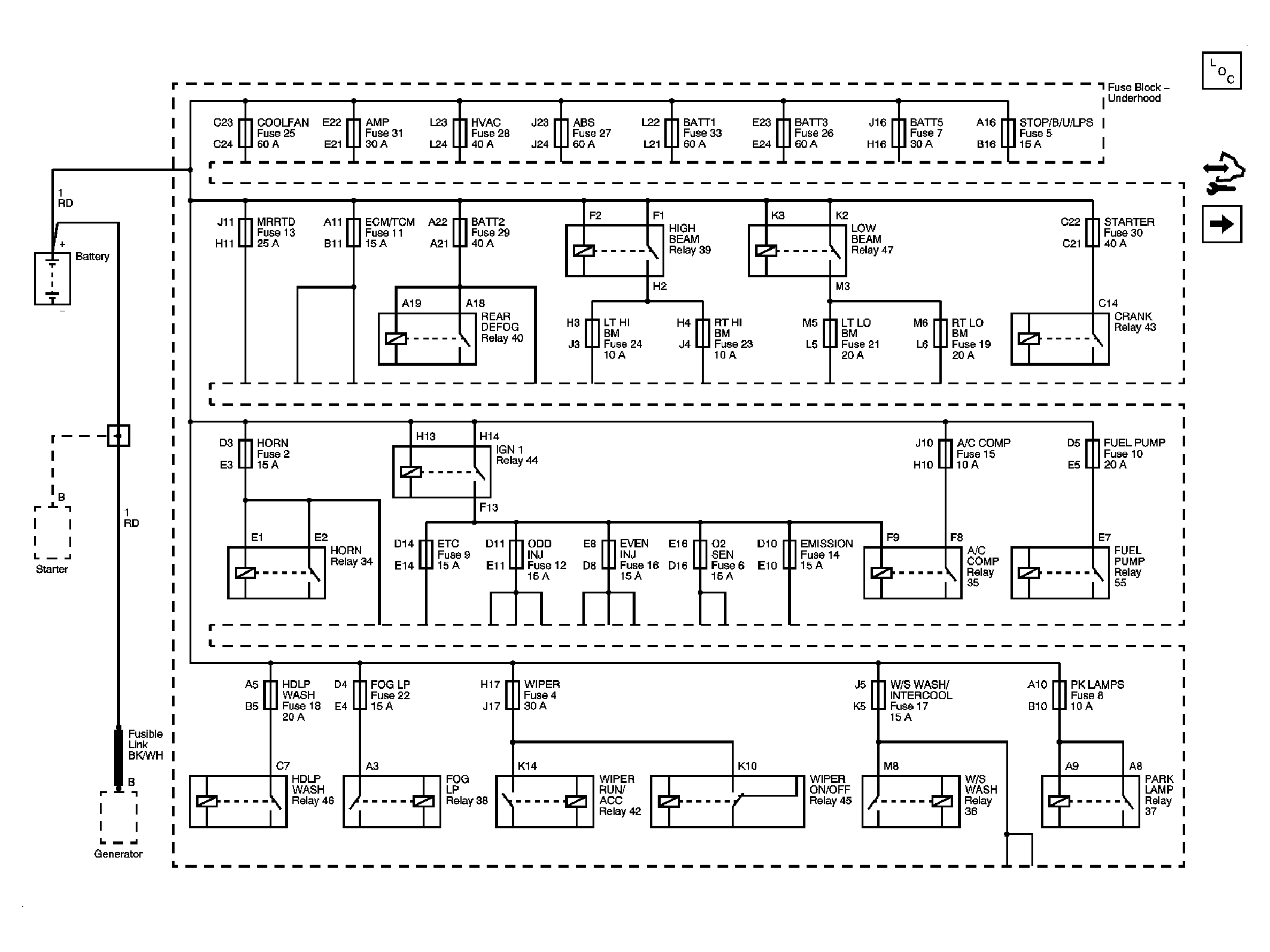

Fig 1: Fuse Block - Underhood Bussing

Courtesy of GENERAL MOTORS CORP.

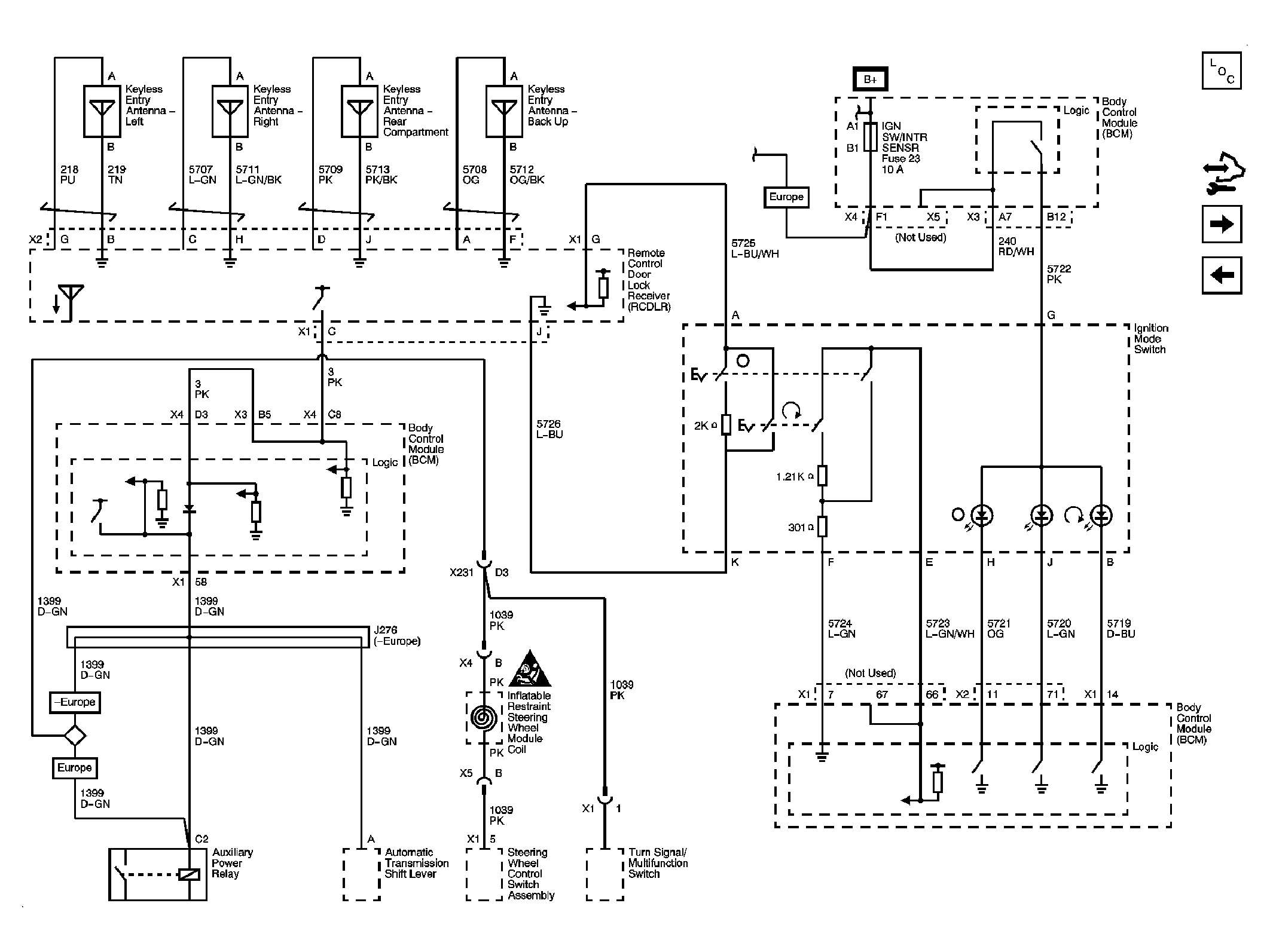

Fig 2: Ignition Mode Switch

Courtesy of GENERAL MOTORS CORP.

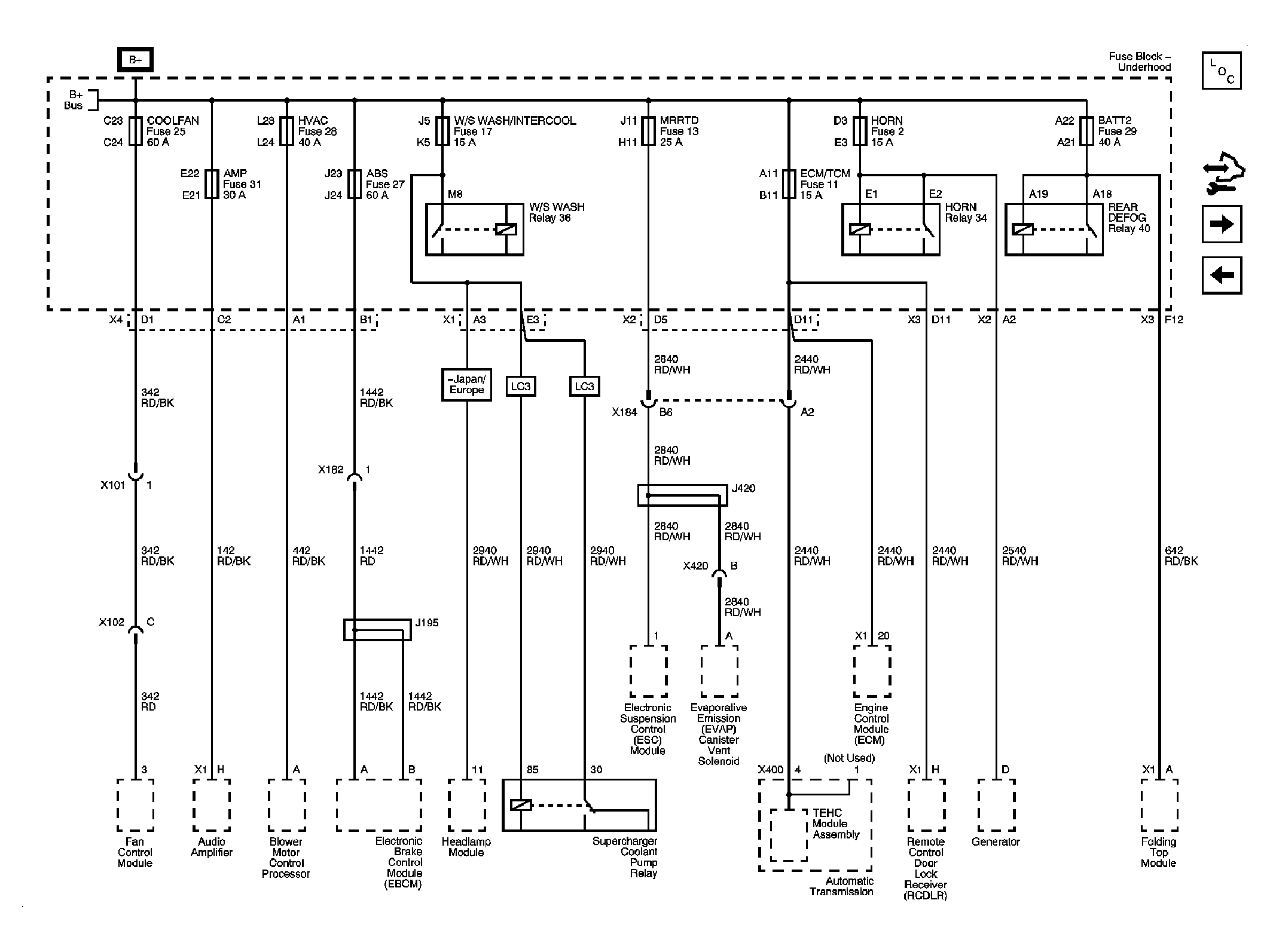

Fig 3: COOLFAN, AMP, HVAC, ABS, W/S WASH/INTERCOOL, MRRTD, ECM/TCM, HORN, and BATT2 Fuses

Courtesy of GENERAL MOTORS CORP.

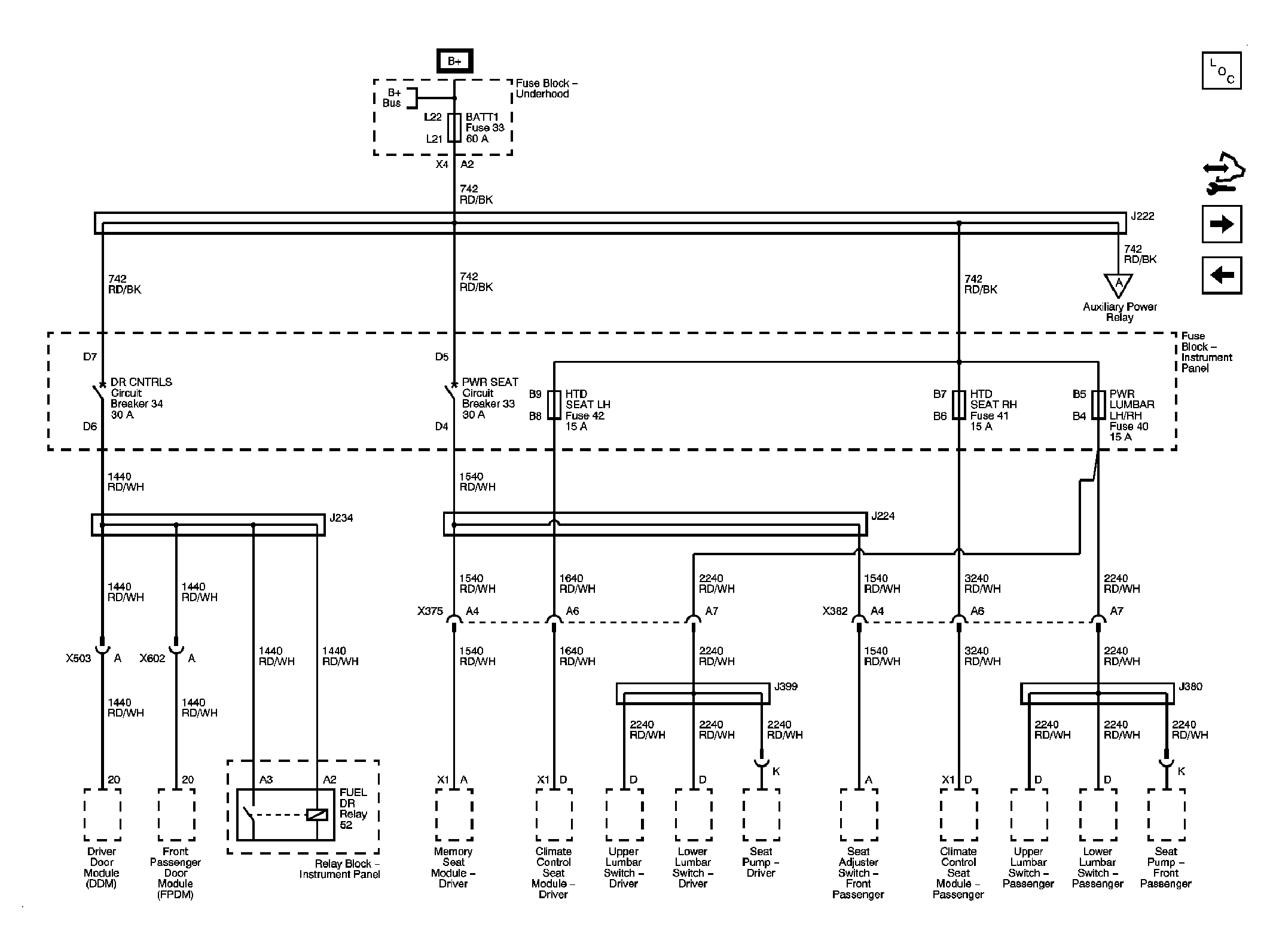

Fig 4: BATT1, HTD SEAT LH, HTD SEAT RH, PWR LUMBAR LH/RH Fuses, and DR CNTRLS, PWR SEAT Circuit Breakers

Courtesy of GENERAL MOTORS CORP.

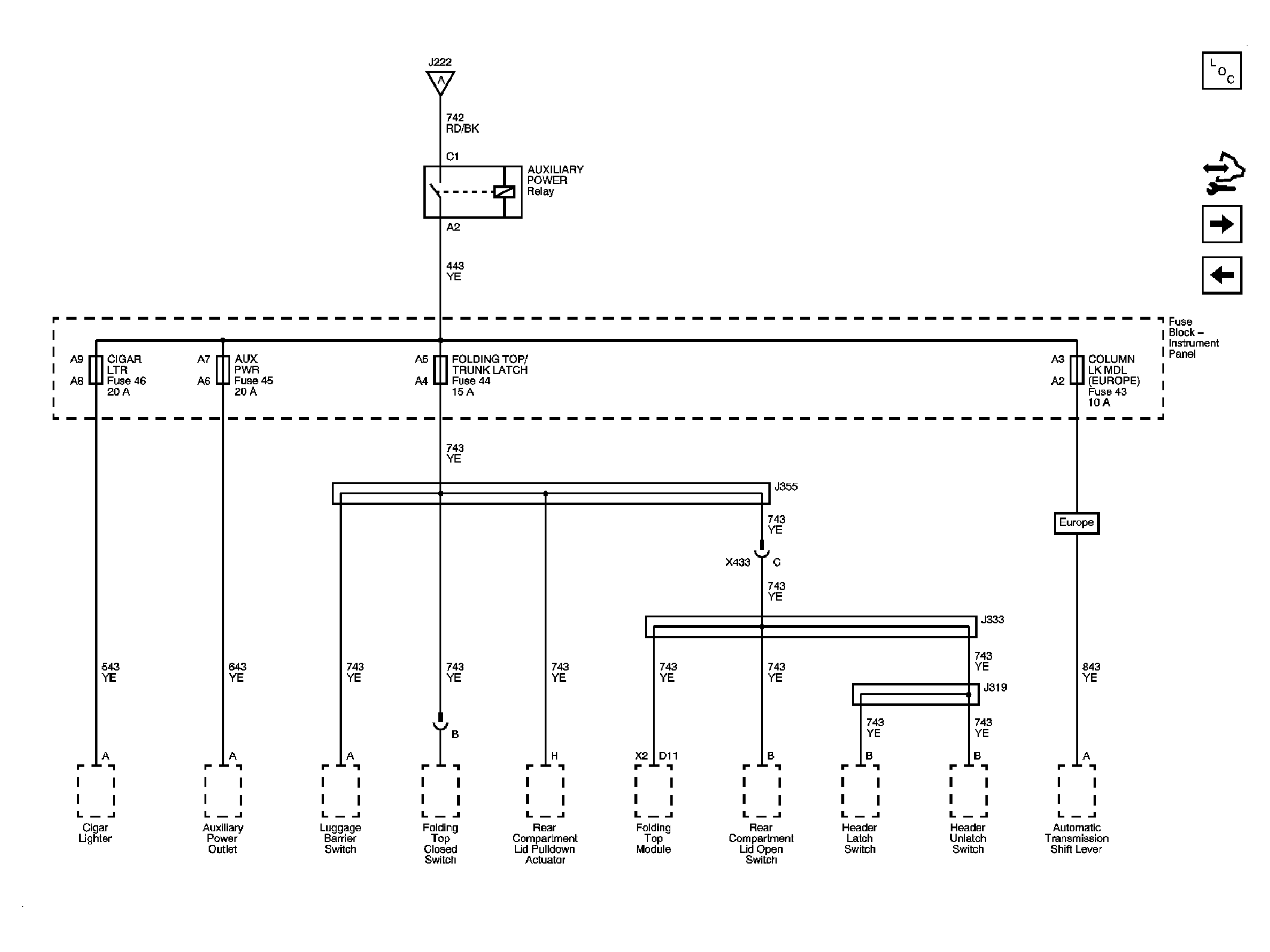

Fig 5: AUXILIARY POWER Relay, and CIGAR LTR, AUX PWR, FOLDING TOP/TRUNK LATCH, COLUMN LK MDL (EUROPE) Fuses

Courtesy of GENERAL MOTORS CORP.

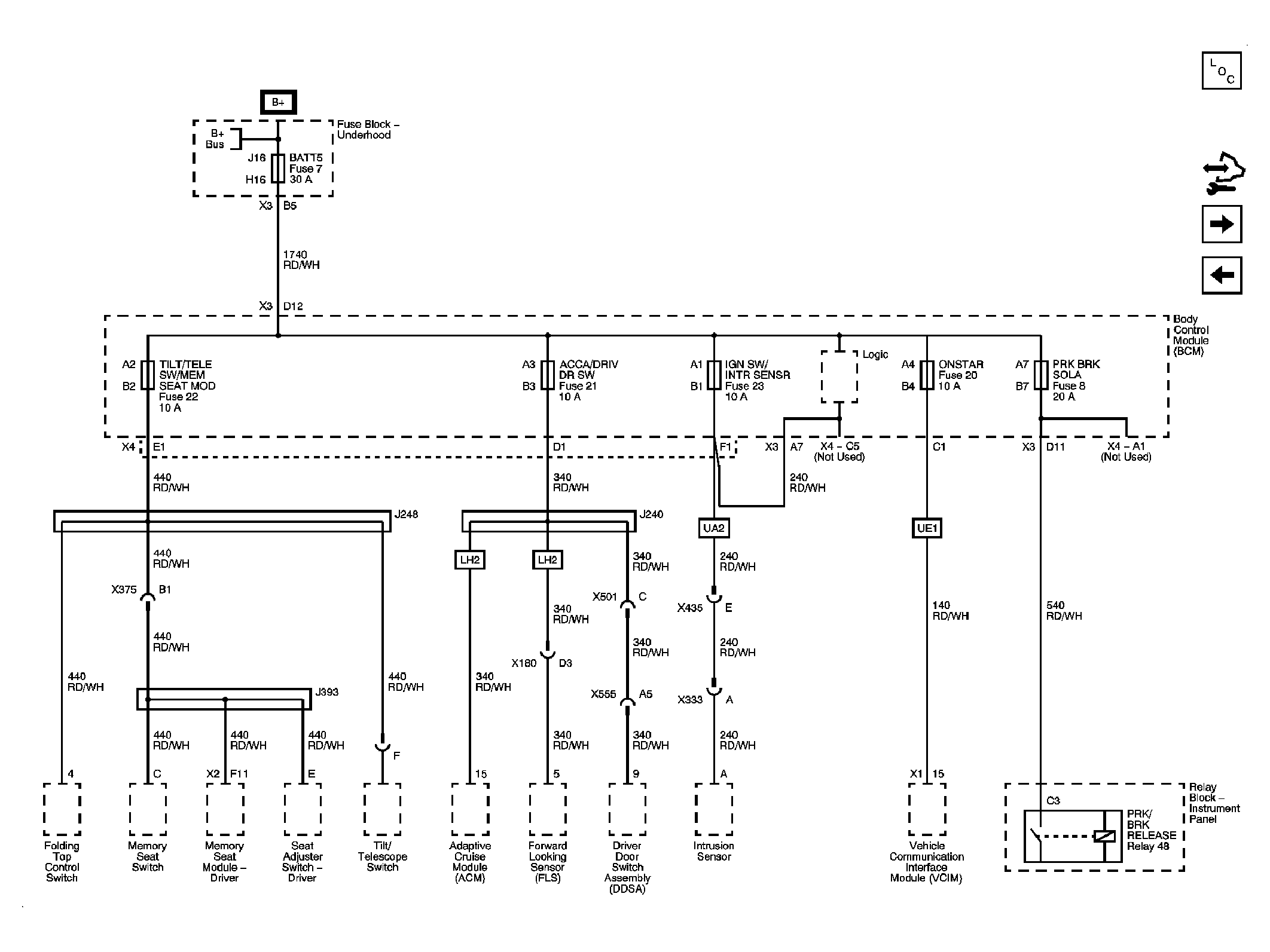

Fig 6: BATT5, TILT/TELE SW/MEM SEAT MOD, ACCA/DRIV DR SW, IGN SW/INTR SENSR, ONSTAR, and PRK BRK SOLA Fuses

Courtesy of GENERAL MOTORS CORP.

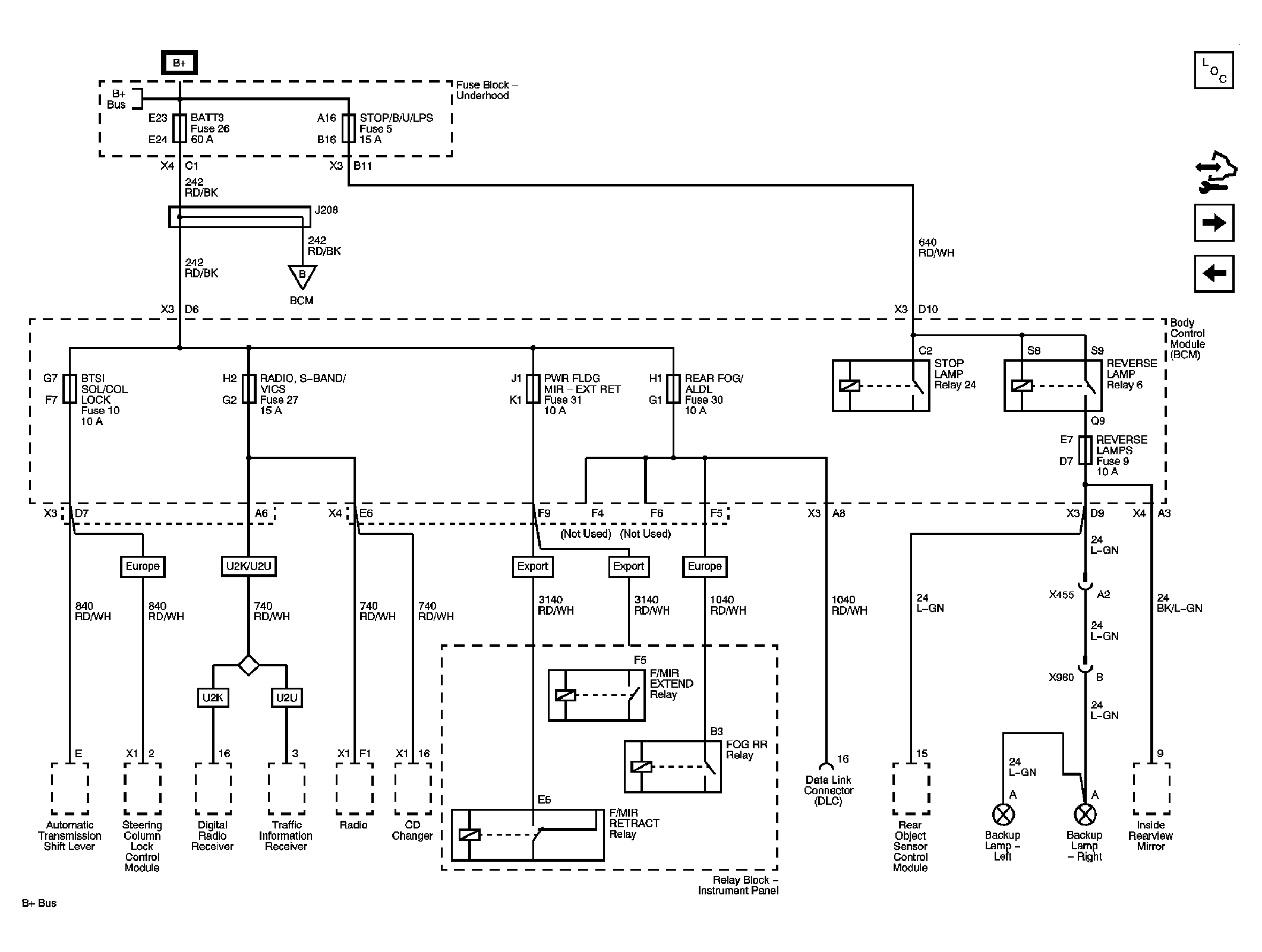

Fig 7: BATT3, STOP/B/U/LPS, BTSI SOL/COL LOCK, RADIO, S-BAND/VICS, PWR FLDG MIR - EXT RET, REAR FOG/ALDL, REVERSE LAMPS Fuses, and REVERSE LAMP Relay

Courtesy of GENERAL MOTORS CORP.

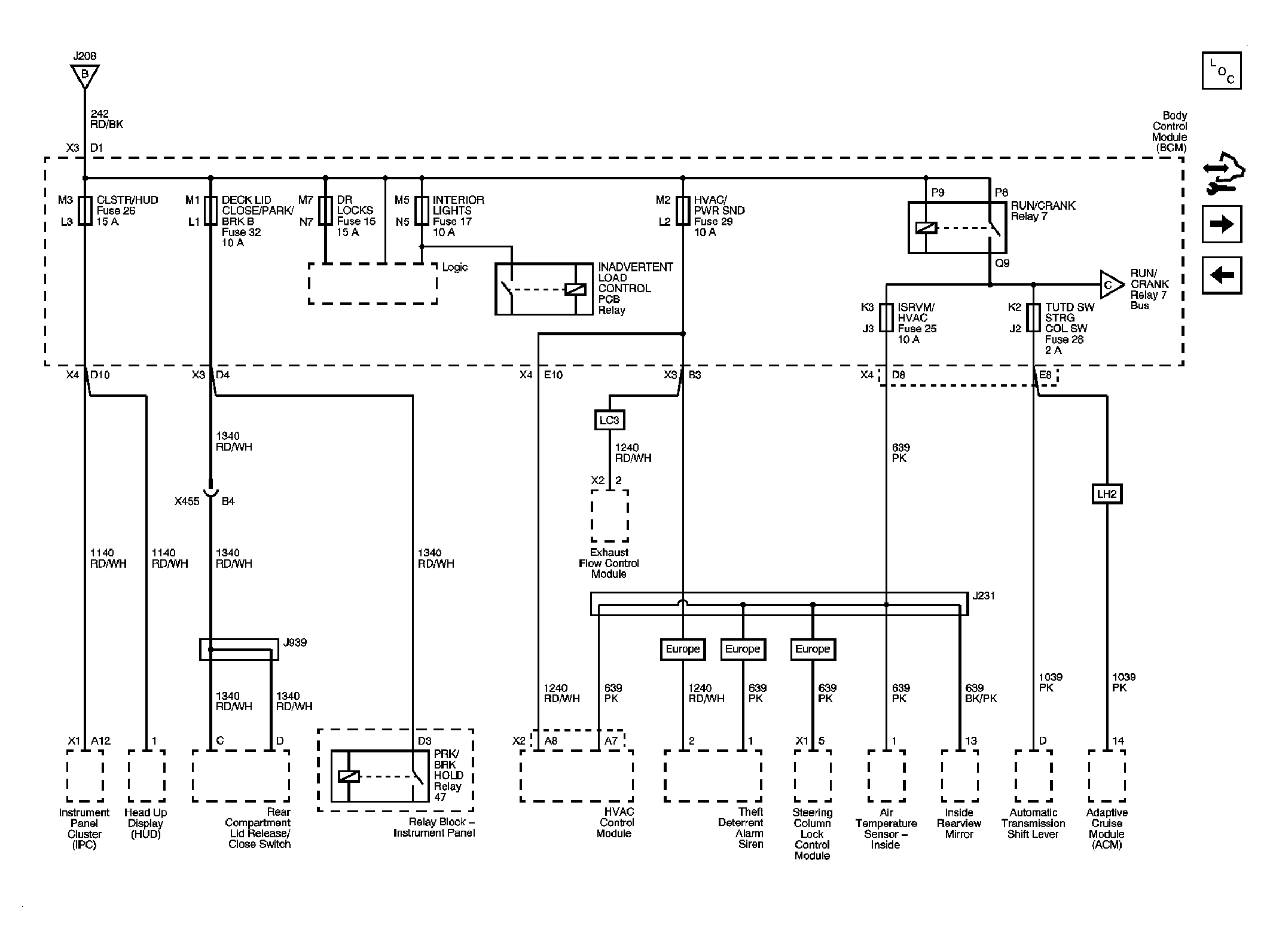

Fig 8: CLSTR/HUD, DECK LID CLOSE/PARK/BRK B, DR LOCKS, INTERIOR LIGHTS, HVAC/PWR SND, ISRVM/HVAC, TUTD SW STRG COL SW Fuses, and RUN/CRANK Relay

Courtesy of GENERAL MOTORS CORP.

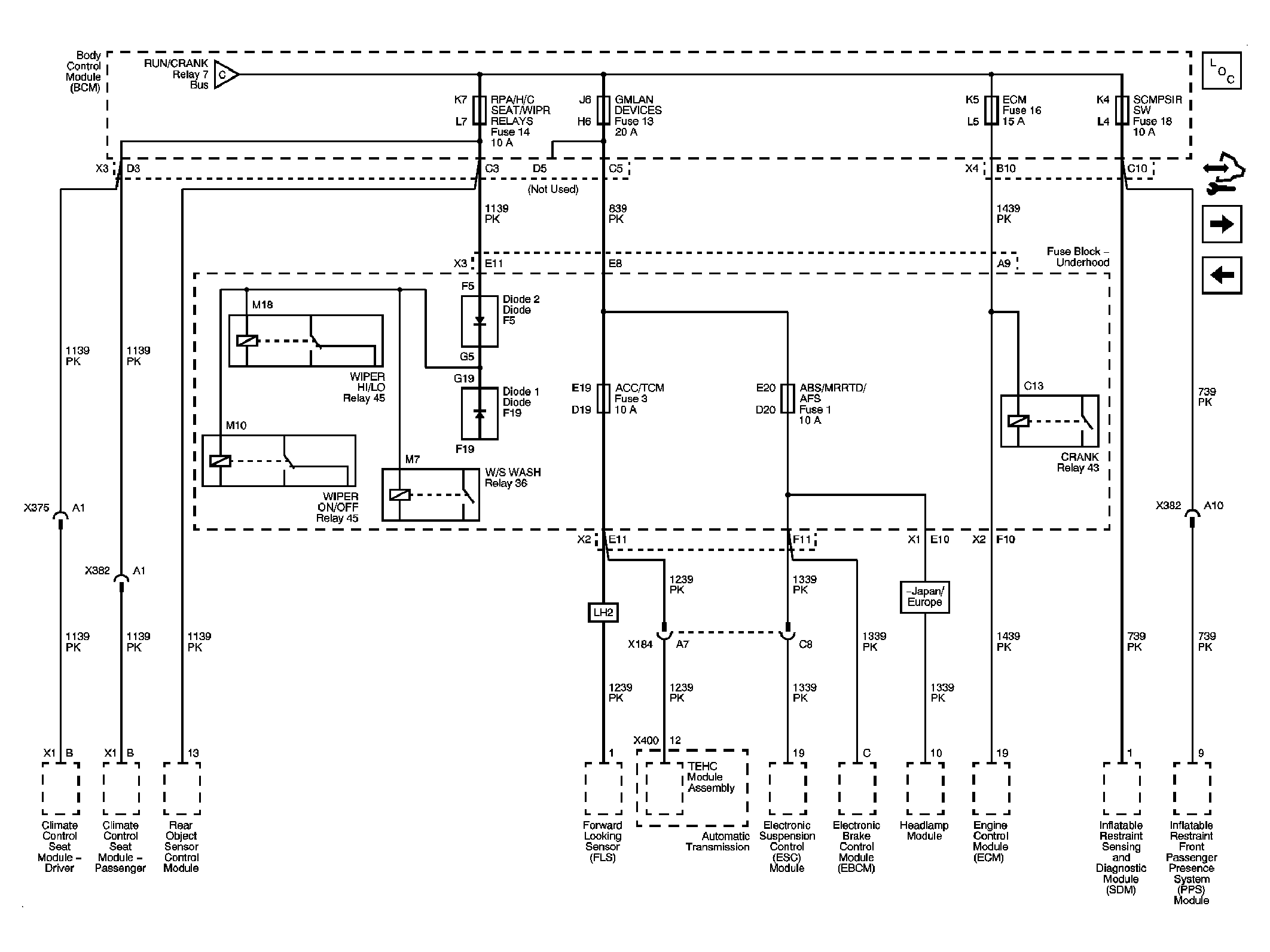

Fig 9: RPA/H/C SEAT/WIPR RELAYS, GMLAN DEVICES, ECM, SCMPSIR SW, ACC/TCM, and ABS/MRRTD/AFS Fuses

Courtesy of GENERAL MOTORS CORP.

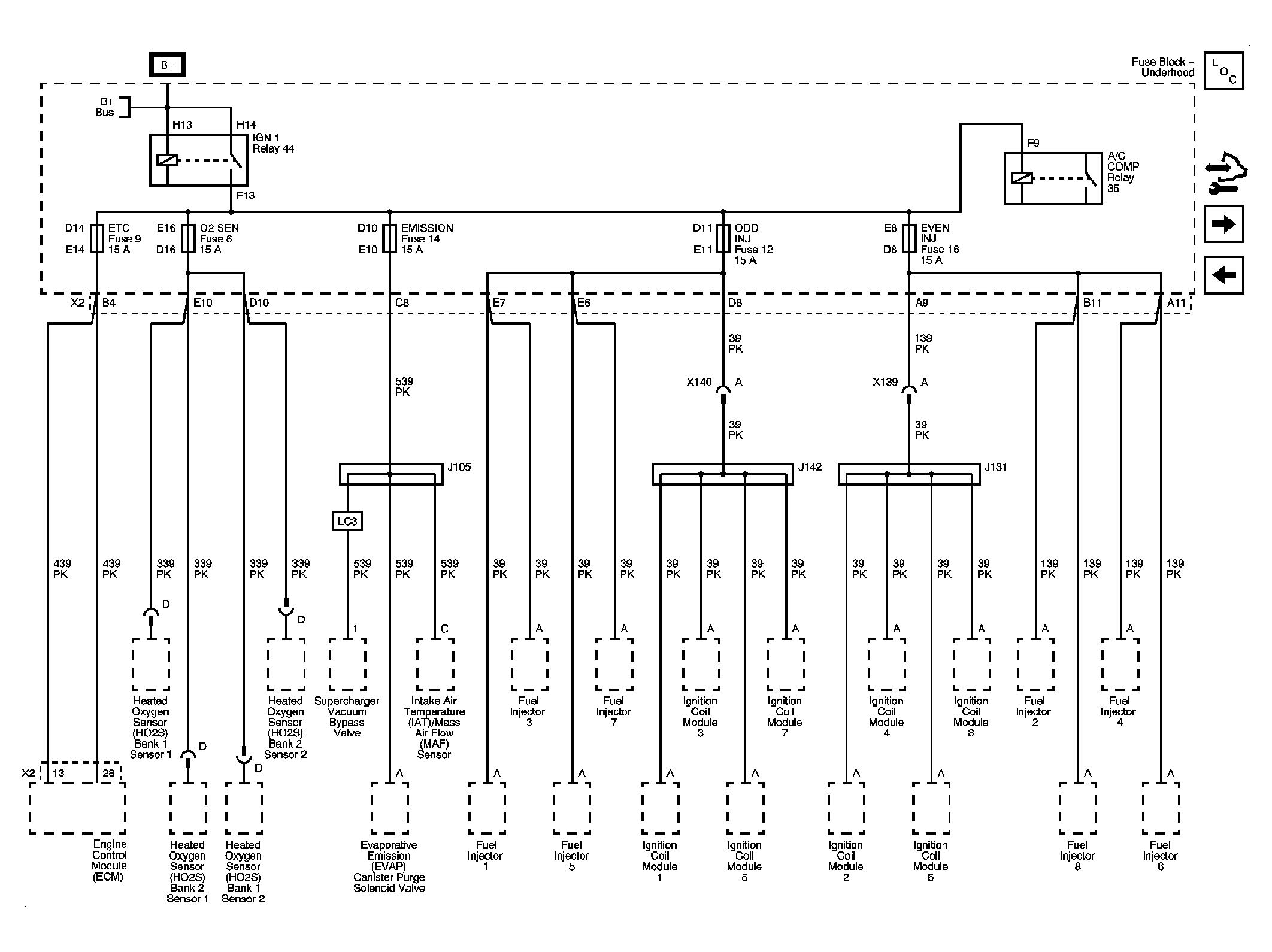

Fig 10: ETC, O2 SEN, EMISSION, ODD INJ, EVEN INJ Fuses, and IGN 1 Relay

Courtesy of GENERAL MOTORS CORP.

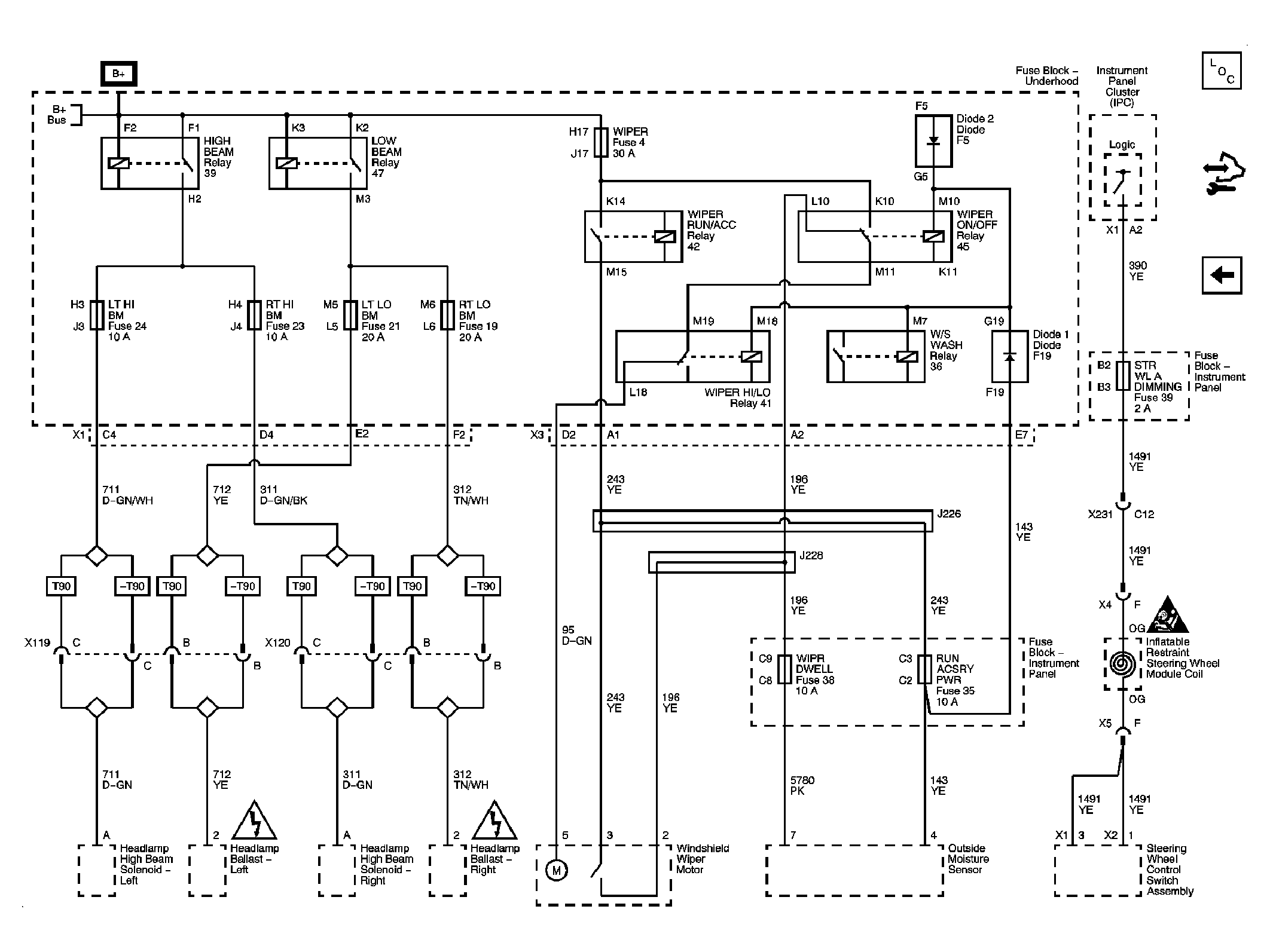

Fig 11: LT HI BM, RT HI BM, LT LO BM, RT LO BM, WIPER, WIPR DWELL, RUN ACSRY PWR, STR WAL DIMMING Fuses, and HIGH BEAM, LOW BEAM, WIPER RUN/ACC, WIPER ON/OFF, AND WIPER HI/LO Relays

Courtesy of GENERAL MOTORS CORP.
