Ground Distribution Schematics

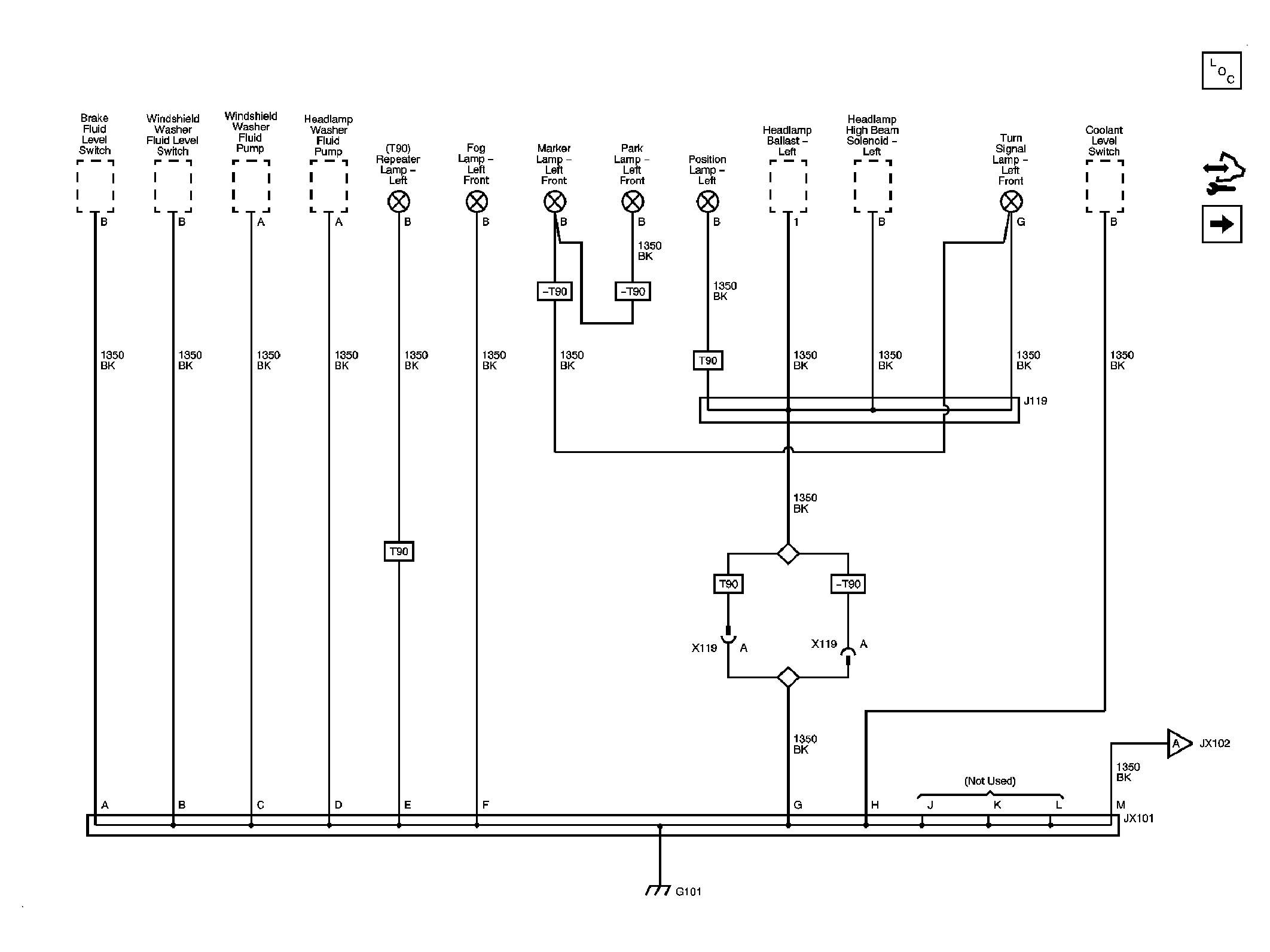

Fig 1: G101

GM1899290

Courtesy of GENERAL MOTORS CORP.

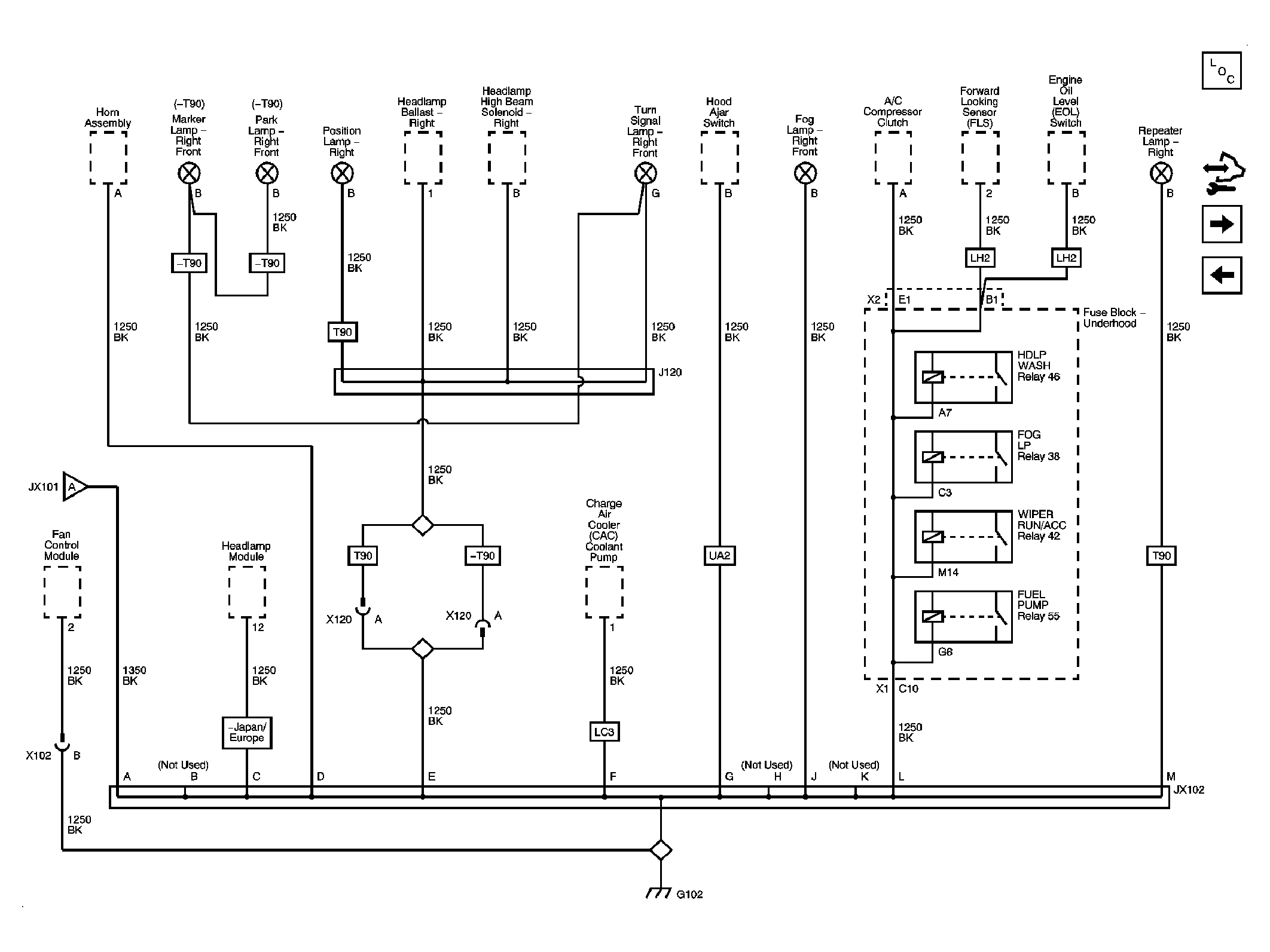

Fig 2: G102

GM1899298

Courtesy of GENERAL MOTORS CORP.

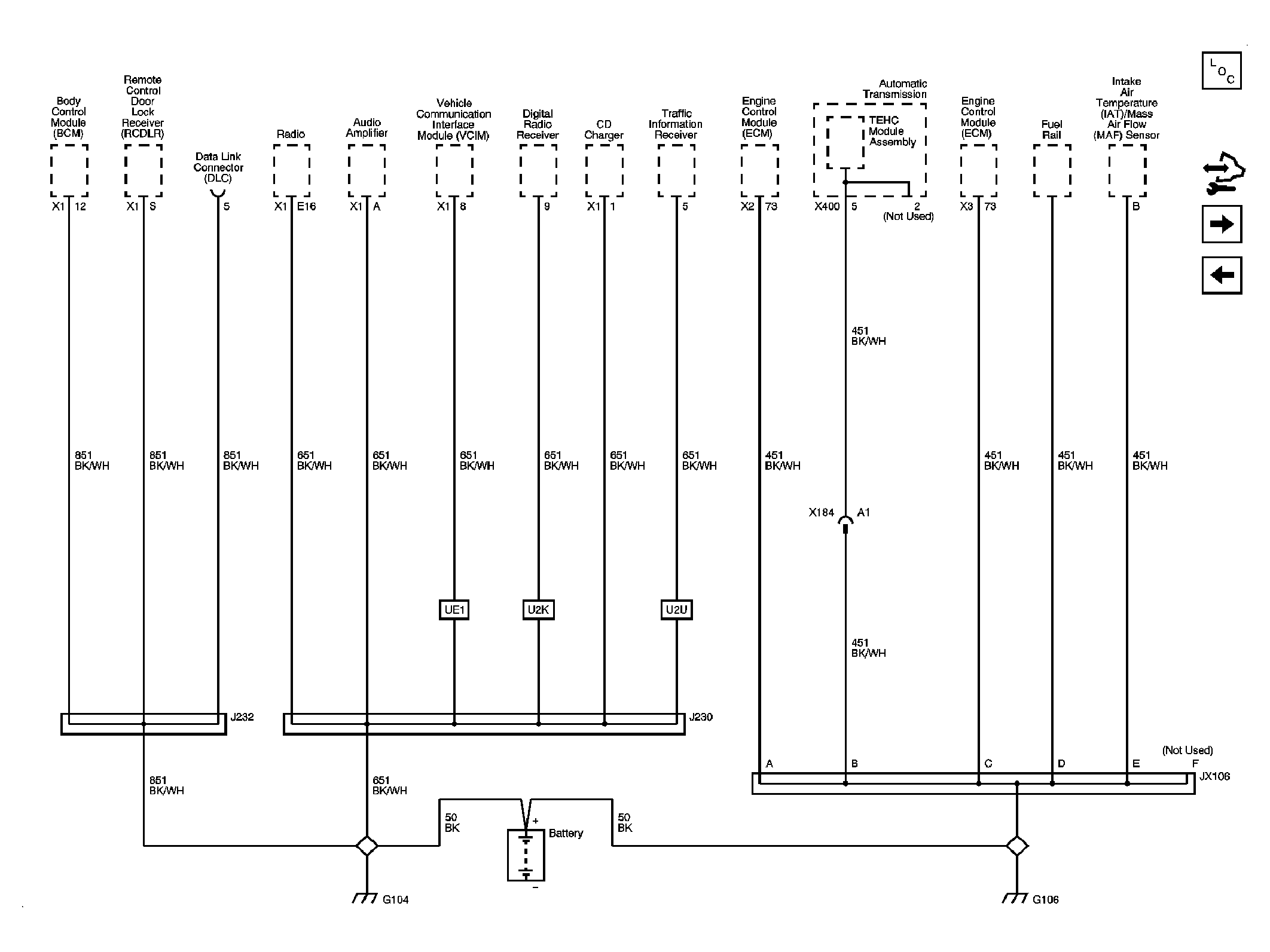

Fig 3: G104, and G106

GM1899307

Courtesy of GENERAL MOTORS CORP.

Fig 4: G105, G107, G109, G110, G111, and G112

GM1899314

Courtesy of GENERAL MOTORS CORP.

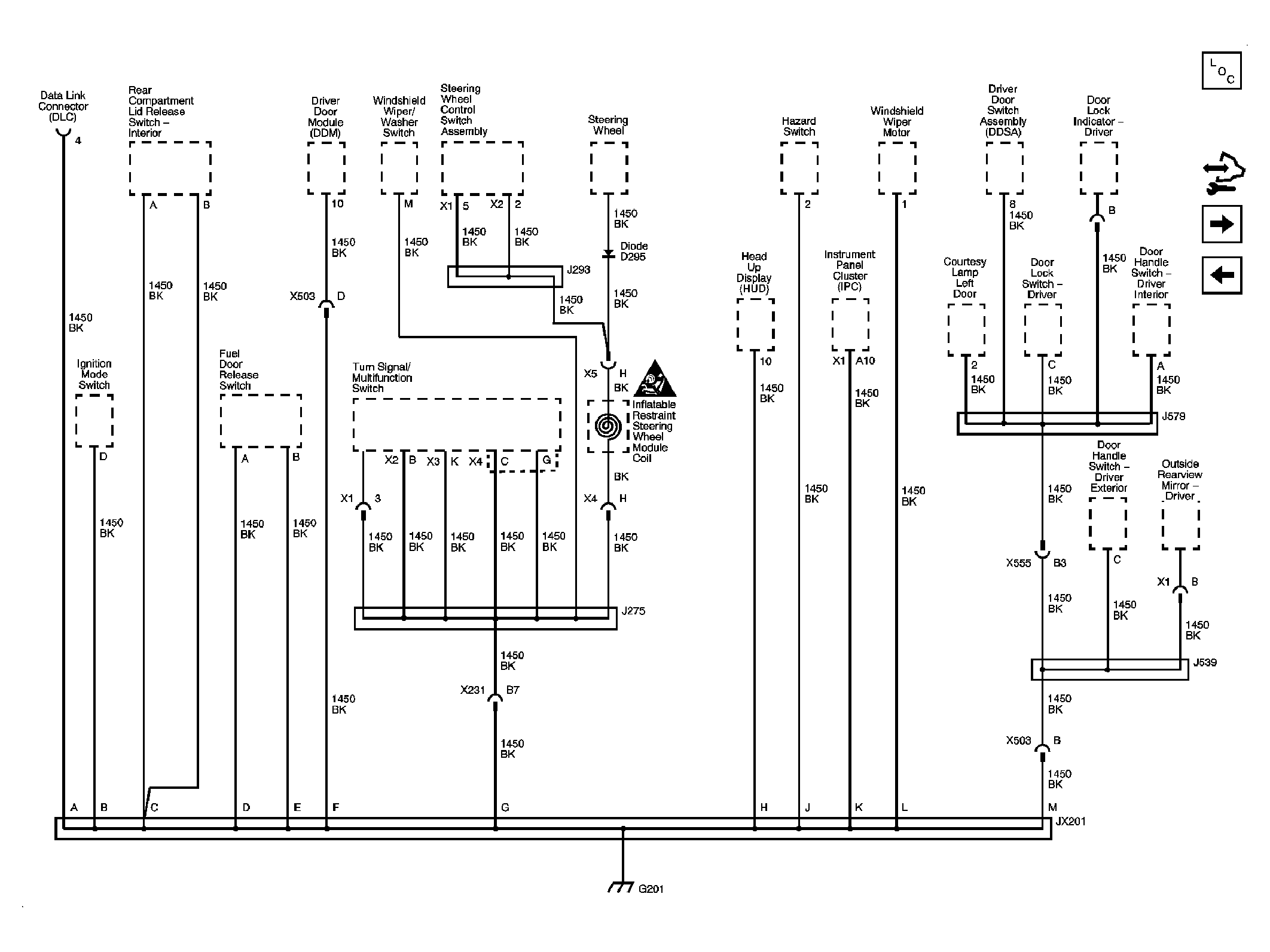

Fig 5: G201

GM1899326

Courtesy of GENERAL MOTORS CORP.

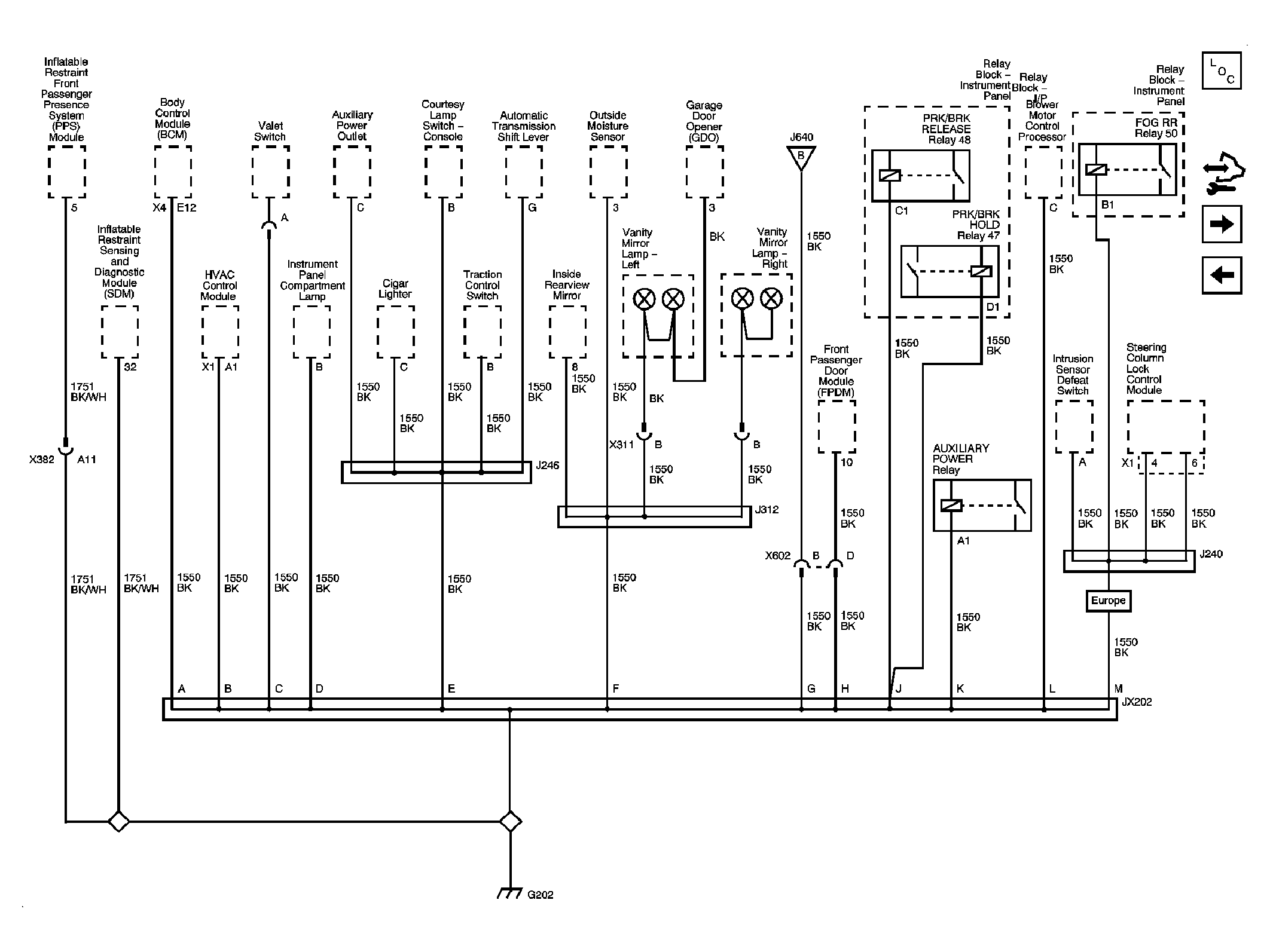

Fig 6: G202

GM1899332

Courtesy of GENERAL MOTORS CORP.

Fig 7: G202 Continued

GM1899338

Courtesy of GENERAL MOTORS CORP.

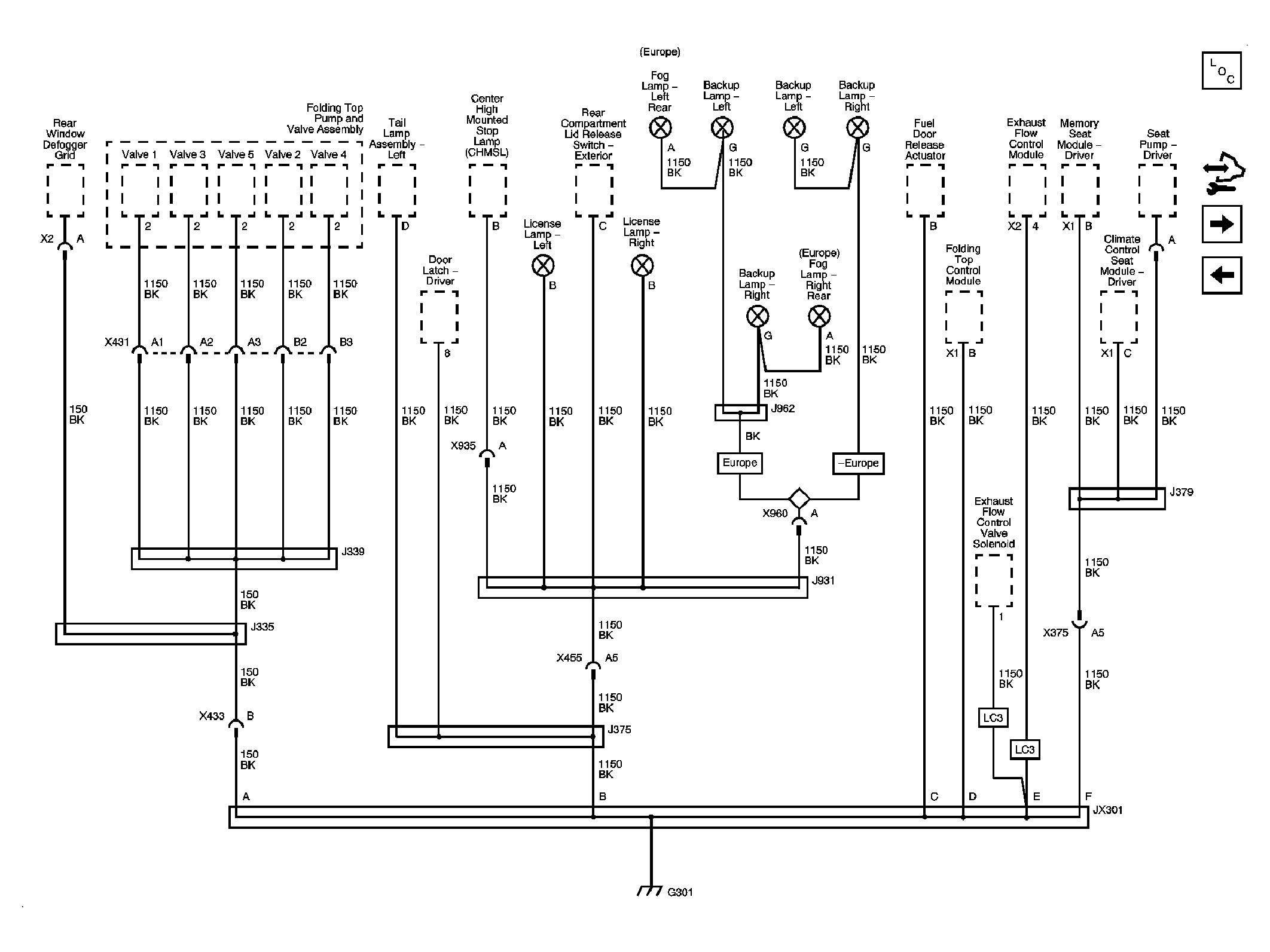

Fig 8: G301

GM1899340

Courtesy of GENERAL MOTORS CORP.

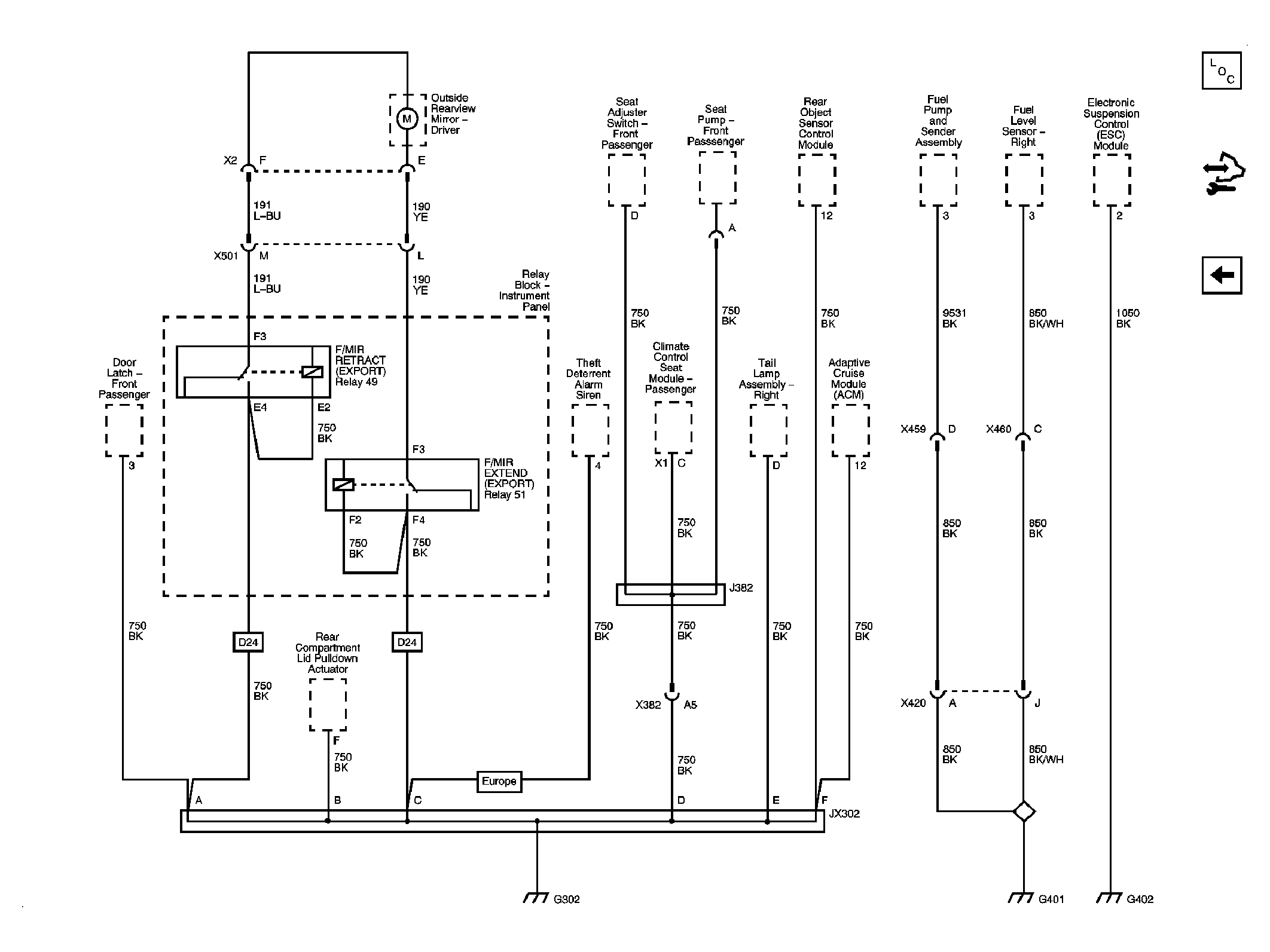

Fig 9: G302, G401, and G402

GM1899345

Courtesy of GENERAL MOTORS CORP.
