Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Instrument Panel System Displays & Gages
>>
Schematic and Routing Diagrams
>>
Instrument Cluster Schematics
Instrument Cluster Schematics

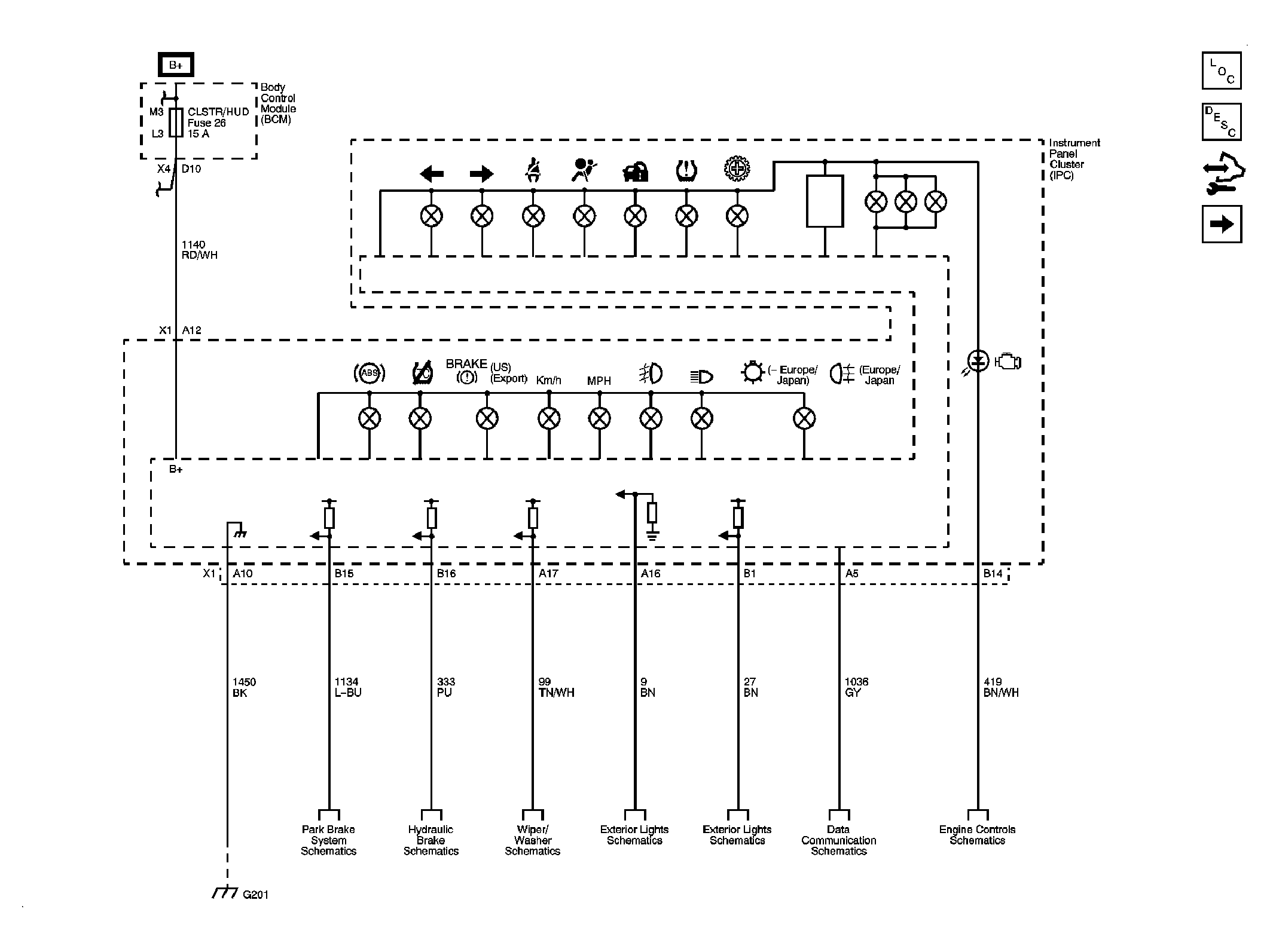

Fig 1: Power, Ground, and Indicators
Courtesy of GENERAL MOTORS CORP.
Fig 2: Gages
Courtesy of GENERAL MOTORS CORP.

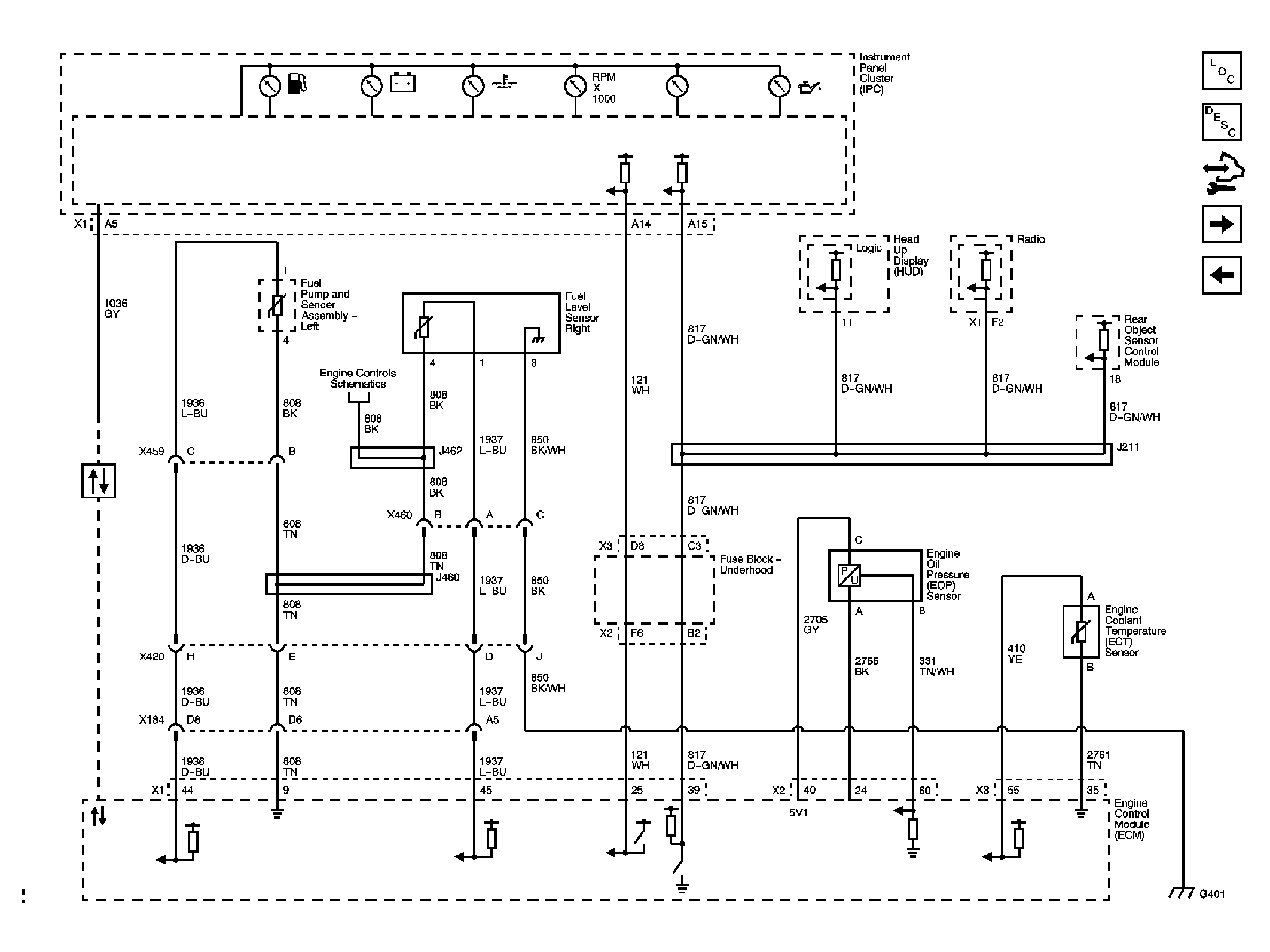

Fig 3: Messages
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
