Folding Top Schematics

Fig 1: Power, Ground, DLC, and Messages
GM1899930Courtesy of GENERAL MOTORS CORP.

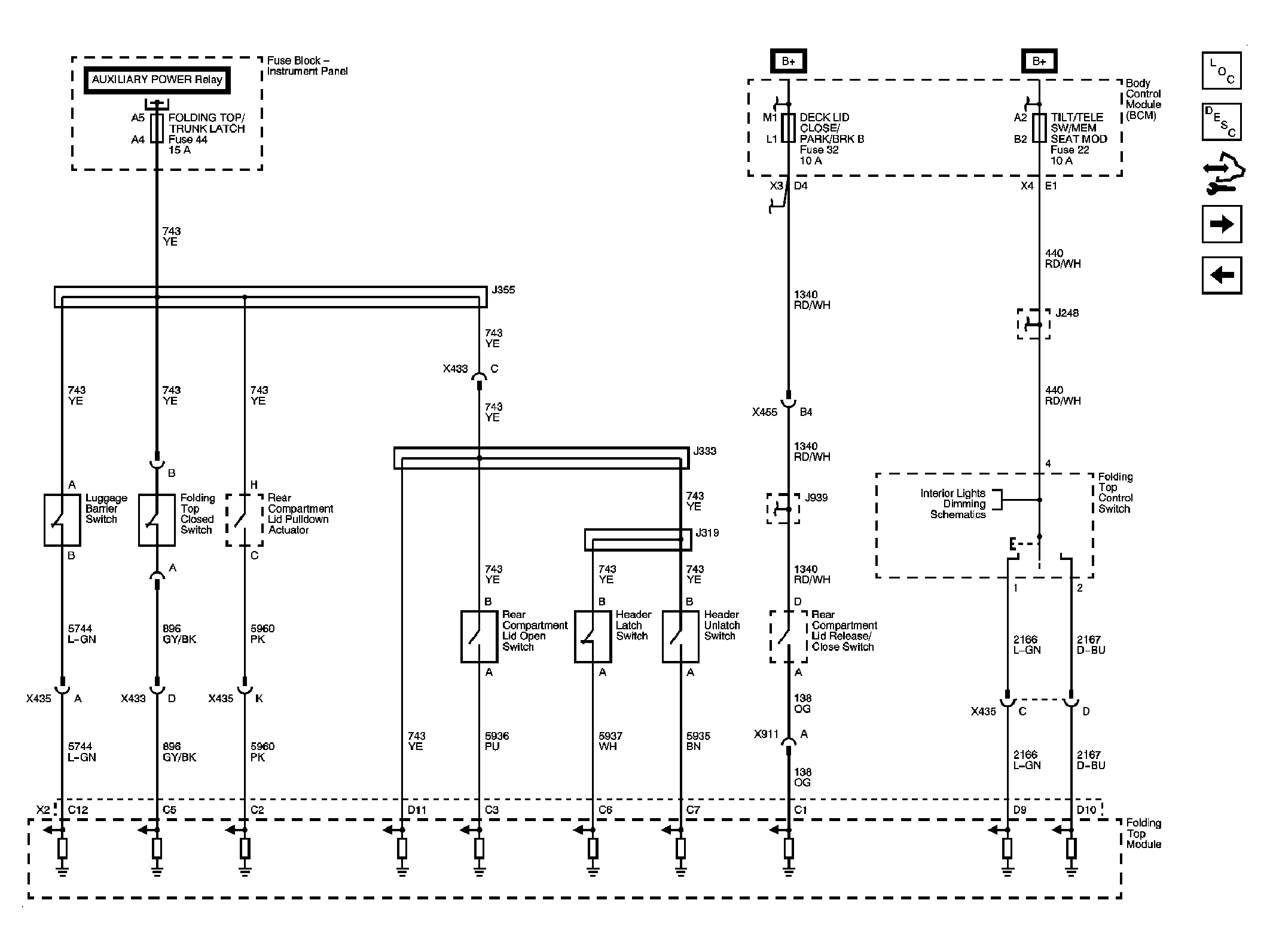

Fig 2: Switches
GM1899931Courtesy of GENERAL MOTORS CORP.

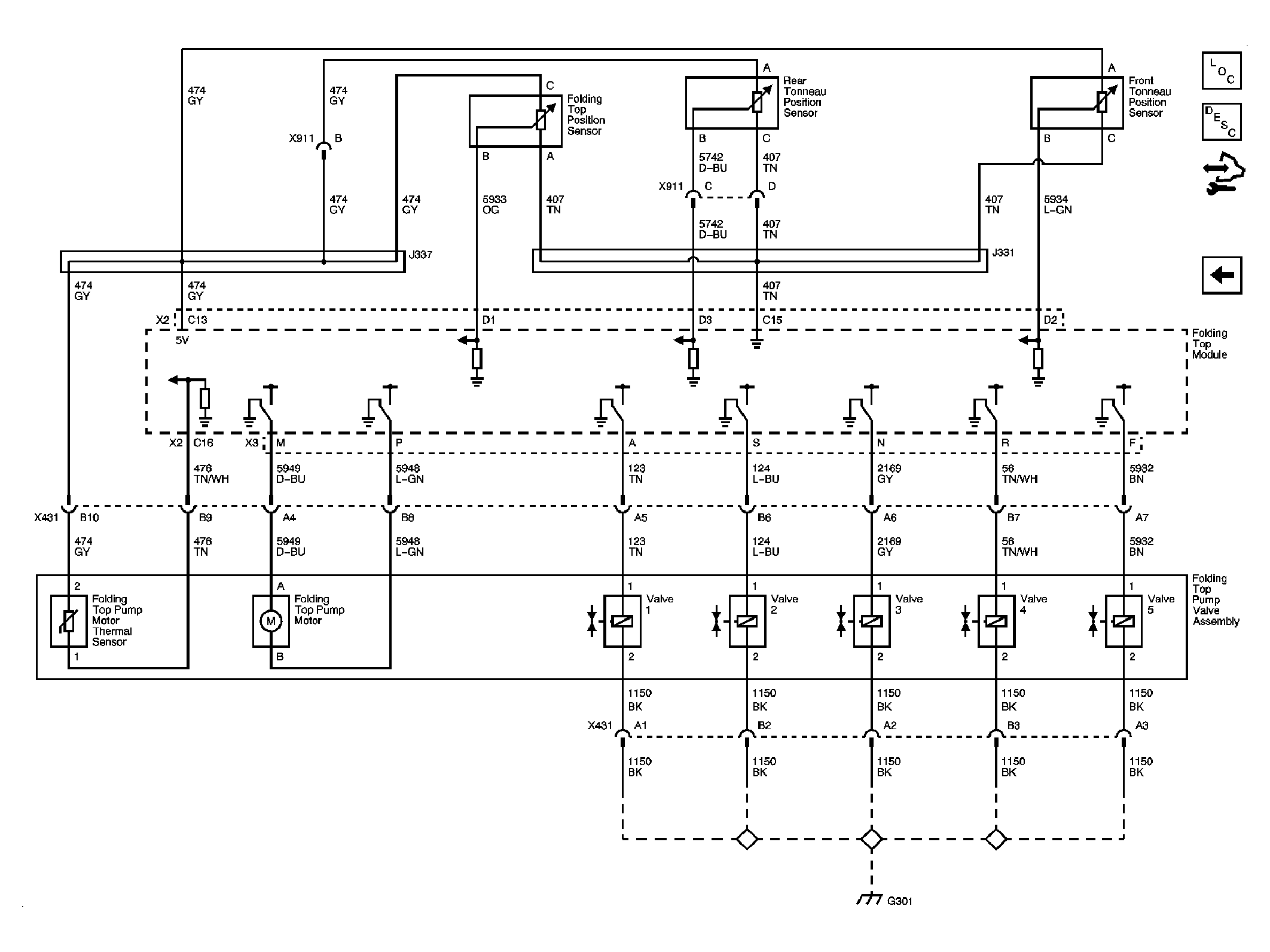

Fig 3: Sensors, Valves, and Pump
GM1899932Courtesy of GENERAL MOTORS CORP.
