Driver Seat Schematics

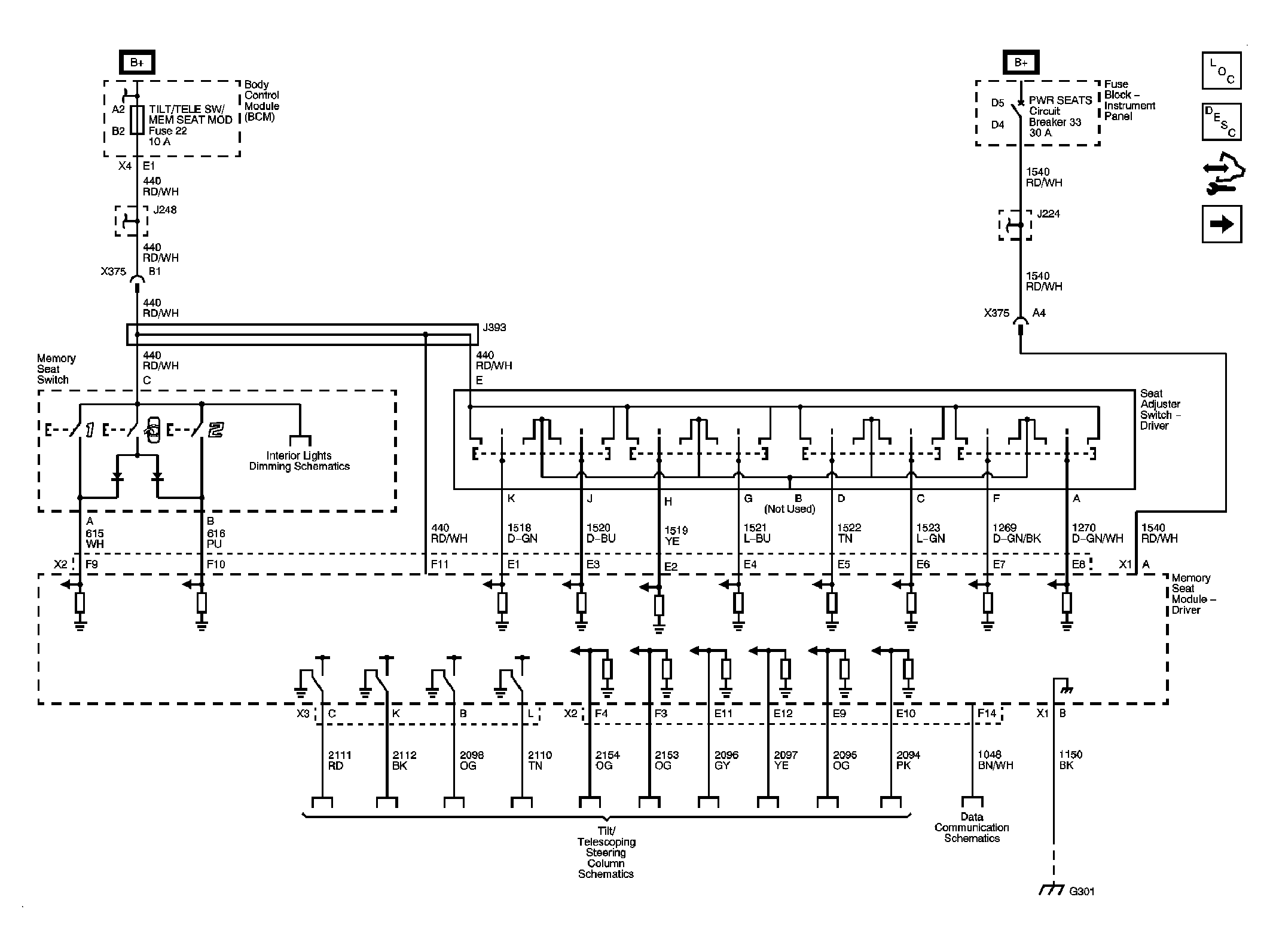

Fig 1: Power, Ground, DLC, Switches, and References
GM1899860Courtesy of GENERAL MOTORS CORP.

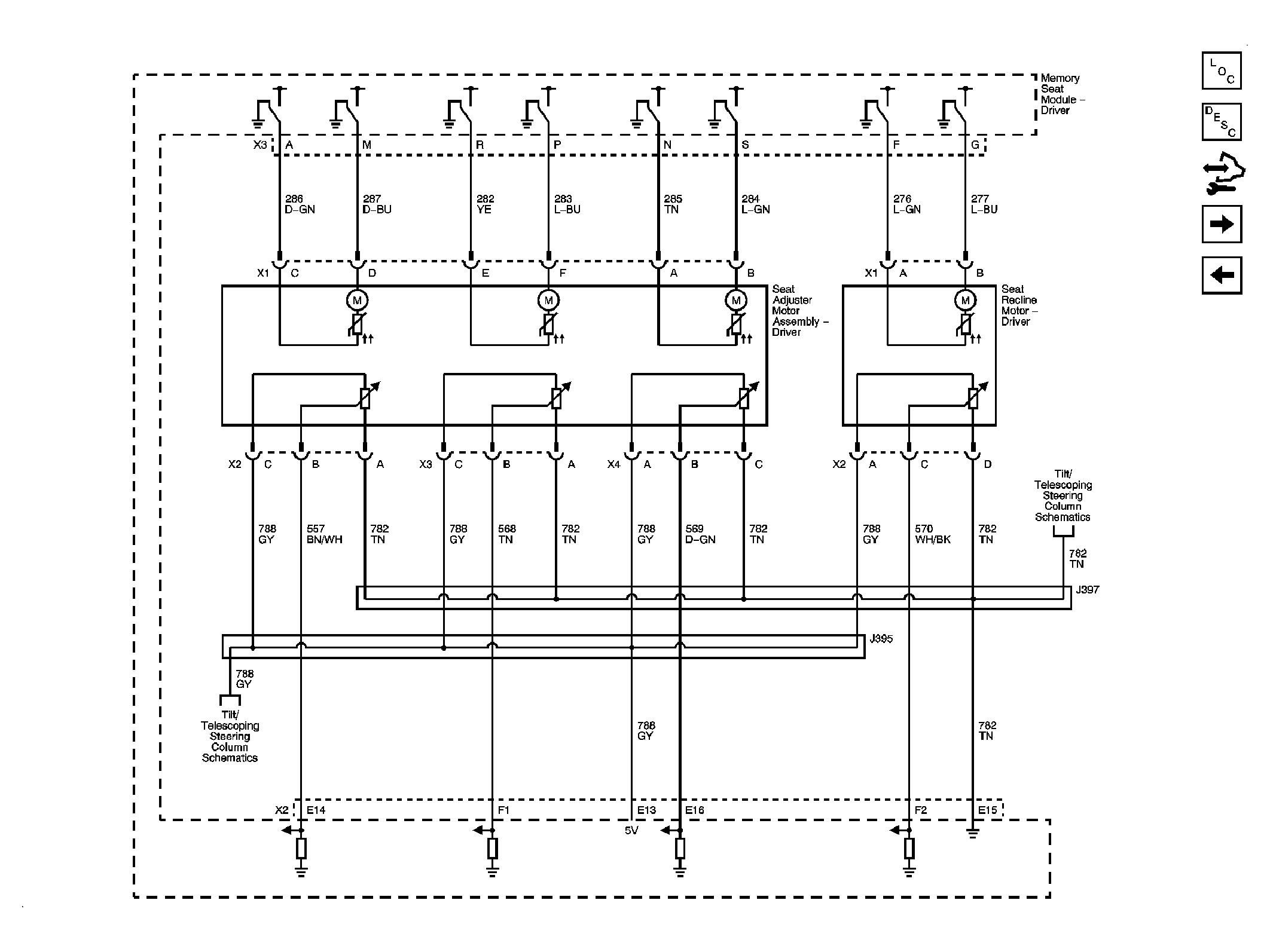

Fig 2: Motors
GM1899866Courtesy of GENERAL MOTORS CORP.
Fig 3: Lumbar Support
GM1899885Courtesy of GENERAL MOTORS CORP.
