Headlights/Daytime Running Lights (DRL) Schematics

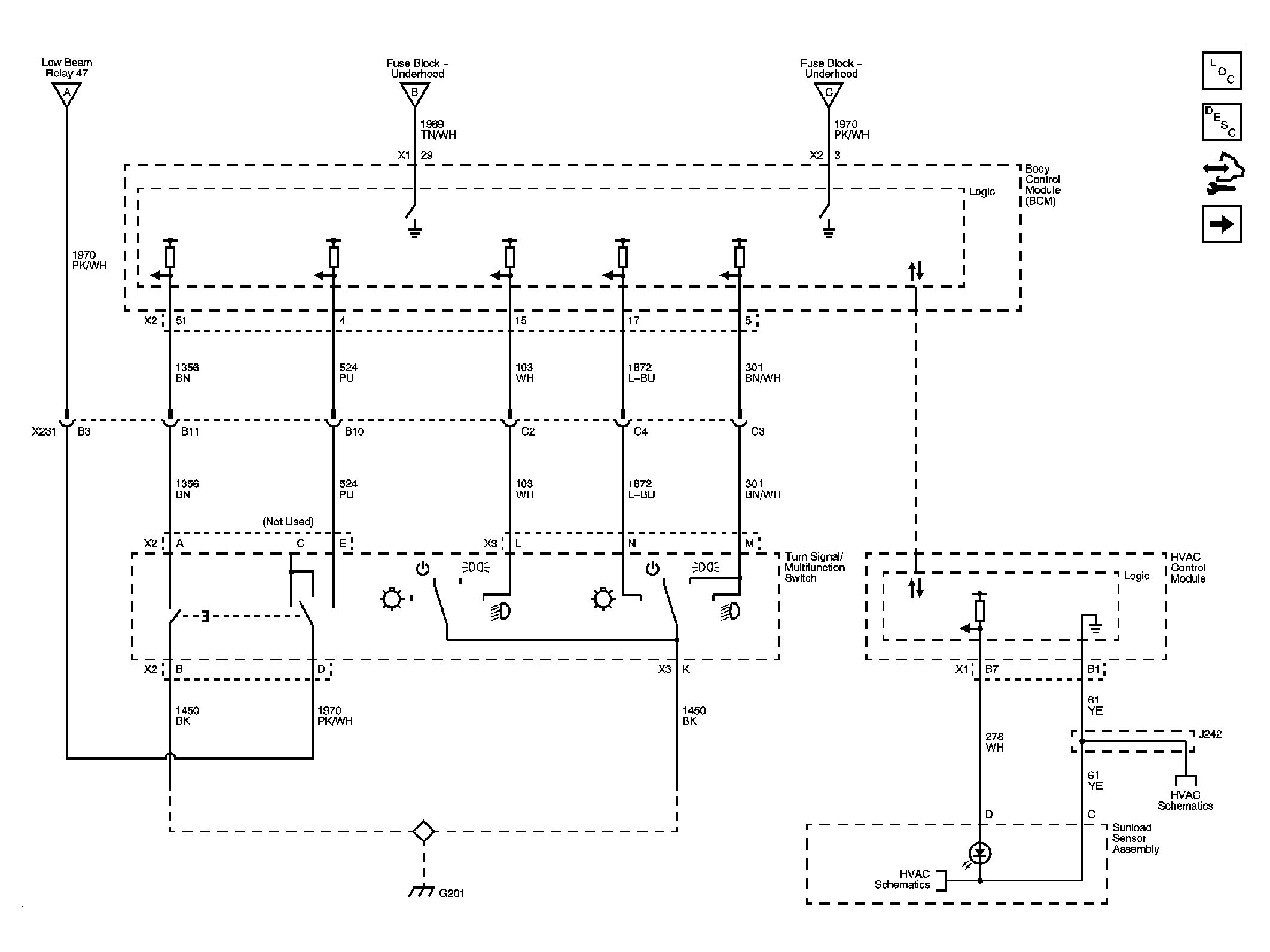

Fig 1: Headlamp/DRL Control
GM1899611Courtesy of GENERAL MOTORS CORP.

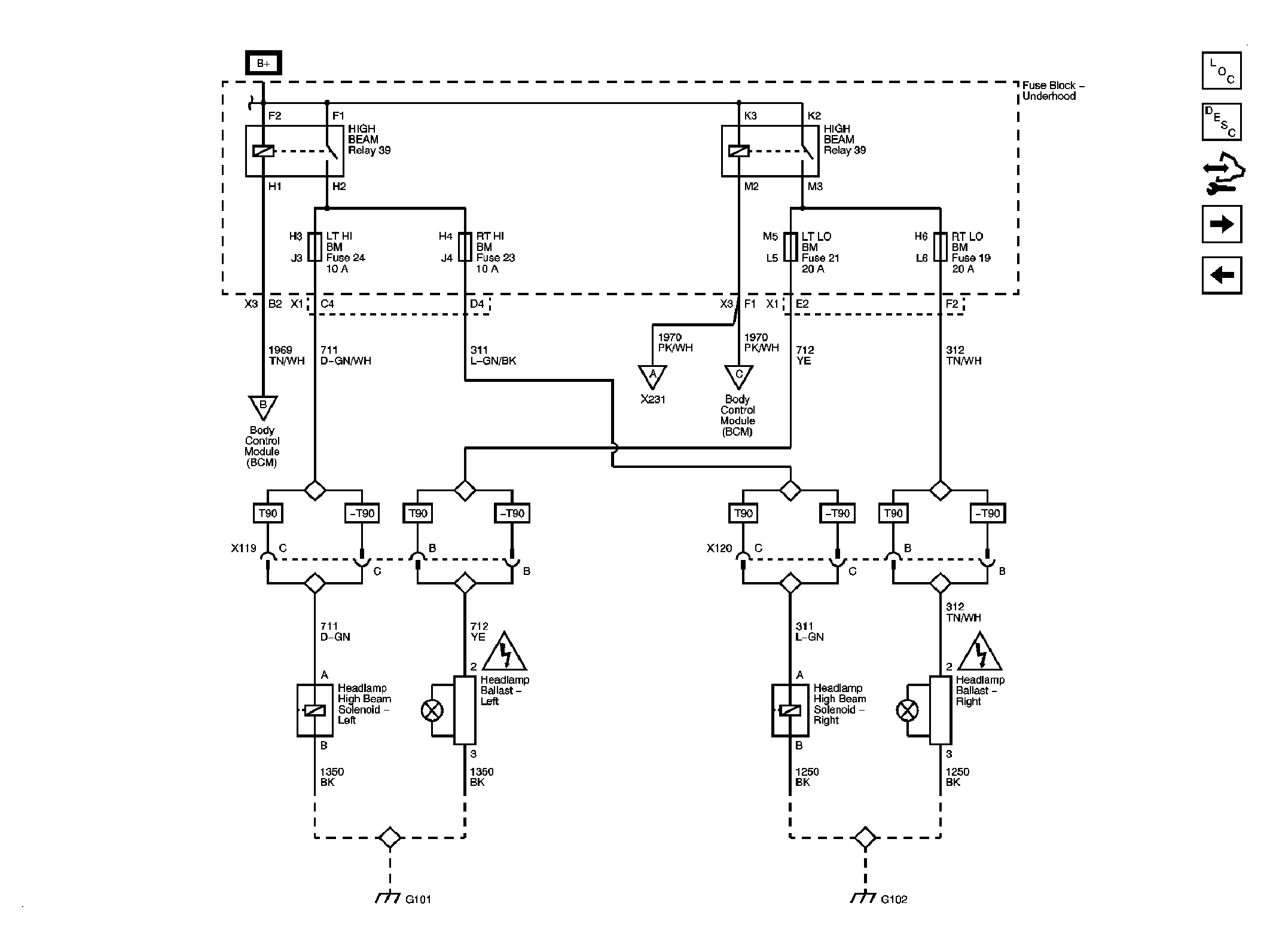

Fig 2: Headlamps
GM1899615Courtesy of GENERAL MOTORS CORP.

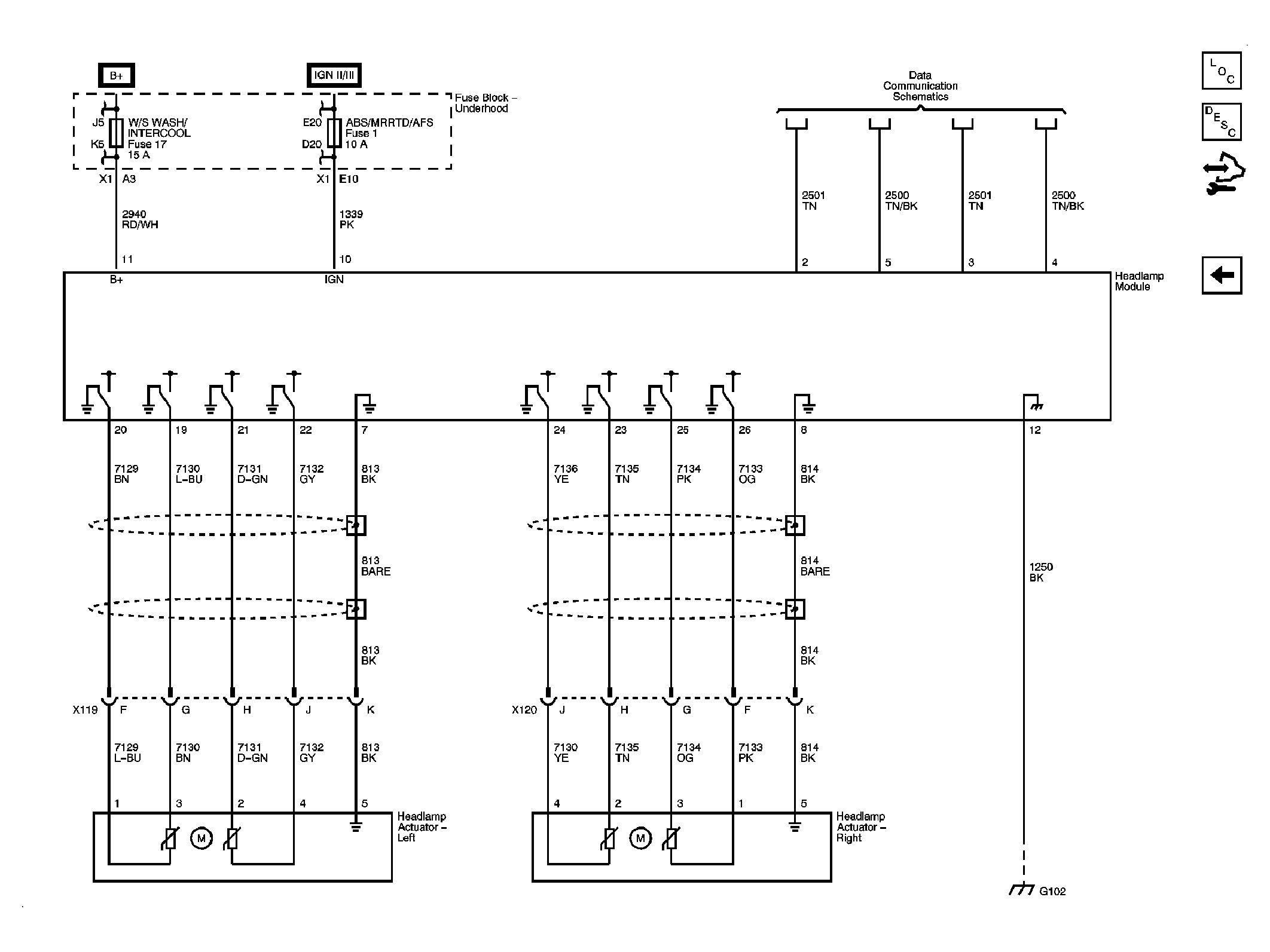

Fig 3: Adaptive Forward Lighting System (AFS) - Except Japan and Europe
GM1899617Courtesy of GENERAL MOTORS CORP.
