OnStar Schematics
OnStar Schematics

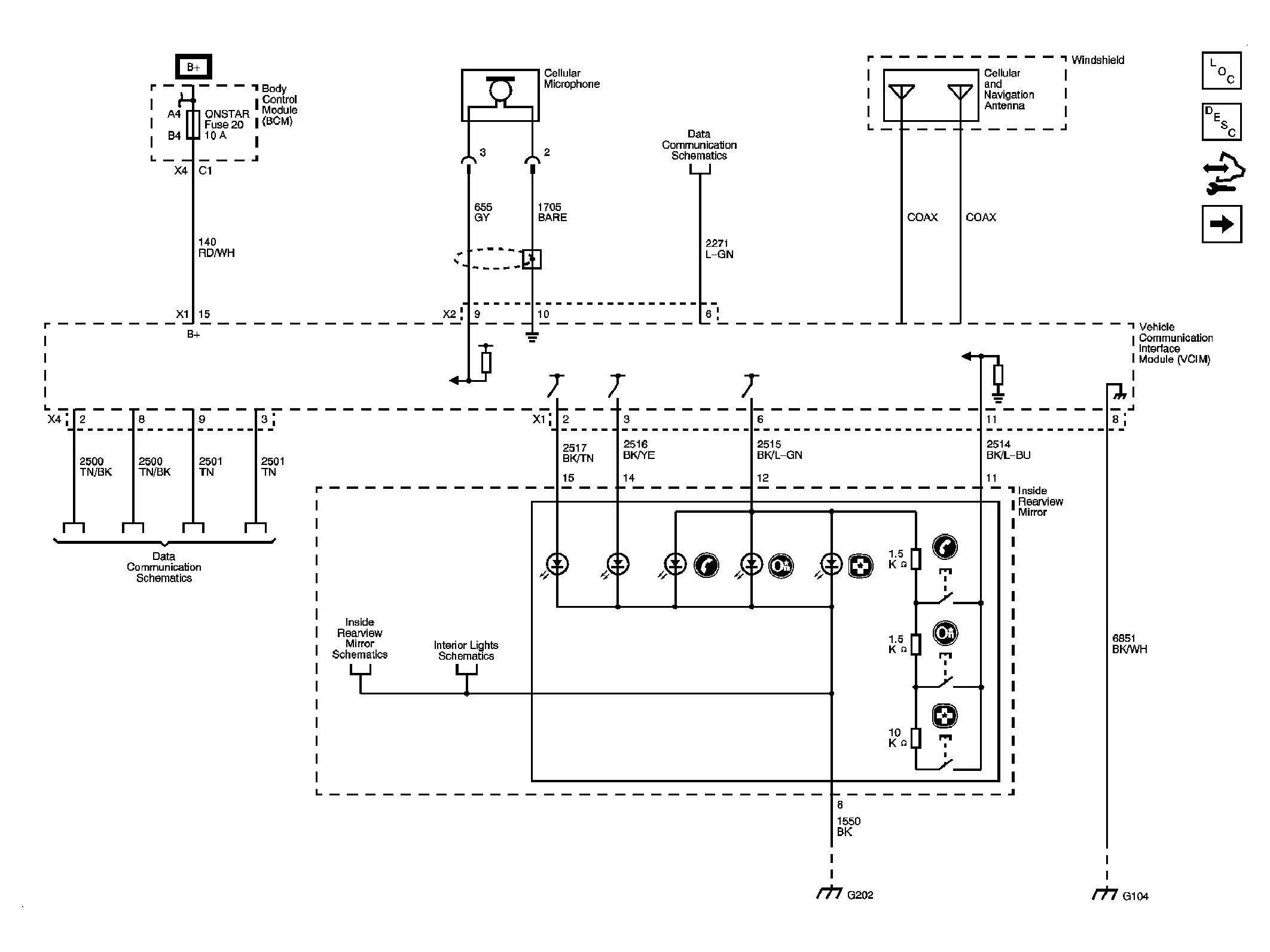

Fig 1: Power, Ground, DLC, Antenna, and User Inputs
Courtesy of GENERAL MOTORS CORP.
Fig 2: Audio Output
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
