Cruise Control Schematics (Conventional)

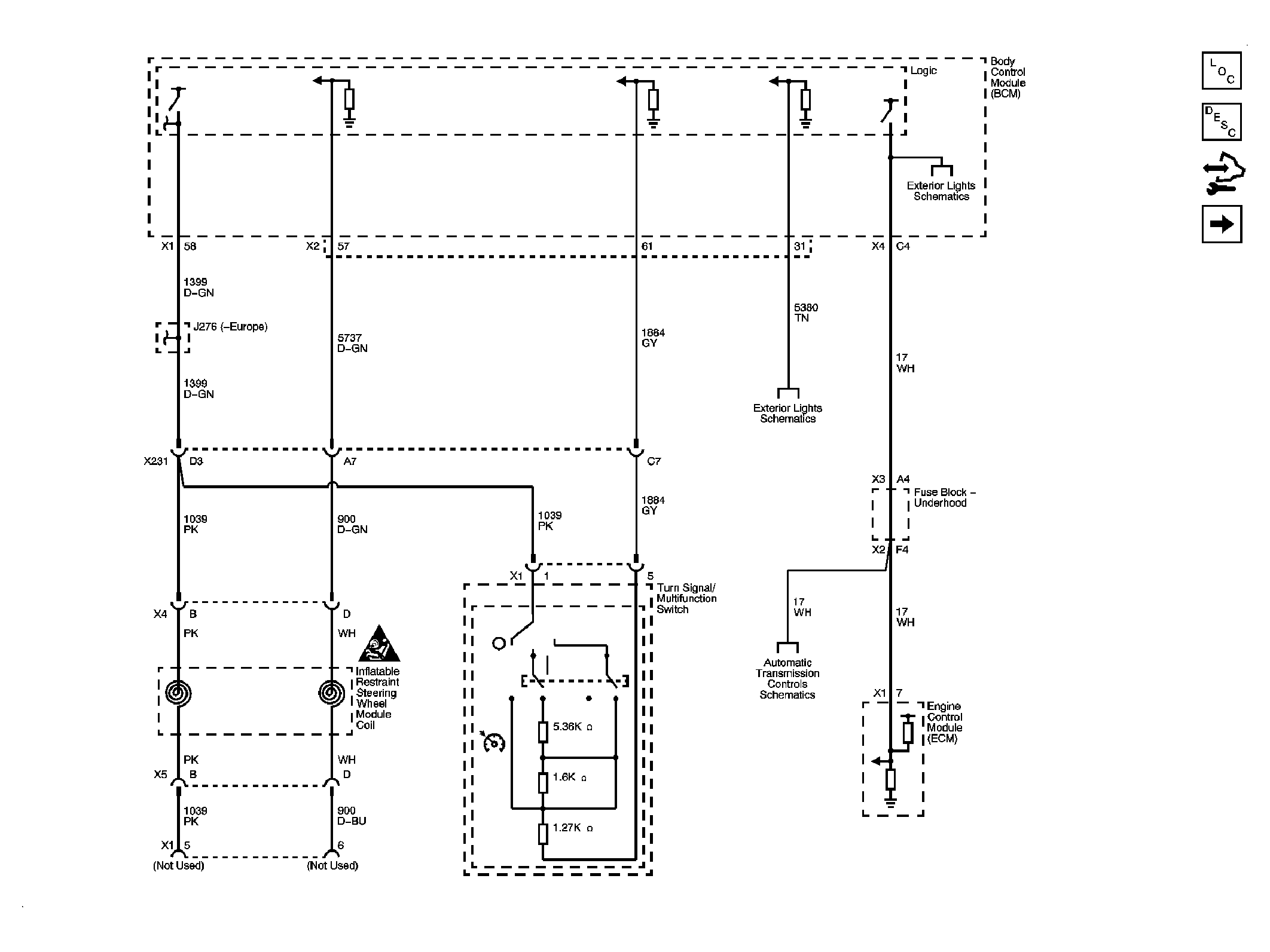

Fig 1: Driver Controls

GM1899524

Courtesy of GENERAL MOTORS CORP.

Fig 2: Computer Controls and Indicators

GM1899528

Courtesy of GENERAL MOTORS CORP.
