Data Communication Schematics

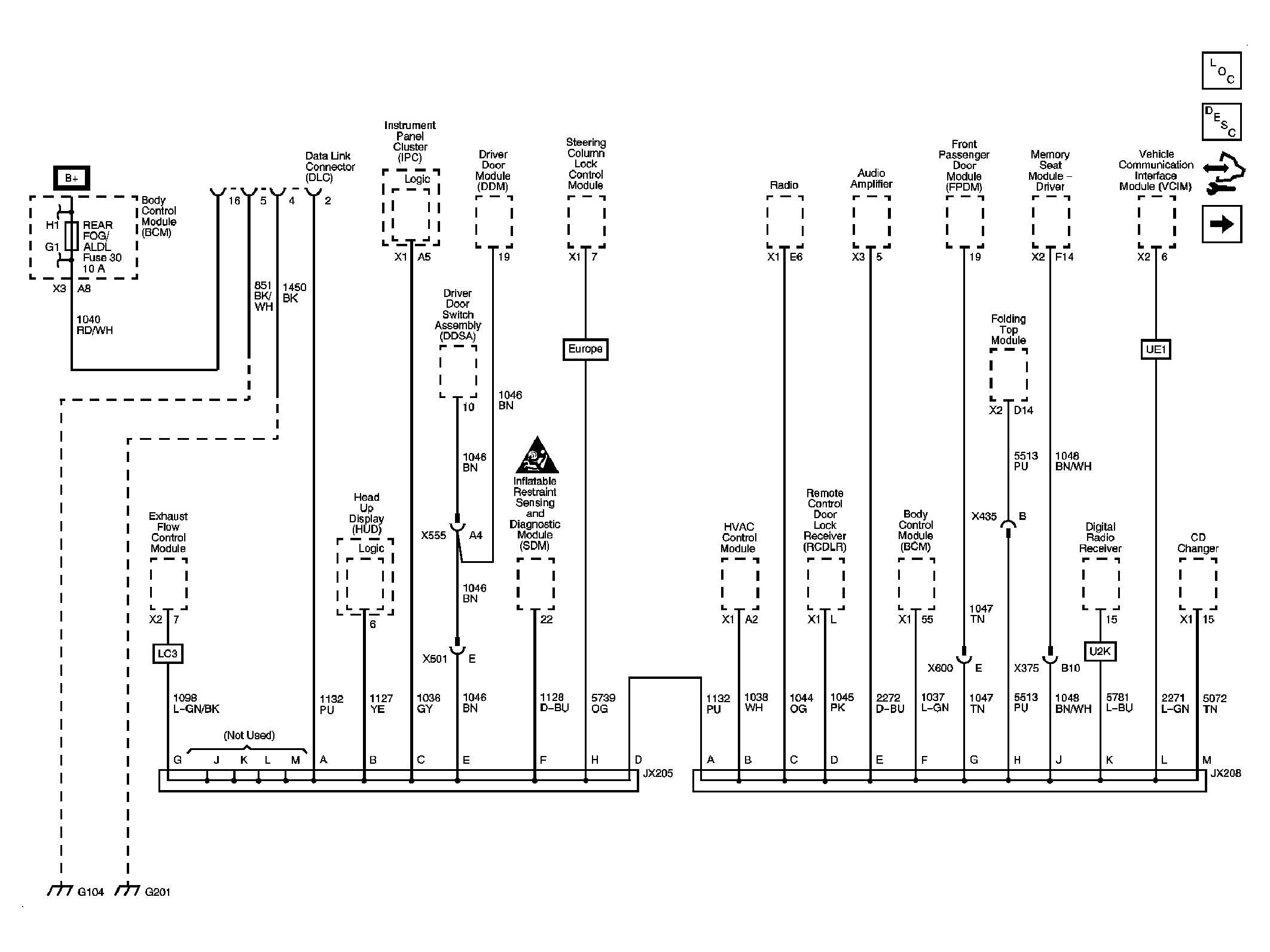

Fig 1: Class 2

GM1899355

Courtesy of GENERAL MOTORS CORP.

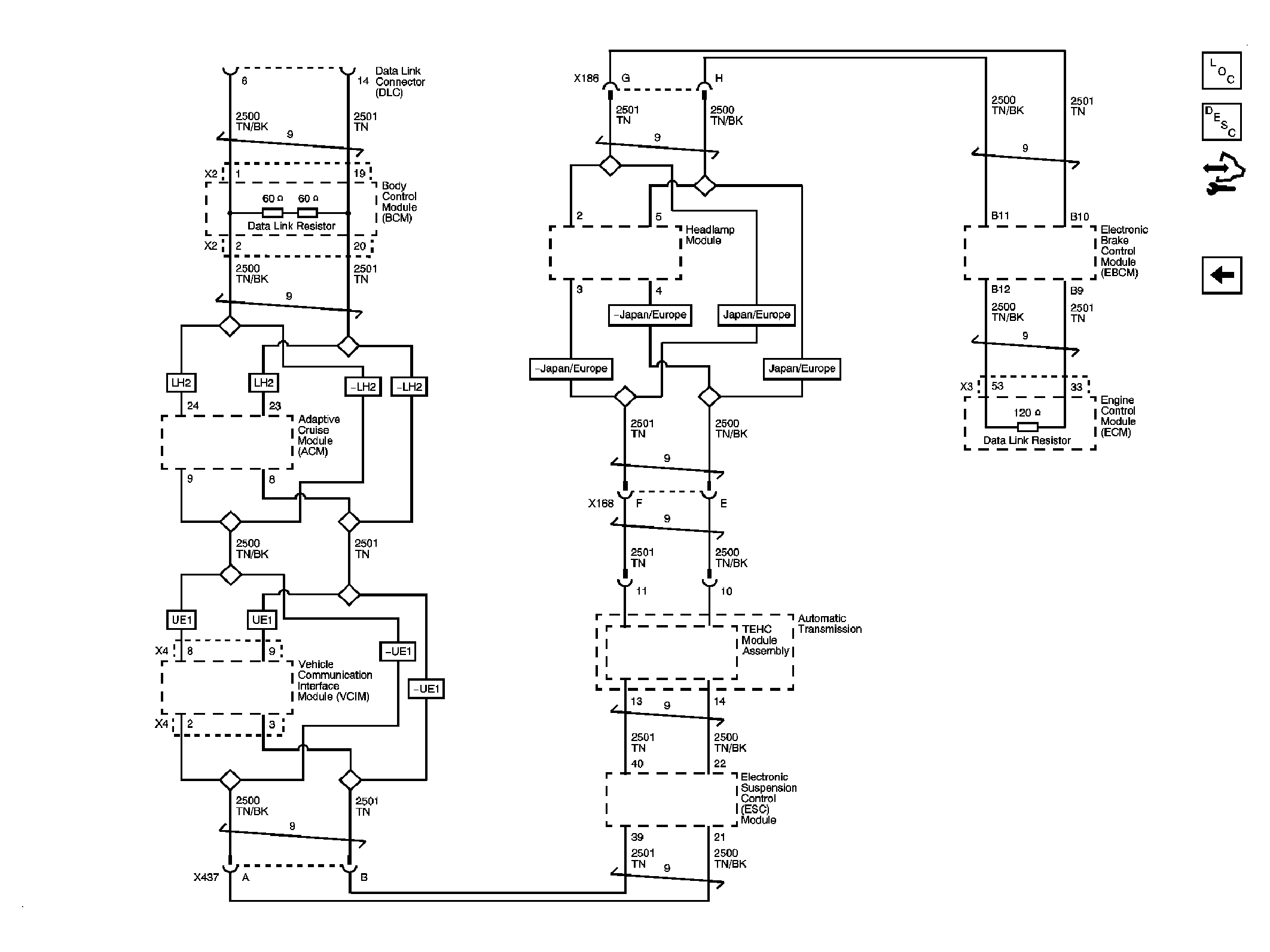

Fig 2: GMLAN

GM1899363

Courtesy of GENERAL MOTORS CORP.
