Starting and Charging Schematics

Fig 1: Starting System - LC3 Schematic
GM1905603Courtesy of GENERAL MOTORS CORP.

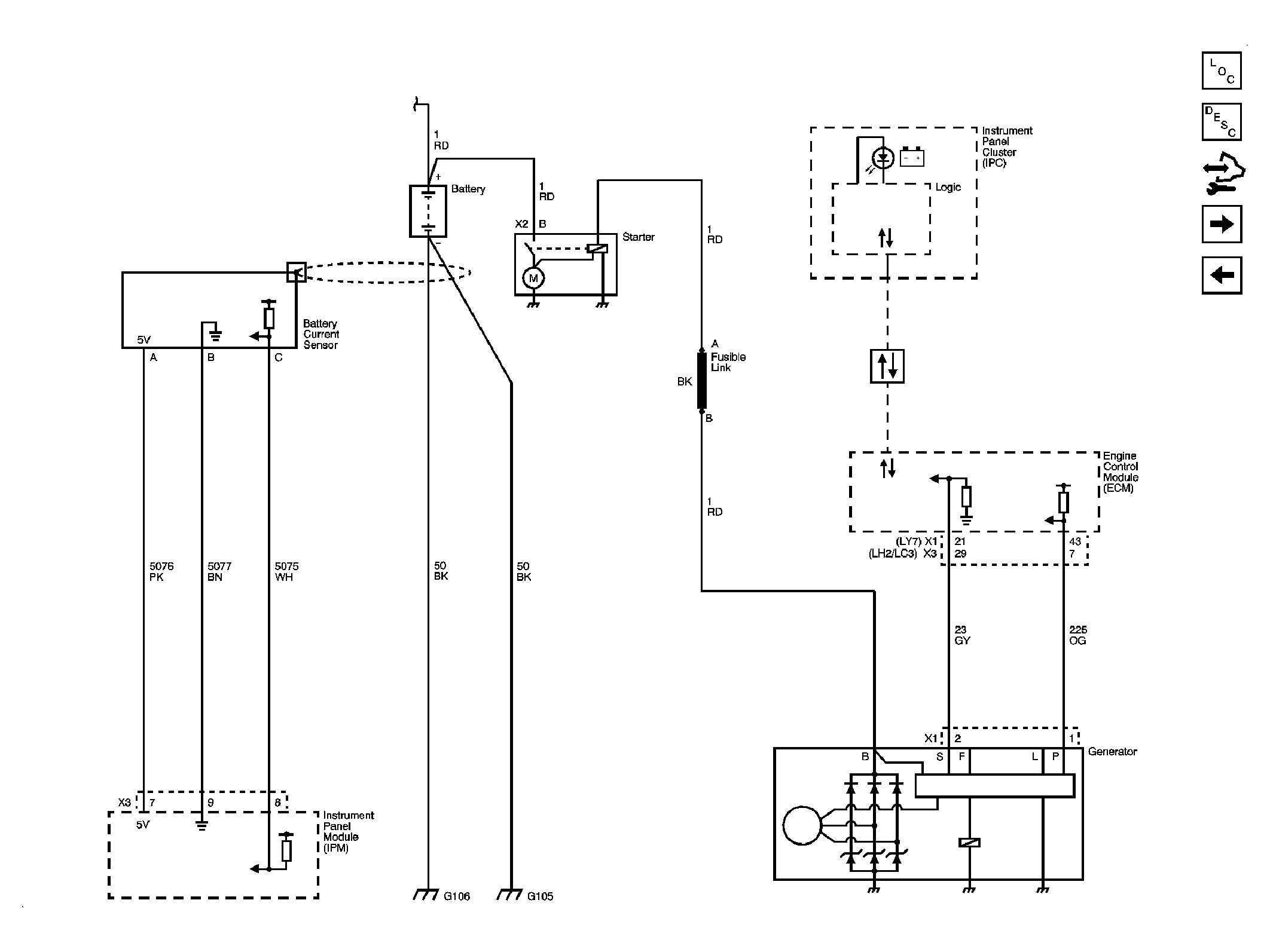

Fig 2: Charging System Schematic
GM1905605Courtesy of GENERAL MOTORS CORP.
Fig 3: Hood Ajar Switch Schematic
GM1905624Courtesy of GENERAL MOTORS CORP.
