Rear Side Door Hinge Replacement

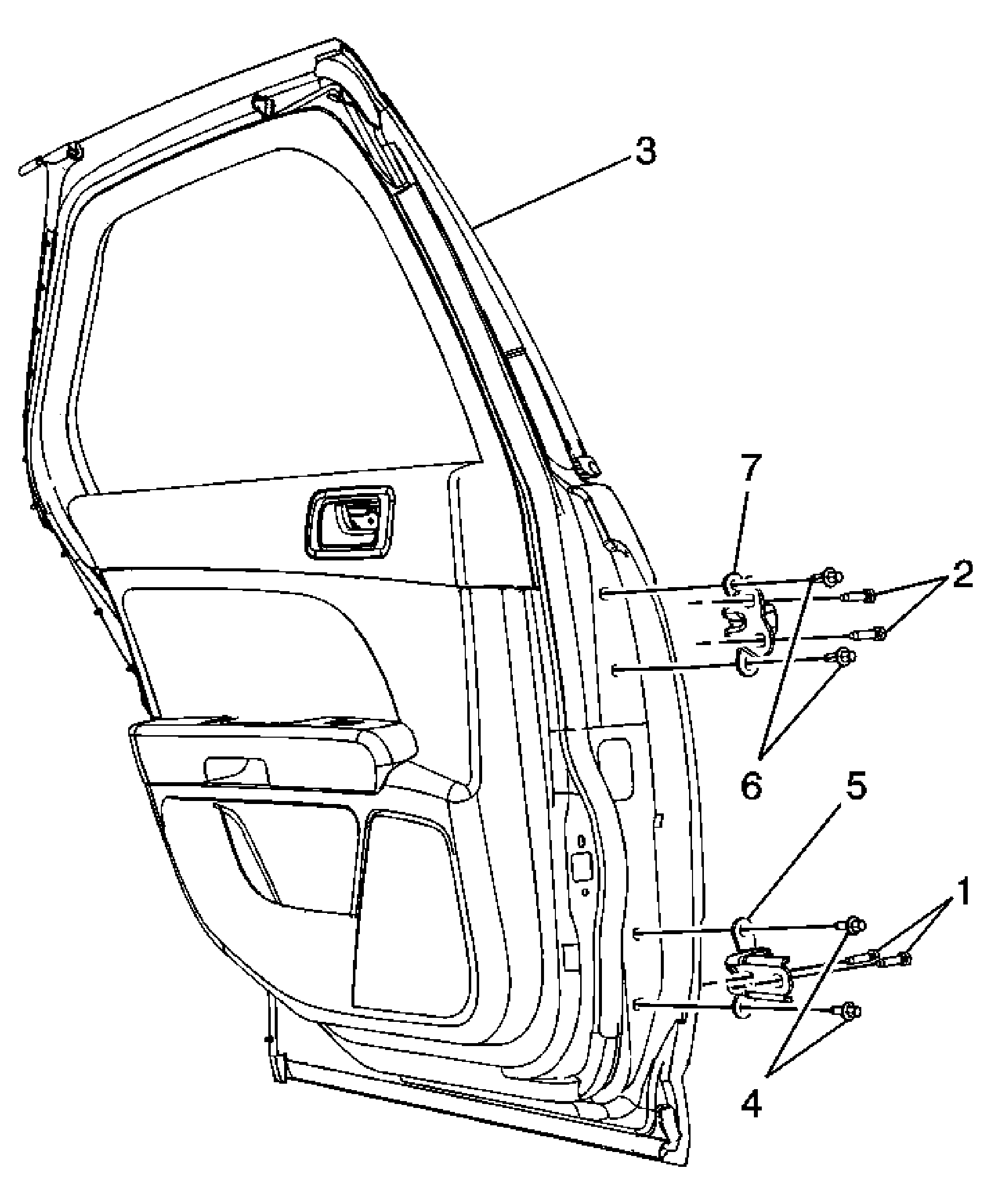

Fig 1: View Of Rear Side Door & Hinge Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Rear Side Door Assembly Replacement
1	Rear Side Door Hinge Lower Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 25 N.m (18 lb ft)
2	Rear Side Door Hinge Upper Bolt (Qty: 2) Tighten: 25 N.m (18 lb ft)
3	Rear Side Door Assembly Tip: Disconnect the rear door wiring harness connector and reconnect when finished with replacement.
Rear Side Door Lower Hinge Assembly Replacement
1	Rear Side Door Hinge Lower Bolt (Qty: 2) Tip: Replace only one hinge at a time. Tighten: 25 N.m (18 lb ft)
4	Rear Side Door Hinge Lower Bolt (Qty: 2) Tip: Replace only one hinge at a time. Tighten: 25 N.m (18 lb ft)
5	Rear Side Door Lower Hinge Assembly
Rear Side Door Upper Hinge Assembly Replacement
2	Rear Side Door Hinge Upper Bolt (Qty: 2) Tip: Replace only one hinge at a time. Tighten: 25 N.m (18 lb ft)
6	Rear Side Door Hinge Upper Bolt (Qty: 2) Tip: Replace only one hinge at a time. Tighten: 25 N.m (18 lb ft)
7	Rear Side Door Upper Hinge Assembly
