Rear Compartment Lid Weatherstrip Replacement

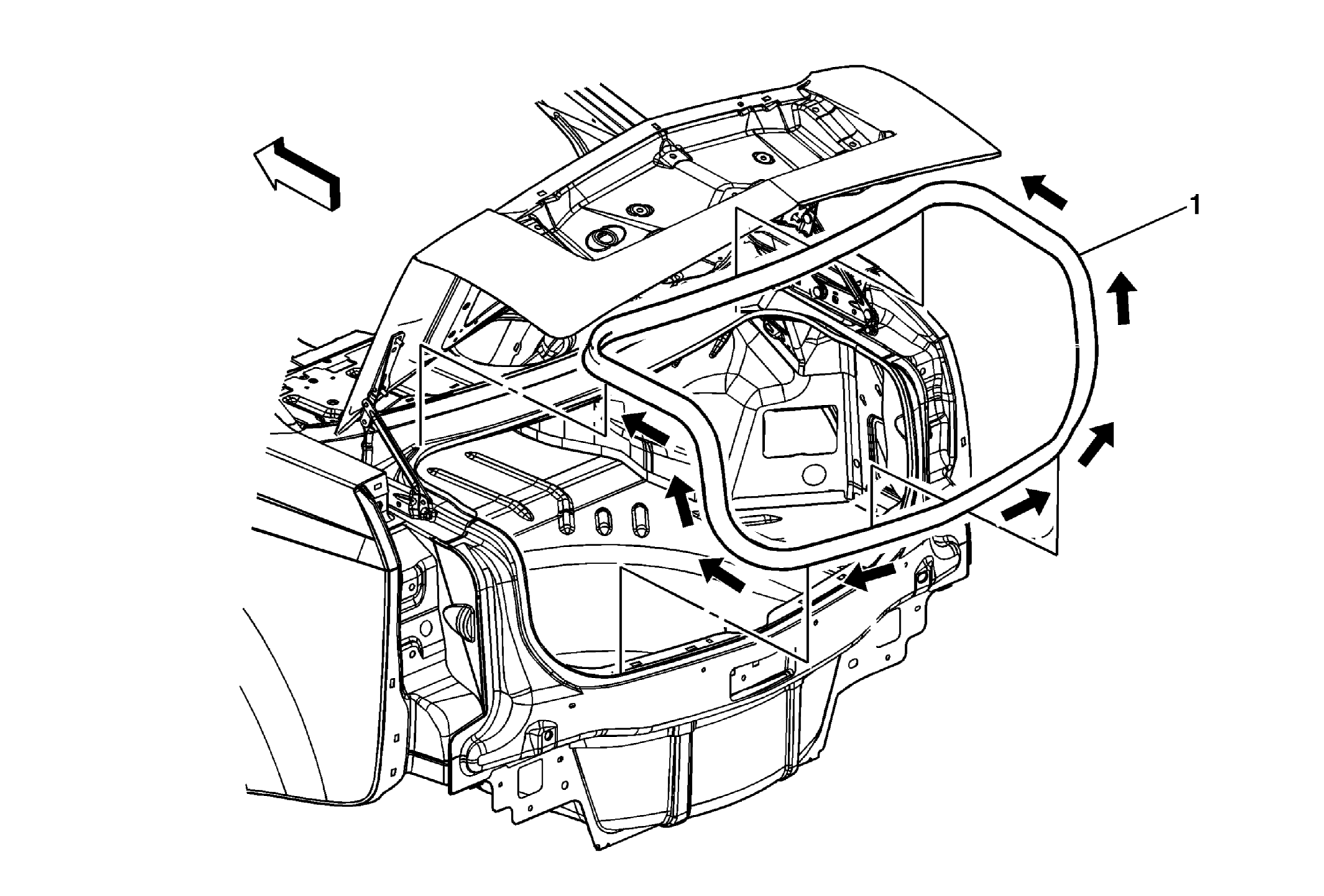

Fig 1: View Of Rear Compartment Lid Weatherstrip

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the rear compartment sill trim plate. Refer to Rear Compartment Sill Trim Plate Replacement .
1	Rear Compartment Lid Weatherstrip Tip:  Ensure the mounting area and weatherstrip channel are clear of any debris before installing or premature wear/leakage may occur.
