Hood Open Assist Rod Replacement

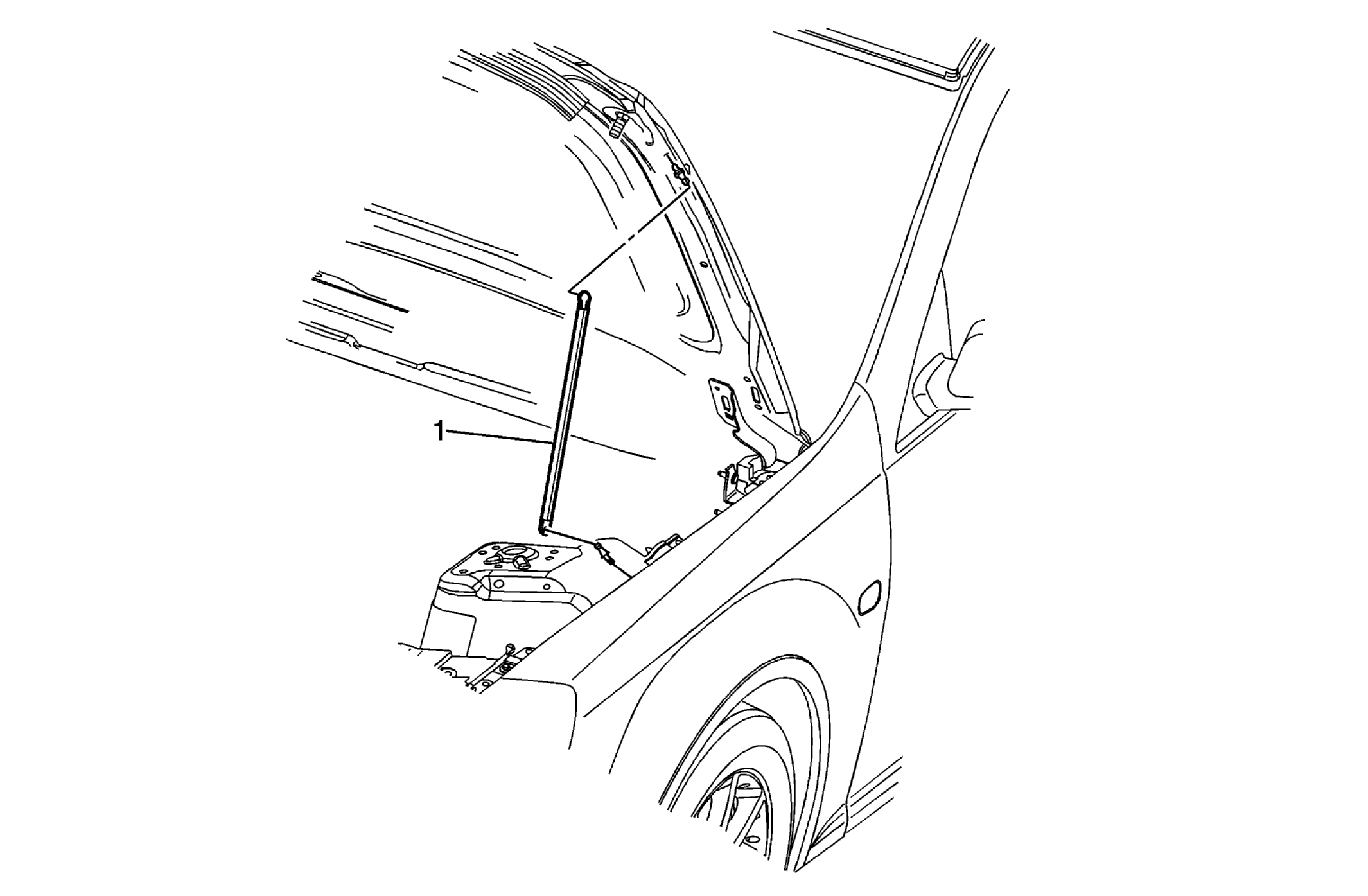

Fig 1: Hood Open Assist Rod
GM1725634Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Hood Open Assist Rod
Tip:  Pry gently on the metal clips on each end of the assist rod with a flat bladed screwdriver to release from the studs.
