Hood Insulator Replacement

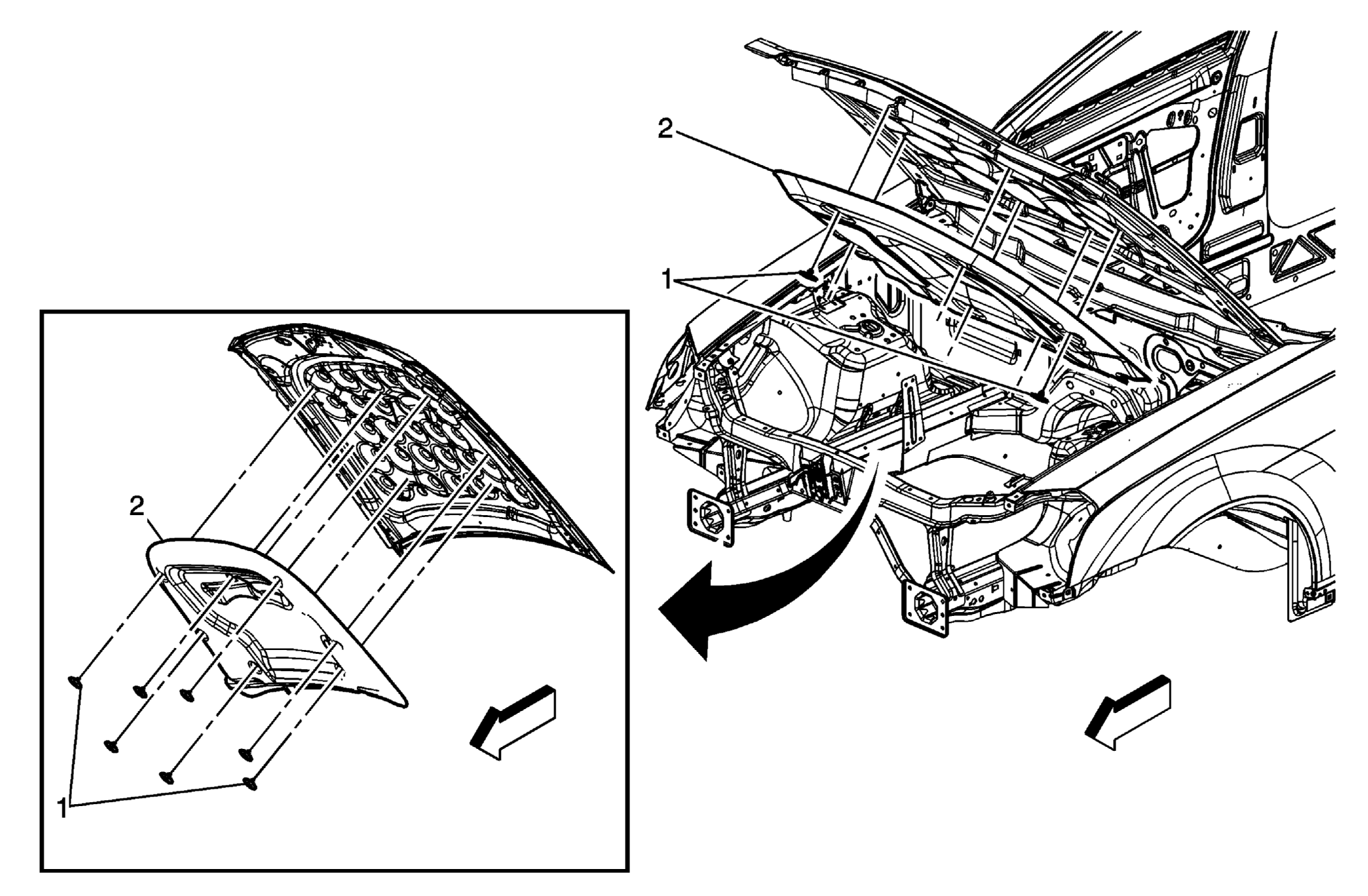

Fig 1: Hood Insulator Replacement
GM1725563Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Hood Insulator Plastic Retainers (Qty: 7)
2 Hood Insulator
Tip:  Use gloves when servicing to avoid irritation to skin.
