Fuel Tank Filler Pipe Housing Replacement

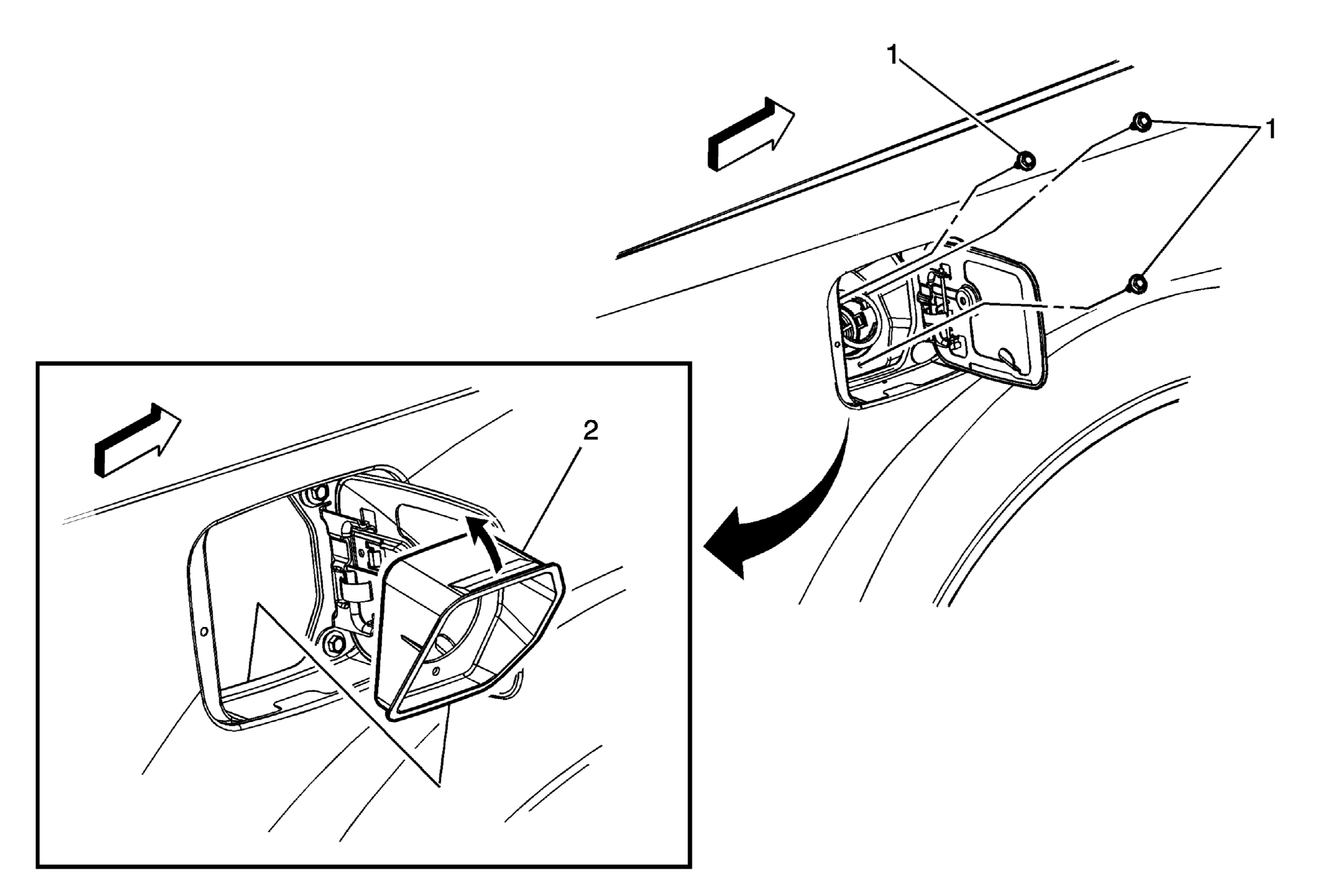

Fig 1: View Of Fuel Tank Filler Pipe Housing & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Tank Filler Pipe Housing Bolts (Qty: 3) NOTE: Refer to Fastener Notice . Tighten:  5 N.m (44 lb in)
2	Fuel Tank Filler Pipe Housing Tip:  Maneuver the fuel tank filler pipe housing out by flexing it to release the plastic retaining tabs.
