Front Side Door Hinge Replacement

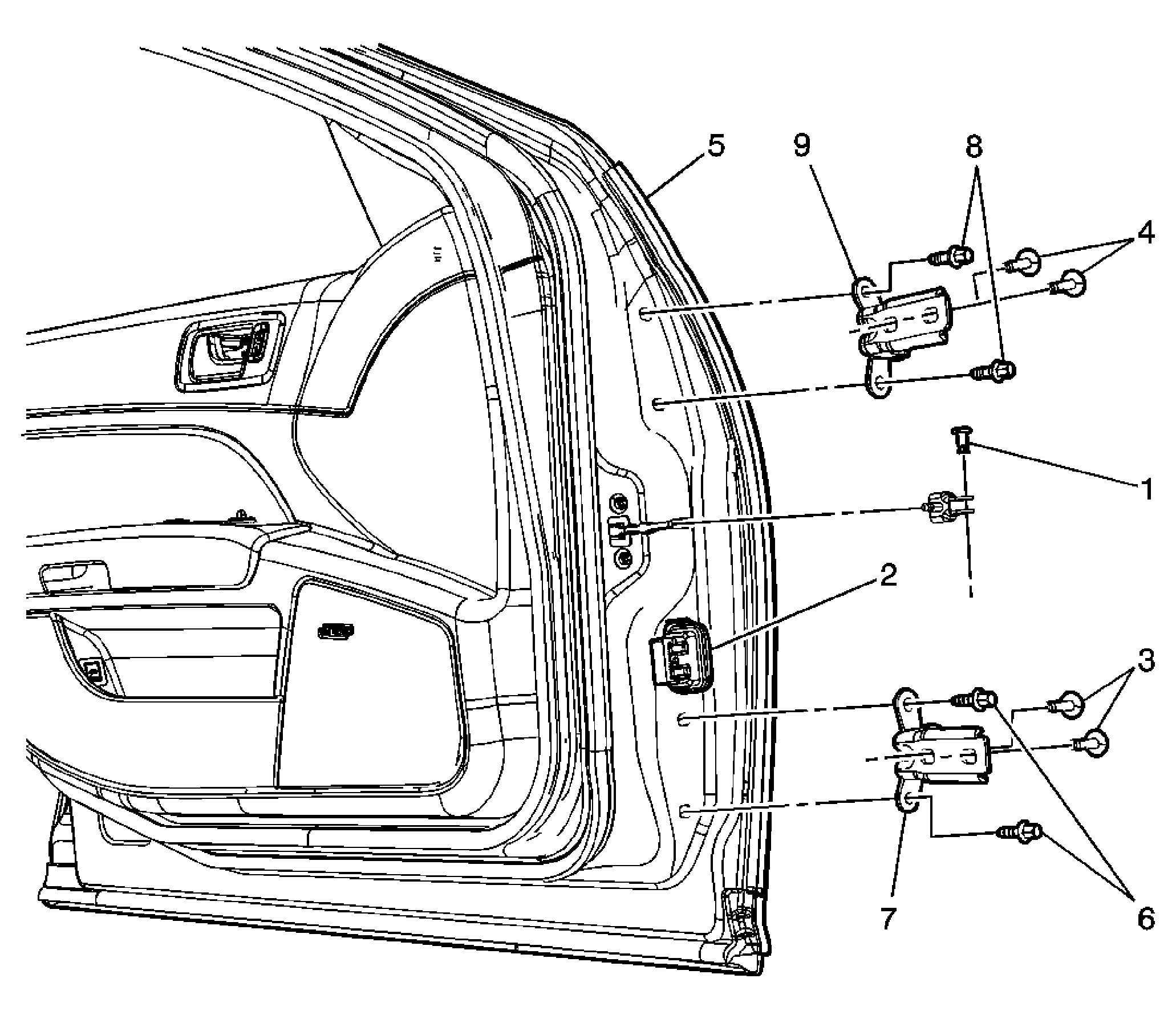

| Callout | Component Name |
|---|---|
| Front Side Door Assembly Replacement | |
| 1 | Front Side Door Check Link Screw
NOTE:
Refer to Fastener Notice
.
Tighten: 9 N.m (80 lb in) |
| 2 | Front Side Door Wiring Harness Tip: Disconnect door wiring harness and reconnect when replacement is complete. |
| 3 | Front Side Door Hinge Lower Bolt (Qty: 2) Tighten: 25 N.m (18 lb ft) |
| 4 | Front Side Door Hinge Upper Bolt (Qty: 2) Tighten: 25 N.m (18 lb ft) |
| 5 | Front Side Door Assembly
NOTE:
Striker alignment is a crucial part of door latch operation. Do not use the door striker to adjust the door to the vehicle. Failure to properly adjust the striker can result in damage to the door latch and the striker. Tip: Check the door for proper alignment, adjust as necessary. Refer to Door Adjustment . |
| Front Side Door Lower Hinge Assembly Replacement | |
| 3 | Front Side Door Hinge Lower Bolt (Qty: 2) Tip: Replace only one hinge at a time. Tighten: 25 N.m (18 lb ft) |
| 6 | Front Side Door Hinge Lower Bolt (Qty: 2) Tip: Replace only one hinge at a time. Tighten: 25 N.m (18 lb ft) |
| 7 | Front Side Door Lower Hinge Assembly
NOTE:
Striker alignment is a crucial part of door latch operation. Do not use the door striker to adjust the door to the vehicle. Failure to properly adjust the striker can result in damage to the door latch and the striker. Tip: Check the door for proper alignment, adjust as necessary. Refer to Door Adjustment . |
| Front Side Door Upper Hinge Assembly Replacement | |
| 4 | Front Side Door Hinge Upper Bolt (Qty: 2) Tip: Replace only one hinge at a time. Tighten: 25 N.m (18 lb ft) |
| 8 | Front Side Door Hinge Upper Bolt (Qty: 2) Tip: Replace only one hinge at a time. Tighten: 25 N.m (18 lb ft) |
| 9 | Front Side Door Upper Hinge Assembly
NOTE:
Striker alignment is a crucial part of door latch operation. Do not use the door striker to adjust the door to the vehicle. Failure to properly adjust the striker can result in damage to the door latch and the striker. Tip: Check the door for proper alignment, adjust as necessary. Refer to Door Adjustment . |
