Front Side Door Auxiliary Weatherstrip Replacement

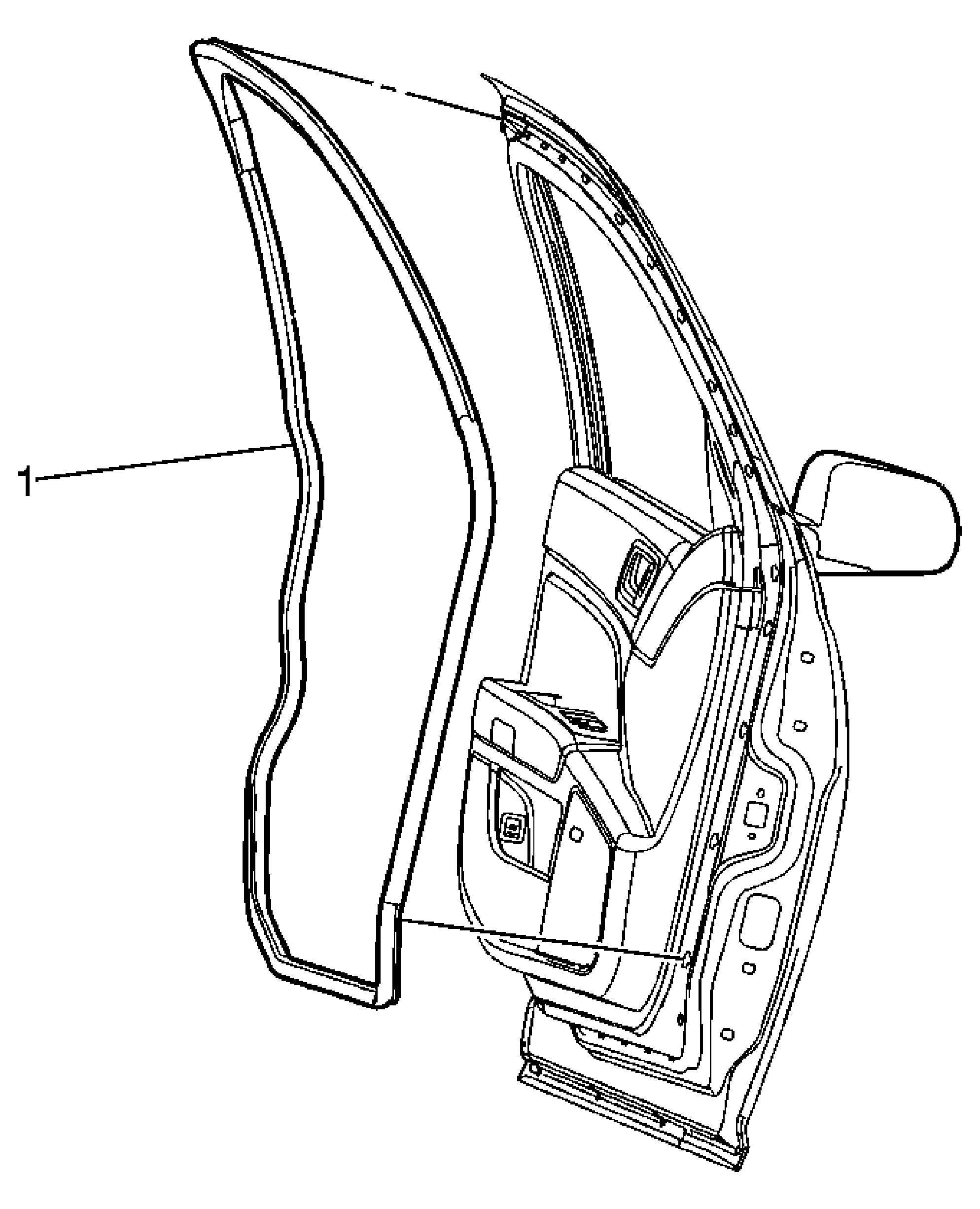

Fig 1: Front Side Door Auxiliary Weatherstrip
GM1832008Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Side Door Auxiliary Weatherstrip
Tip:
  1. Open the door.
  2. The weatherstrip is attached to the inner frame of the door with retainer.
