Front Fender Replacement

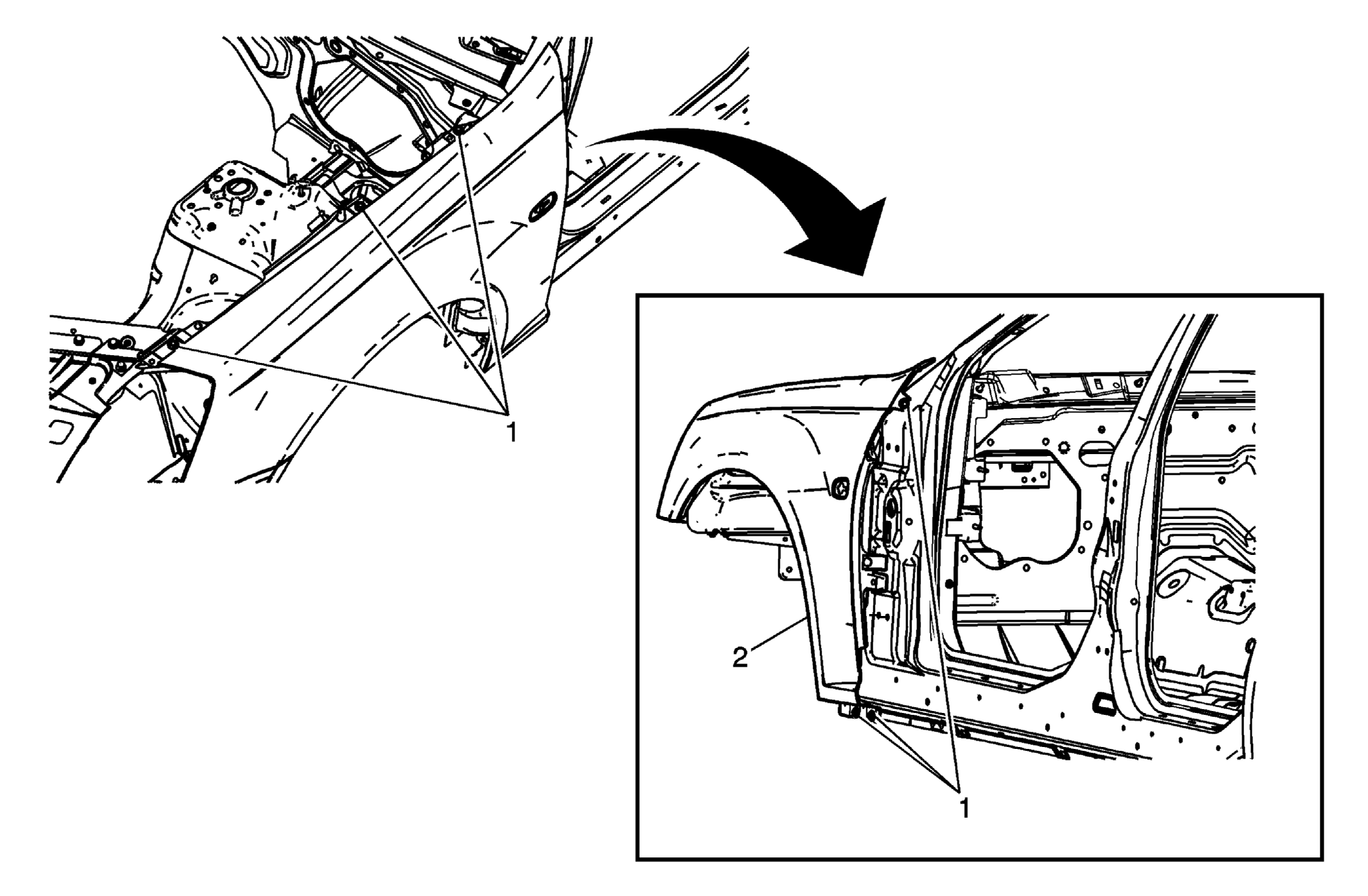

Fig 1: Front Fender Replacement
GM1729346Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the headlamp. Refer to Headlamp Replacement .
  2. Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
  3. Remove the rocker panel molding. Refer to Rocker Panel Molding Replacement .
1 Front Fender Bolt (Qty: 6)
NOTE: Refer to Fastener Notice .

Tip:  Use a grease pencil to mark the location of the fender before removing the bolts.

Tighten:  9 N.m (80 lb in)
2 Front Fender
Tip:
  • Disconnect any electrical connectors.
  • Transfer any parts as needed.
