Front Door Opening Weatherstrip Replacement

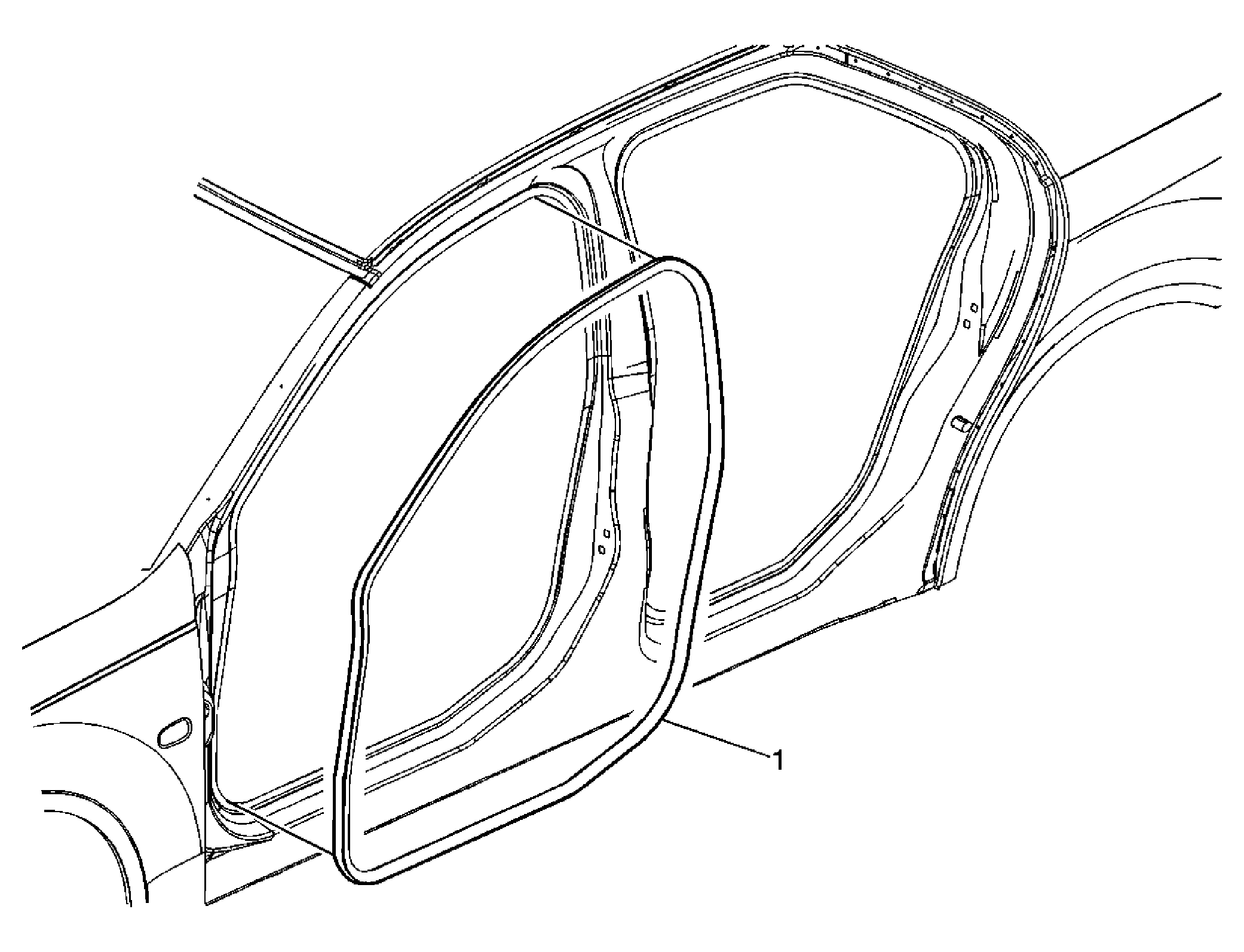

Fig 1: Front Door Opening & Weatherstrip
GM1832019Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the front door carpet retainer and reinstall when replacement is complete. Refer to Front Carpet Retainer Replacement .
1 Front Side Door Auxiliary Weatherstrip
