Instrument Cluster Head Up Display Replacement

Instrument Cluster Head Up Display Replacement

Removal Procedure

1. Remove the instrument panel (I/P) retainer. Refer to Instrument Panel Retainer Replacement (Service and Repair) .

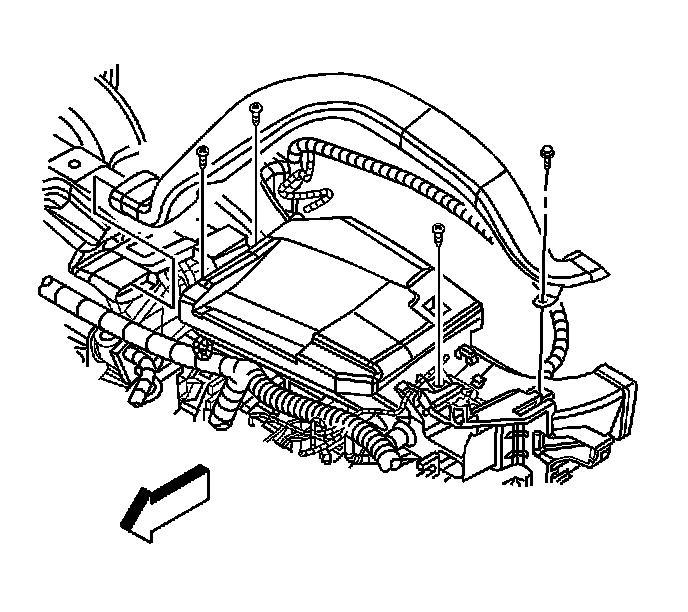

2. Remove the screws securing the heads up display to the I/P.
3. Disconnect the electrical connectors.



Installation Procedure





1. Connect the electrical connectors.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the screws securing the heads up display to the I/P.

Tighten the screws to 2 N.m (18 lb in).

3. Install the I/P retainer. Refer to Instrument Panel Retainer Replacement (Service and Repair) .
